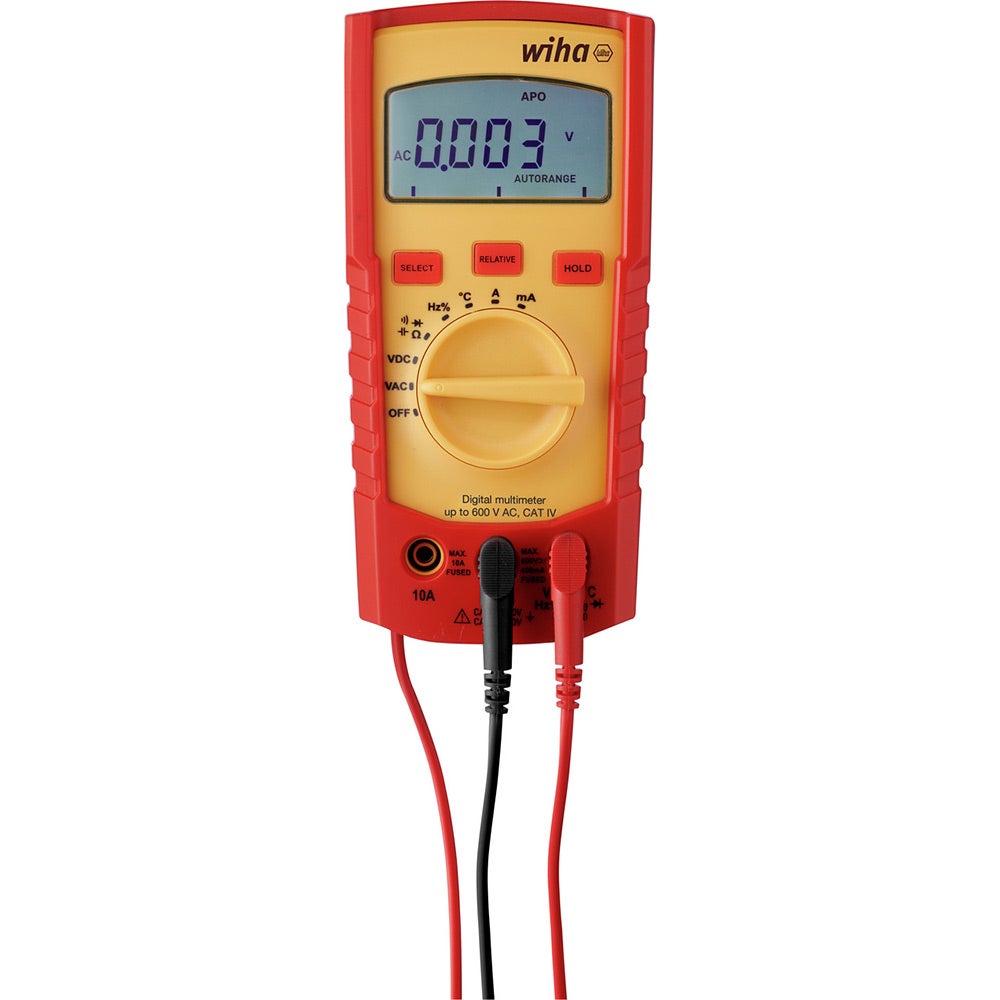

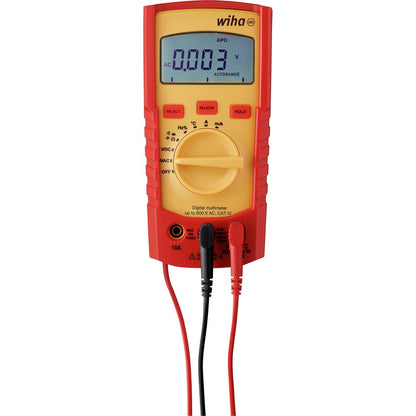

WIHA 600V CAT IV Multimeter 45218

Features

• Measures voltage, current, resistance, frequency, capacity, and temperature
• Includes continuity and diode tests
• Large LCD display for easy reading of results
• Automatic measuring range selection eliminates manual settings
• Stores previous measurements for comparison
• Acoustic signal indicates current flow during continuity checks
• Measurement categories CAT III up to 600 V and CAT IV up to 300 V for safety
• All essential measurement functions in one device

Specifications

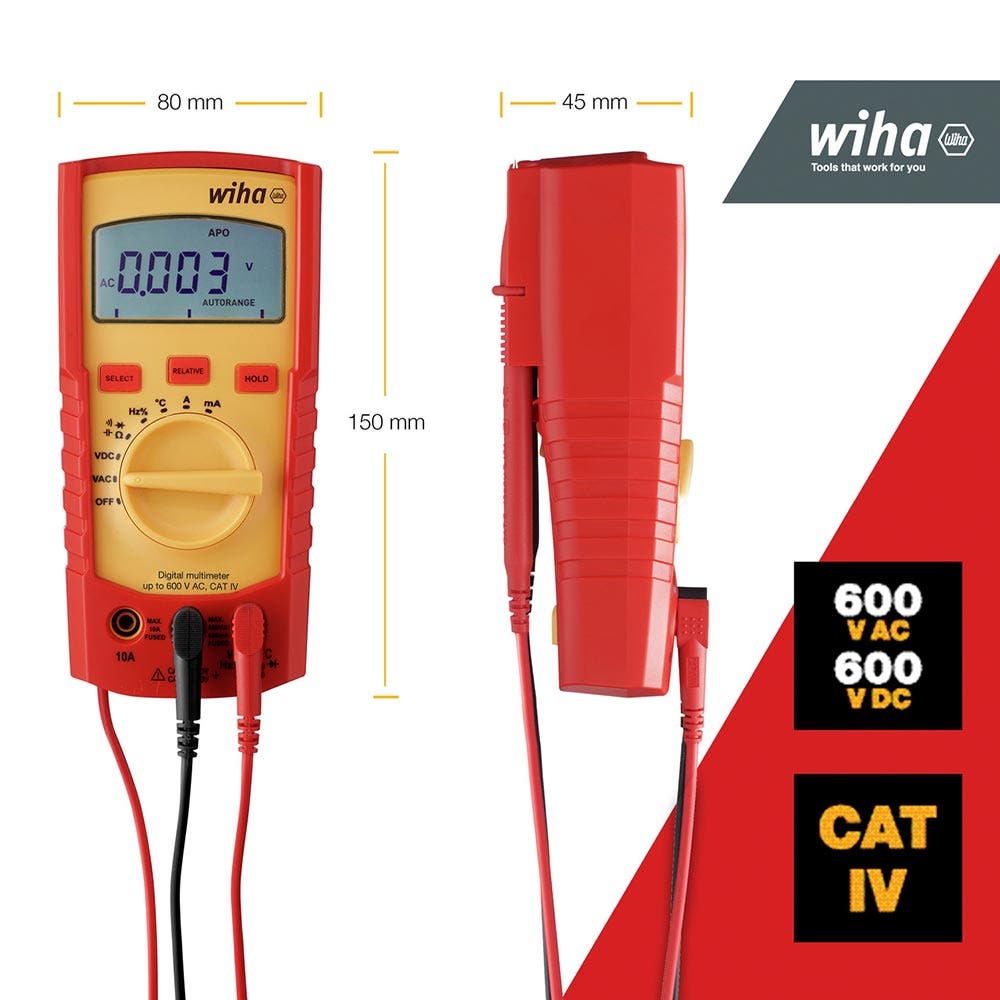

• Dimensions: 150 x 80 x 45 mm
• Standards: EN 61010-1, EN 61010-2-033, EN 61010-031, IP 40, CE, GS CAT III 600V / CAT IV 300V
• Digital multimeter up to 600 V AC, CAT IV
• Battery: 2x AAA batteries
• Current A AC: 10
• Current A DC: 10
• Voltage V AC min max: 0 - 600
• Voltage V DC min max: 0 - 600
• Resistance: 40 M
• Frequency: 5 MHz
• Contamination level: 2
• Measurement range selection: automatic
• Data HOLD: Yes
• Relative value measurement: Yes
• Battery status display: Yes
• Measuring category: CAT IV 300 V / CAT III 600 V
• Display: 4,000 digits
• Protection class: IP 40
• Temperature measurement range: -20 to 500°C
• Diode test: Yes, up to 2V
• Operating temperature: 0°C - 50 °C
• Storage temperature: -10°C - 50 °C
• Height above sea level: 2000m
• Overall length: 150 mm
• Capacity: 100 nF
• Acoustic signal: Yes
