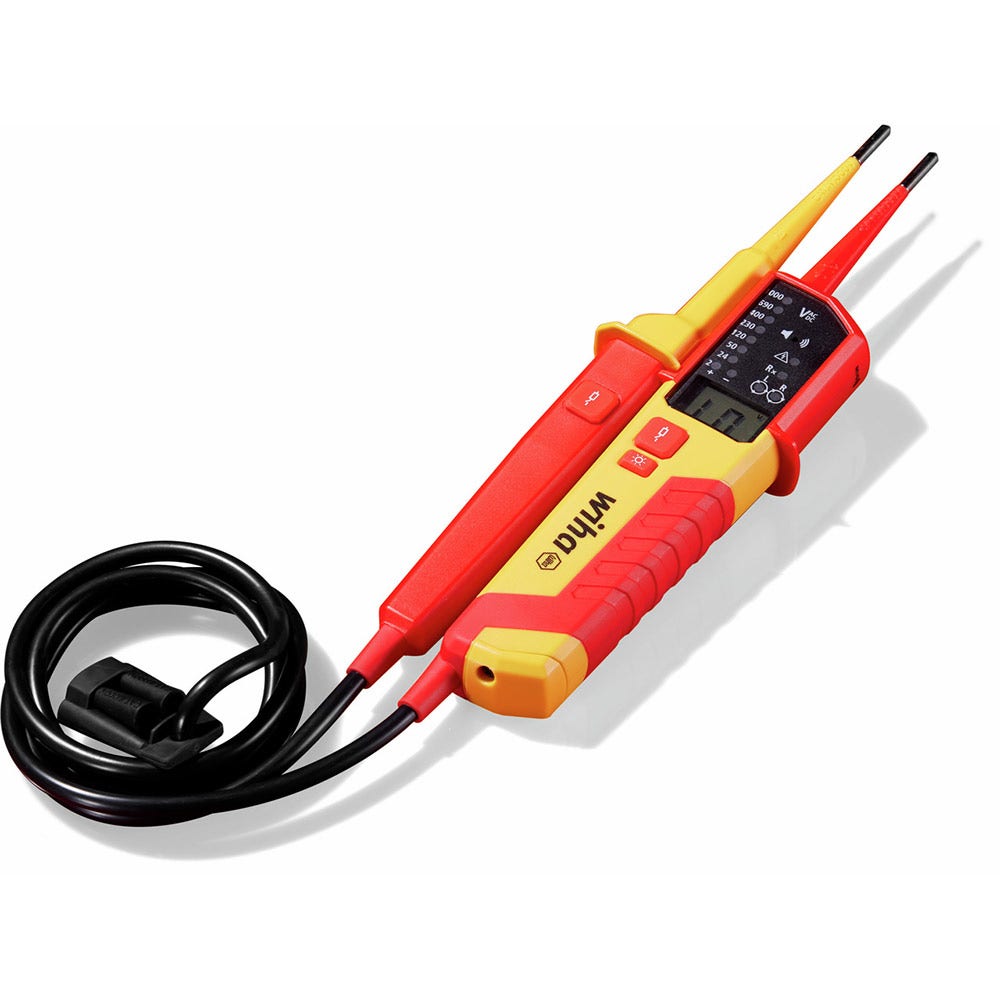

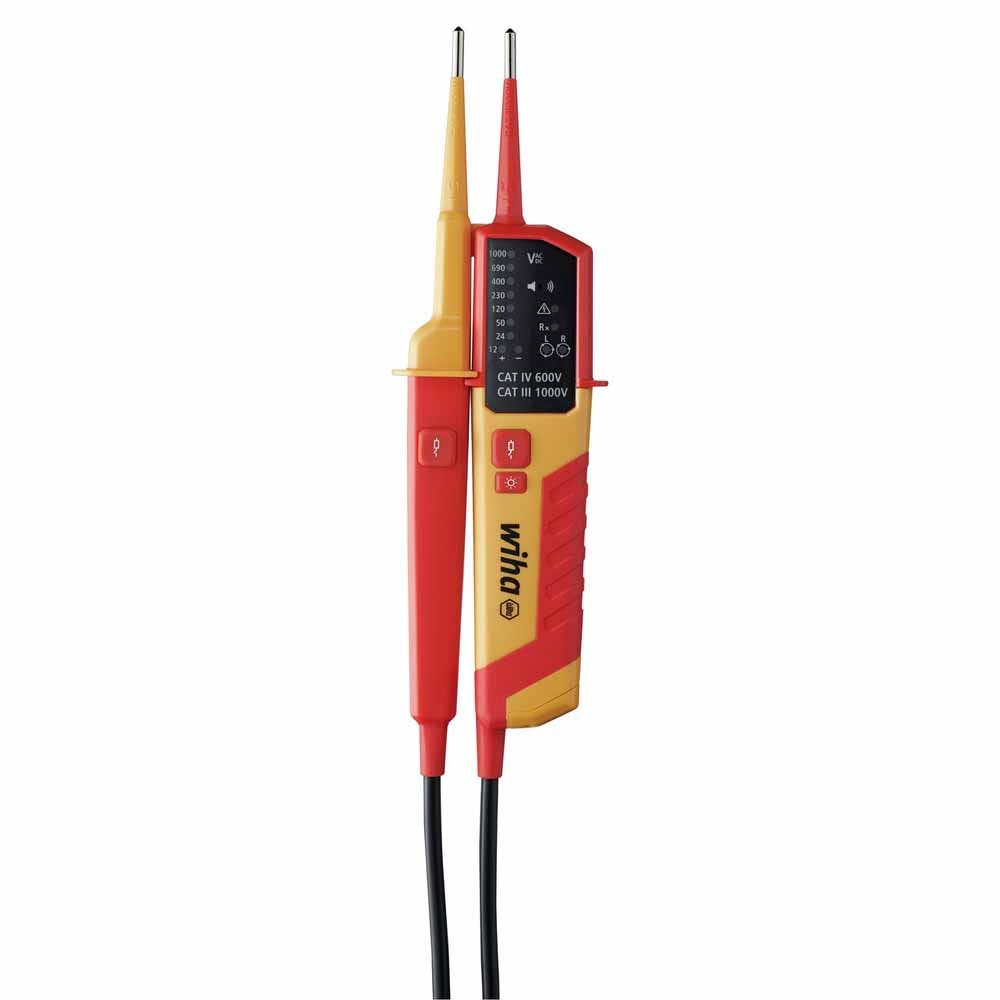

WIHA 12-1000VAC Voltage Tester 45216

Features

• Voltage and continuity tester for 12 V to 1,000 V AC or 1,500 V DC

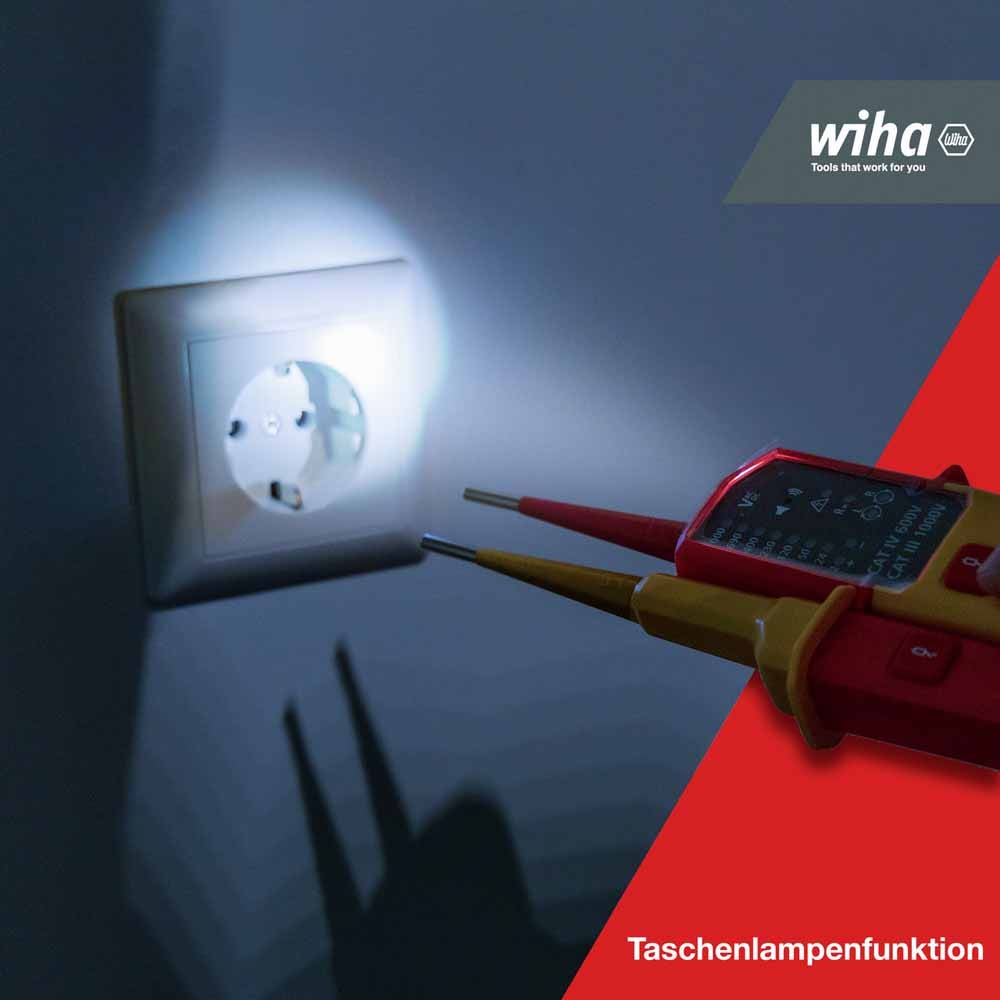

• Integrated flashlight for optimal illumination

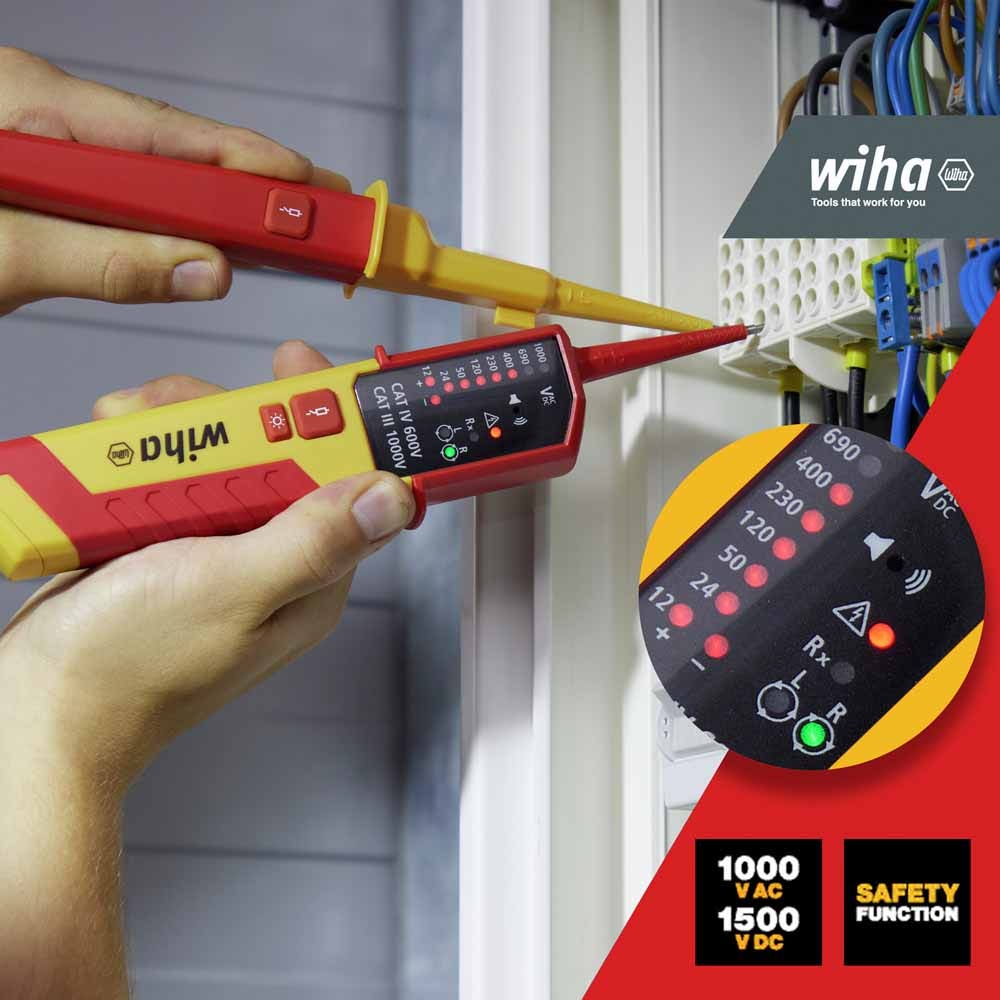

• LED display for easy reading of measurements
• Acoustic signal indicates current flow during continuity checks
• Single-pole testing capability

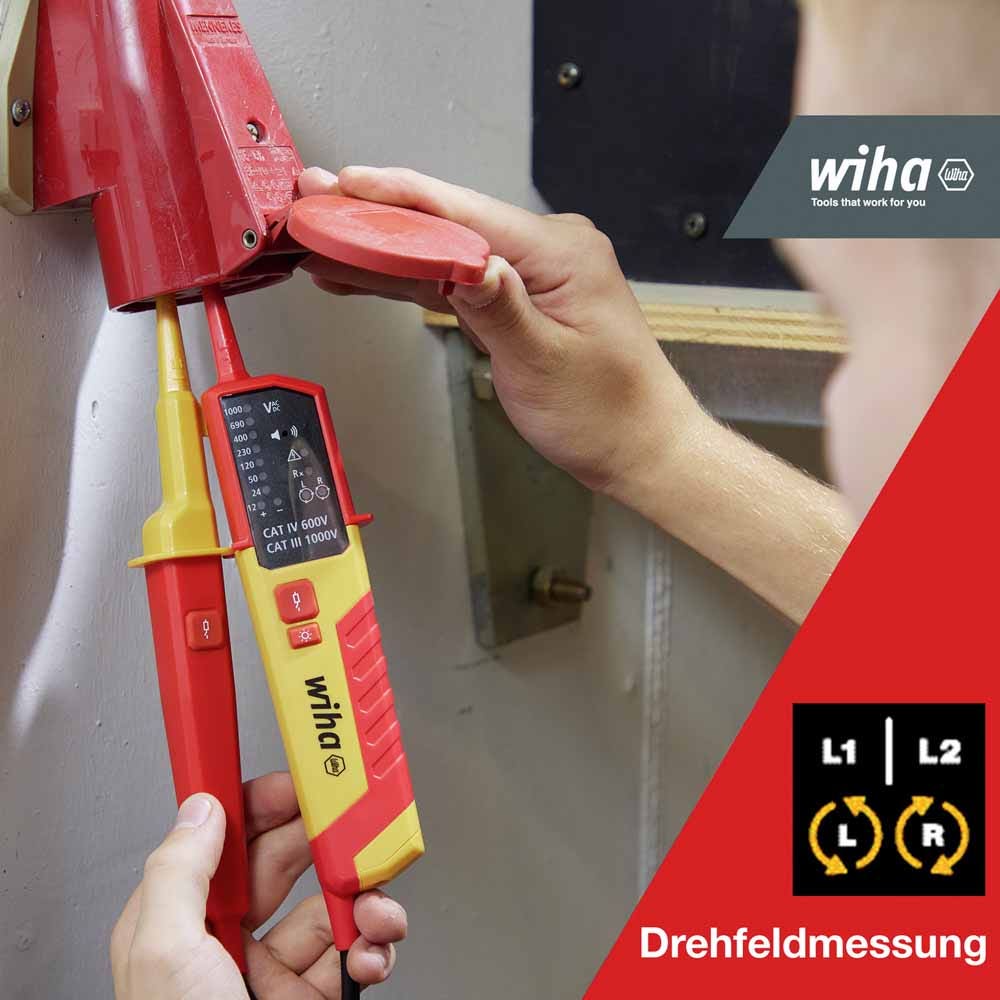

• Optical rotational field testing
• Automatic polarity detection
• Ability to test RCDs

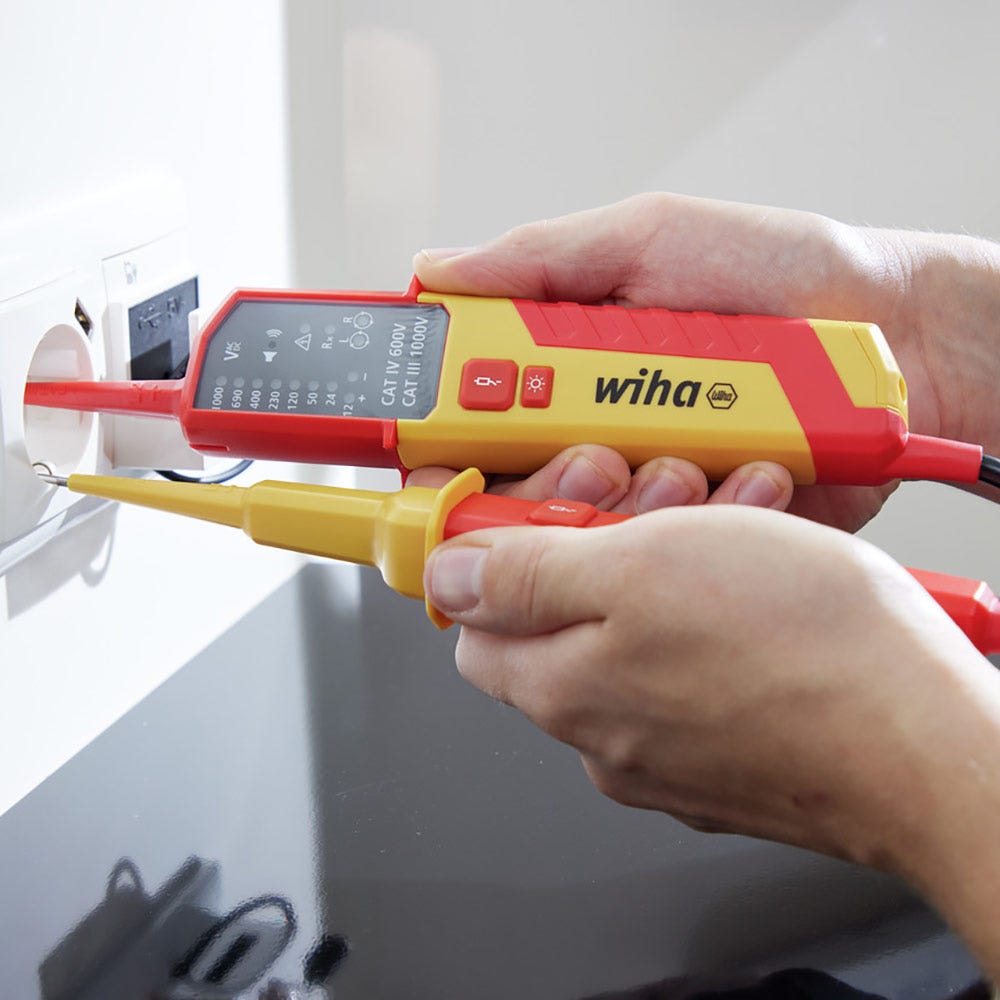

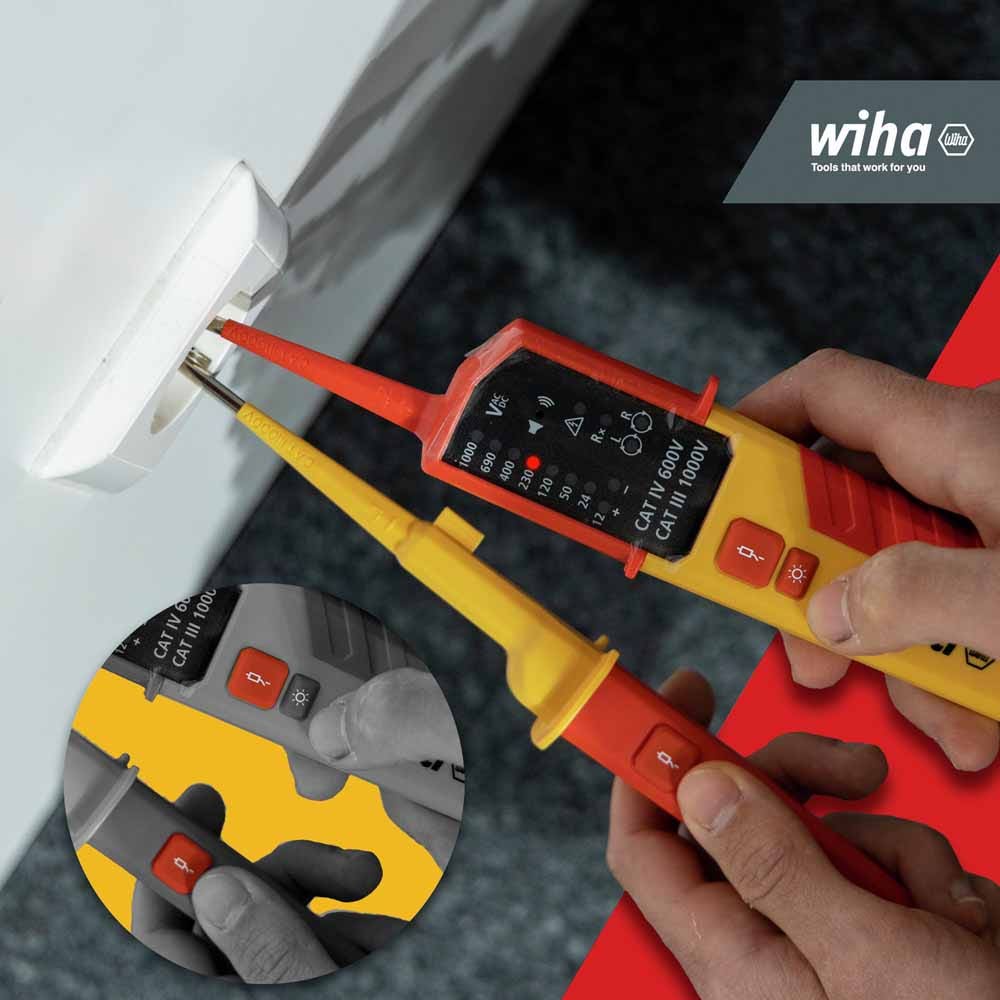

• Integrated spacer for one-handed operation on sockets
• Maximum safety per measurement categories CAT III up to 1,000 V and CAT IV up to 600 V
• Simultaneous button press for FI protective switch functional test

Specifications

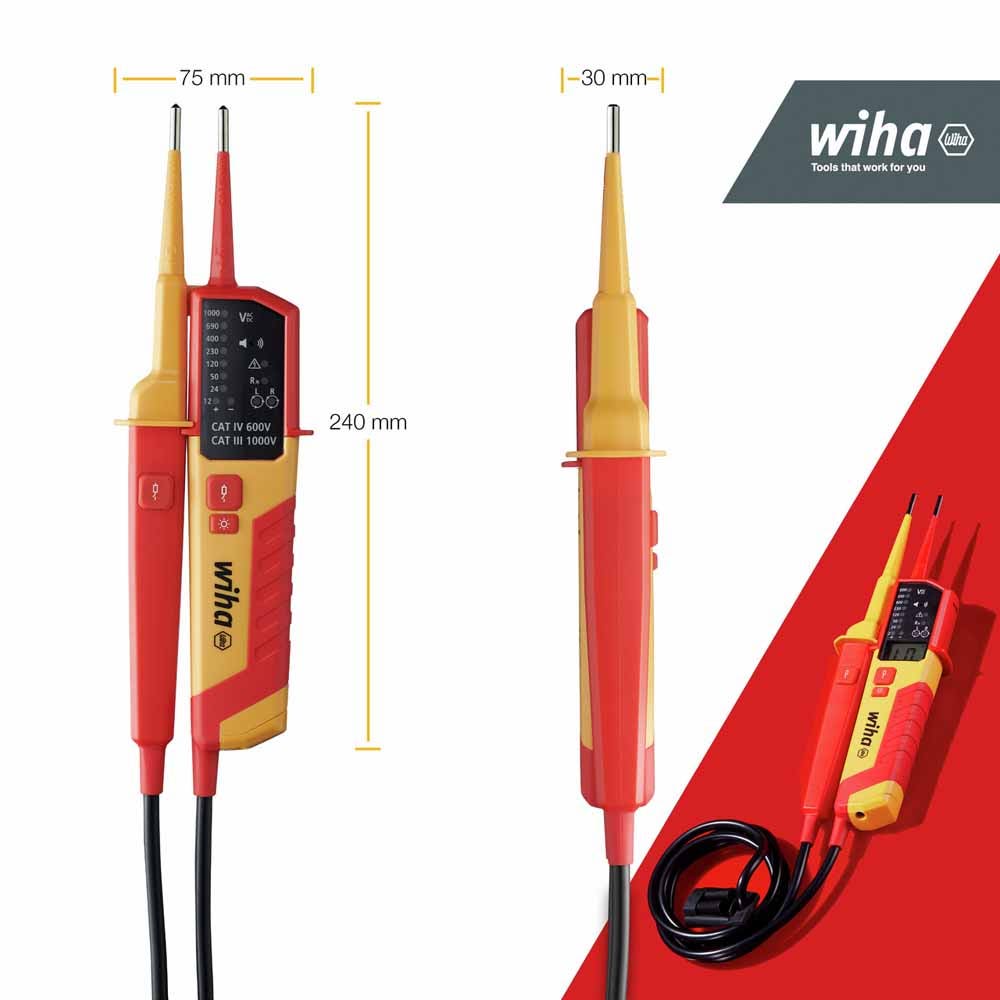

• Dimensions: 240 x 75 x 30 mm
• Standards: IEC 61243-3:2014, IP64, CE CAT II 1,000 V / CAT IV 600 V
• Battery: 2x AAA batteries
• Contamination level: 2
• Protection class: IP 64
• Operating temperature: -15°C to 50°C
• Storage temperature: -20°C to 60°C
• Height above sea level: 2000 m
• Single-pole phase test: 100 - 700 V AC
• Rotation field test: 170 - 1,000 V phase to phase AC 50/60 Hz
• Permeability test: Measuring range 0 - 500 k + 50%
• LED ELV display: > 50 VAC, > 120 V DC
• Humidity: max 85% RH
• Battery consumption: about 80 mA
• Overall length: 282 mm
