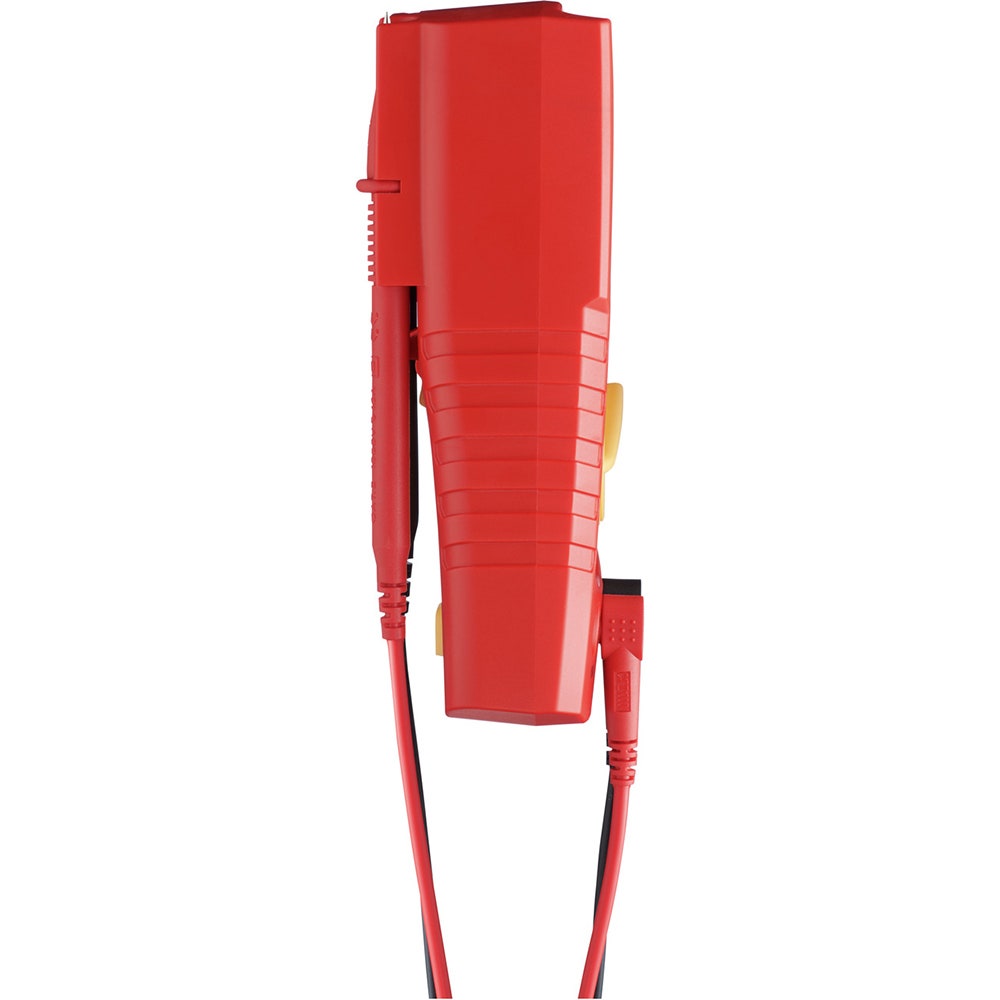

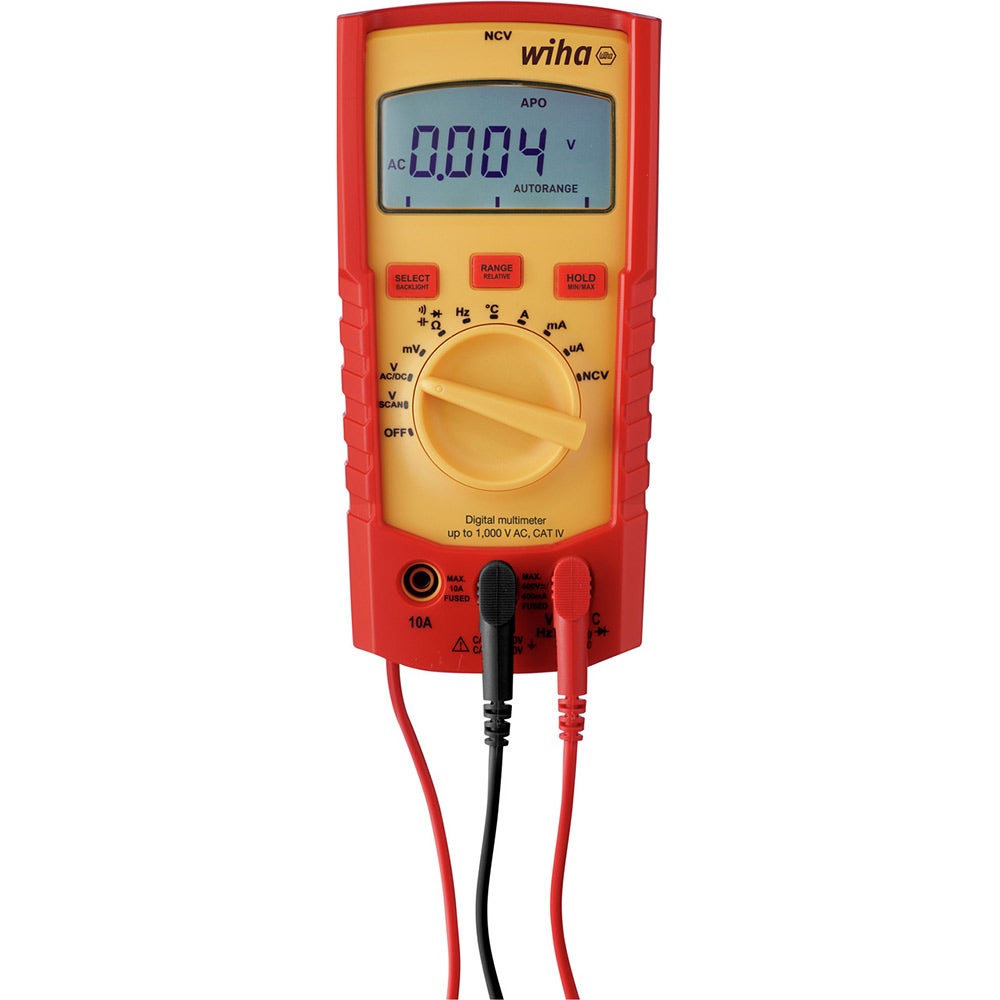

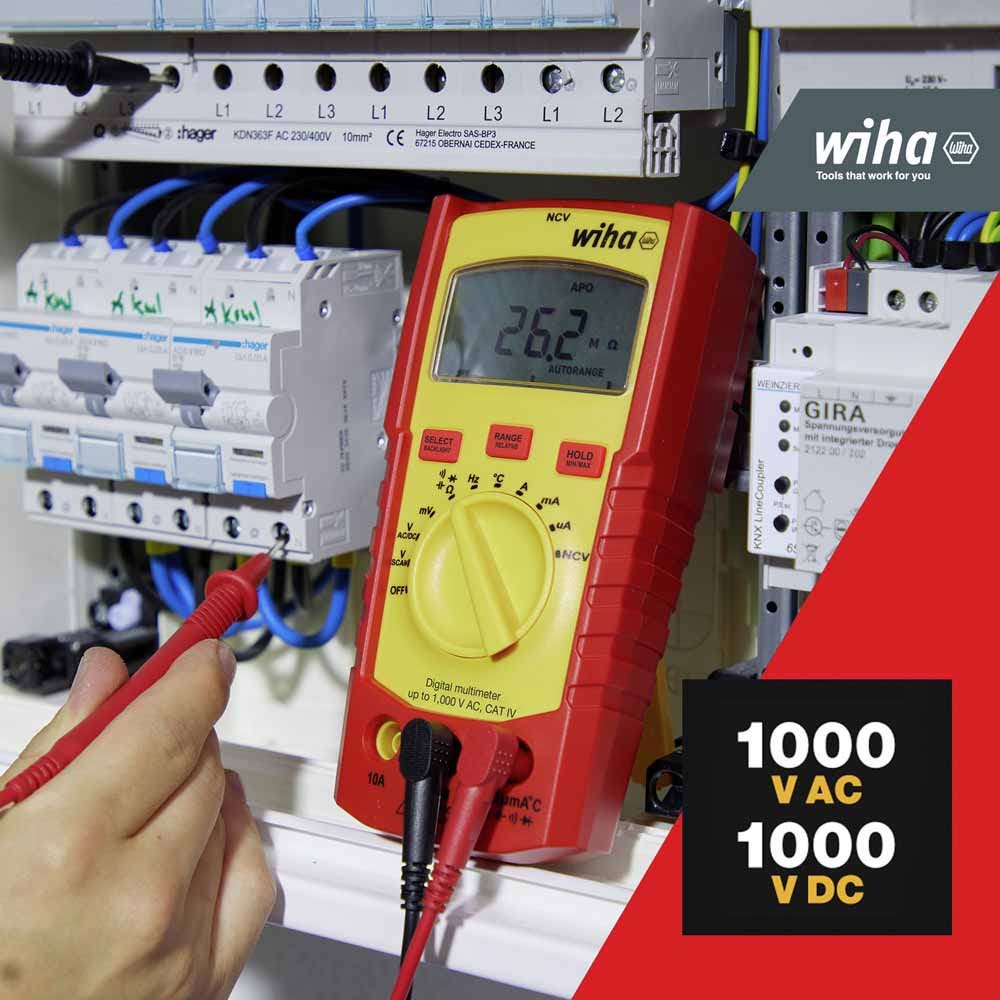

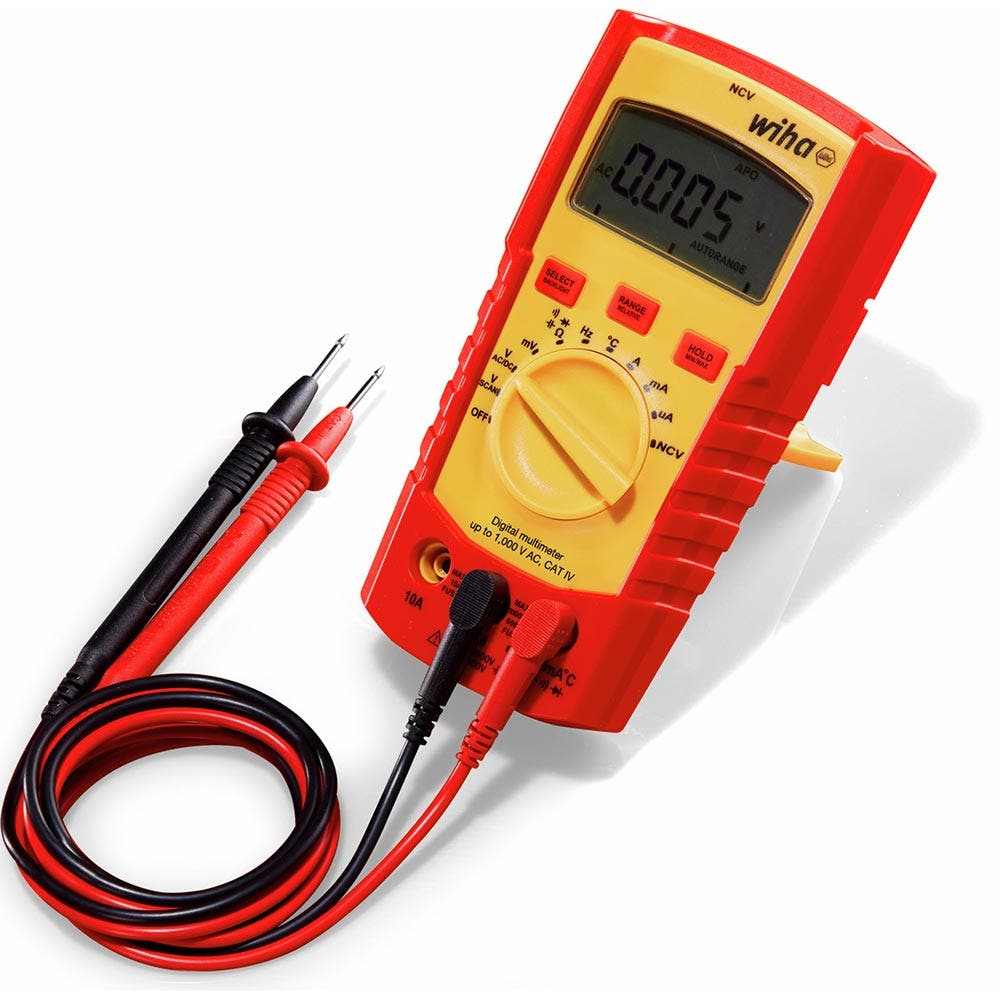

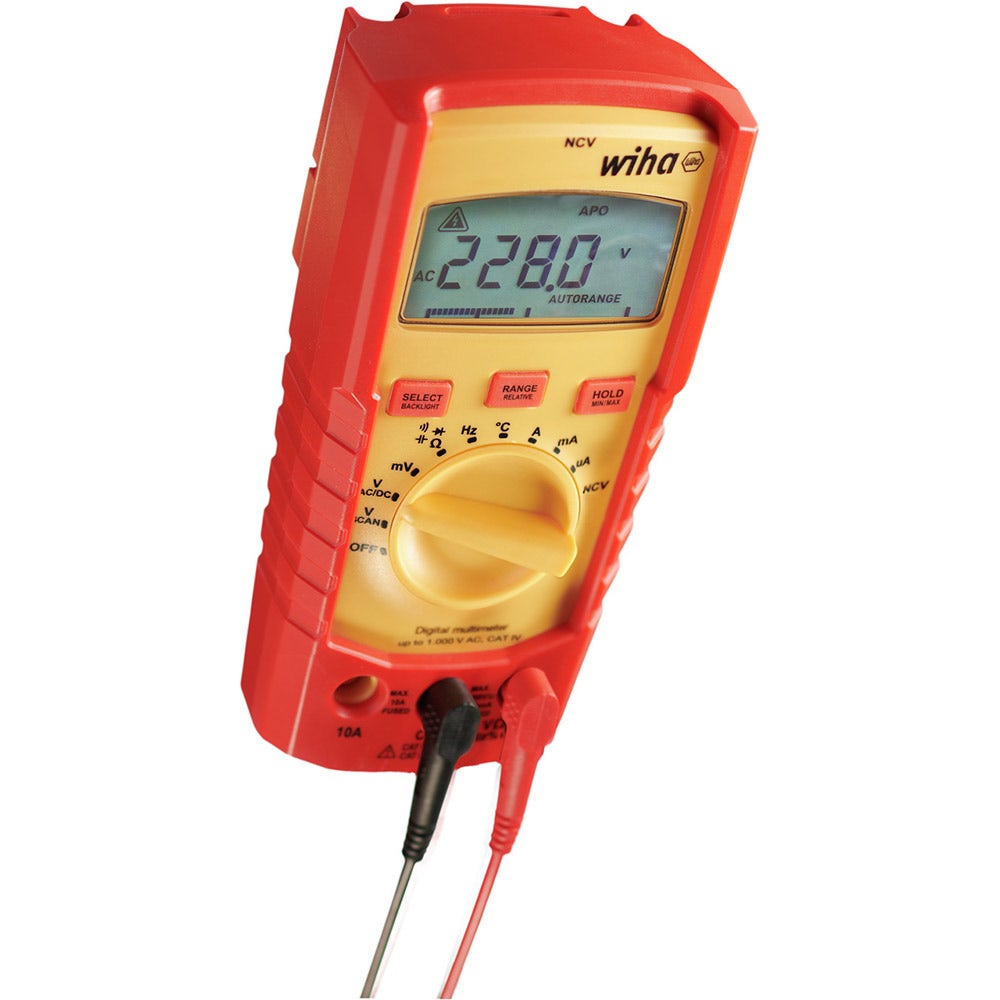

WIHA 1000V CAT IV Multimeter 45215

Features

• Multimeter covers essential measurements for electricians
• Measures voltage, current, resistance, frequency, capacity, and temperature
• Continuity and diode tests available
• Large LCD display with background illumination for easy reading
• Bar graph display for quick recognition of changes
• Signal sound indicates current flow during continuity checks
• Automatic measurement range selection eliminates manual pre-selection
• TRUE-RMS function for accurate application of results
• Stores previous measurement values for comparison
• Generates minimum and maximum values for optimal result finding
• Maximum safety with CAT III up to 1000 V AC and CAT IV up to 600 V

Specifications

• Standards: EN 61010-1, EN 61010-2-033, EN 61010-031, IP40, CE CAT III 1000V / CAT IV 600V
• Battery: 2x AAA batteries
• Current A AC: 10
• Current A DC: 10
• Voltage V AC min max: 0 - 1000
• Voltage V DC min max: 0 - 1000
• Resistance (M?): 200 M?
• Frequency (MHz): 60 MHz
• Contamination level: 2
• True RMS: Yes
• Measurement range selection: automatic/manual
• Remote voltage test: Yes
• Data HOLD: Yes
• Relative value measurement: Yes
• Battery status display: Yes
• Background illumination: Yes
• Min. measurement: Yes
• Max. measurement: Yes
• Measuring category: CAT IV 600 V / CAT III 1,000 V
• Display: 6,000 digits
• Protection class: IP 40
• Fuse: F 600 mA / 1,000 V ceramic 6,3 x 32 and F 10 A / 1,000 V ceramic 6,3 x 32

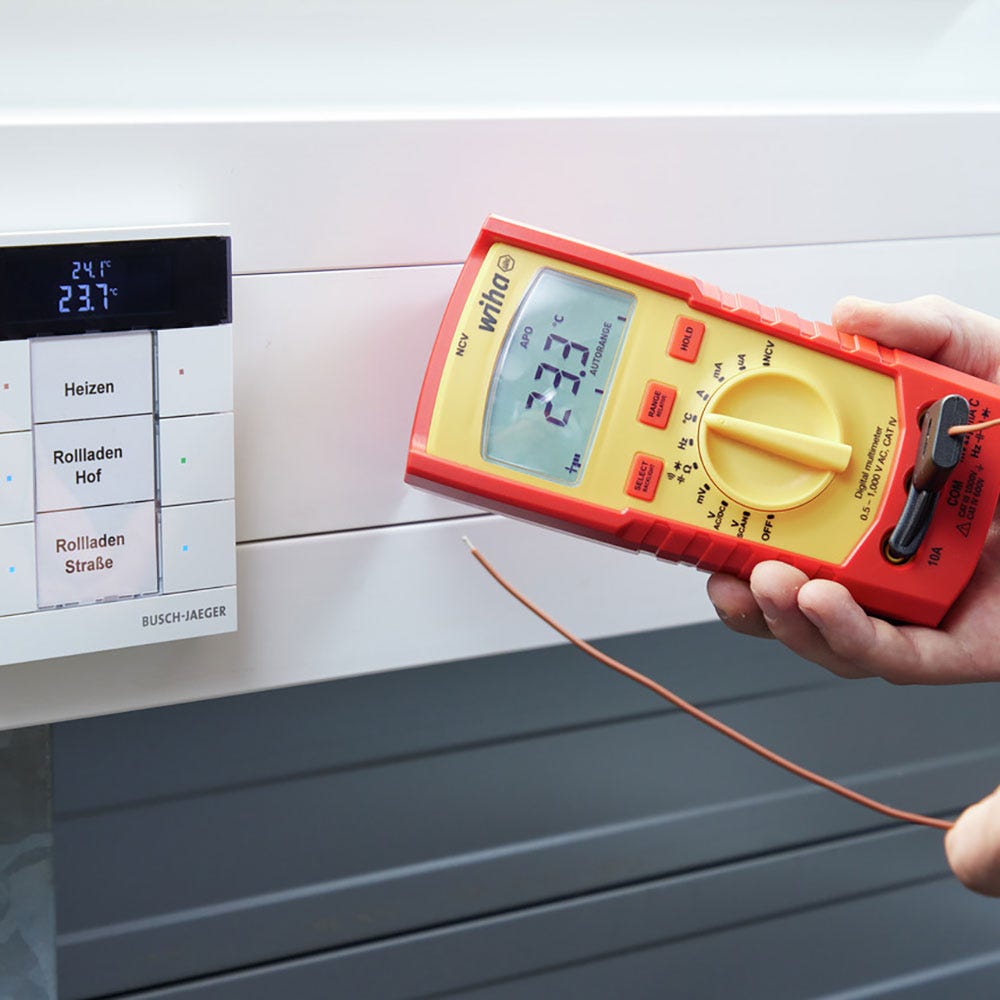

• Temperature measurement: -200°C to 1,350°C
• Diode test: Yes, up to 2V
• Operating temperature: 0°C - 50°C
• Storage temperature: -10°C - 60°C
• Height above sea level: 2000m
• Acoustic signal: Yes
• Overall length: 150 mm
• Capacity: 60 mF
