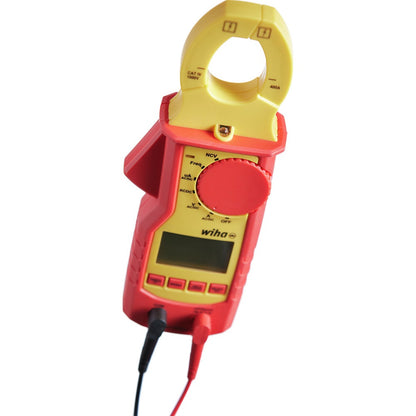

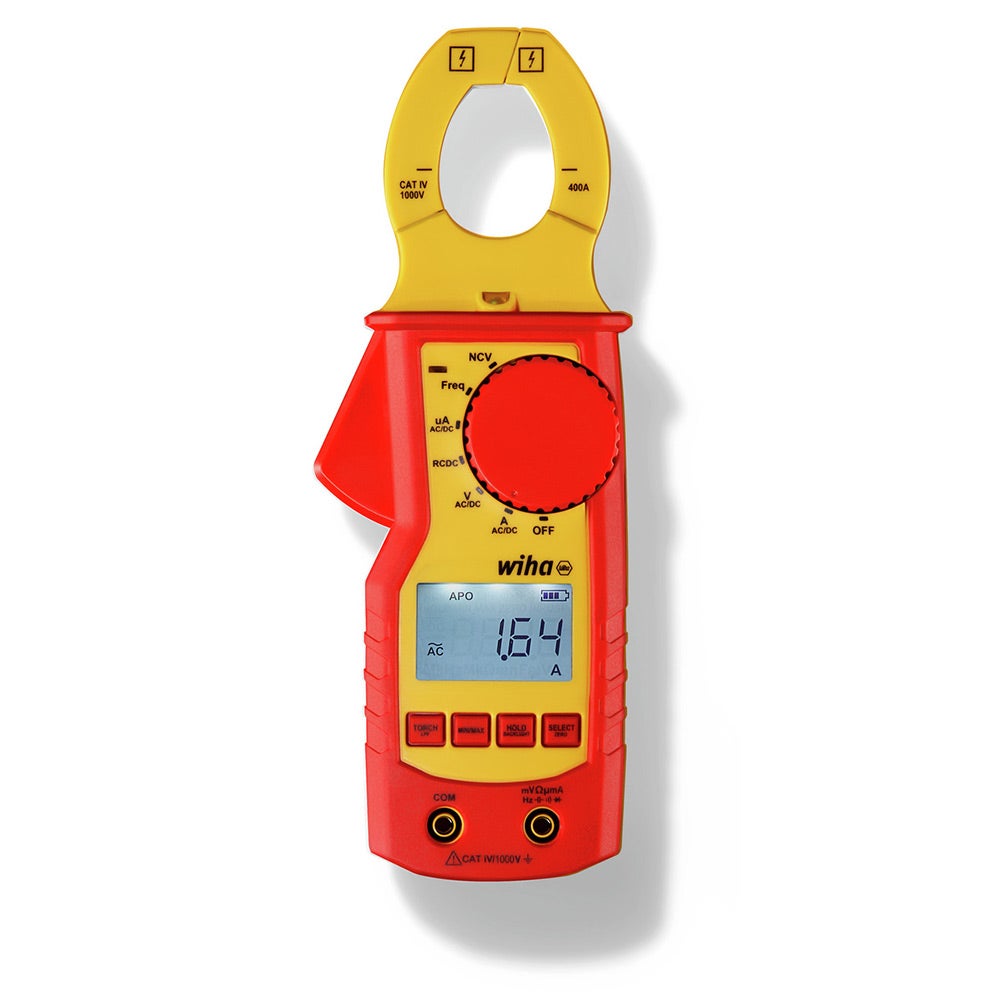

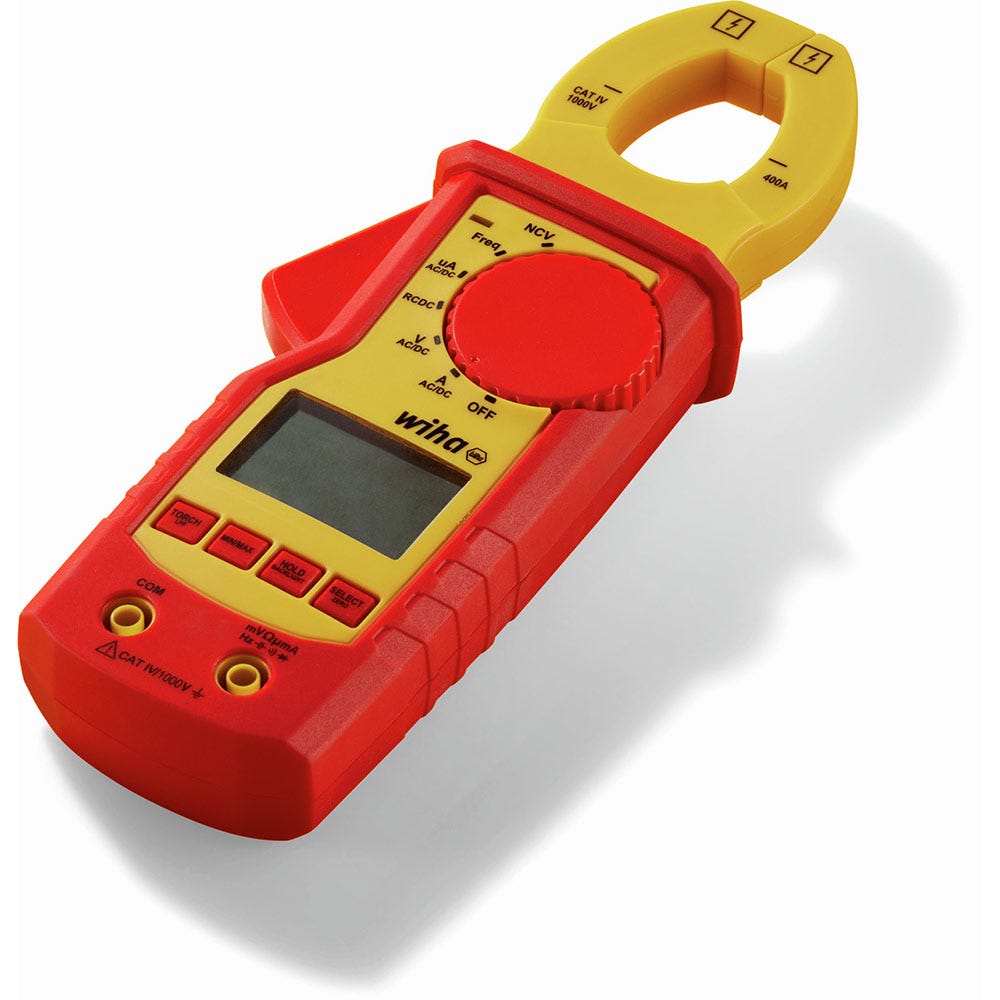

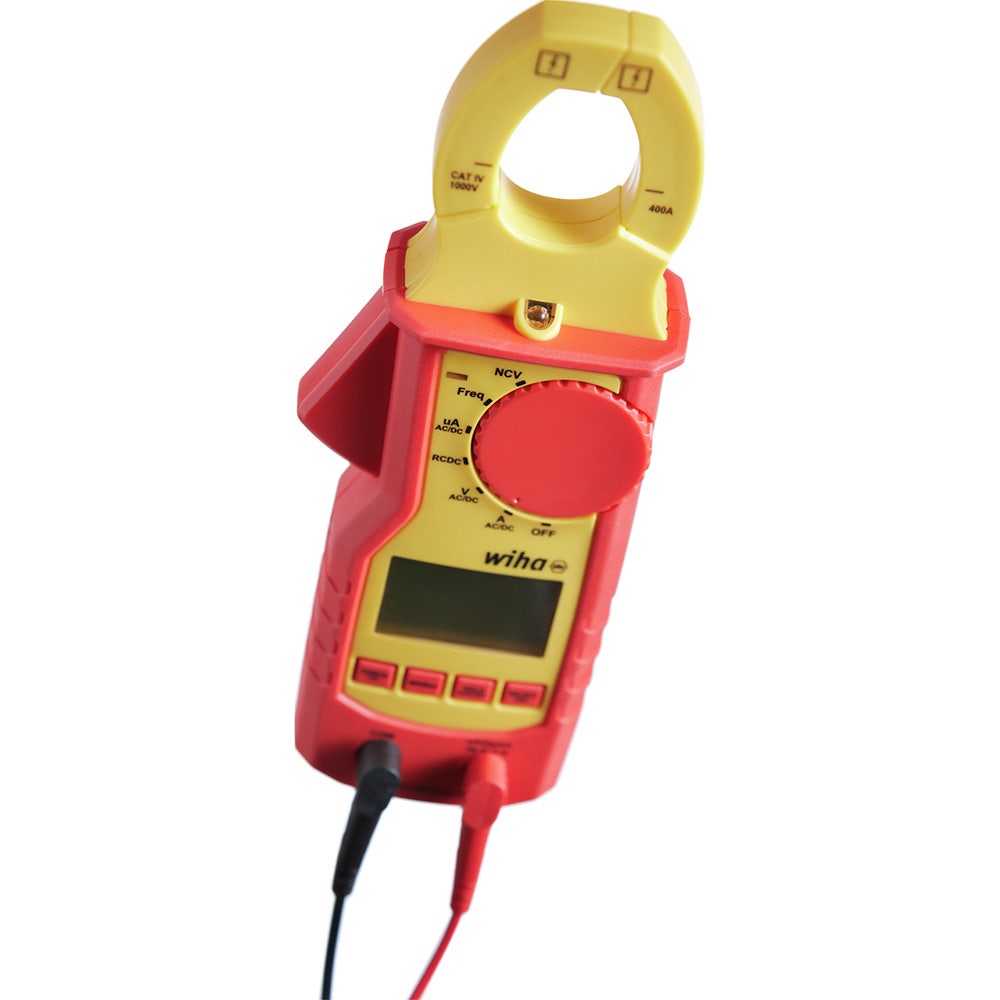

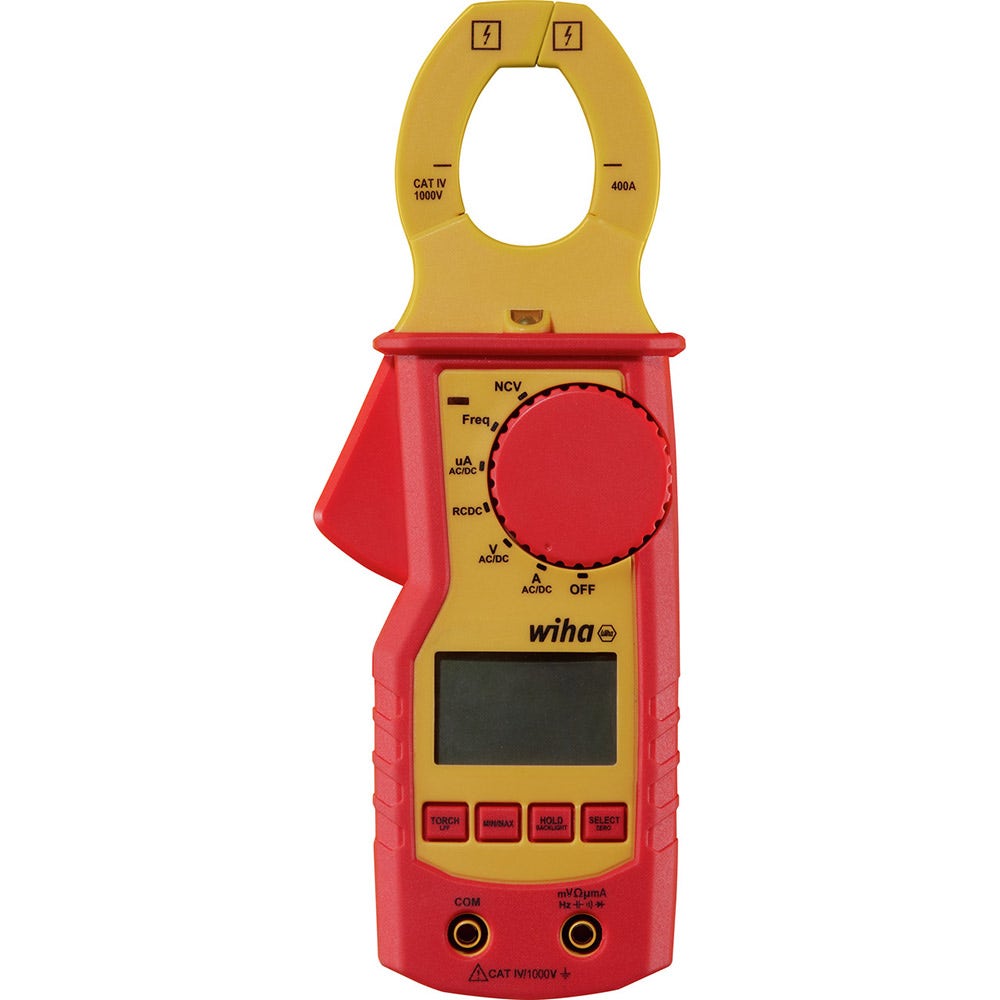

Wiha Measuring Caliper | Multi-Function Electrical Tester

Introducing the Wiha Measuring Caliper, an essential tool for electricians and technicians working with live electrical systems. This innovative caliper allows for safe and efficient measurements without interrupting the electrical circuit, making it perfect for challenging environments. With a host of advanced features, including a large LCD display and integrated flashlight, this device ensures you have everything you need to measure voltage, current, resistance, frequency, and more—all in one compact tool.

Key Features

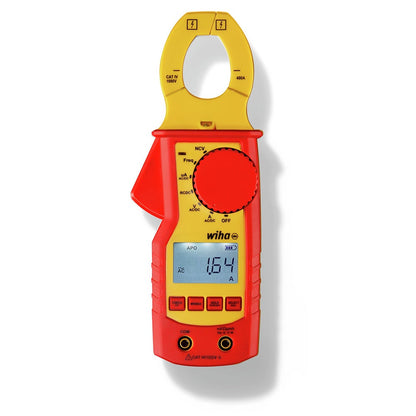

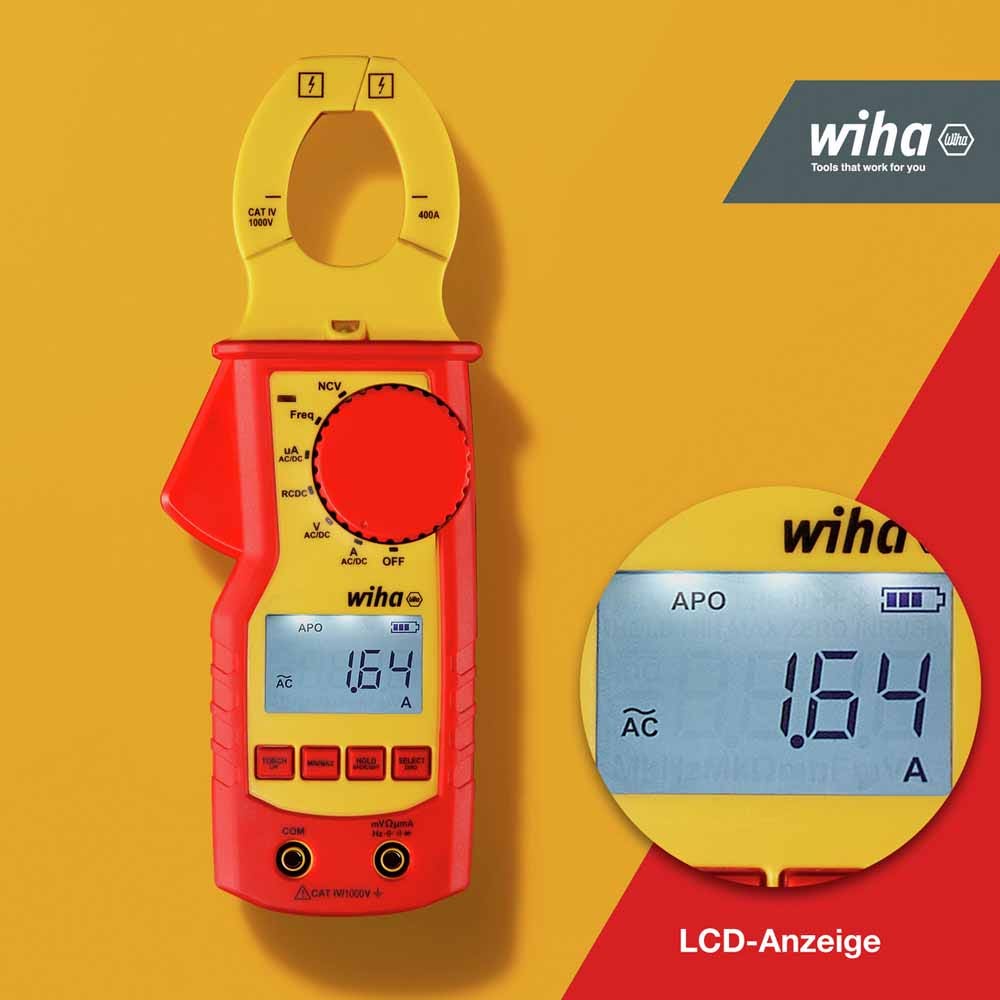

• Large LCD display with background illumination for easy readability

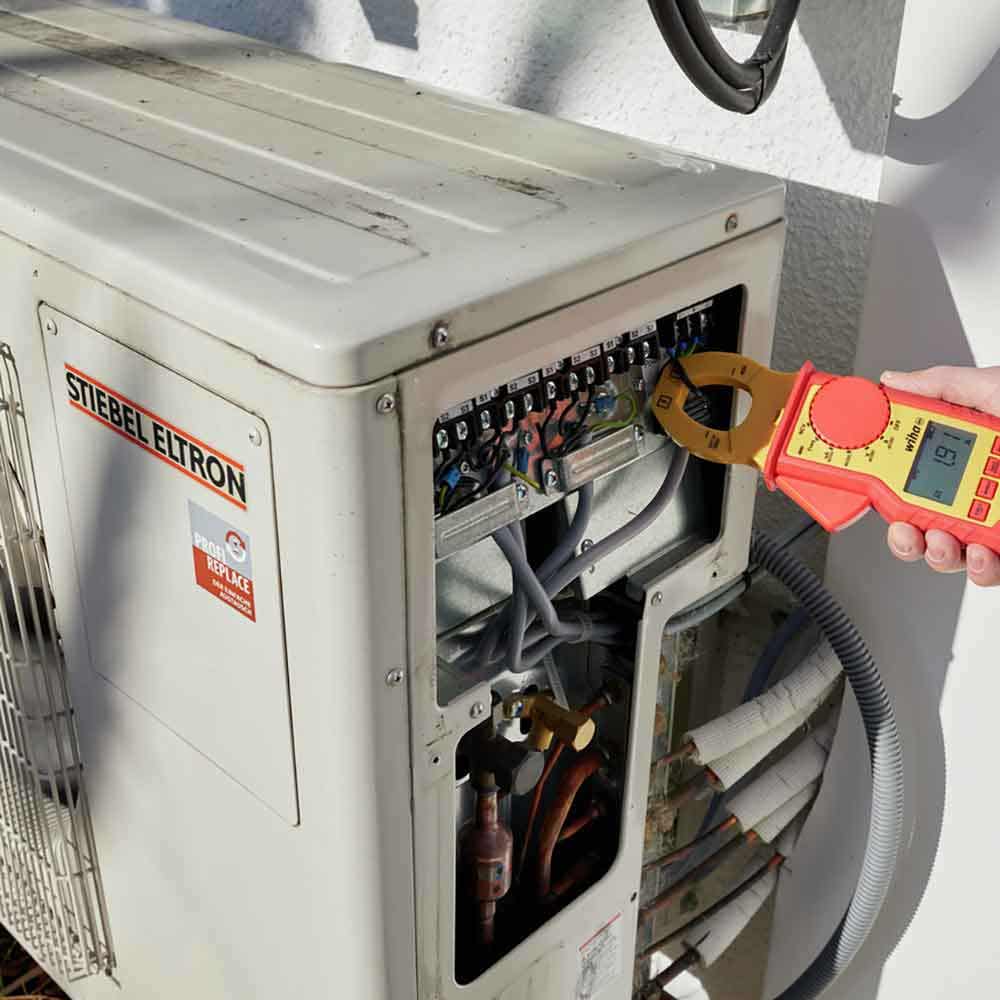

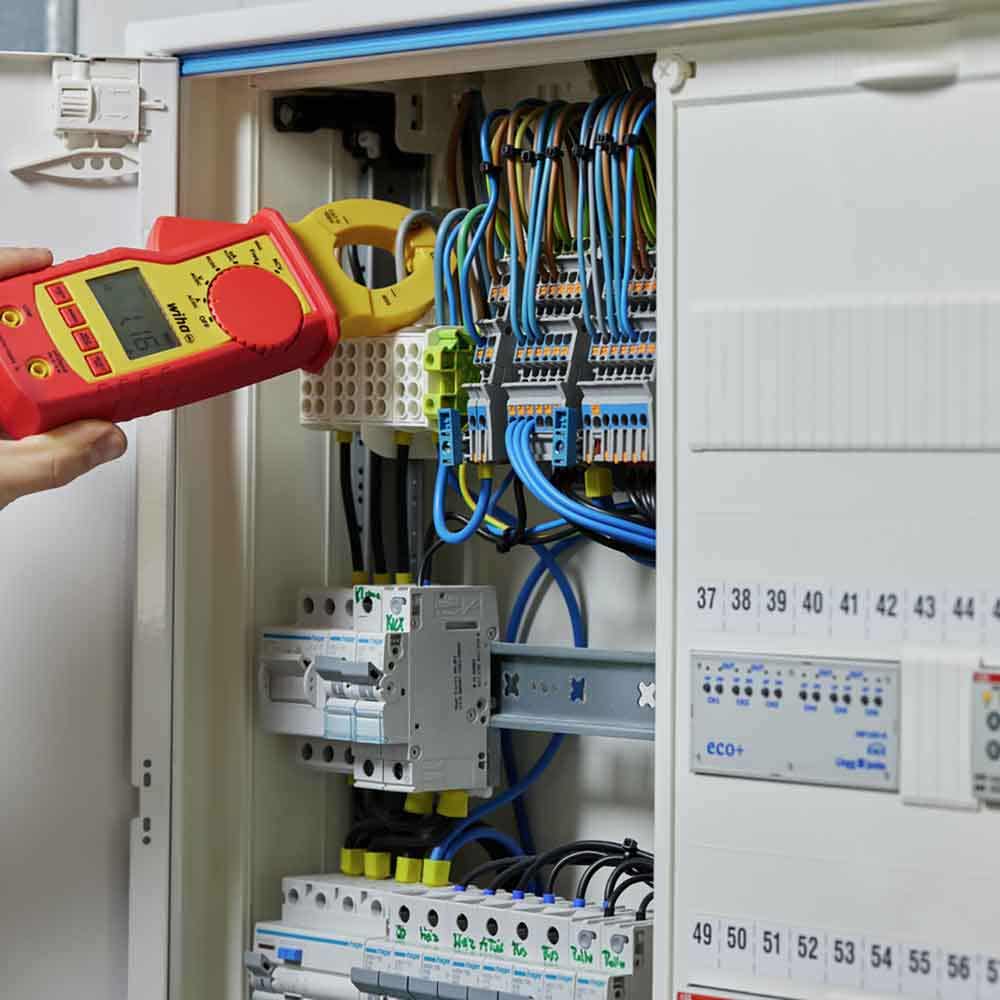

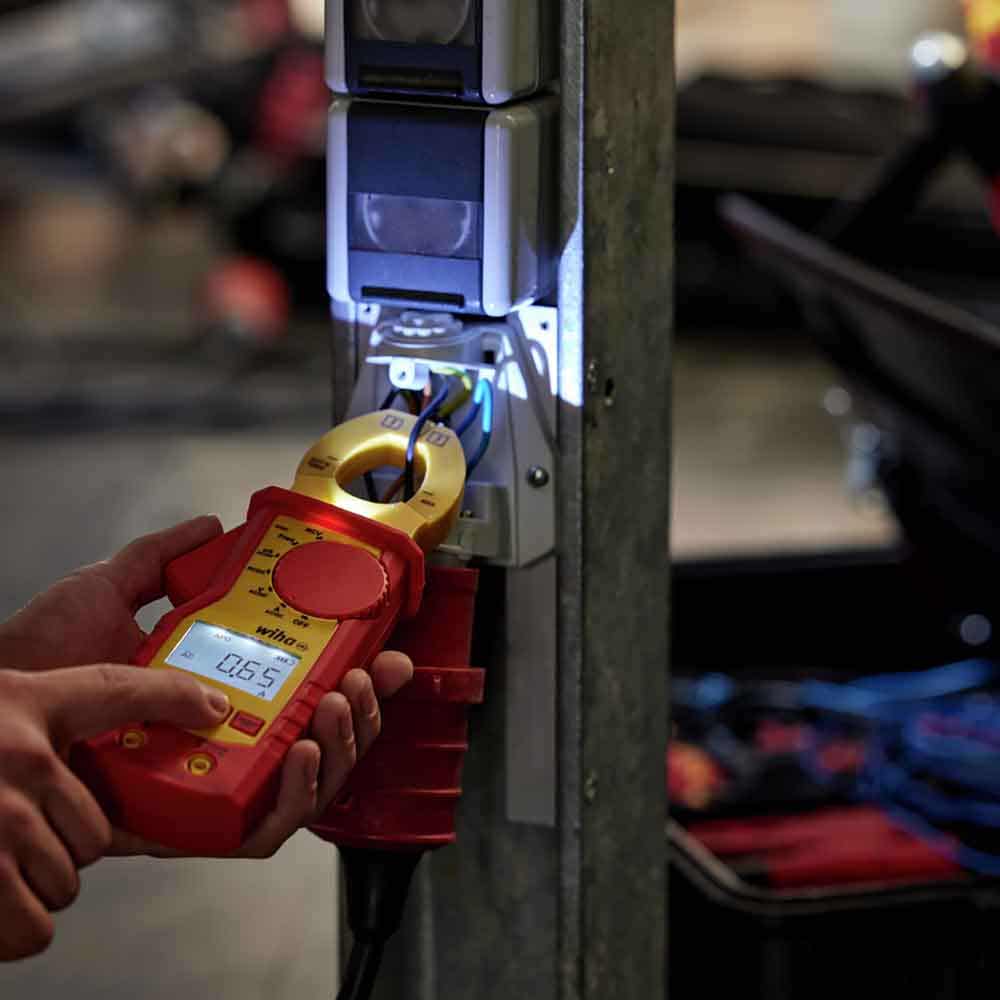

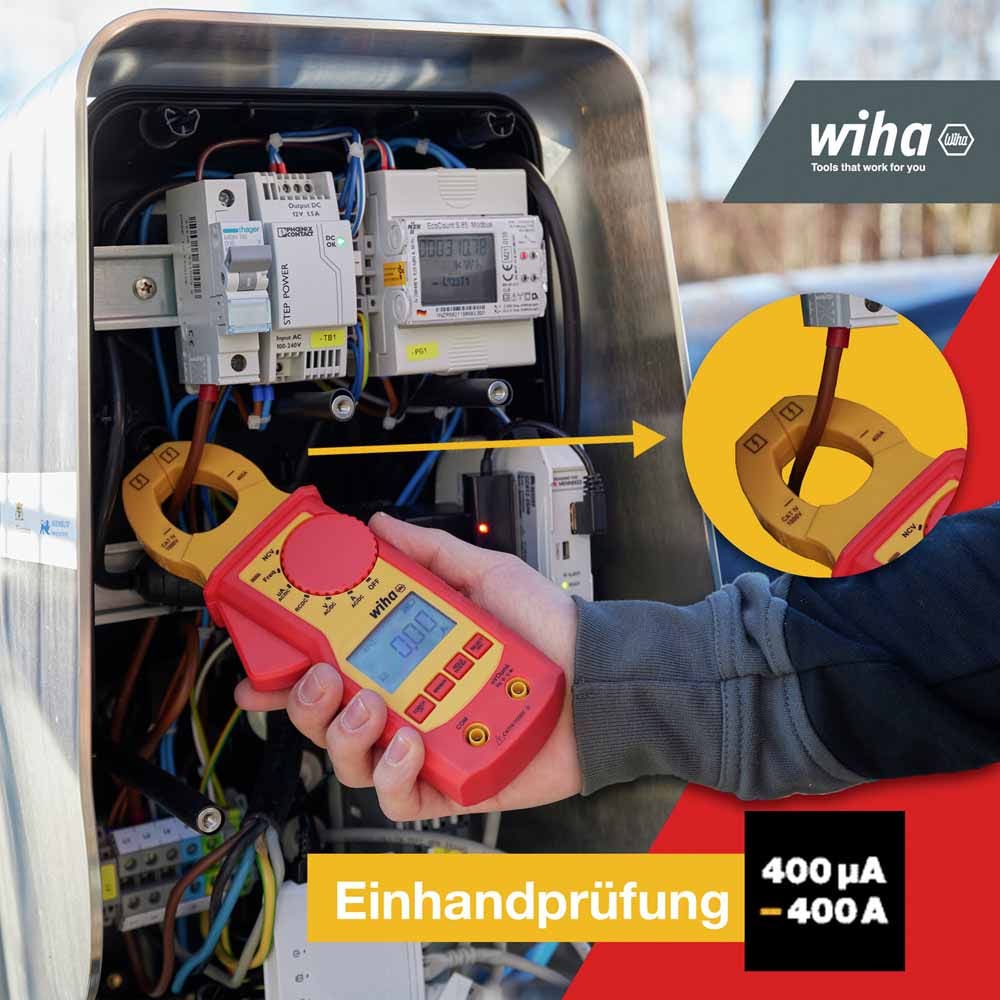

• Measure live electrical wires without the need to open contacts

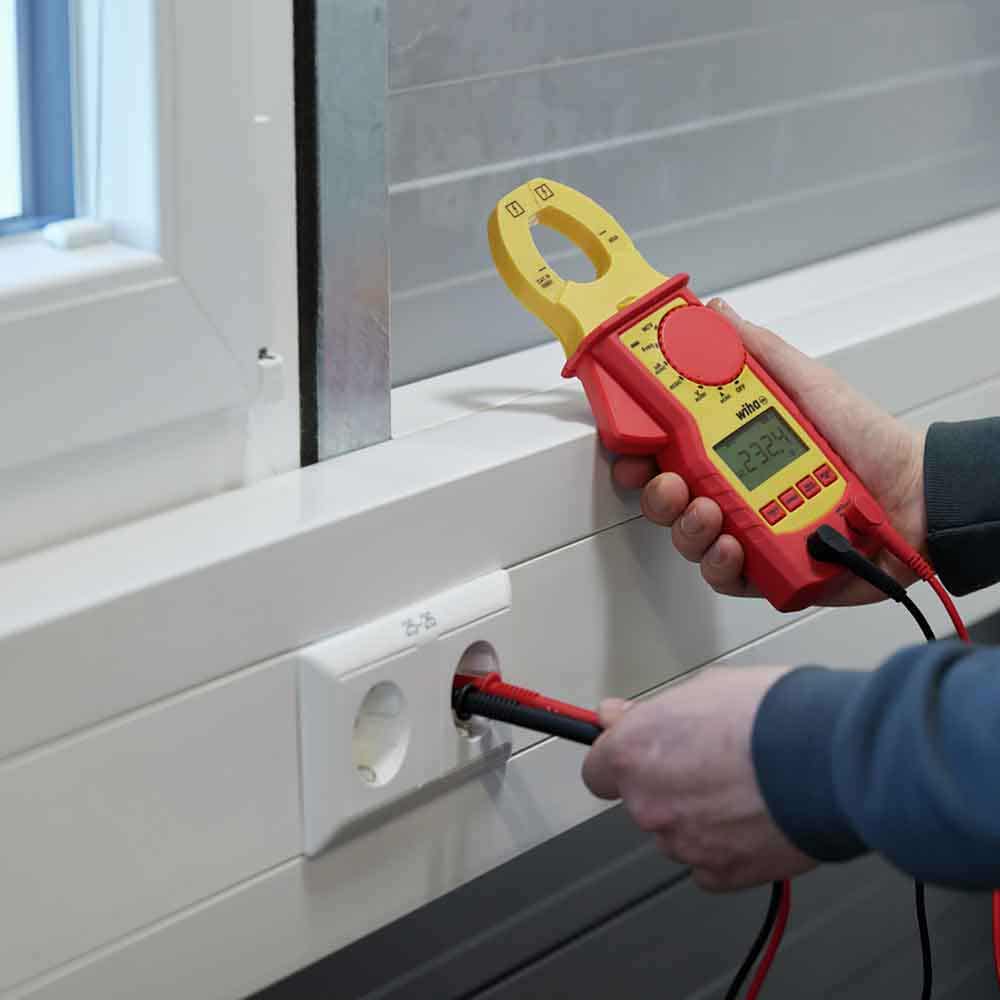

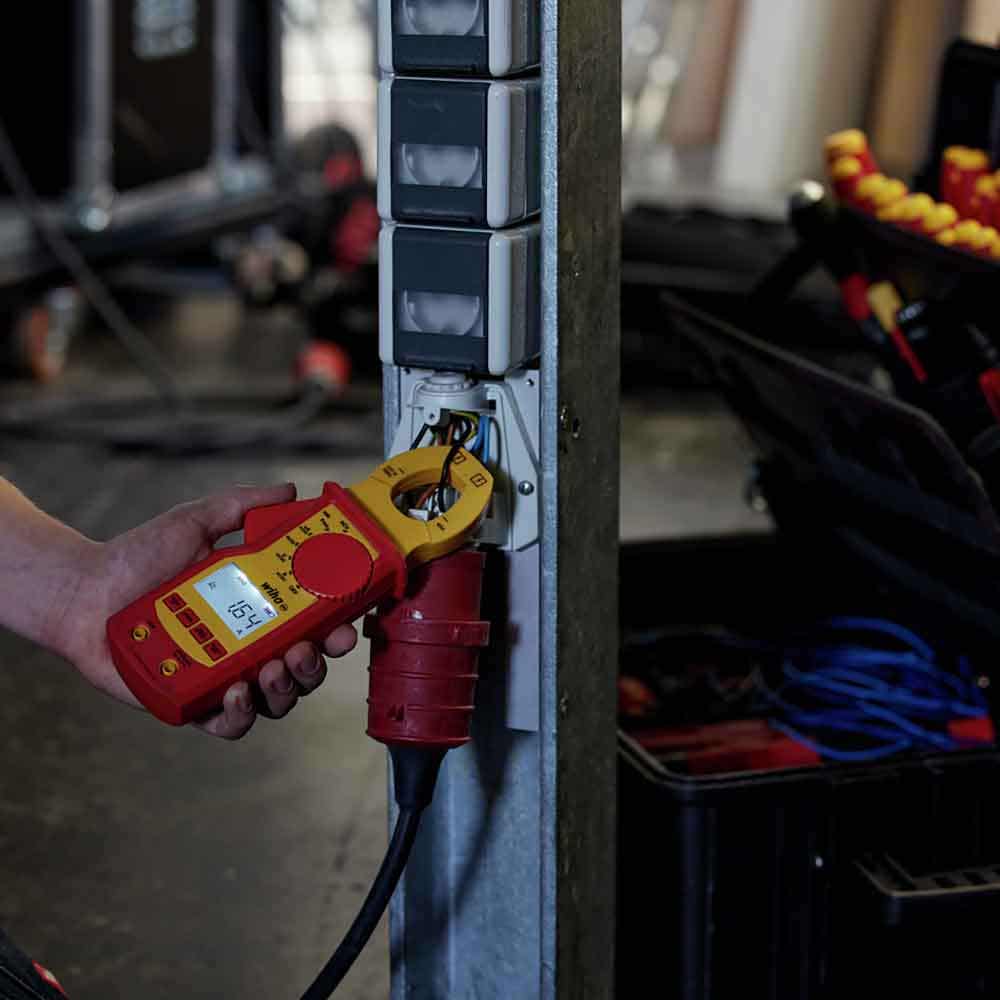

• Convenient one-hand testing without disrupting the electrical circuit
• All essential measurement functions for electricians combined into one device

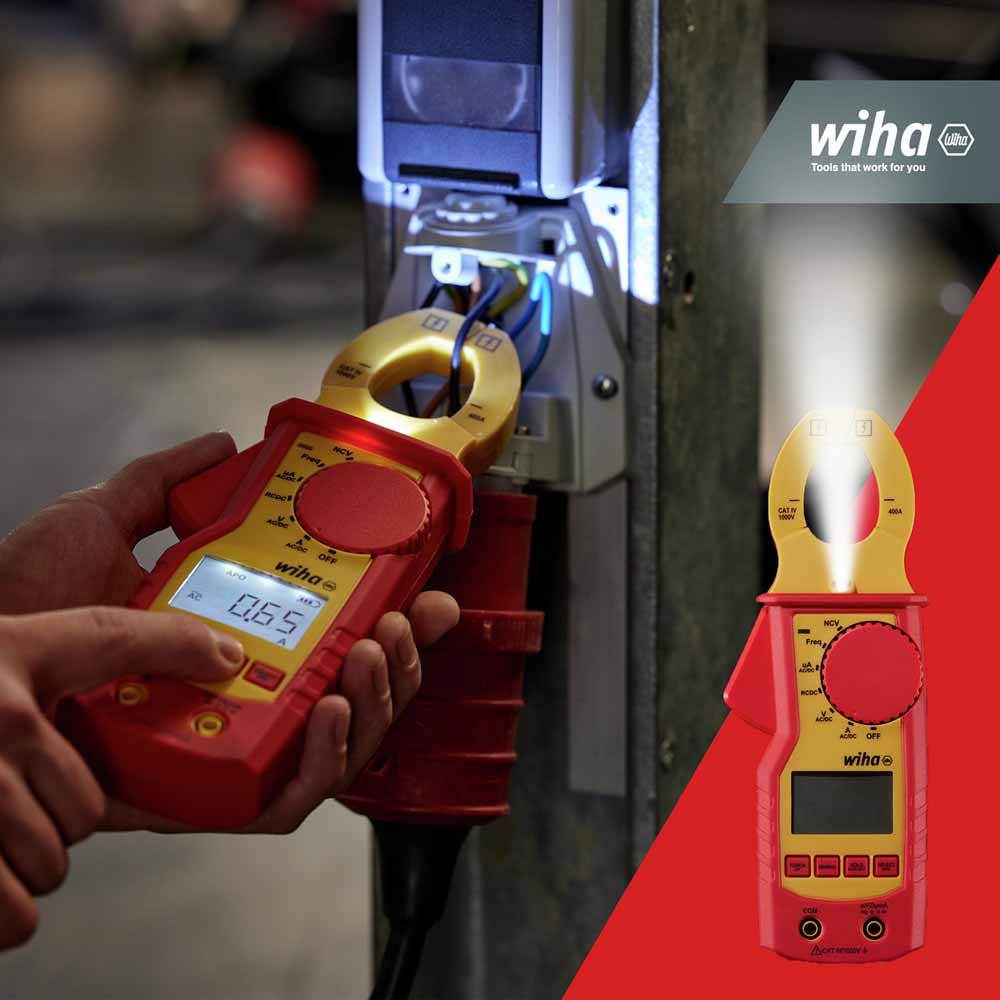

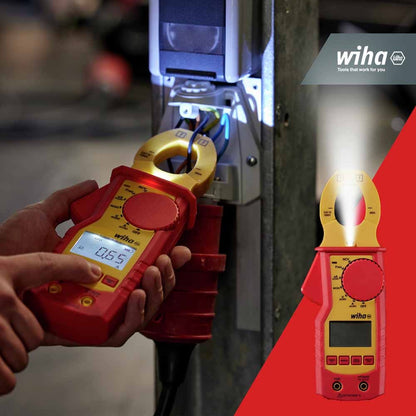

• Integrated flashlight for optimal visibility in low-light conditions
• True-RMS function for accurate readings
• Signal sound for current flow indication during continuity tests

Contents

• Wiha Measuring Caliper
• User Manual
• Warranty Information

Specifications

• Part No: 45219
• Barcode: 4010995452193
• Brand: Wiha
• Warranty: 1 Year
• Net Weight: 0.47 kg
• Overall Length: 220 mm
• Product Length: 282 mm
• Product Width: 75 mm
• Product Height: 45 mm
• Standards: IP40, CAT IV 1,000 V
• Clamp Meter Capability: Up to 1,000 V AC, CAT IV

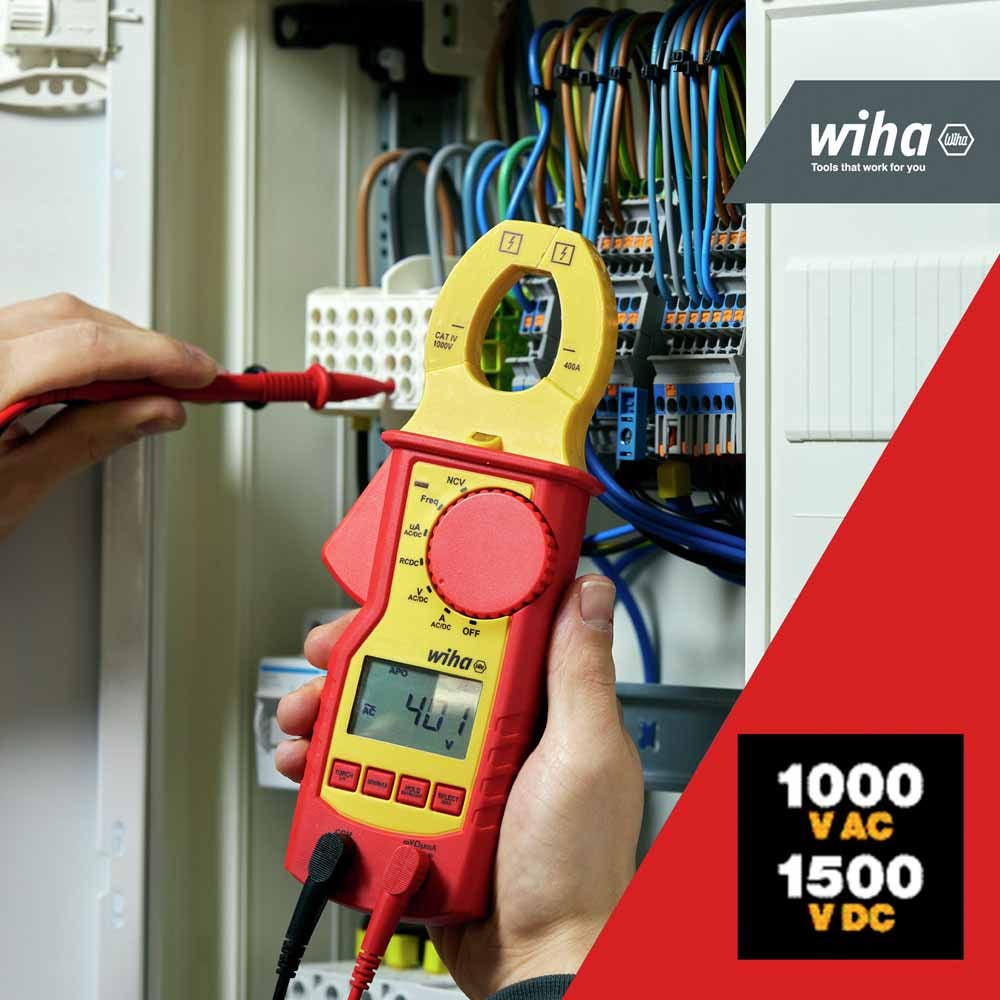

• Voltage DC Range: 0 - 1500 V
• Voltage AC Range: 0 - 1000 V
• Current DC Measurement: Up to 400 A
• Current AC Measurement: Up to 400 A
• Resistance Measurement: Up to 40 M?
• Integrated Flashlight: Yes
• Frequency Measurement: Up to 5 MHz
• True RMS: Yes
• Data Hold Function: Yes
• Min/Max Measurement: Yes
• Remote Voltage Test: Yes
• AVG Measurement: Yes
• Continuity Check: Yes
• Capacitance Measurement: Up to 100 µF
