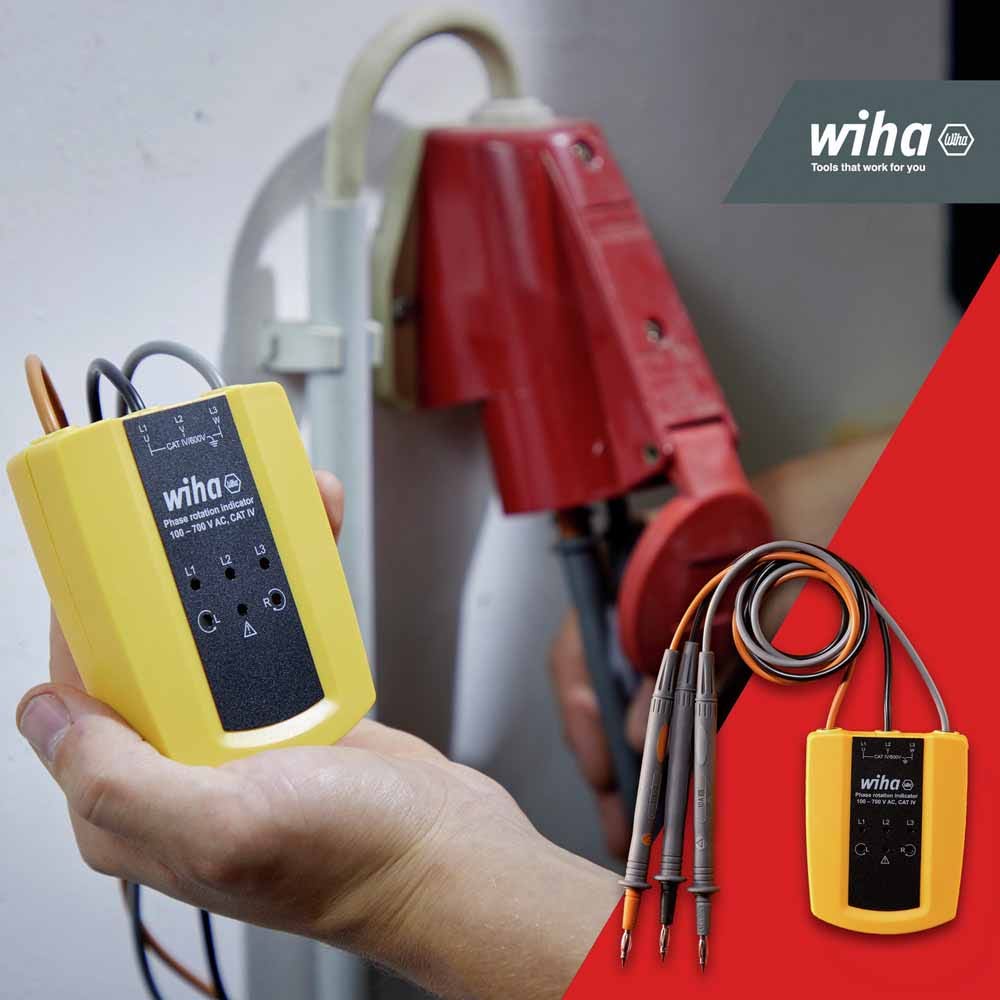

WIHA 100-700VAC Phase Rotation 45221

Features

• Integrated phase display for easy rotation direction identification
• LED display for clear measurement results
• Simple crocodile clip connection for motor terminal boards
• Test tips included for versatile application options
• Operates without batteries using mains voltage
• Measurement category CAT III up to 1,000 V and CAT IV up to 600 V for safety
• Voltage range for phase against phase: 100V - 700V
• Max input voltage per phase (Lx) against neutral (N): 400 V
• Current input: 3.5 mA
• Contamination level: 2
• Operating temperature: 0°C - 40°C
• Protection class: IP 40
• Overvoltage protection: 600V
• LED and signal sound: Yes
• Measuring lines: 3

Specifications

• Part No: 45221
• Barcode: 4010995452216
• Brand: Wiha
• Warranty: 1 Year
• Net Weight: 0.19 kg

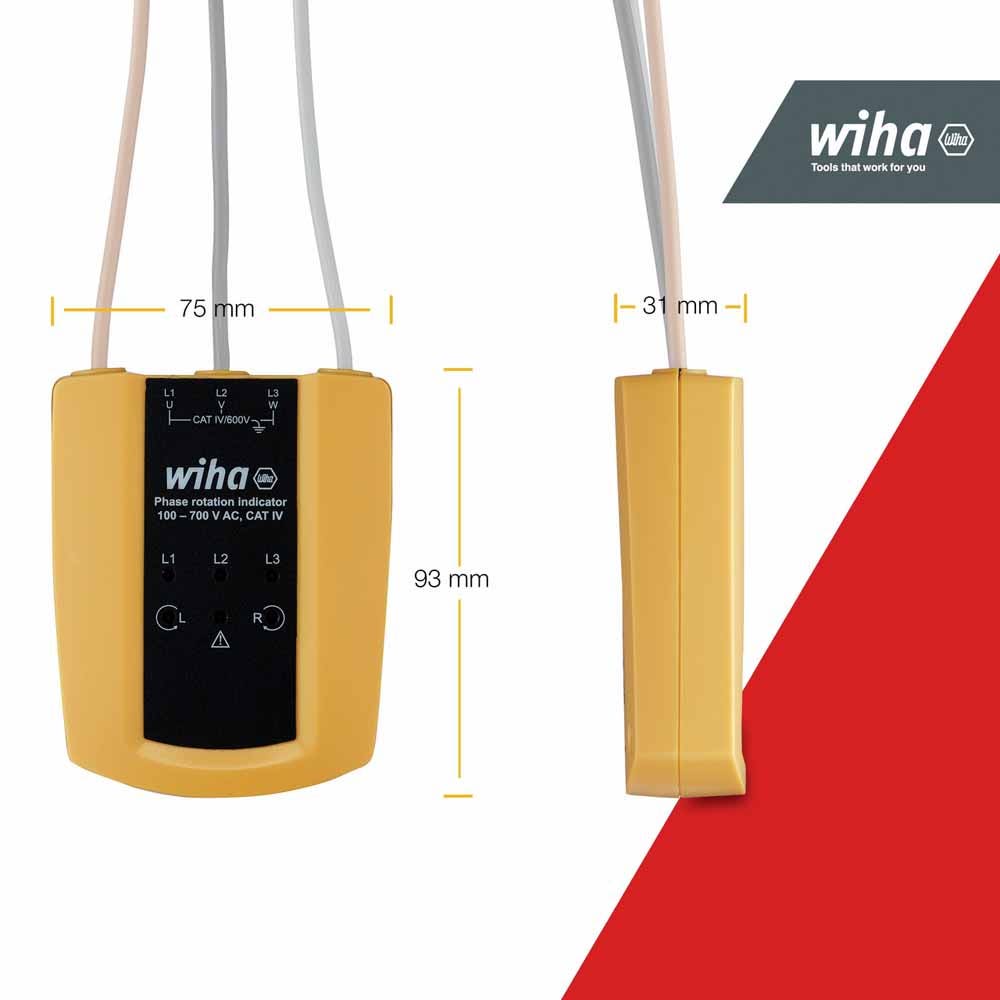

• Dimensions: 93 x 75 x 31 mm
