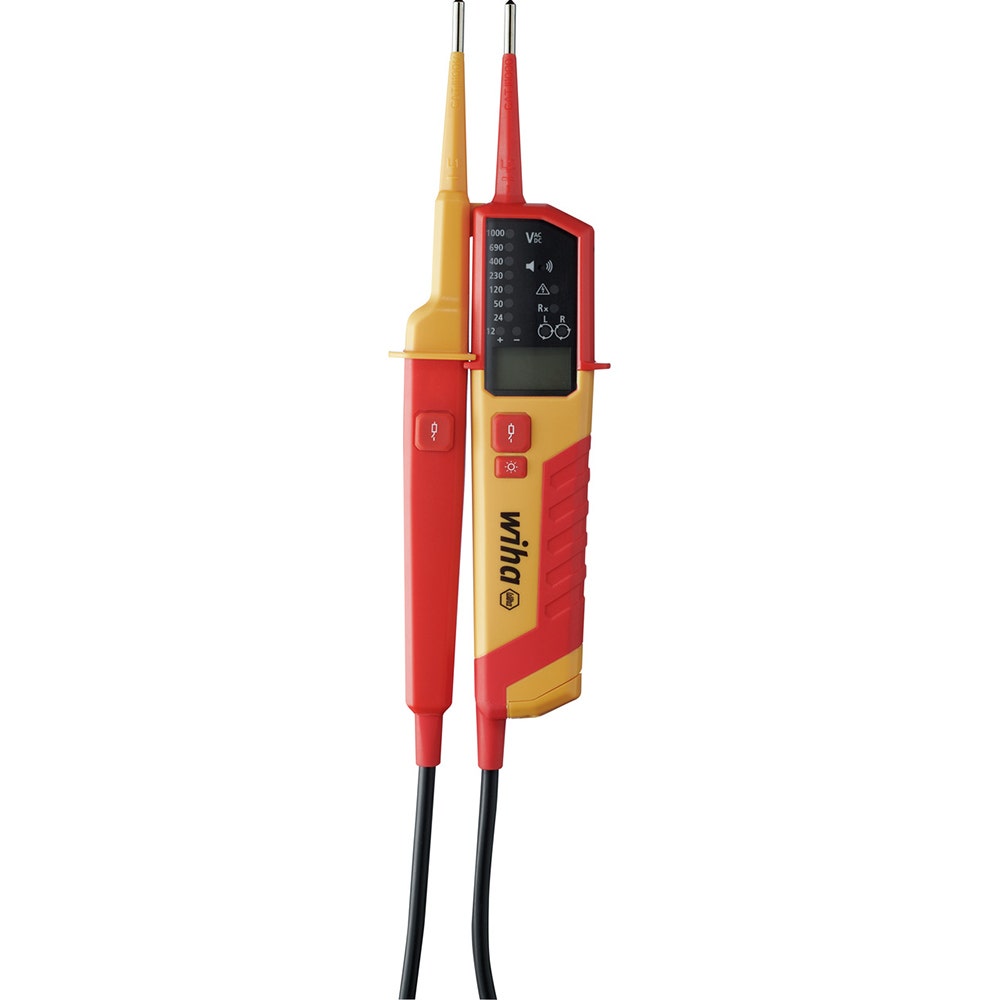

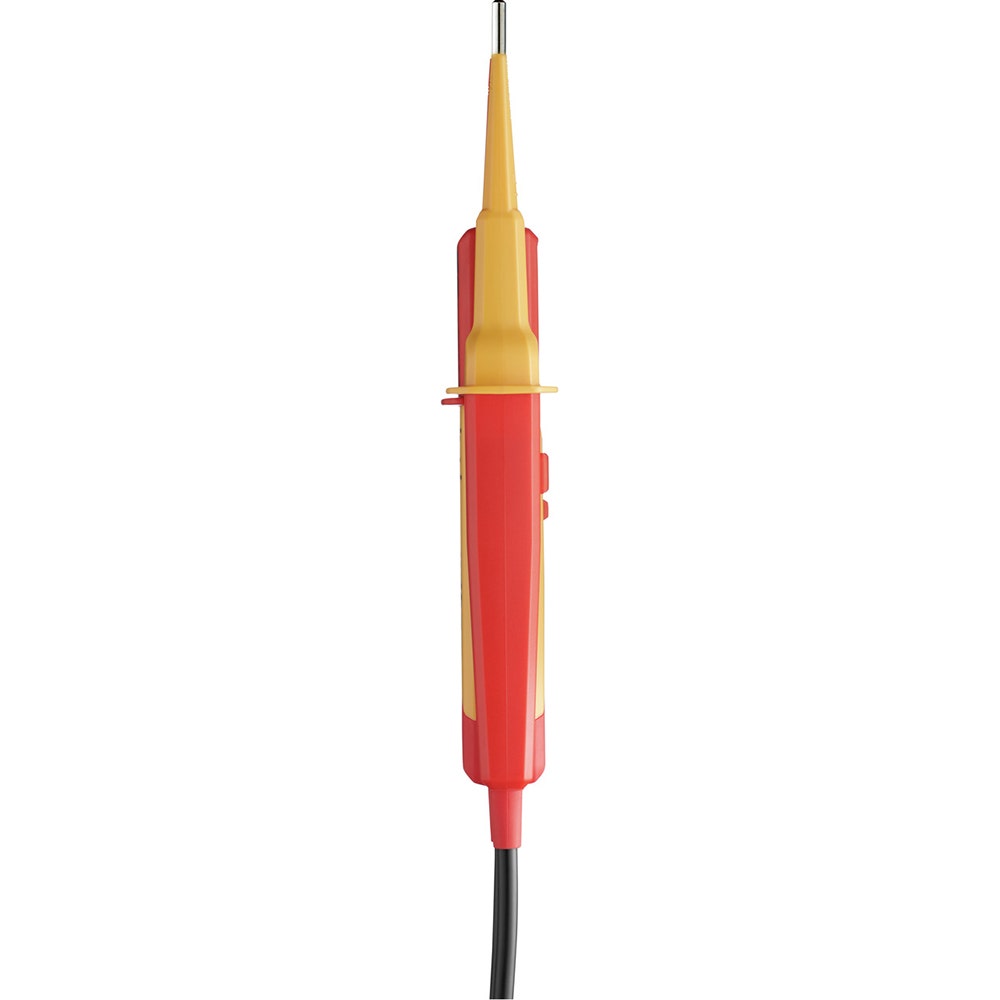

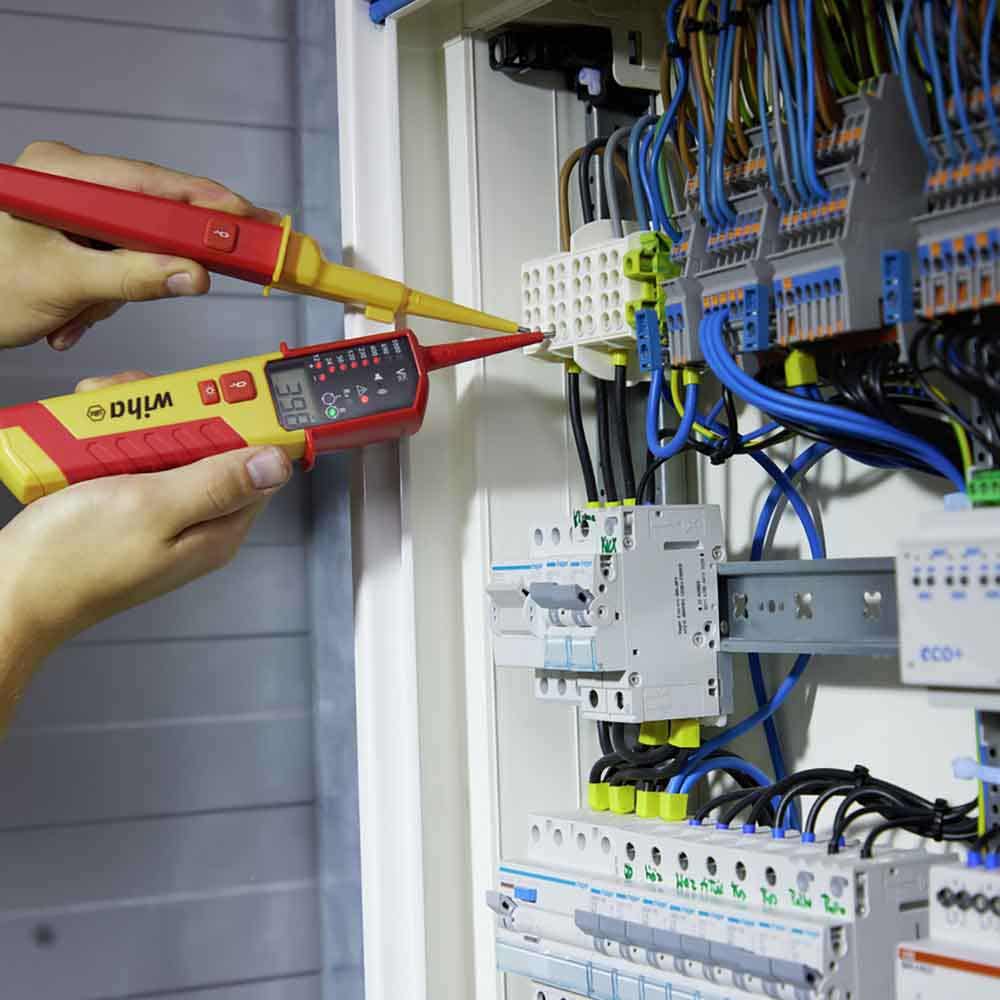

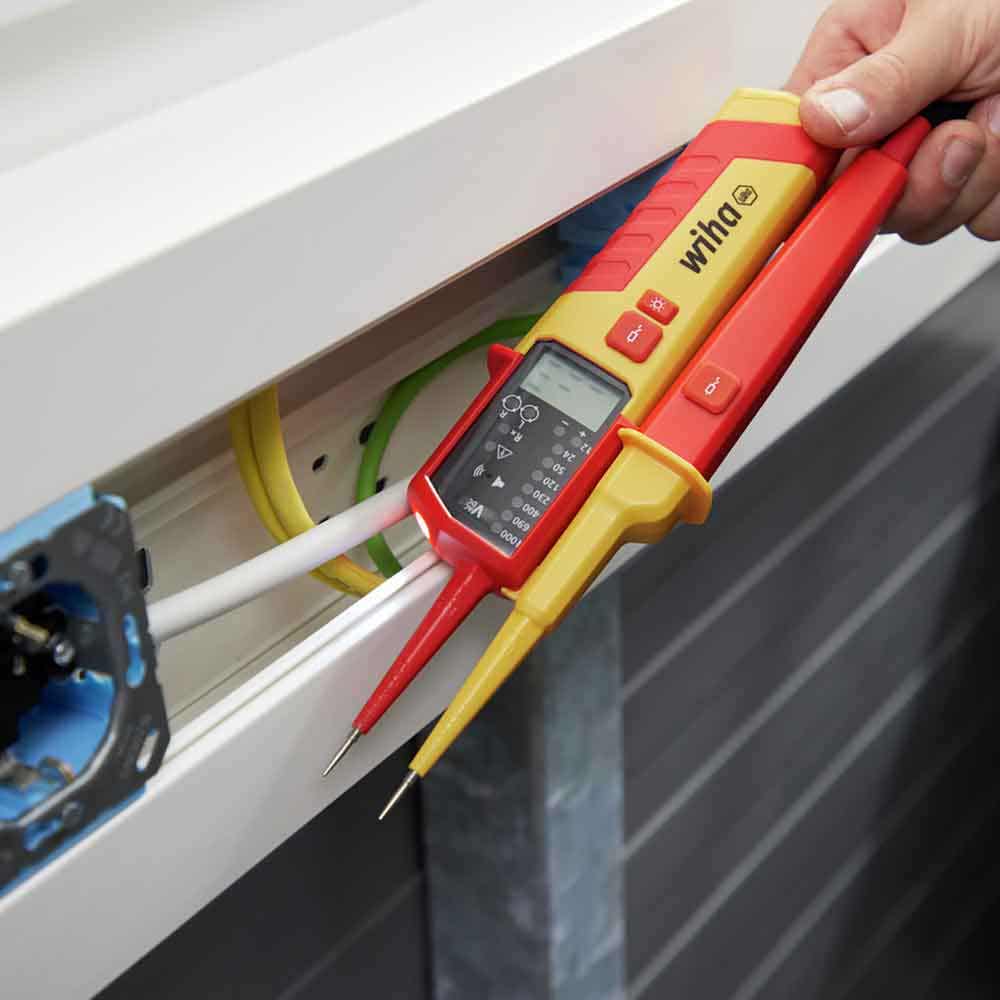

WIHA 0.5-1000VAC Voltage Tester 45217

Features

• Voltage testing range: 0.5 V to 1,000 V AC and 1,500 V DC
• Continuity testing, optical rotational field testing, and single-pole testing
• Automatic polarity detection
• Resistance and frequency measurements

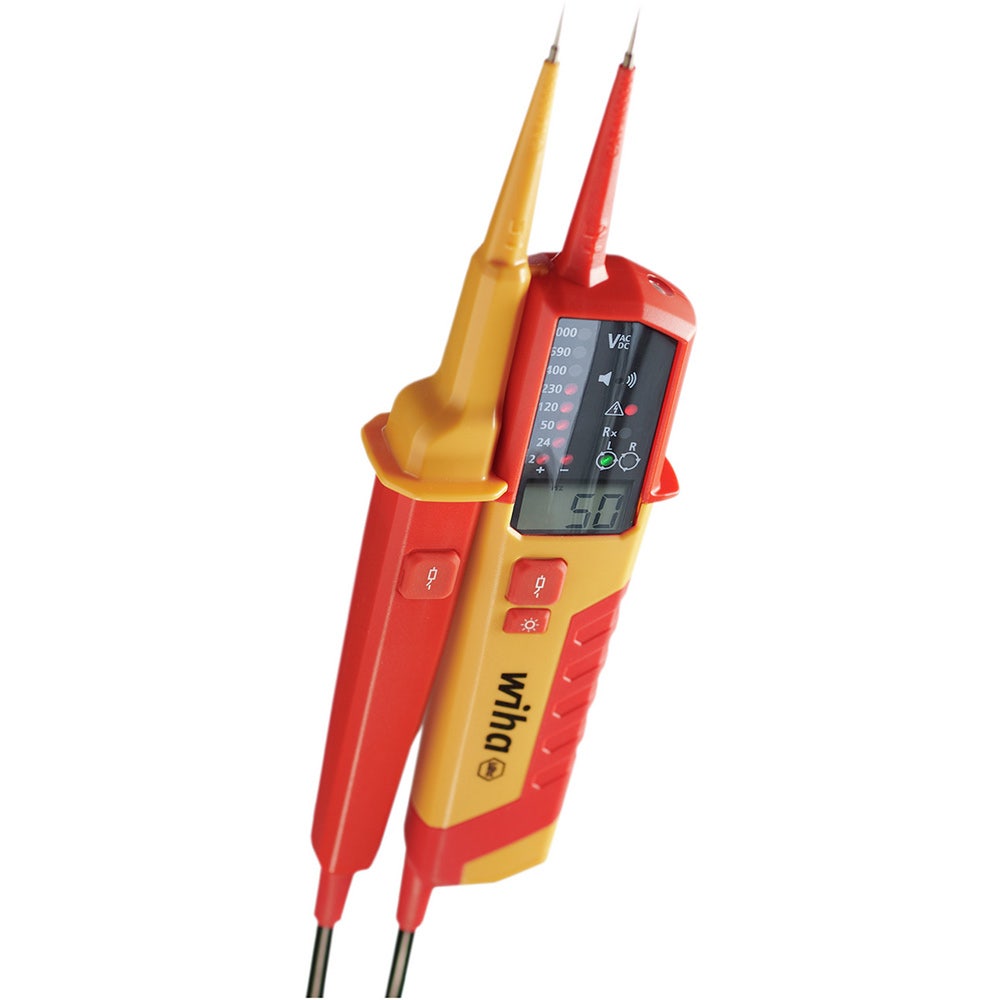

• Large digital LCD display with background illumination
• LED display for immediate readability of results
• Signal sound for current flow during continuity checks
• Integrated flashlight for low-light conditions
• Functional test of FI protective switch with load

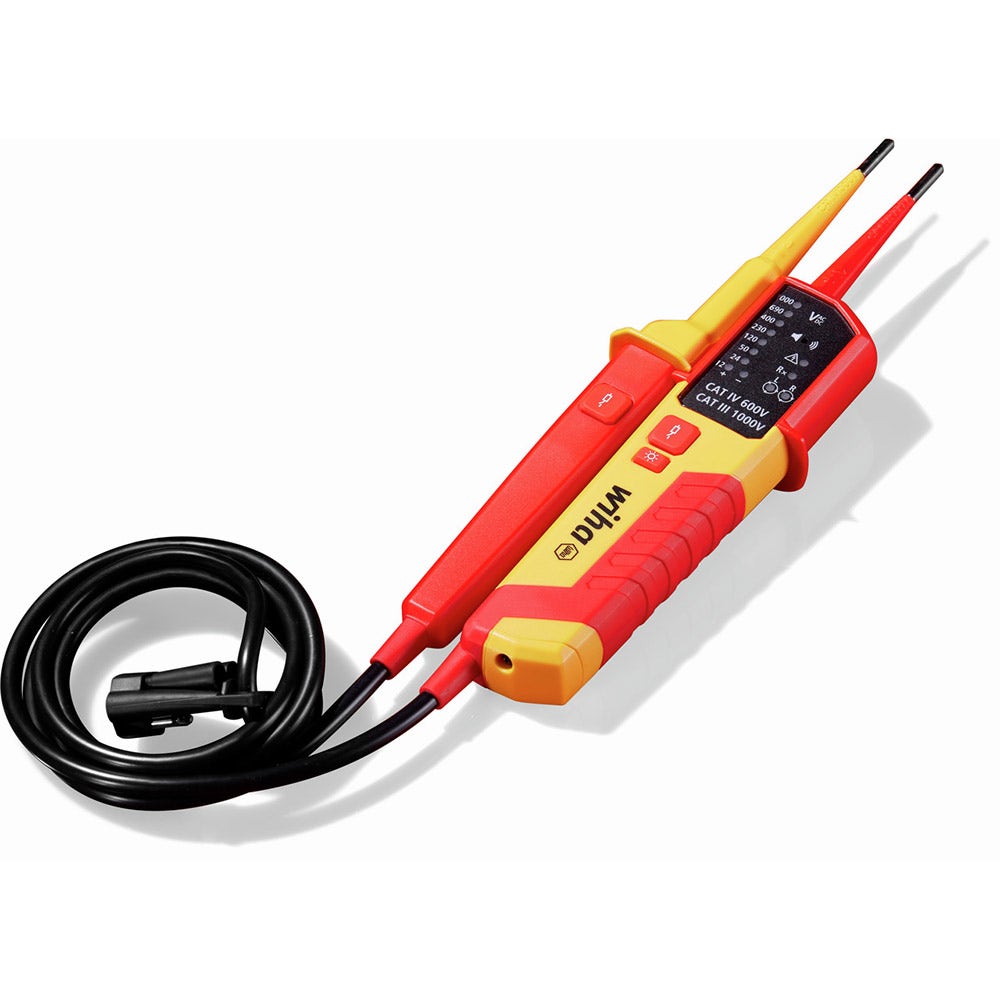

• Measurement categories: CAT III up to 1000 V and CAT IV up to 600 V

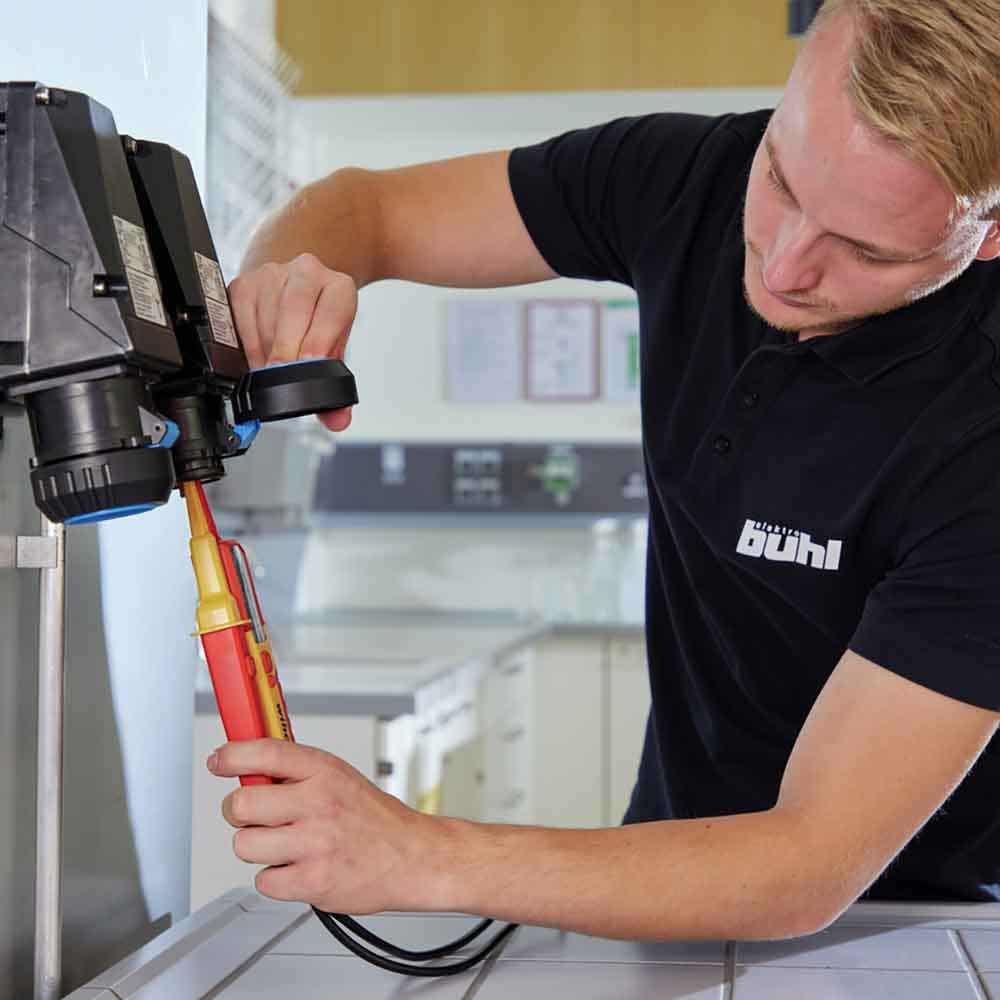

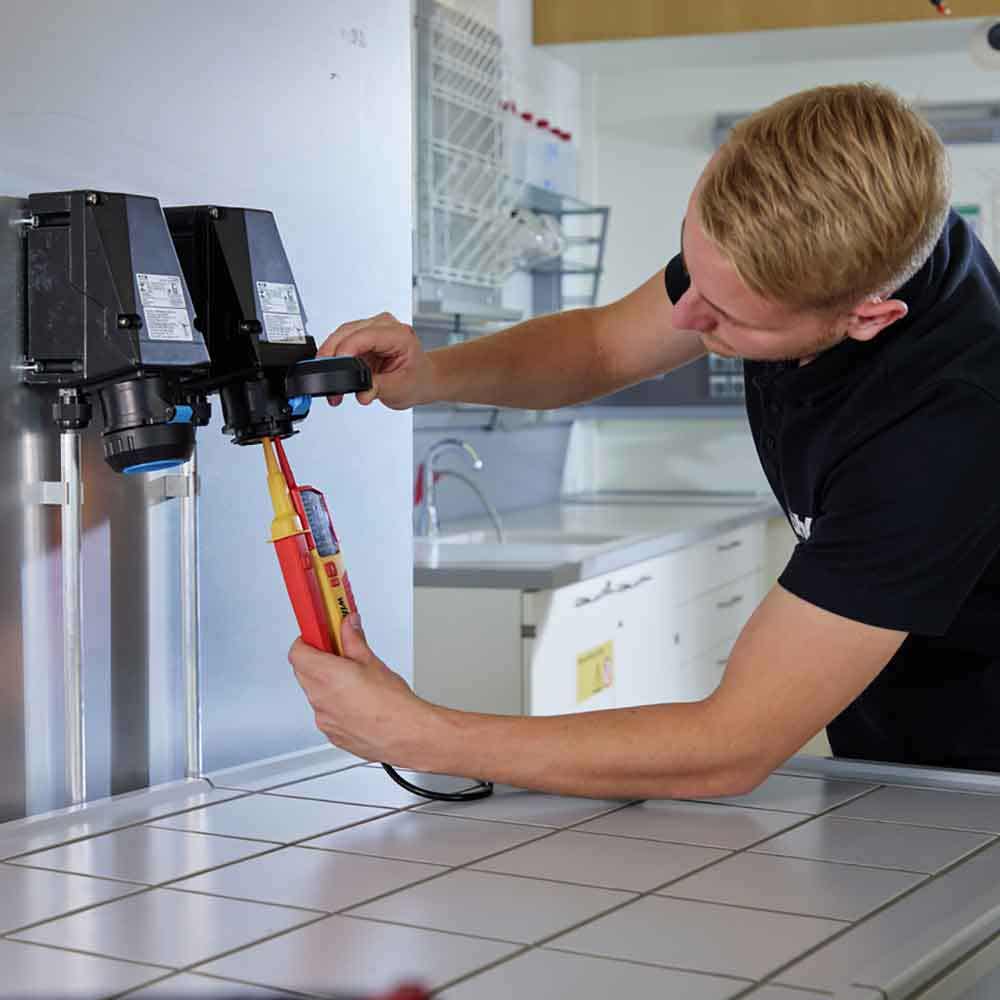

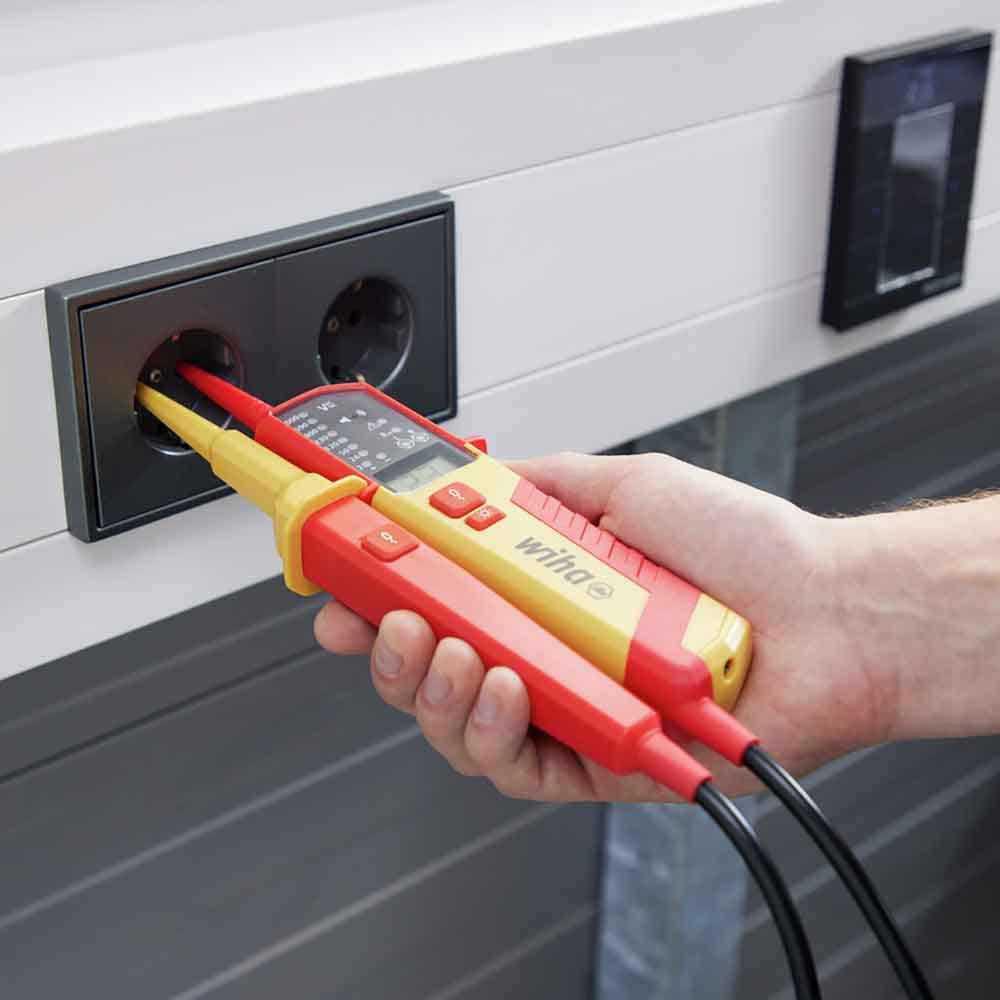

• Convenient single-hand operation for socket checks

Specifications

• Standards: IEC 61243-3:2014, IP64, CE CAT III 1,000V / CAT IV 600V
• Battery: 2x AAA
• Contamination level: 2
• Remote voltage test: Yes
• Photovoltaic-compatible: Yes
• Integrated flashlight: Yes
• FI check: Yes
• Protection class: IP 64
• Operating temperature: -15°C to 50°C
• Storage temperature: -20°C to 60°C
• Single-pole phase test: 100 - 1,000 V AC (40 - 70 Hz)
• Rotation field test: 170 - 7,000 V phase to phase AC (40-70 Hz)
• Permeability test range: 0 - 500 k + 50%
• LED ELV display: > 50 V AC, > 120 V DC
• LCD range: 0.5 V to 1000 V AC, 0.5 V to 1500 V DC
• LCD resolution: 0.1 V (10 V)
• LCD precision: +/- 3%, +/- 3 digits (10 V)
• LCD overflow display: OL
• Battery consumption: about 80 mA
• Humidity: max 85% RH
• Acoustic signal: Yes
