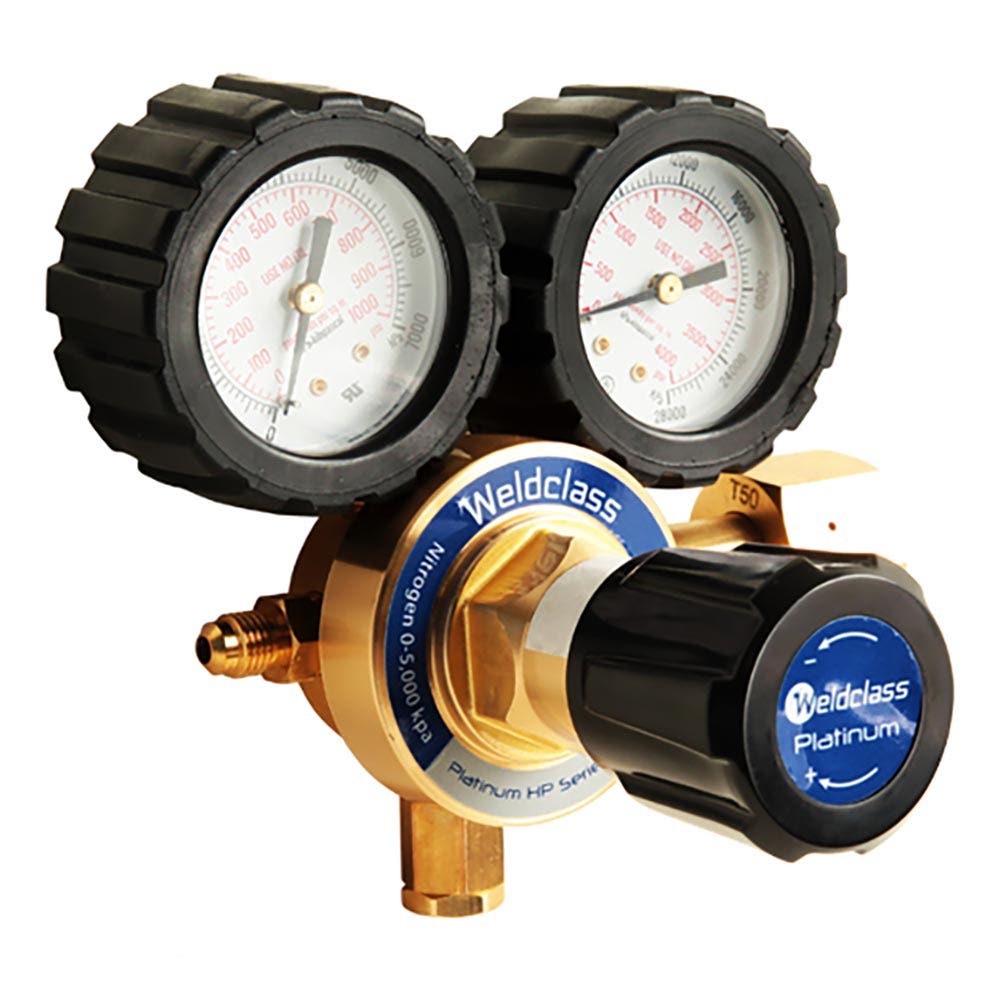

WELDCLASS 5000kpa Nitrogen Regulator WC-03401

Nitrogen regulator for applications requiring delivery pressures of up to 5,000 Kpa (700 psi / 50 Bar). Especially suited for HVAC (air conditioning, refrigeration, etc) pressure testing & flushing. Extremely robust design to withstand the rigours of site work: Heavy duty rubber gauge covers protect gauges from impacts, impact-resistant knob & solid brass body. Type 50 (female) inlet connection for fitting to standard nitrogen cylinders. PLATINUM series, no quality short-cuts. Designed and manufactured by a team with over 40 years experience in gas equipment engineering.

- Heavy-duty Platinum series
- Rubber gauge covers protect gauges from impact
- Commonly used for HVAC (heating & air conditioning) pressure testing

Specifications

- Max Output (delivery pressure): 5,000KPa / 50 bar / 700psi
- Max Inlet (cylinder pressure): 22Mpa / 22,000Kpa / 220 bar / 3,190psi
- Outlet: "1/4 Flare" (JIC 37° Flare Fitting) with thread size / O.D. 7/16-20 (= approx 11.1mm)*
- Port (inlet & outlet port hole in regulator body): 1/4" NPT (tapered)
