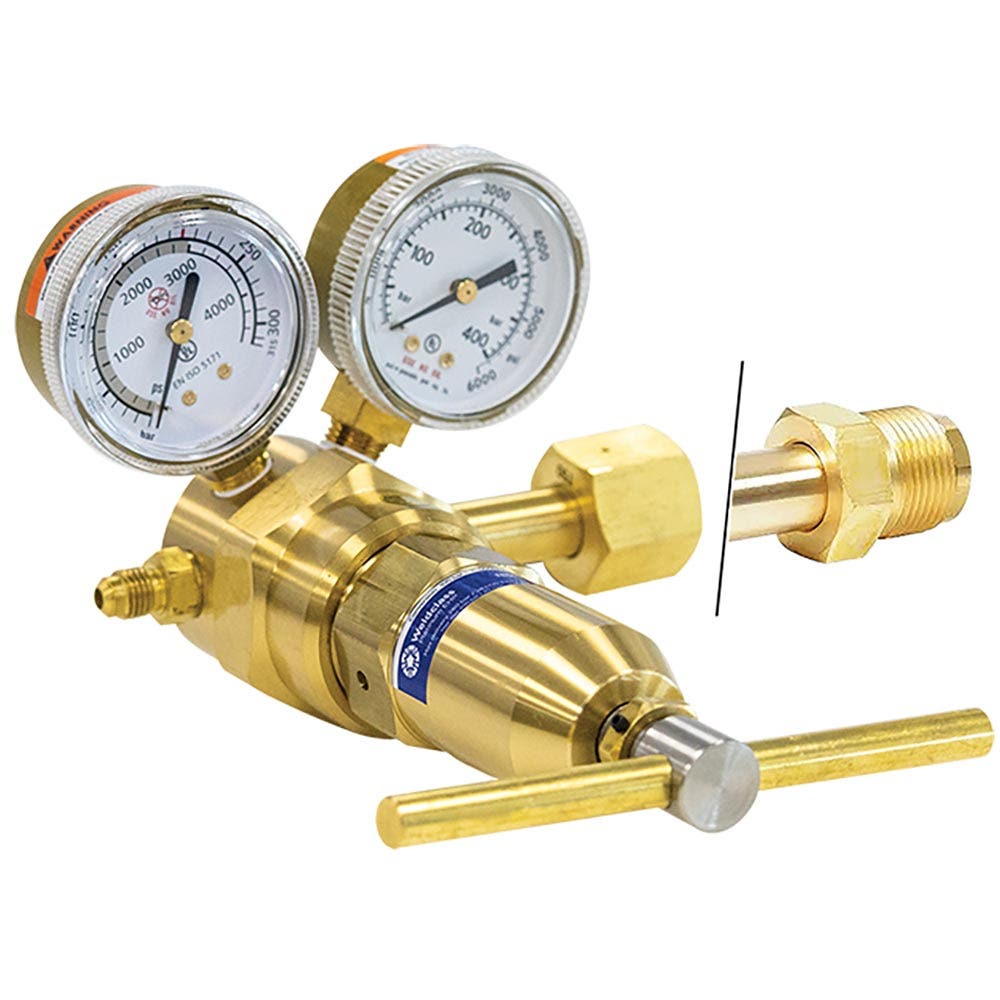

WELDCLASS 28000kpa Nitrogen Regulator WC-03400

Features

• Extra-high pressure (EHP) Nitrogen regulator for up to 28,000 Kpa (4,000 psi / 280 Bar)
• Robust design suitable for site work
• Type 50 (female) inlet for standard nitrogen cylinders
• Includes additional Type 51 inlet for EHP cylinders if needed
• Heavy-duty Platinum series with no quality shortcuts
• Piston-sensing for smooth & reliable pressure adjustment
• Designed by a team with over 40 years of gas equipment engineering experience

Specifications

• Max Delivery: 28,000 KPa / 280 bar / 4,000 psi
• Max Inlet (cylinder pressure): 40 Mpa / 40,000 Kpa / 400 bar / 5,800 psi
• Outlet: 1/4 Flare (JIC 37° Flare Fitting), thread size / O.D. 7/16-20 (approx. 11.1mm)
• Inlet: Type 51 (1.045" NGO 14 TPI RH Male nut with spigot) for EHP cylinders
• Part No: WC-03400
• Barcode: 9341562034005
• Brand: WELDCLASS
• Warranty: Weldclass 7 Year Warranty
