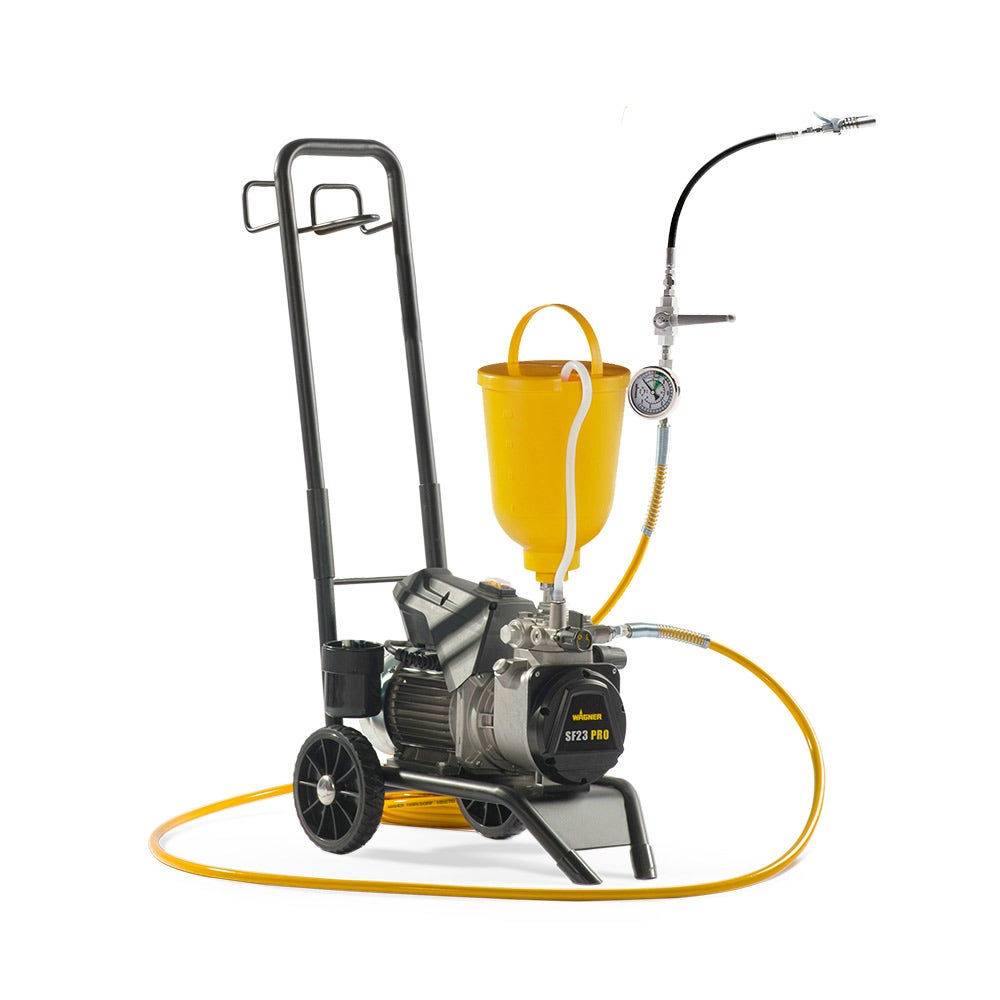

Wagner SF23 Pro Injection SuperFinish Diaphragm Unit

Introducing the Wagner SF23 Pro Injection SuperFinish diaphragm unit, specifically designed to provide a reliable, efficient, and cost-effective solution for crack injection. This system is user-friendly and excels in filling and redevelopment tasks, making it the perfect choice for both high and low viscosity materials. Compatible with a diverse range of materials including epoxy, polyurethane (PU), SPUR foam, and aqueous solutions, this unit comes complete with everything you need to get started.

Key Features

• Versatile and robust design, perfect for multiple application types.
• Compact, lightweight, and mobile – the smallest in its class.
• Ideal for demanding construction site use.
• Includes a collapsible cart with a 5-liter hopper and a 15-meter airless hose.
• Equipped with a HEA pressure gauge and an injection lance with a ball valve.
• Comes with a complete toolkit, including wrenches (41mm/22mm/19mm) and a screwdriver.

Contents

• Wagner SF23 Pro Injection Unit
• Collapsible Cart
• 5-Liter Hopper
• 15-Meter Airless Hose
• HEA Pressure Gauge
• Injection Lance with Ball Valve
• Tool Kit (Wrenches and Screwdriver)

Specifications

• Part No: 2395486cr5
• Barcode: 9317044657901
• Material: Powder coated steel housing & frame; Aluminium, stainless steel & tungsten carbide fluid section
• Brand: Wagner
• Warranty: 3+2 Full Commercial
• Net Weight: 27 kg
• Product Length: 600 mm
• Product Width: 350 mm
• Product Height: 580 mm
• Motor Rating: 1.7 HP
• Max Pressure: 3600 psi
• Max Flow Rate: 2.6 l/min
• Max Hose Length: 90 meters
