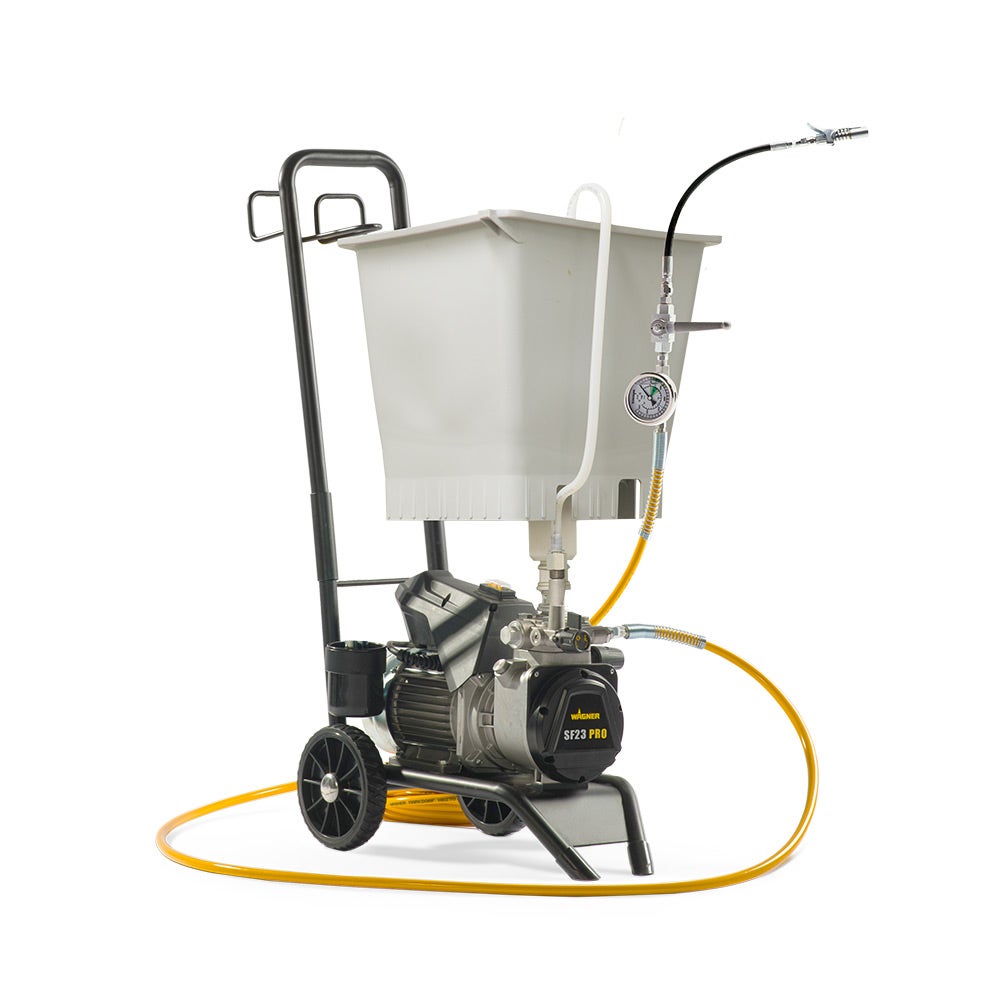

Wagner SF23 Pro Injection - SuperFinish Diaphragm Unit

Introducing the Wagner SF23 Pro Injection SuperFinish diaphragm unit, your ultimate solution for an efficient, reliable, and cost-effective crack injection system. Engineered with precision and user-friendliness in mind, this unit excels in both filling and redevelopment tasks. Its QLS (Quality Long Stroke) diaphragm pump is perfect for handling a variety of materials, including epoxy, polyurethane (PU), SPUR foam, and aqueous solutions.

Key Features

• Versatile and robust design, ideal for multiple applications
• Lightweight and compact, making it the smallest in its class
• Mobile and perfect for demanding construction sites
• Complete setup includes a collapsible cart, 20-liter hopper, and a 15-meter airless hose
• Equipped with HEA pressure gauge and injection lance with ball valve
• Includes a comprehensive tool kit with wrenches (41mm/22mm/19mm) and screwdriver

Contents

• Wagner SF23 Pro Injection Unit
• Collapsible Cart
• 20-Liter Hopper
• 15-Meter Airless Hose
• HEA Pressure Gauge
• Injection Lance with Ball Valve
• Tool Kit (Wrenches and Screwdriver)

Specifications

• Part No: 2395486cr20
• Barcode: 9317044657918
• Material: Powder-coated steel housing & frame, aluminium, stainless steel & tungsten carbide fluid section
• Brand: Wagner
• Warranty: 3+2 Full Commercial
• Net Weight: 27 kg
• Product Dimensions: 600 mm (L) x 350 mm (W) x 580 mm (H)
• Motor Rating: 1.7 HP
• Max Pressure: 3600 psi
• Max Flow Rate: 2.6 l/min
• Max Hose Length: 90 meters
