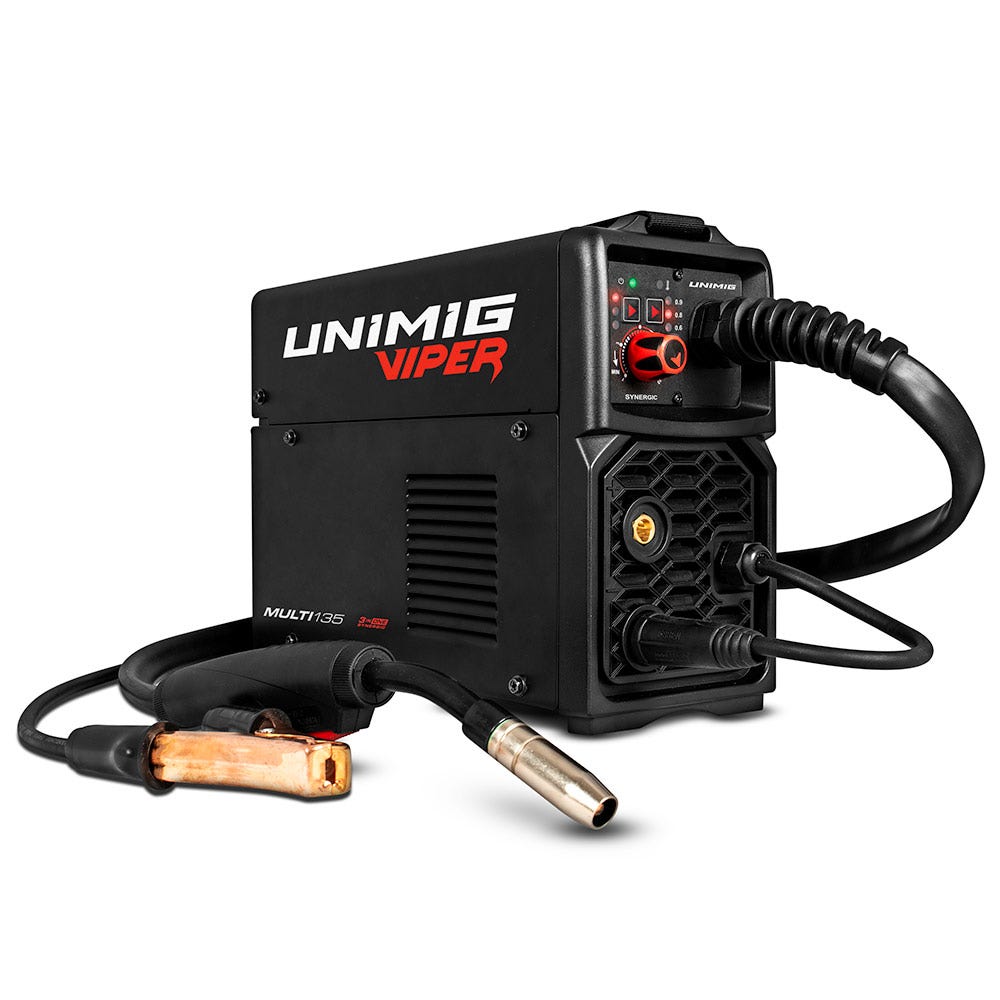

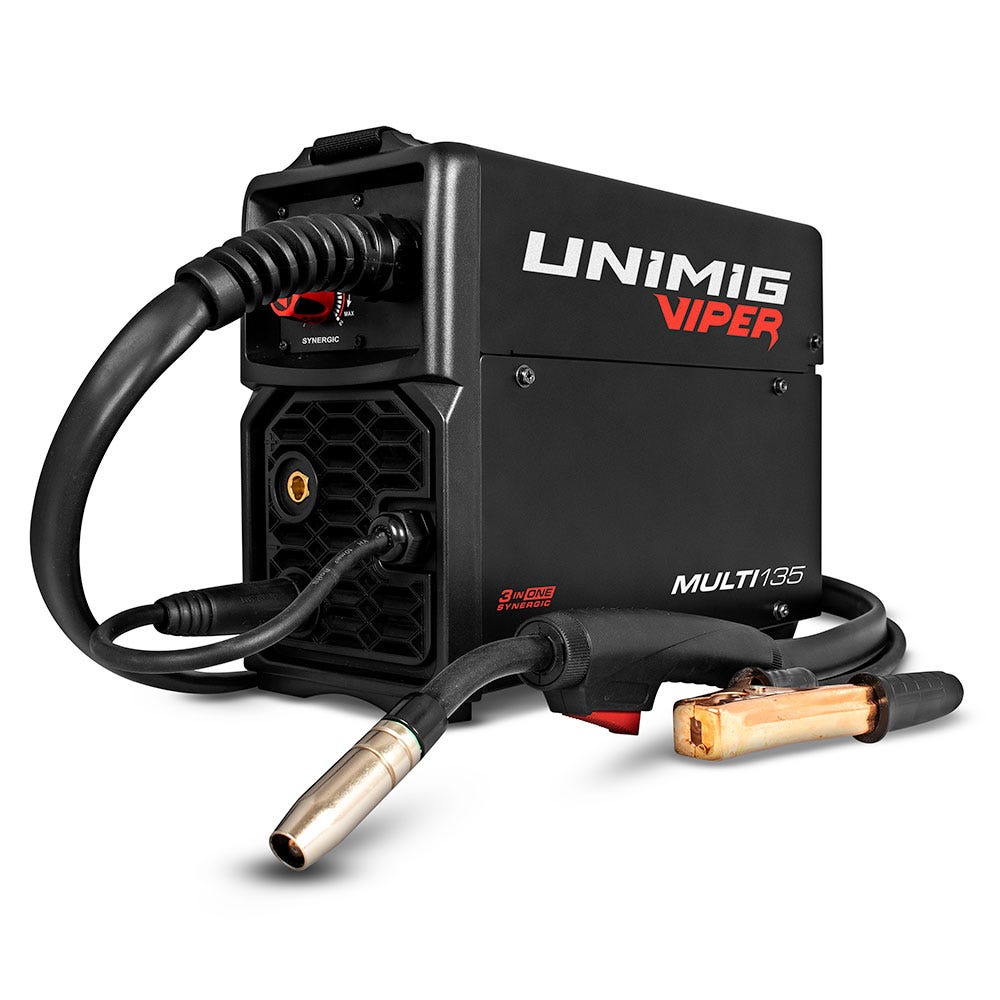

UNIMIG Viper Multi 135 MIG TIG STICK Electric Welder U11005K

Features

• Ultimate DIY multi-process welder for weekend projects
• 3-in-1 capability: MIG, TIG, and STICK welding

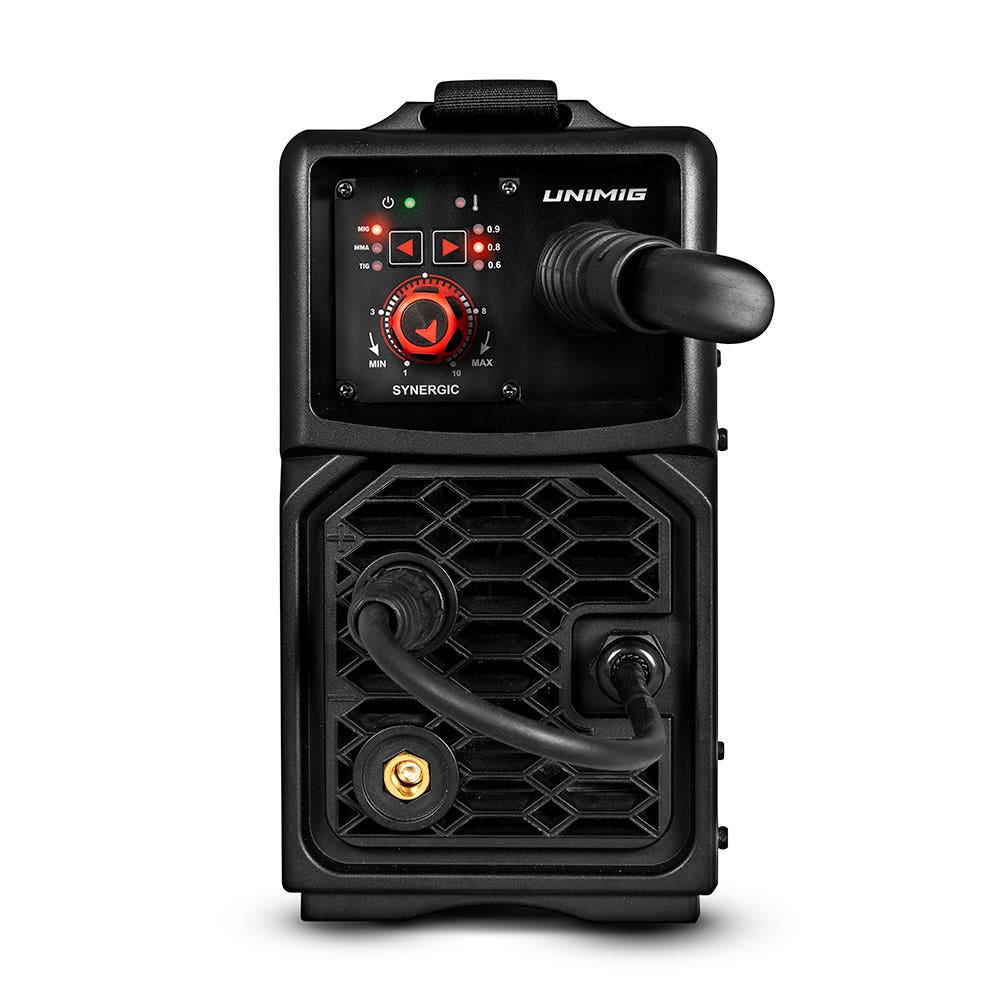

• Synergic MIG control simplifies weld settings
• Supports both gas and gasless MIG wire
• Lightweight design at just over 5kg, includes shoulder strap
• 10 AMP plug compatible with any domestic outlet

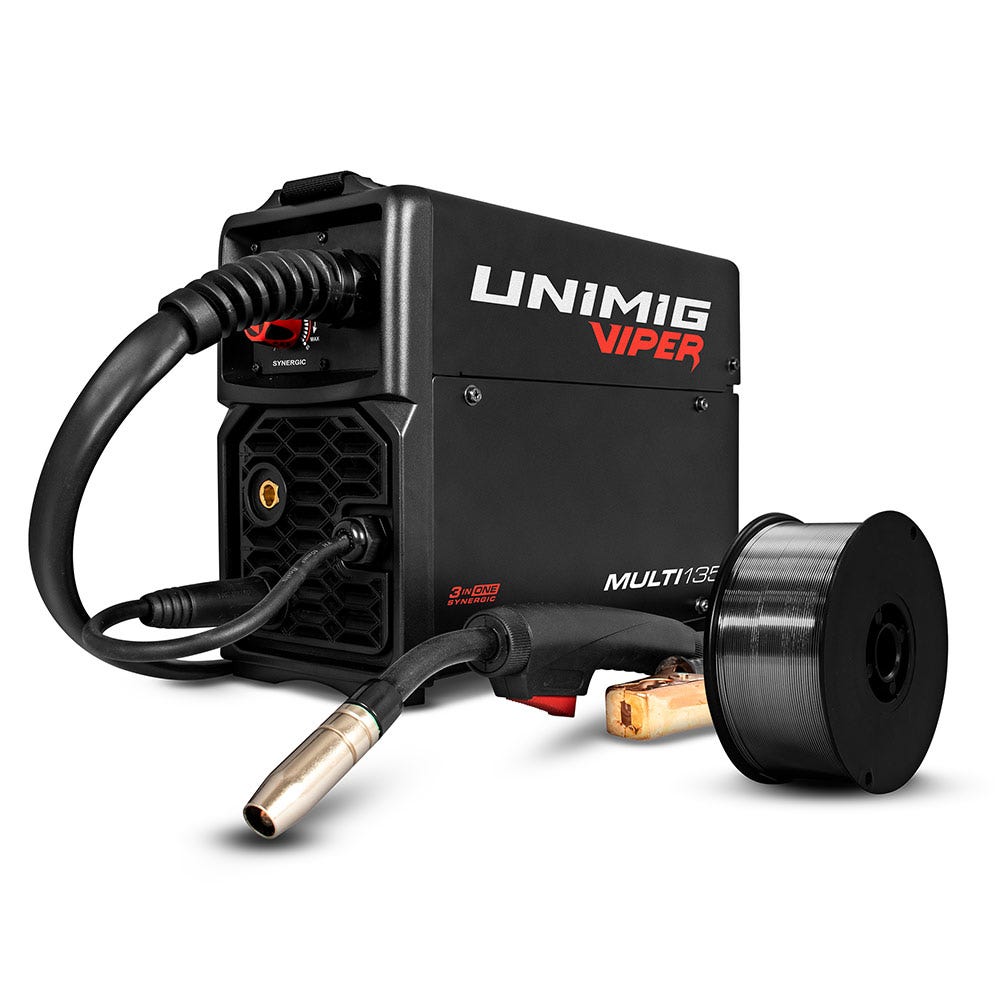

• Includes: MIG/TIG/STICK welder, 2m MIG torch, 2m earth clamp, electrode holder, 2m gas hose, 1kg gasless wire, operating manual

Specifications

• Primary input voltage: 240V Single Phase
• Supply plug: 10 AMP
• Rated input power (kVA): 4.15
• Ieff (A): 8.4
• Rated output: 40/16V-135A/21V
• No load voltage (V): 68
• Protection class: IP21S
• Insulation class: H
• Power factor: 0.68
• Minimum generator (kVA): 8.0
• Dinse connector: 10/25
• Standard: AS/NZ60974-1
• Suitable materials: Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Copper
• MIG welding current range: 40-135A
• MIG duty cycle @ 40°C: 15% @ 135A, 60% @ 65A, 100% @ 50A
• MIG wire size range: 0.6-0.9mm
• MIG wire spool size: 1kg
• MIG welding thickness range: 1-6mm
• TIG function type: DC Lift Arc
• TIG welding current range: 20-120A
• TIG duty cycle @ 40°C: 15% @ 120A, 60% @ 60A, 100% @ 45A
• TIG welding thickness range: 1-6mm
• Stick welding current range: 20-120A
• Stick duty cycle @ 40°C: 15% @ 120A, 60% @ 60A, 100% @ 45A
• Stick electrode range: 2.5-3.2mm
• Stick welding thickness range: 1-6mm
• Wire drive: Standard
• VRD: Yes
• Thermal overload protection: Over Temperature Warning
