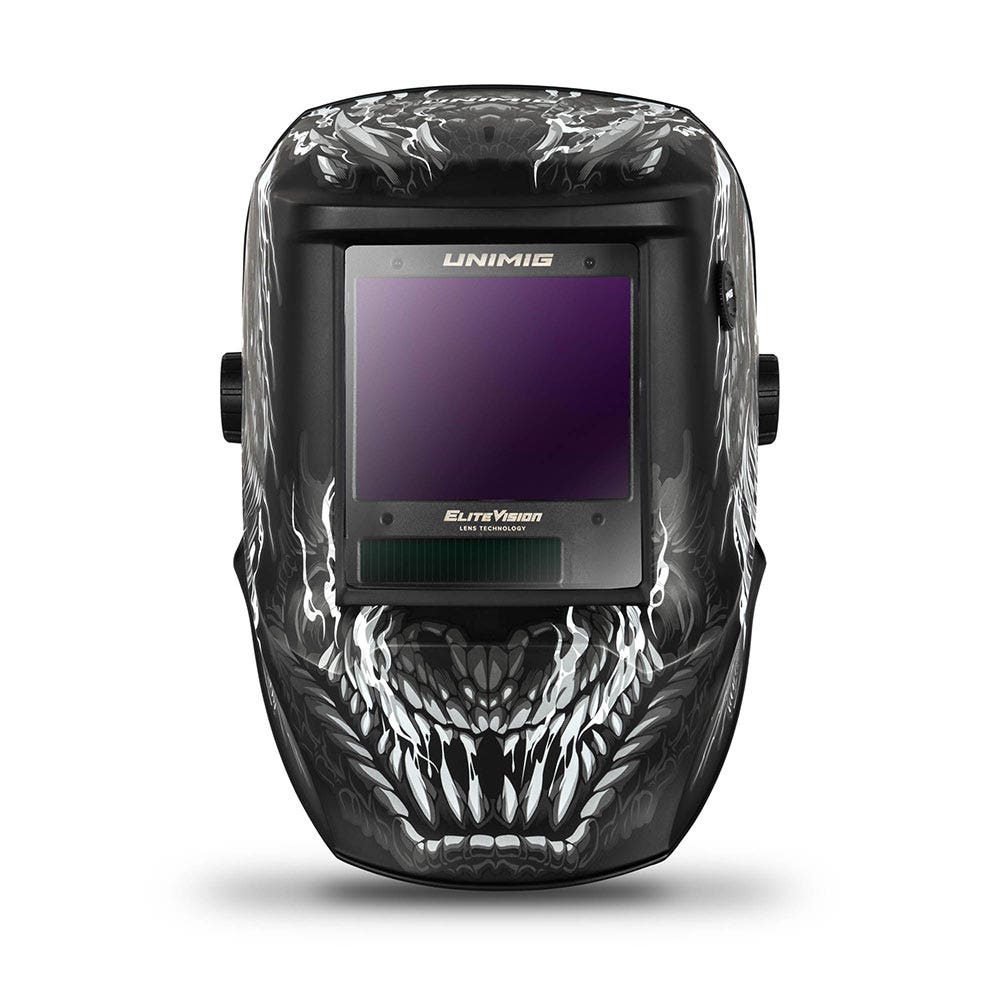

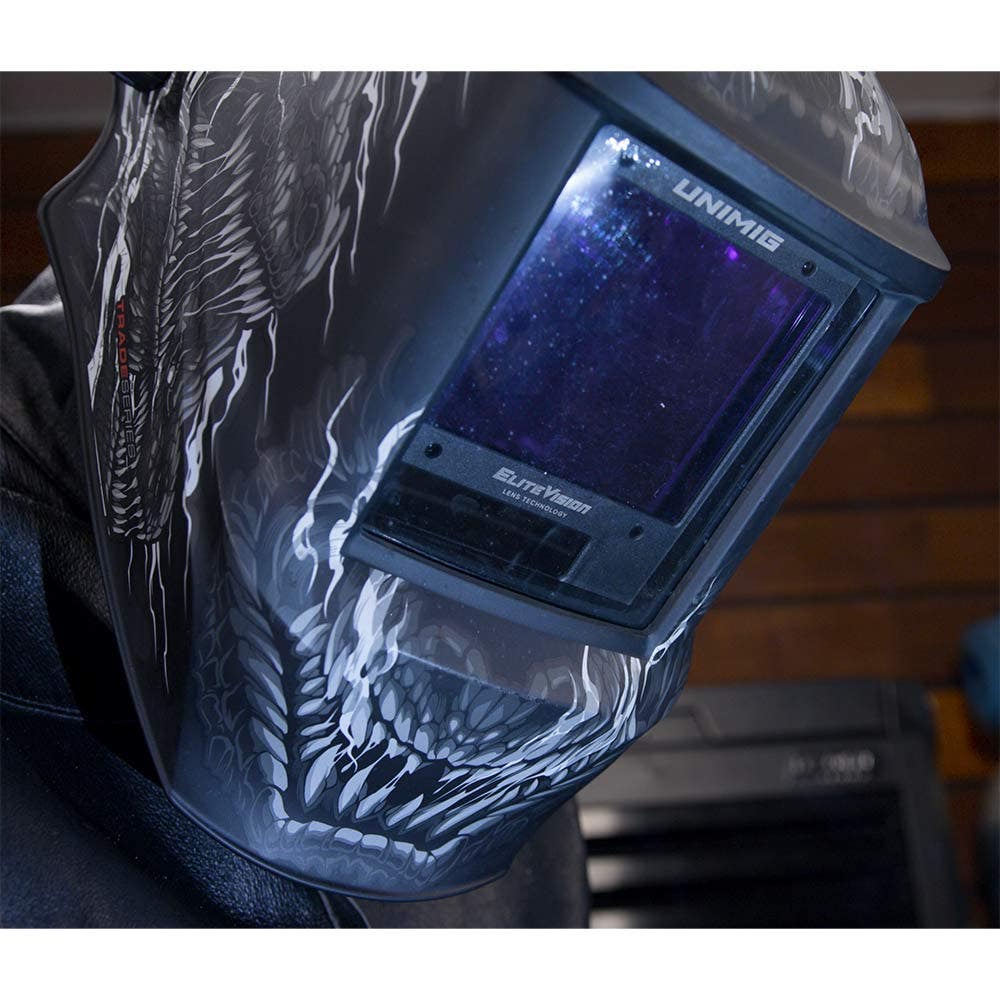

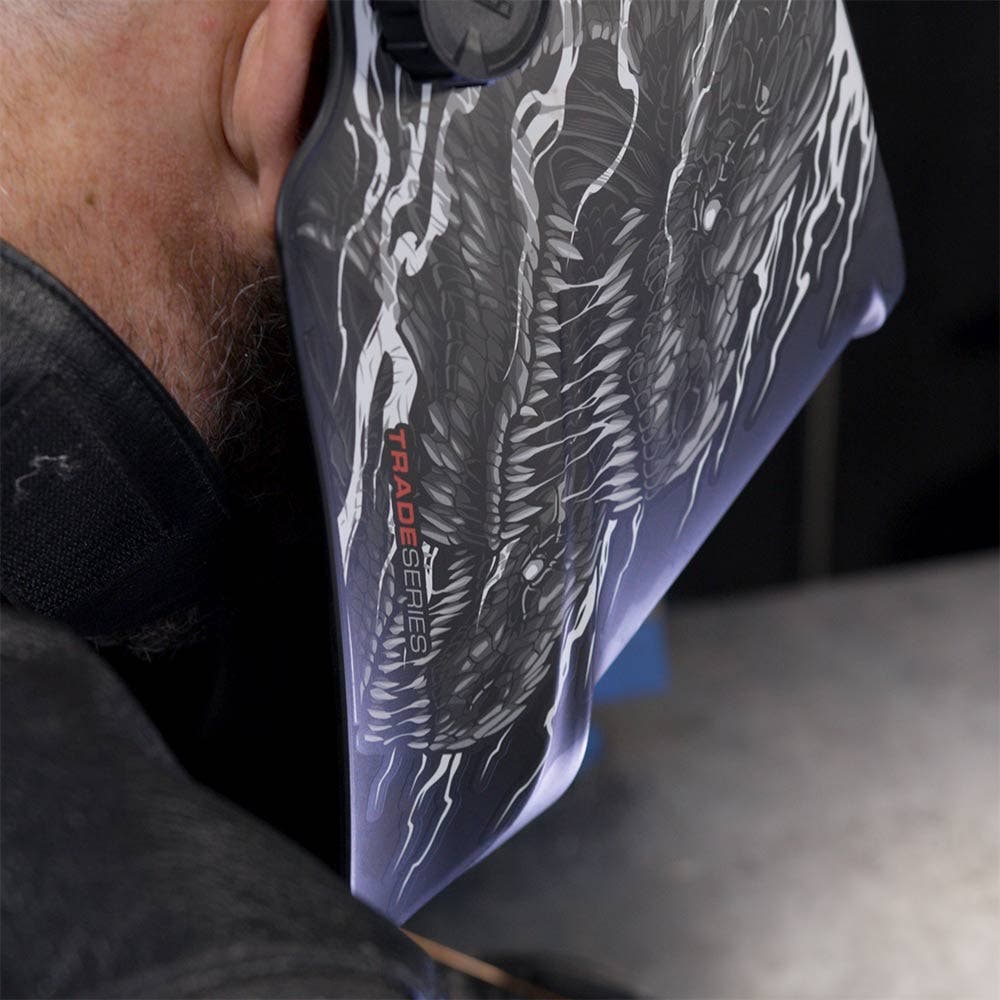

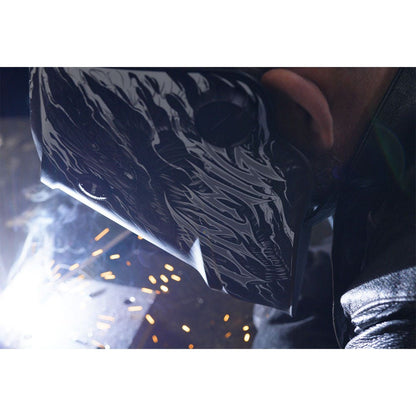

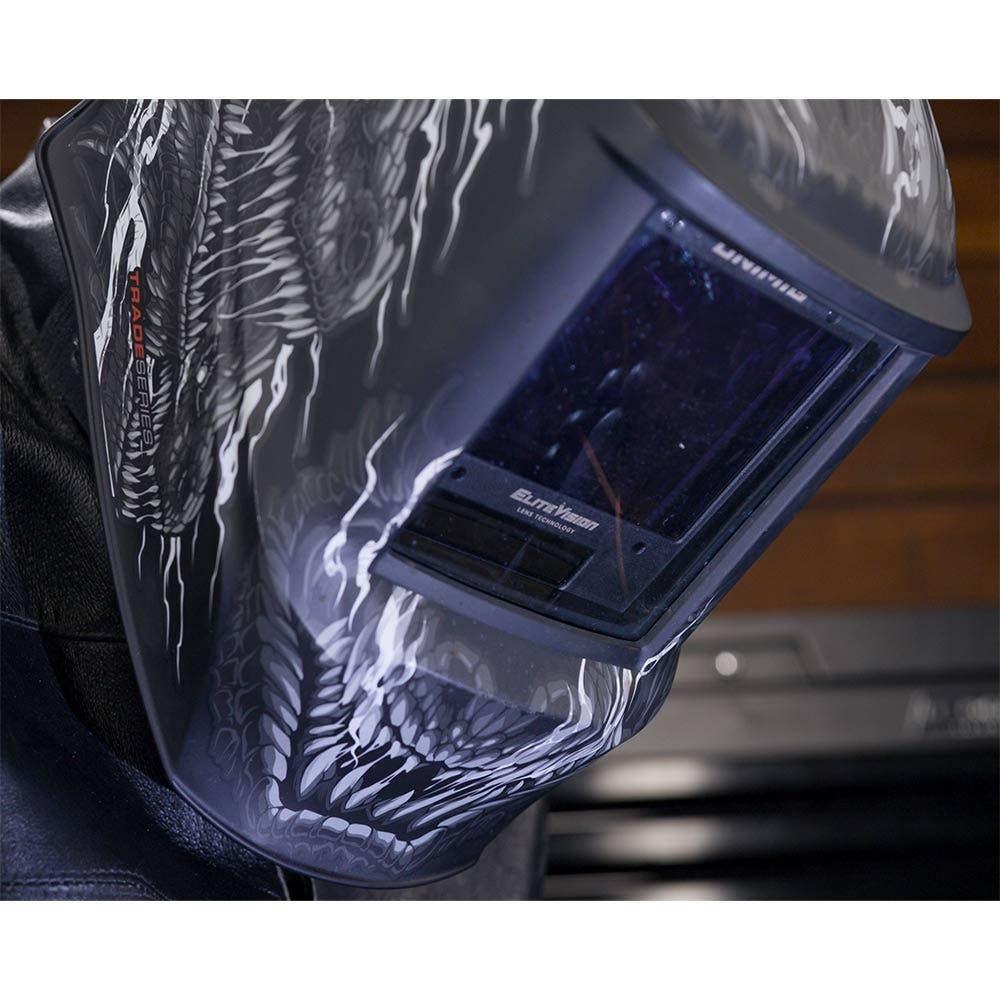

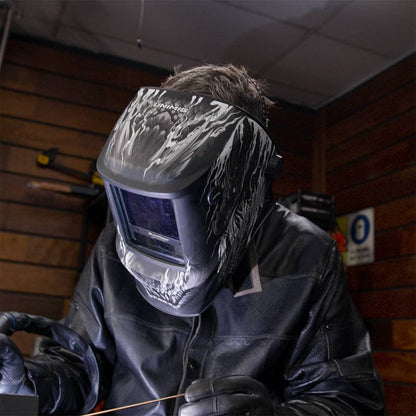

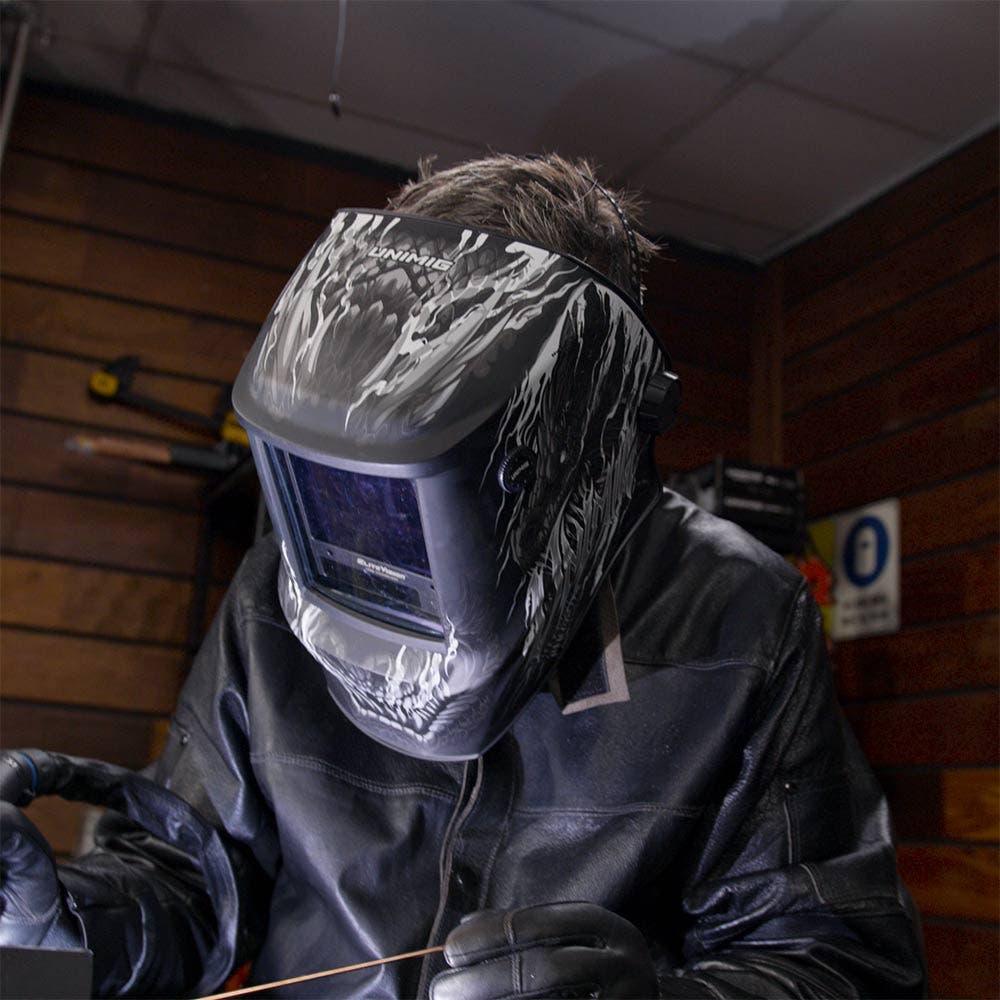

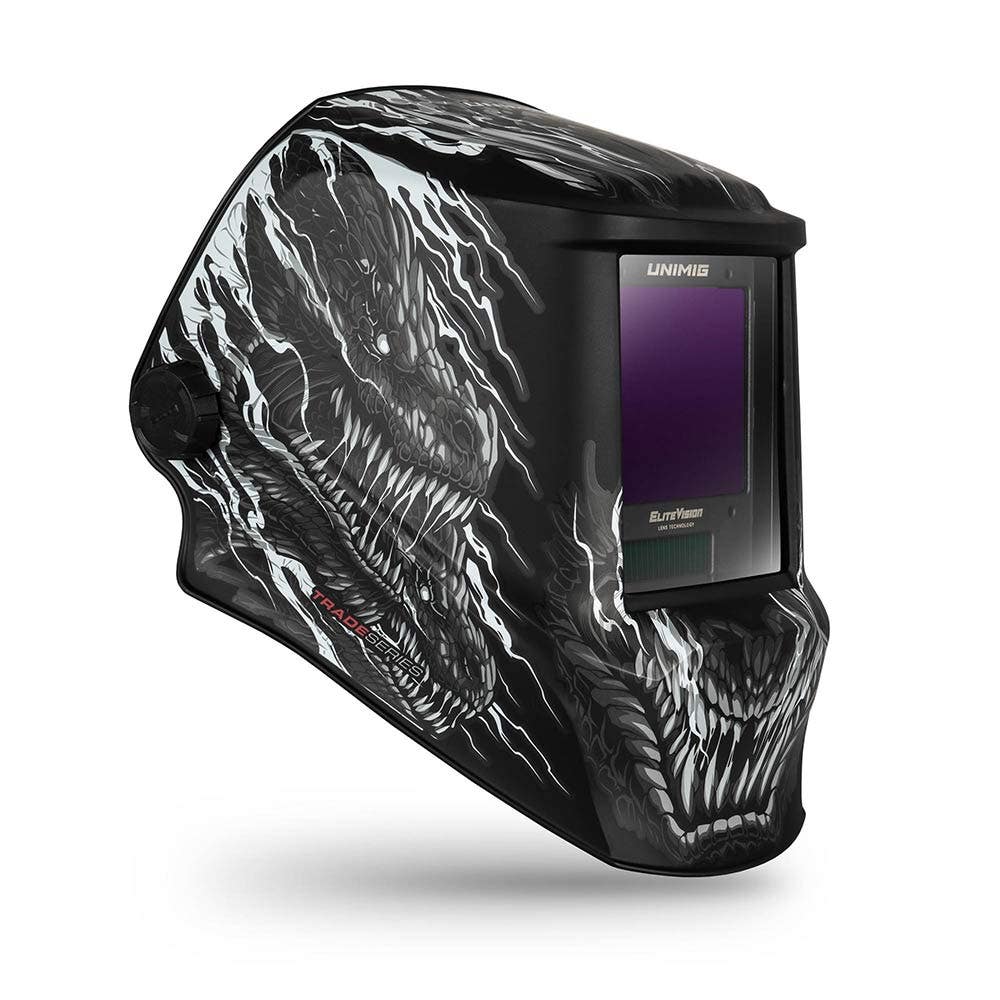

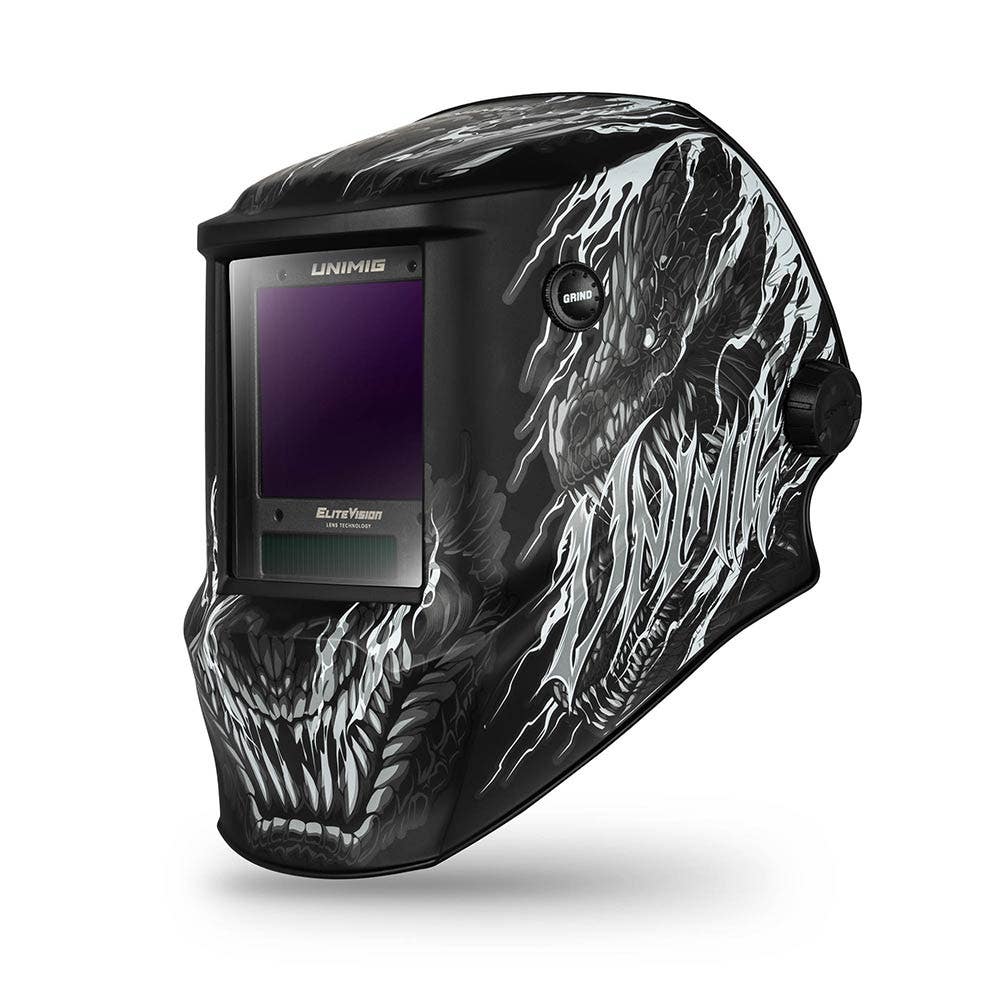

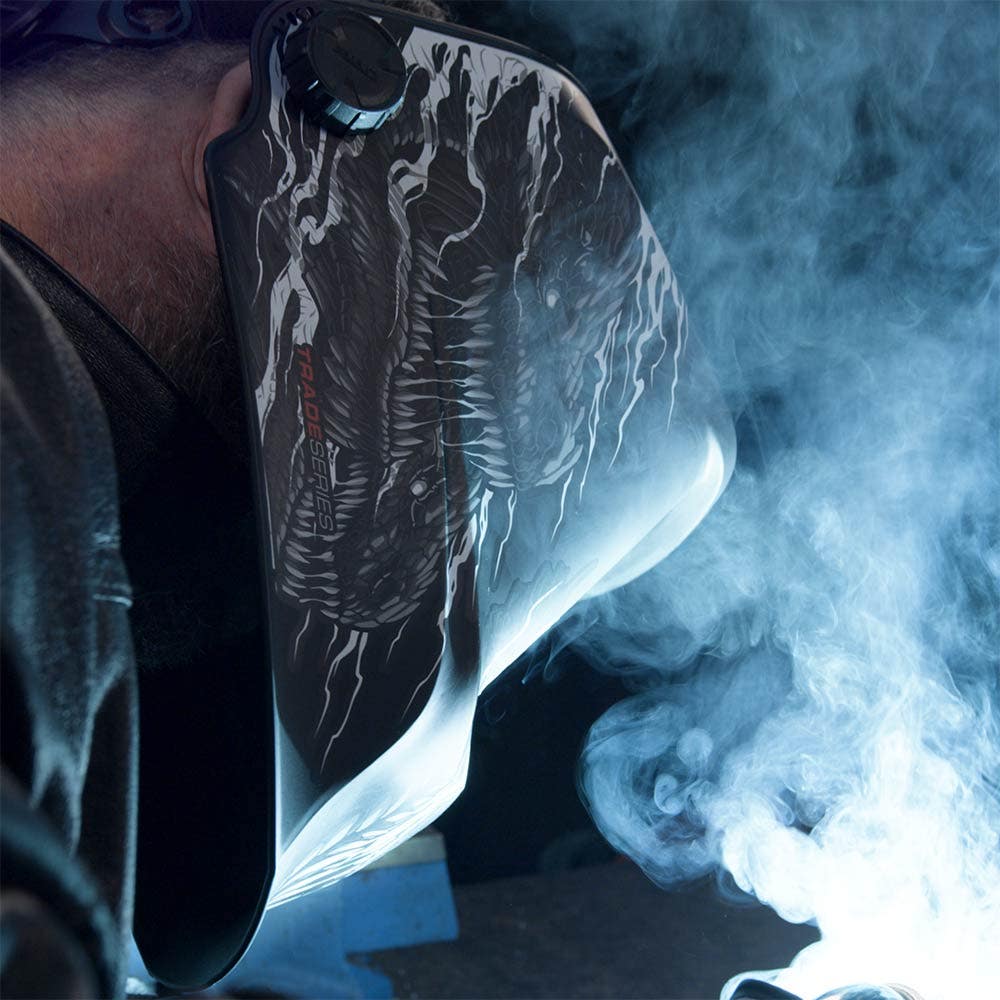

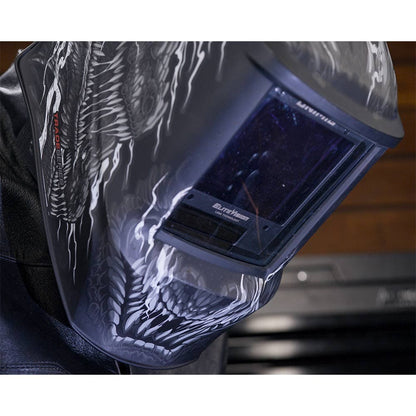

UNIMIG Trade Series Helmet - Dragon U21027

Features

• Protects eyes and face during welding with Trade Series helmets
• 1/1/1/1 optical classification for superior clarity
• Large 100x83.4mm viewing lens for complete visibility

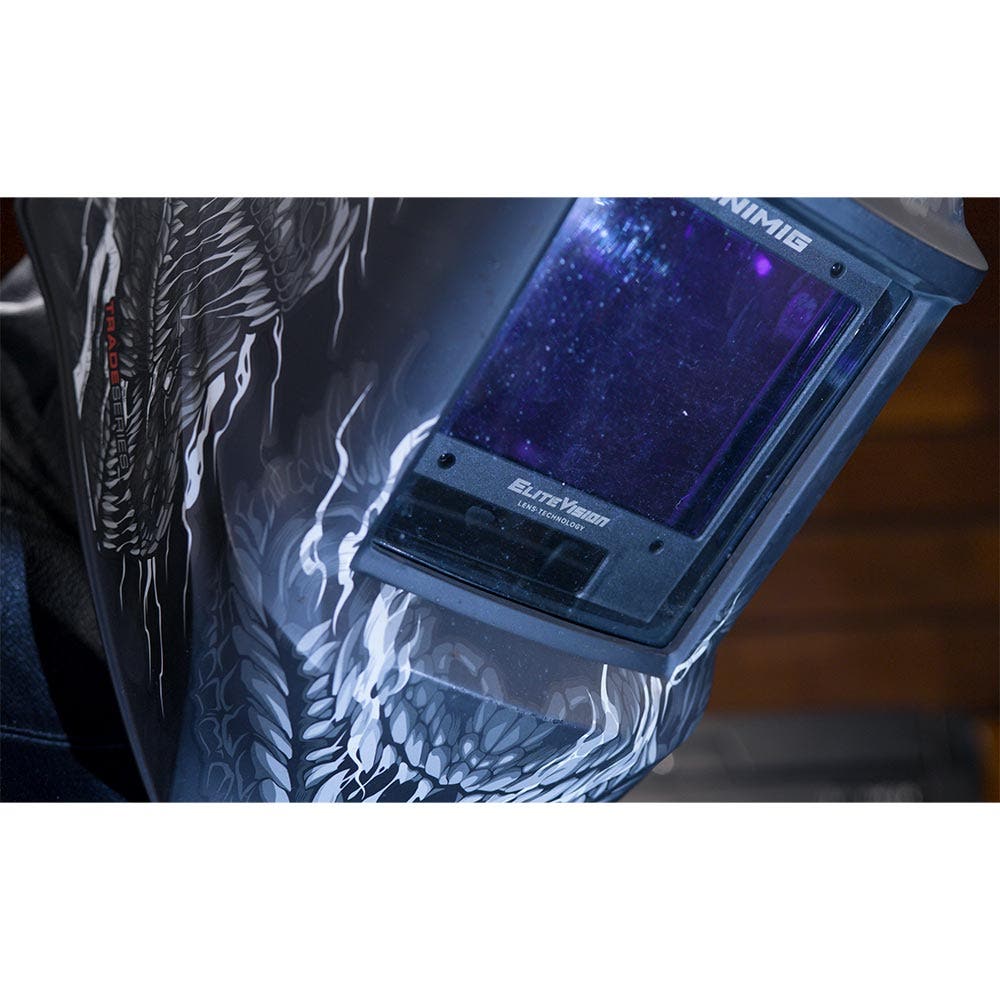

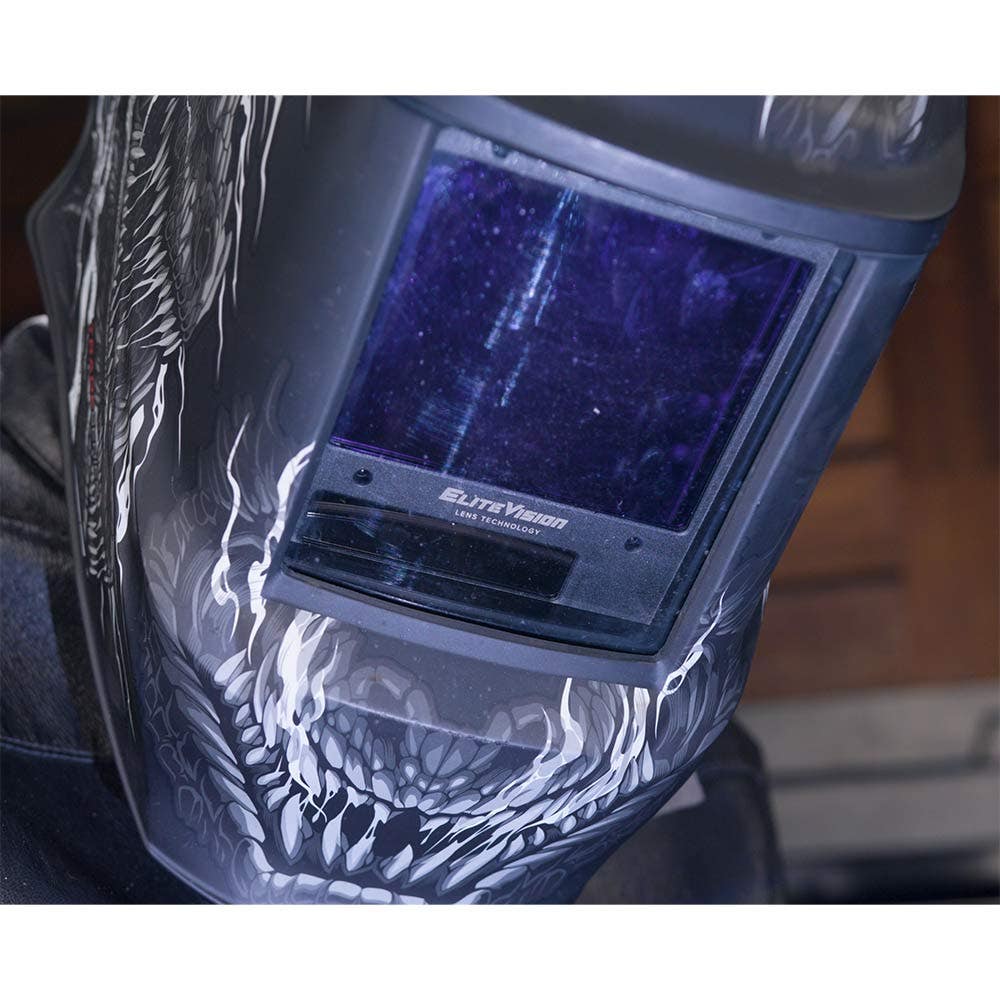

• ELITEVISION Lens Technology enhances optics and reduces eye fatigue
• Memory States store up to three shade settings for quick setup

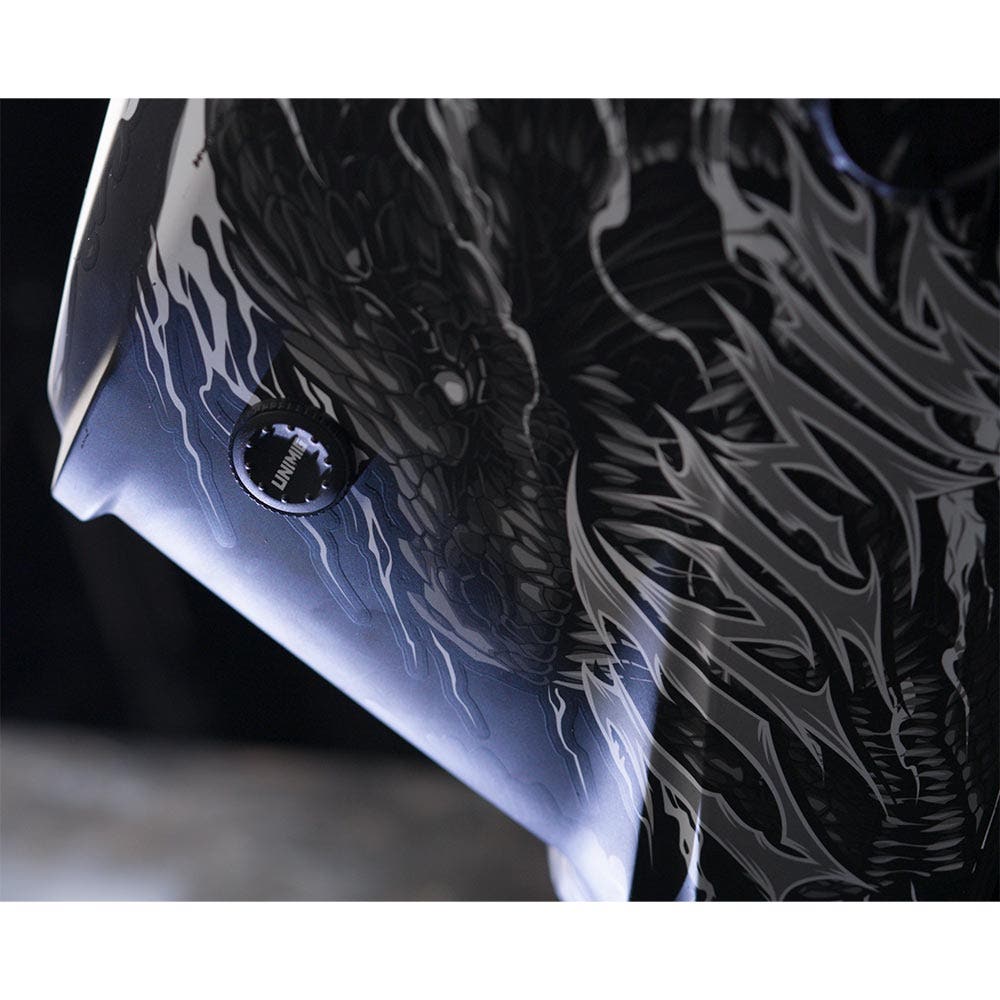

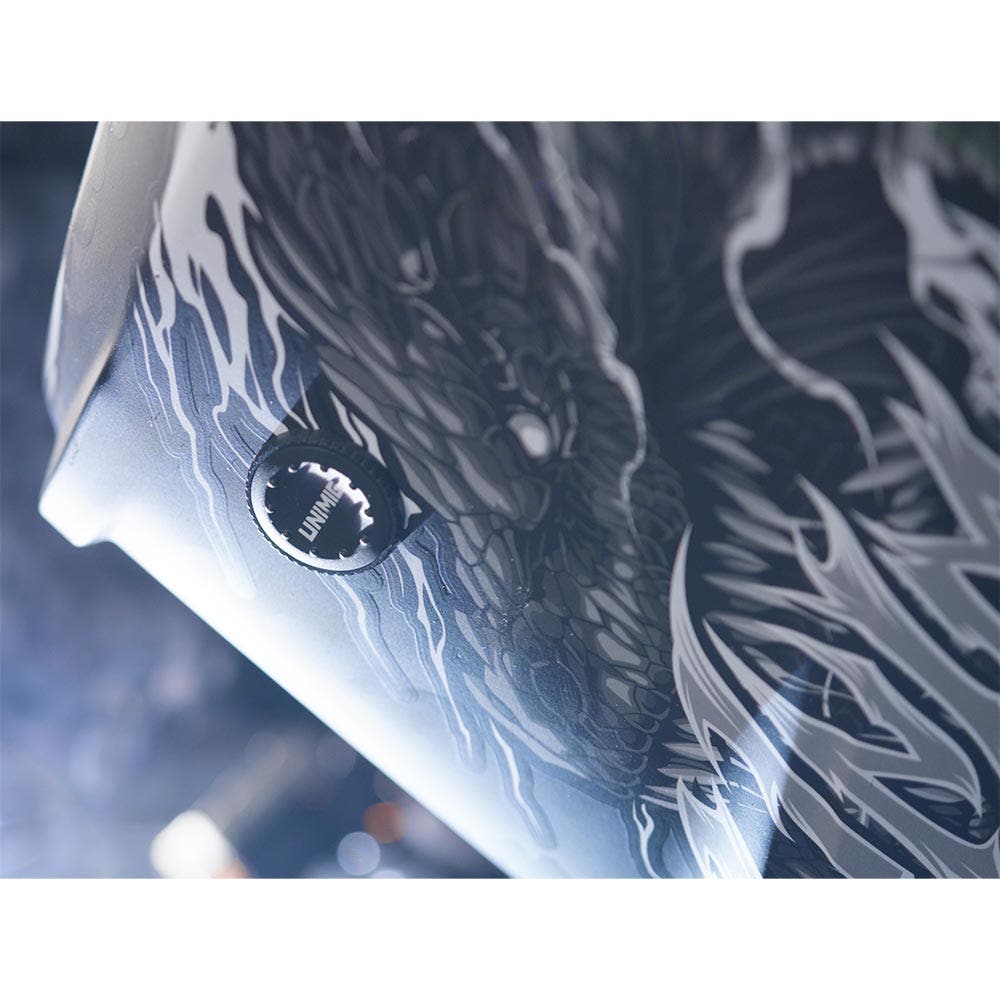

• External Grind Button to switch to grind mode easily
• 4 Arc Sensors detect arcs instantly for optimal protection
• CR2450 backup battery enhances filter performance

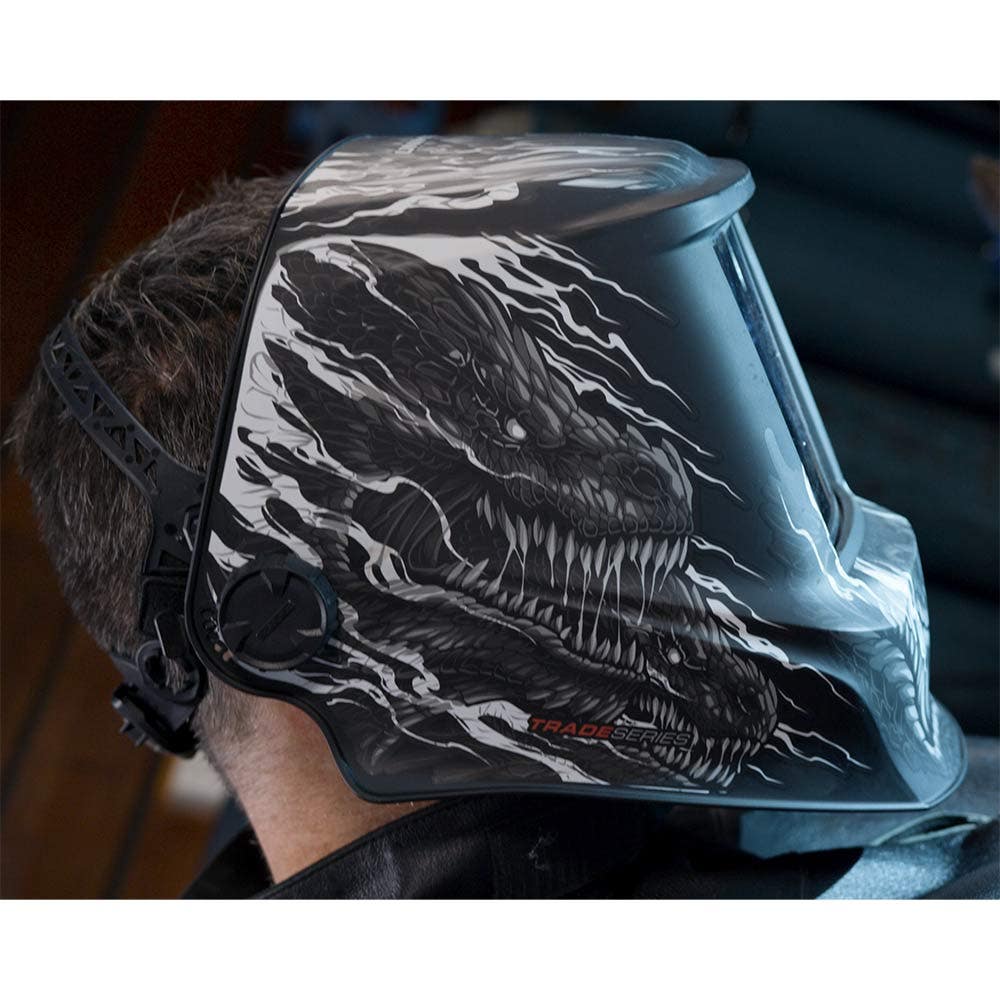

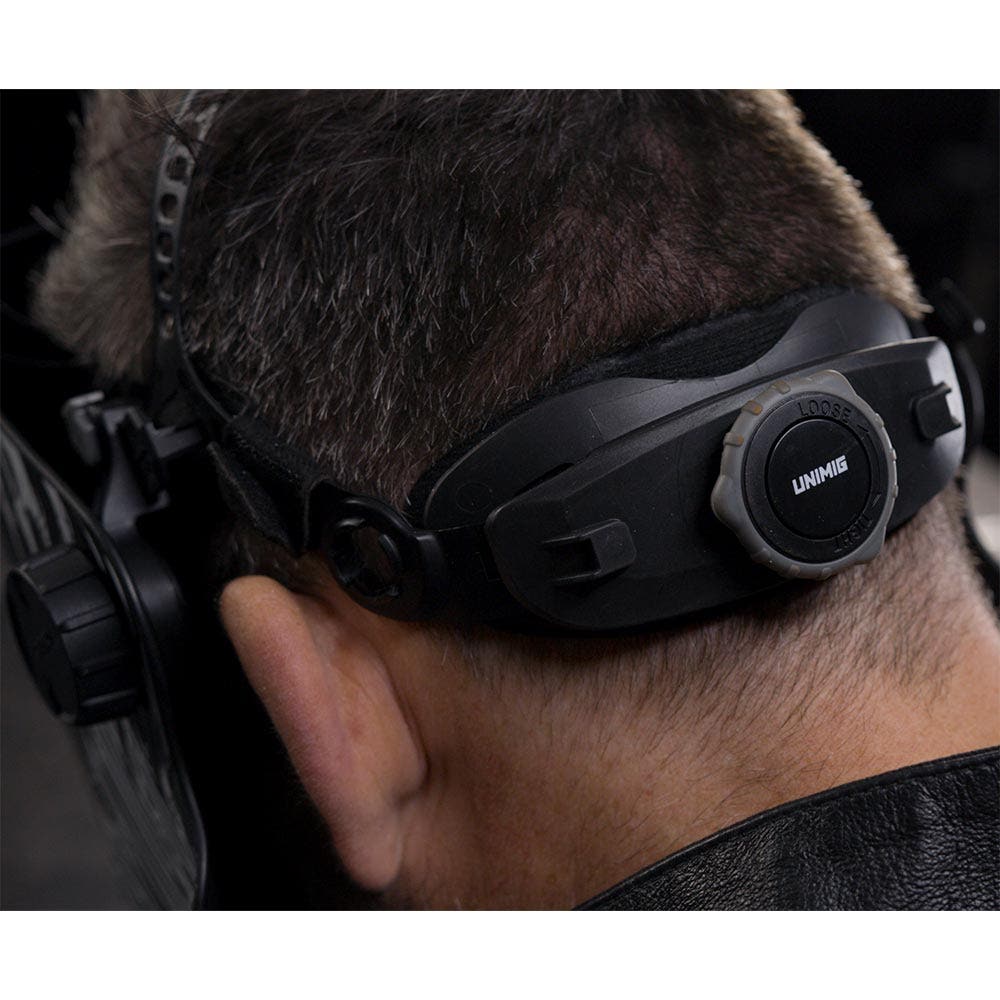

• 4 Point Harness for a customizable and comfortable fit

Specifications

• Filter Dimensions: 114x133x9.5mm
• View Size: 100x83.4mm
• Arc Sensors: 4
• Classification: 1/1/1/1
• Light State: 4
• Dark State: 5-13
• UV/IR Protection: DIN15
• Time from Light to Dark: 0.04ms
• Time from Dark to Light: 0.1-0.9s
• Sensitivity Delay: Adjustable (1-5 for low-high)
• Power Supply: Solar Cells & CR2450 Replaceable Battery
• Operating Temperature: -10°C to 65°C
• Storage Temperature: -20°C to 85°C
• Shade Control: Yes
• Grind Mode: Yes (External)
• Minimum TIG Amperage: 3A
• Standards: AS/NZS 1337.1 B (High Impact) / AS/NZS 1338.1 (Auto-Darkening)
• Part No: U21027
• Barcode: 9333521033815
• Product Length (mm): 298
• Product Width (mm): 240
• Product Height (mm): 250
• Brand: UNIMIG
• Warranty: 3 Year
• Net Weight (kg): 2
