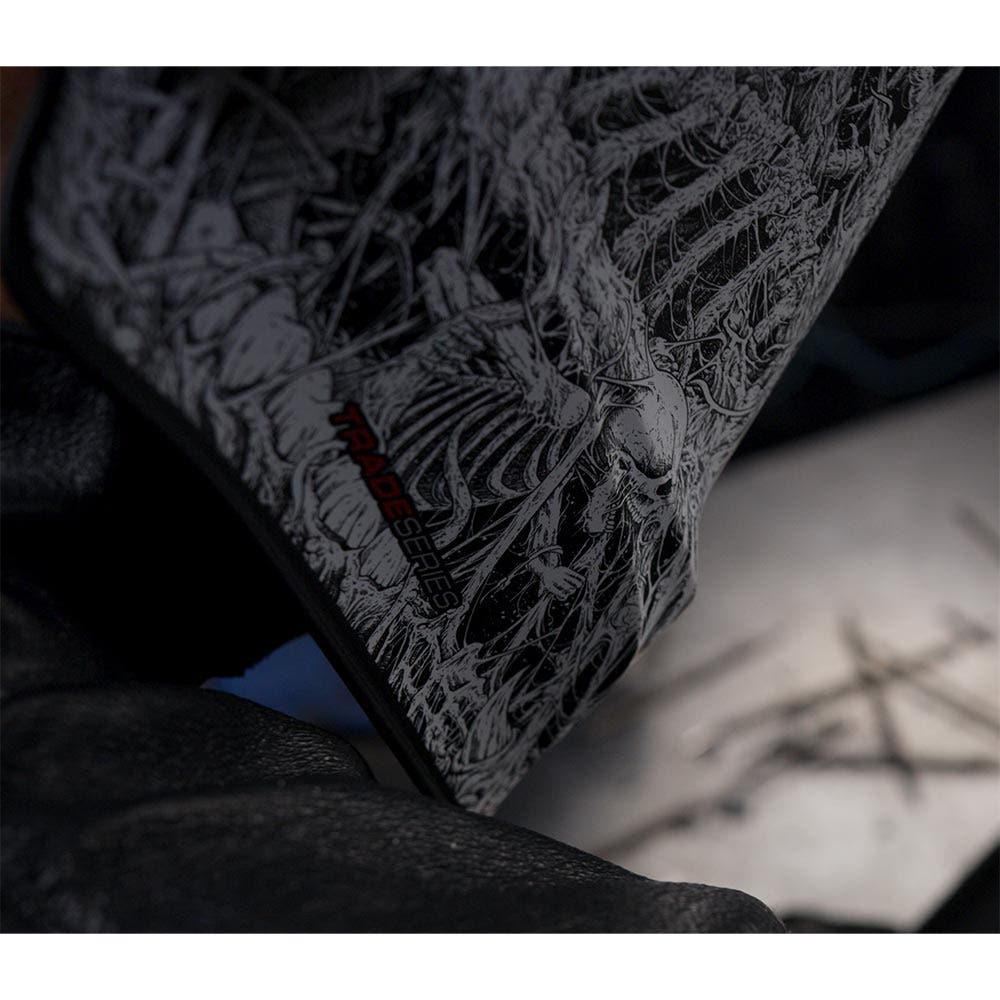

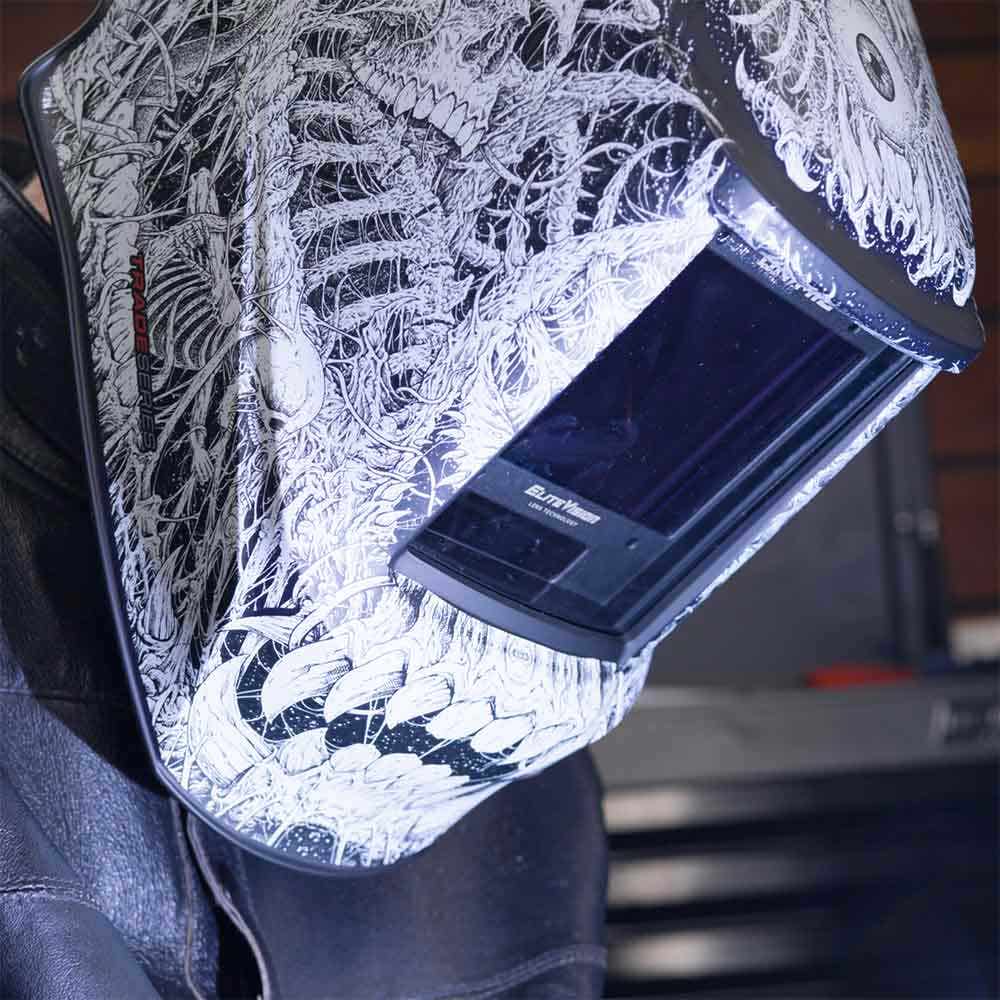

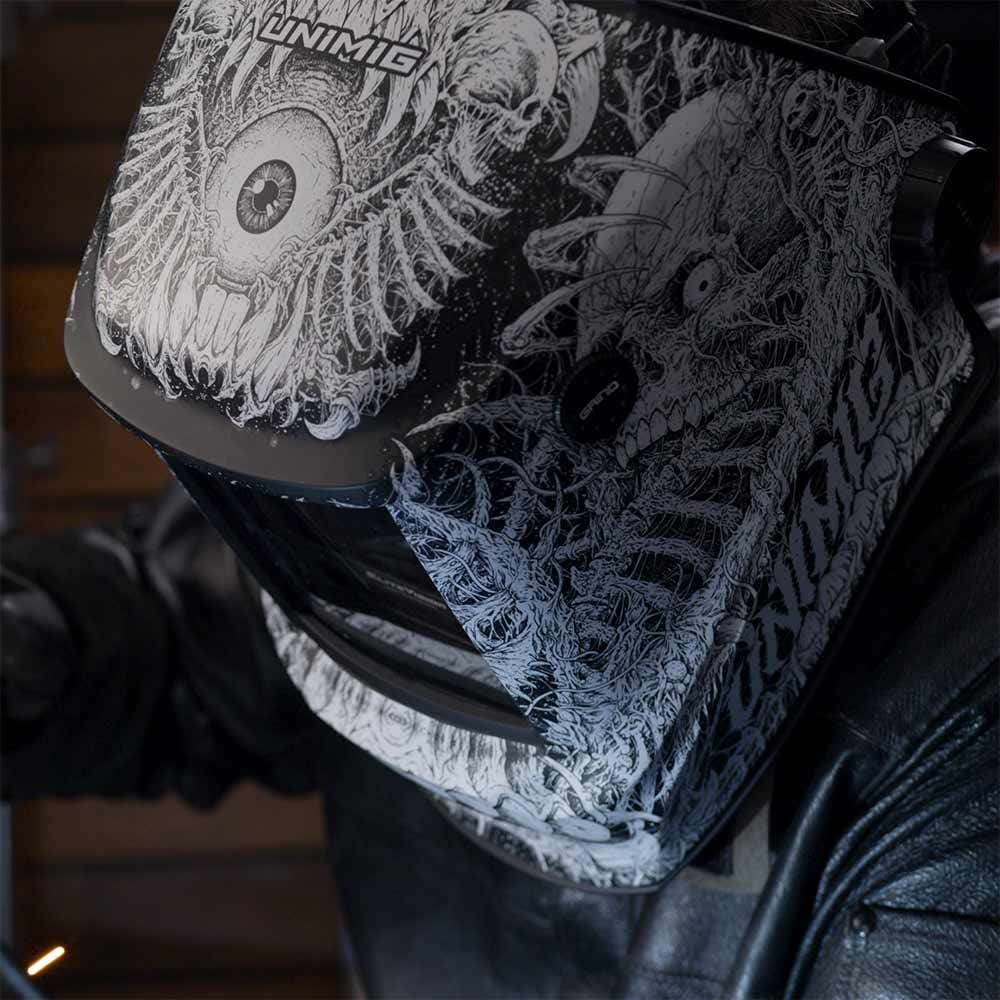

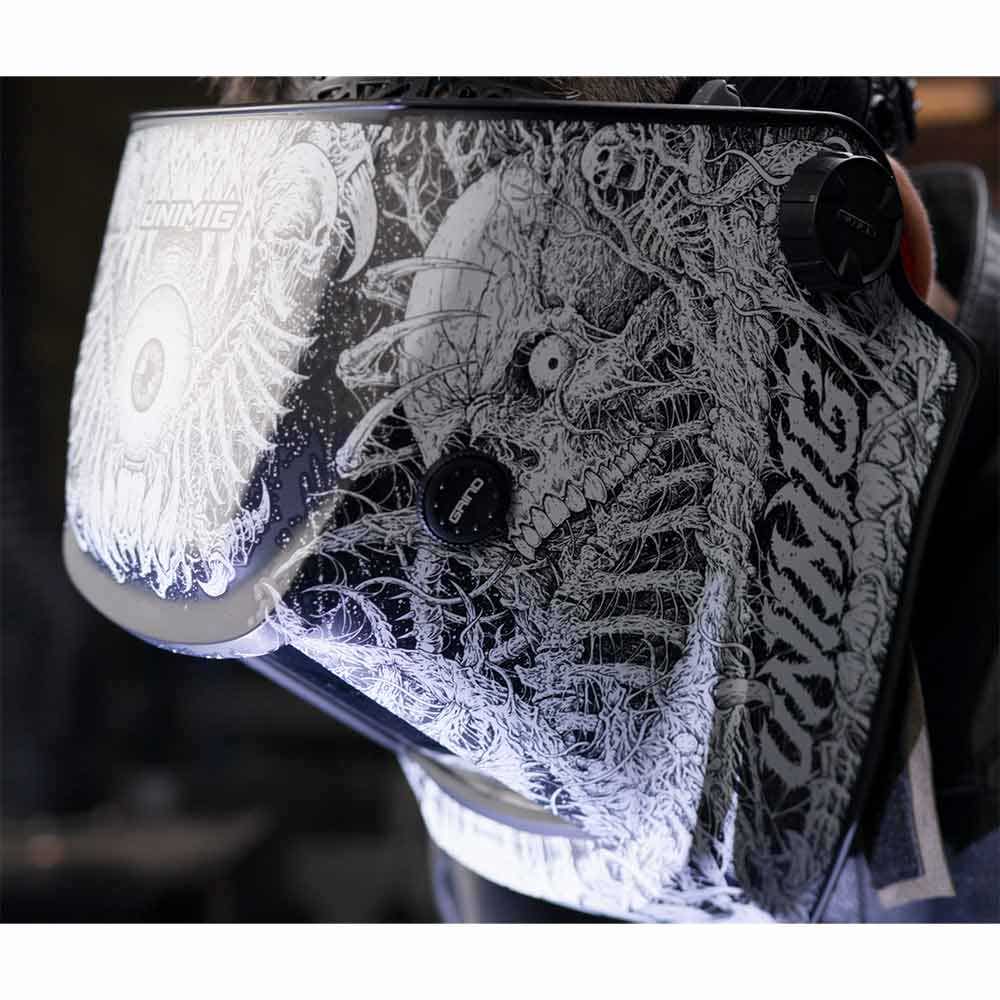

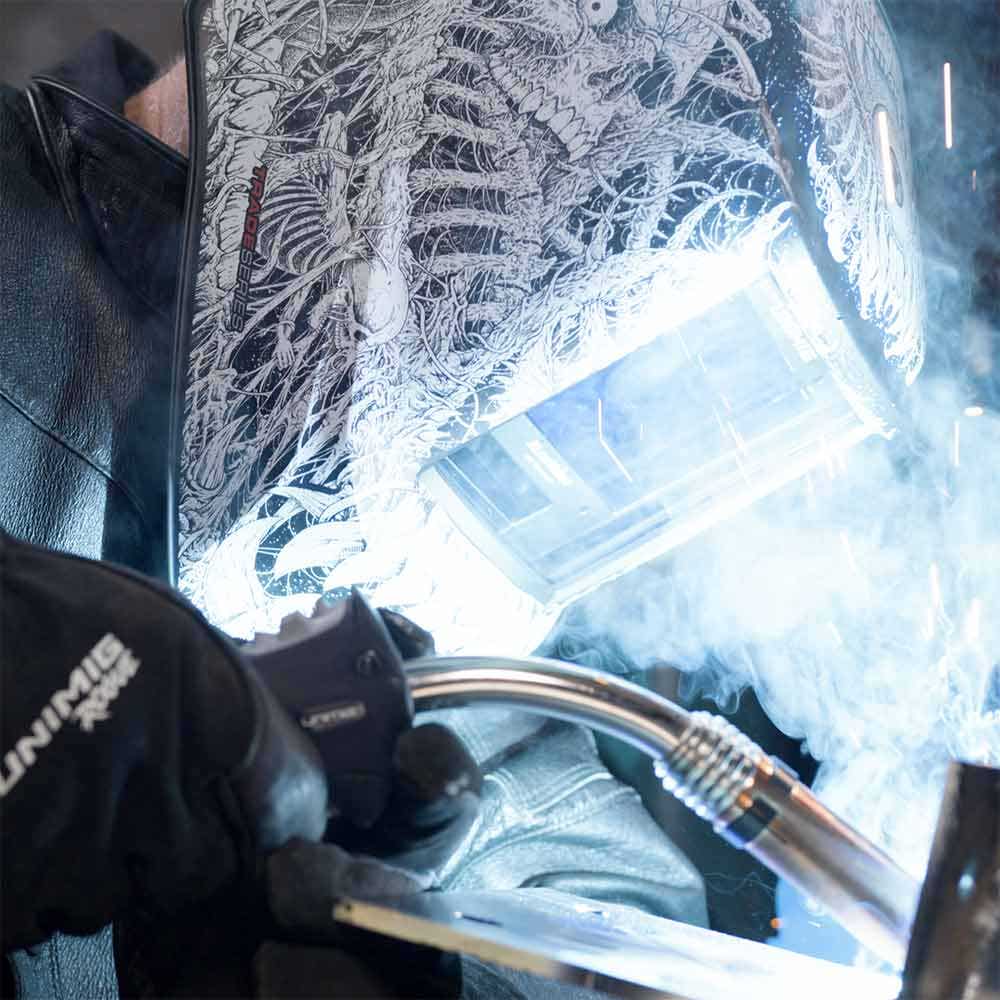

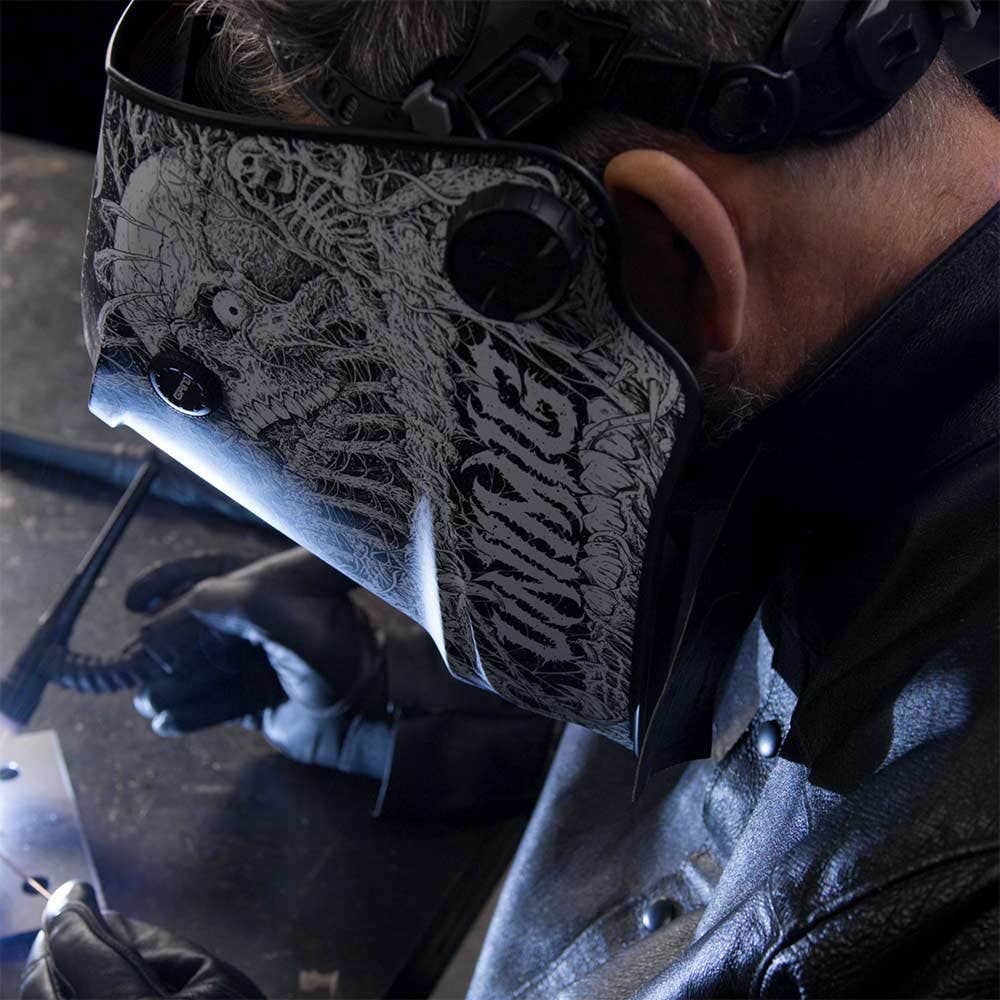

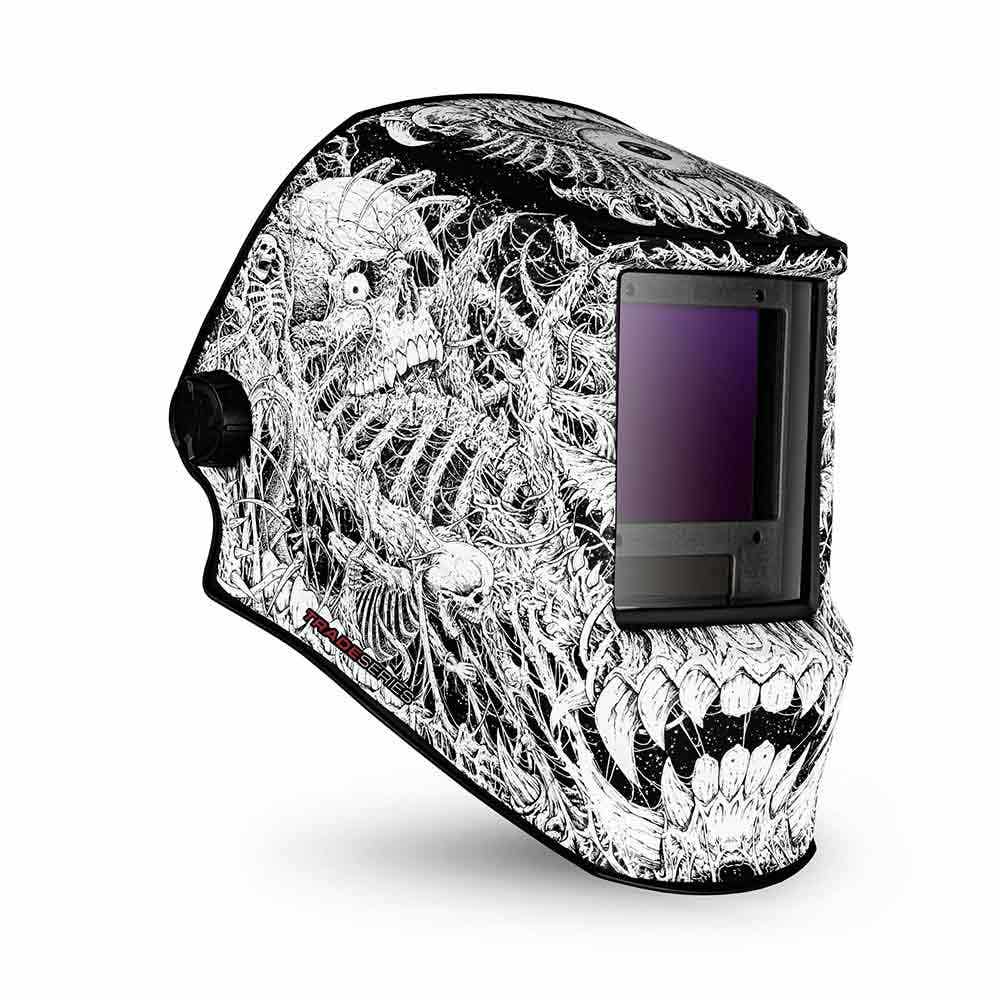

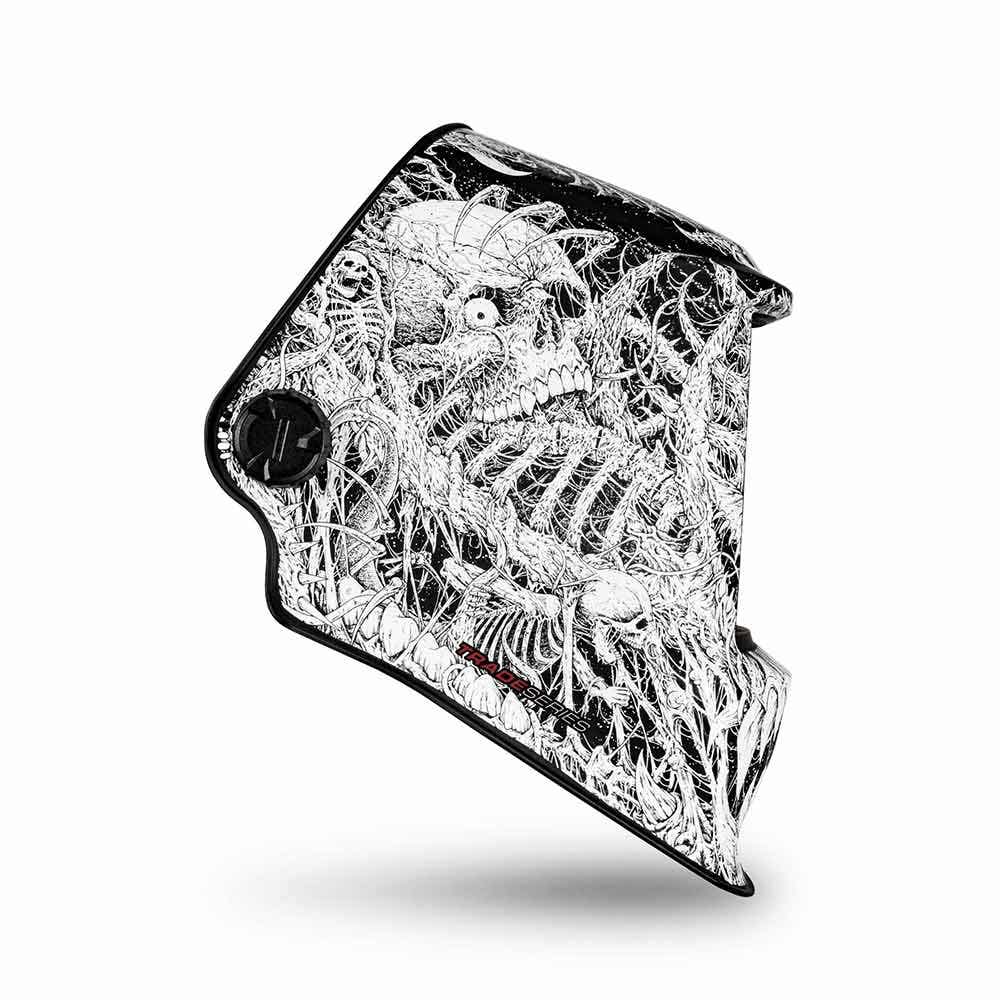

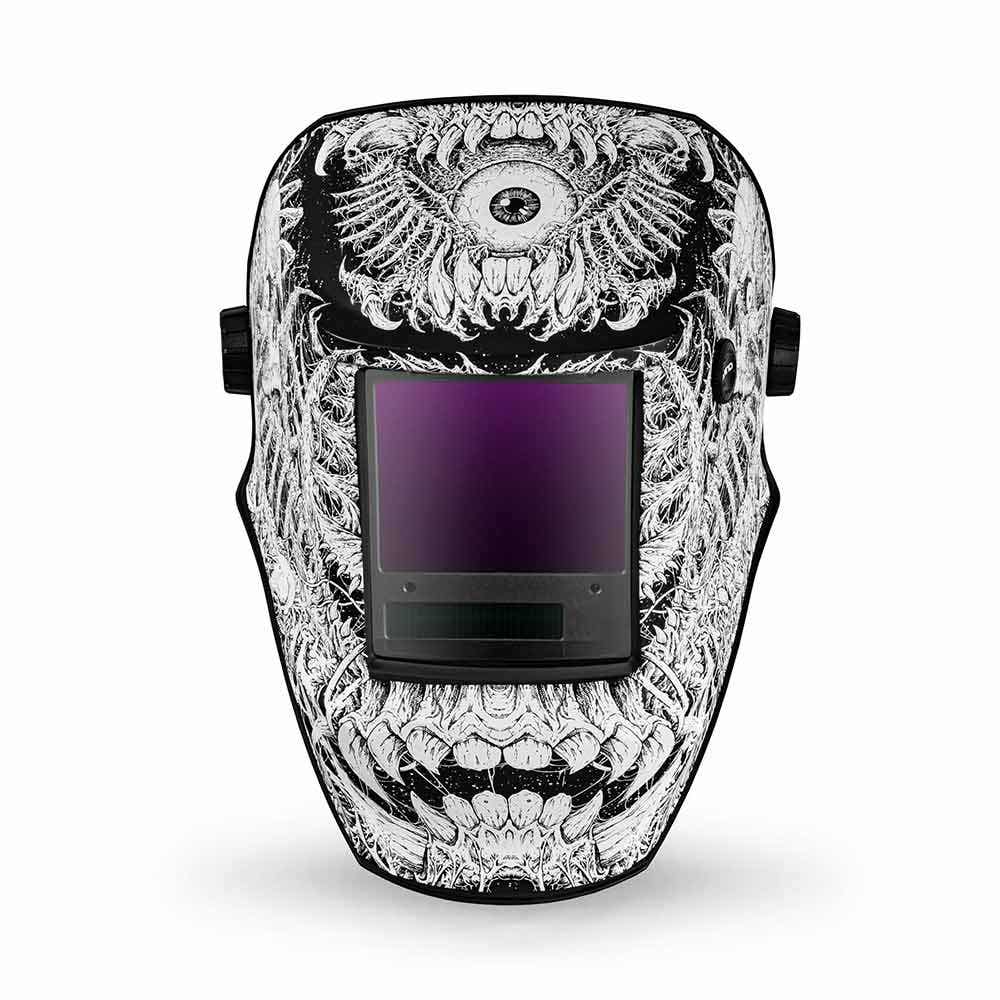

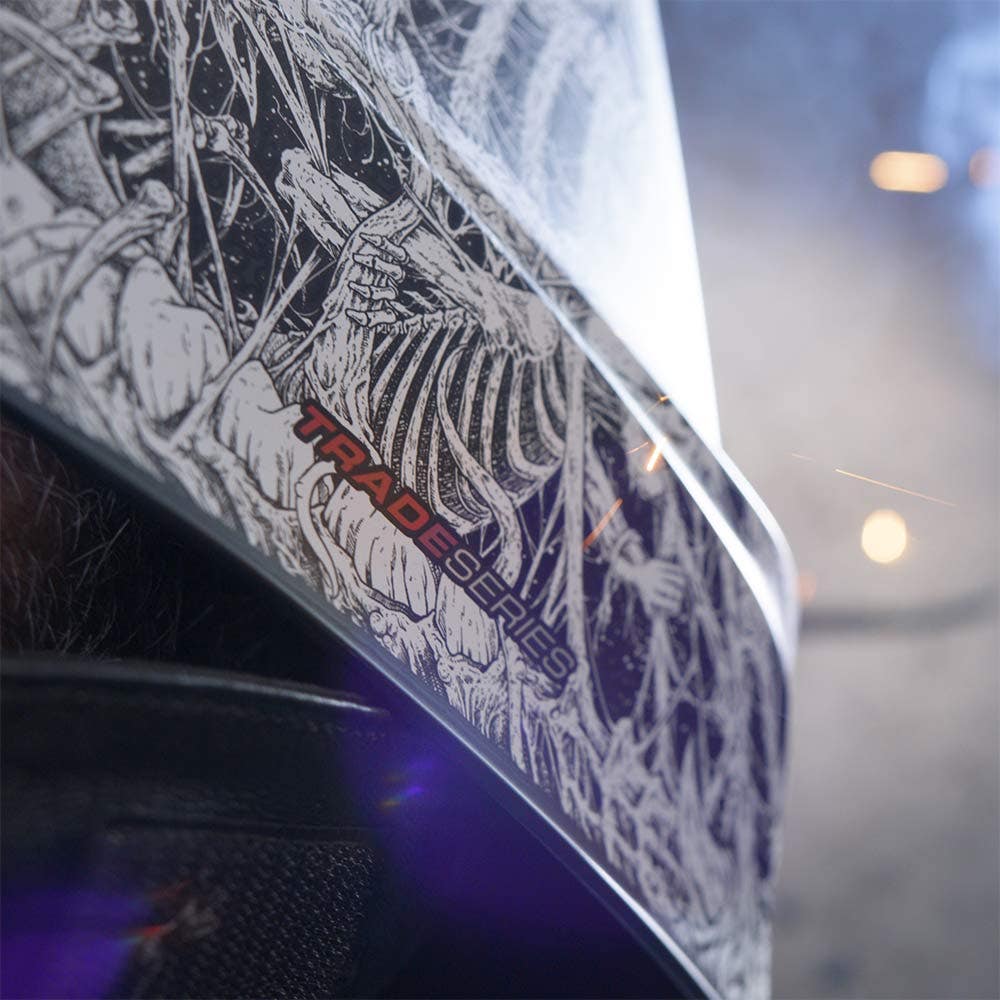

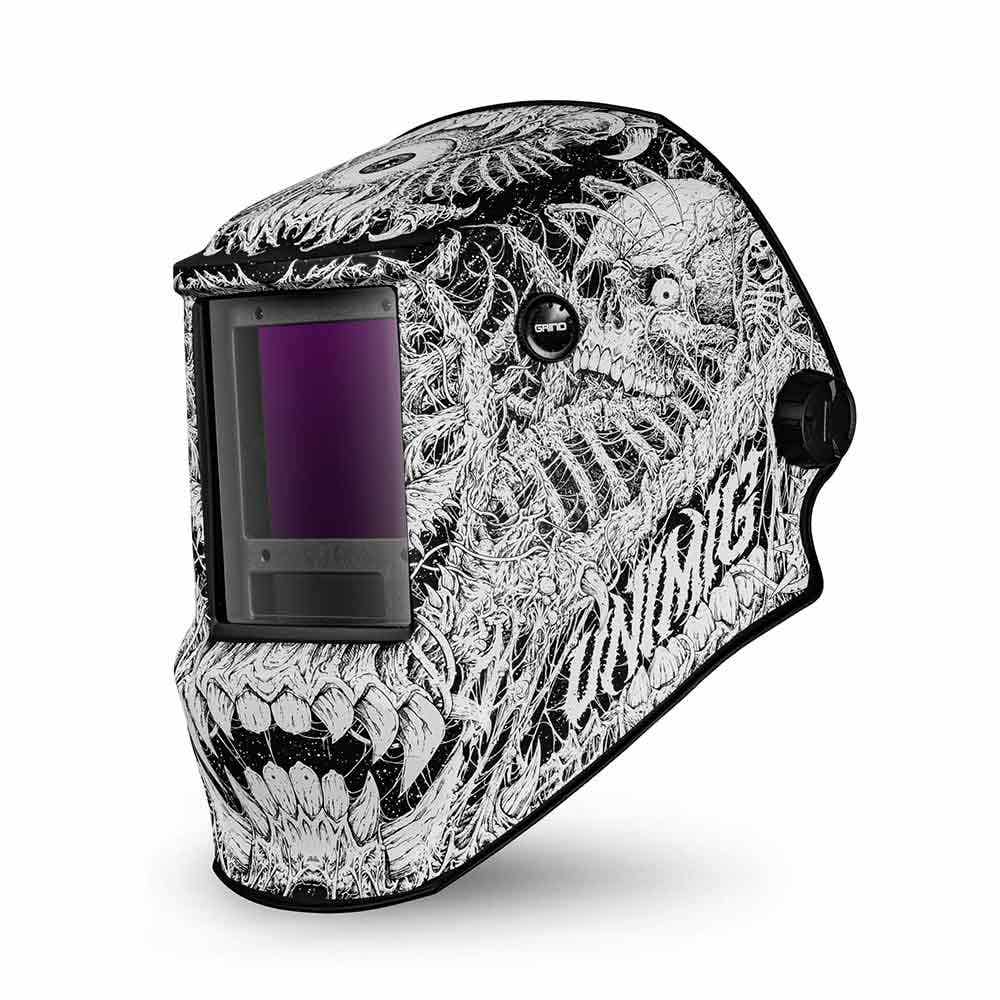

UNIMIG Trade Series Helmet - Carnage U21021

Features

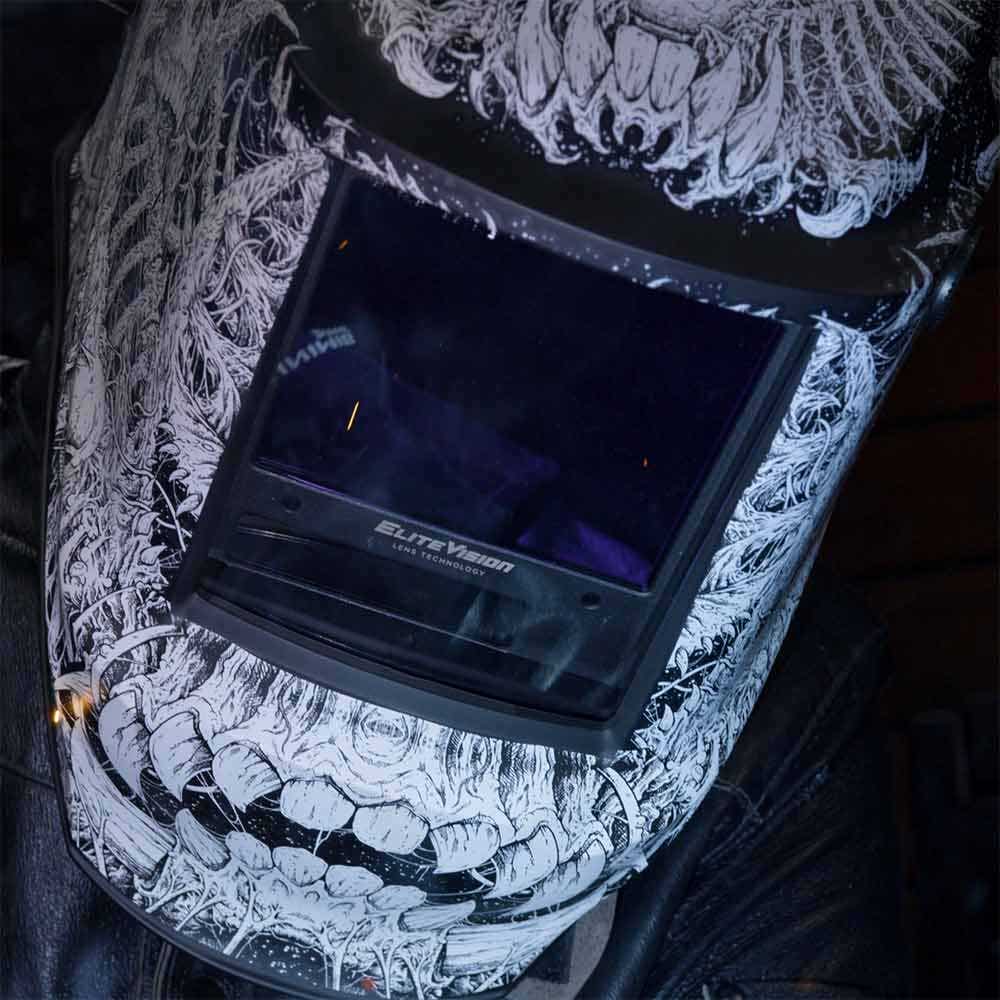

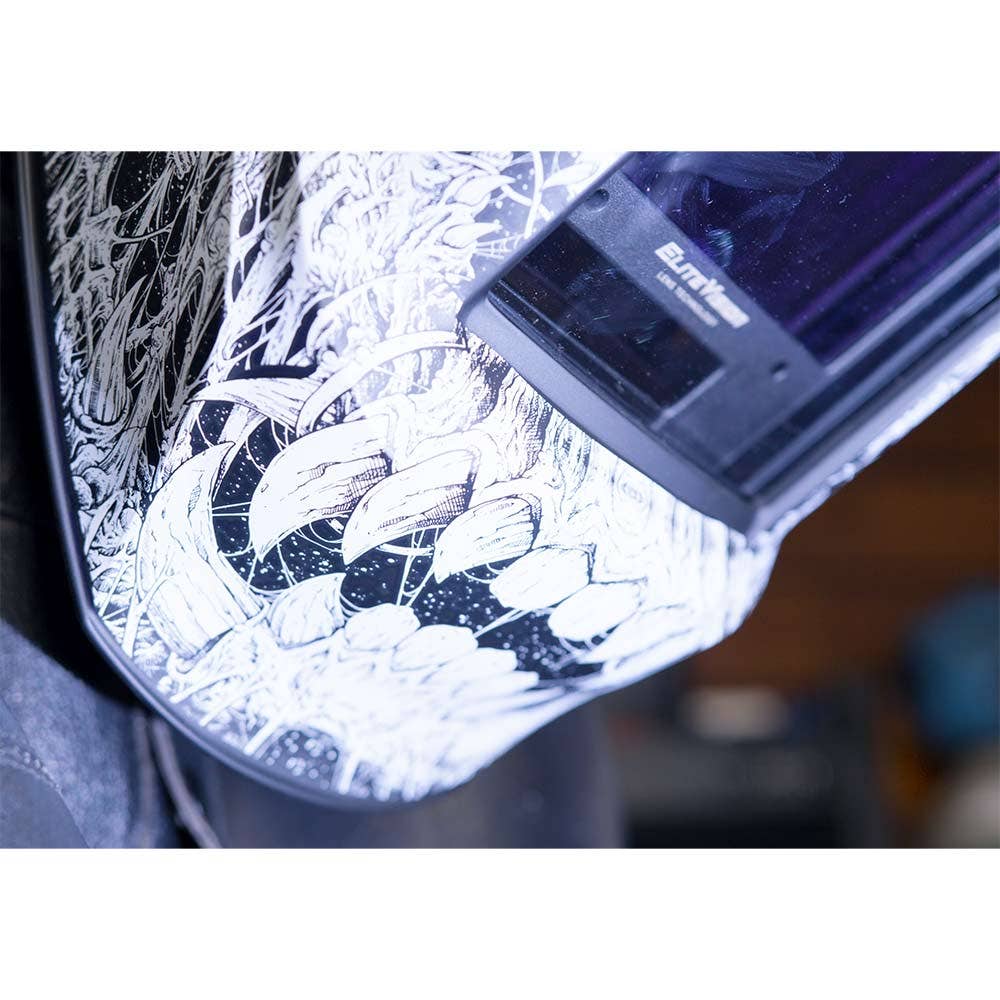

• ELITEVISION Lens Technology enhances optics for full colour spectrum and reduces eye fatigue.
• 1/1/1/1 Classification ensures superior optical clarity with a top-rated Auto-Darkening Filter (ADF).
• 100x83.4mm View Size provides excellent visibility for every weld.
• Memory States allow storage of up to three frequently used shade settings for quick access.
• 4 Arc Sensors trigger lens darkening instantly for optimal eye protection.

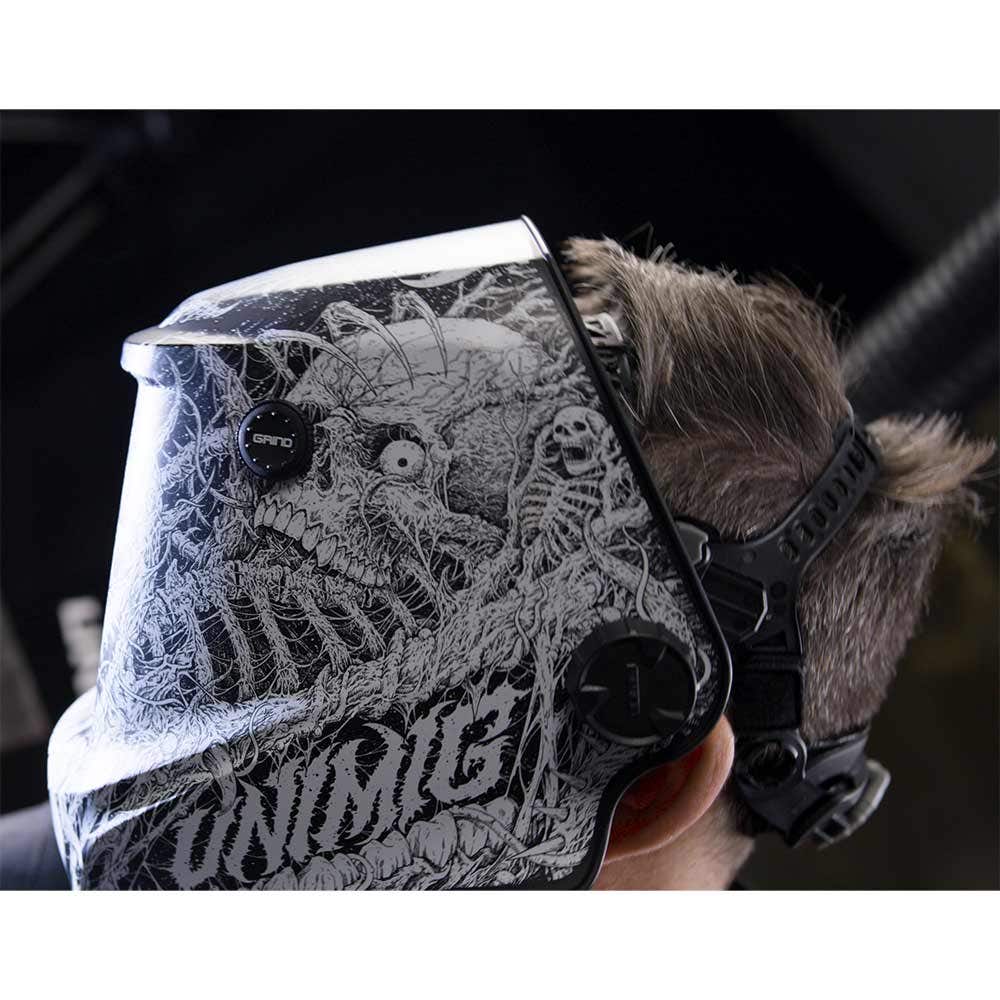

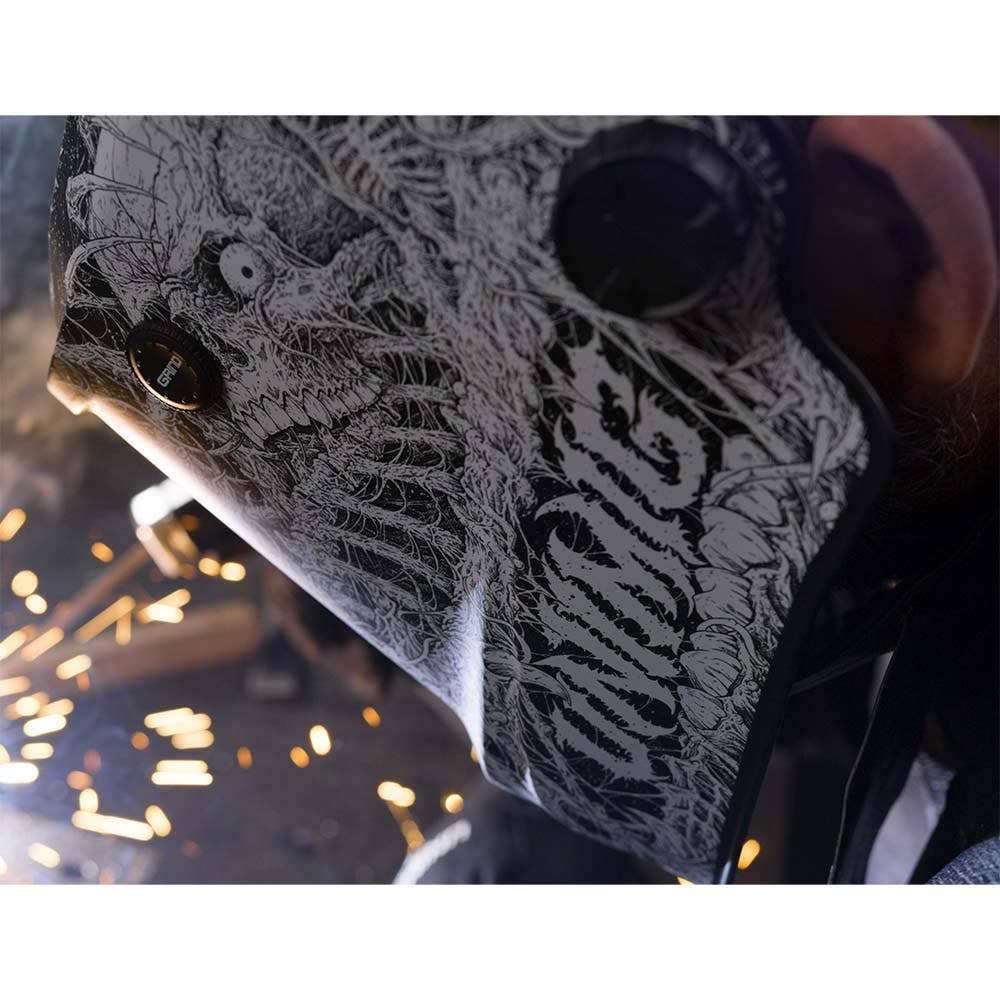

• External Grind Button enables easy switching to grind mode with LED indication.
• 4 Point Harness ensures a comfortable, adjustable fit, reducing neck strain.
• Backup Battery (CR2450) enhances the auto-darkening filter's performance and reliability.

Specifications

• Filter Dimensions: 114x133x9.5mm
• View Size: 100x83.4mm
• Arc Sensors: 4
• Classification: 1/1/1/1
• Light State: 4
• Dark State: 5-13
• UV/IR Protection: DIN15
• Time from Light to Dark: 0.04ms
• Time from Dark to Light: 0.1-0.9s
• Sensitivity Delay: Adjustable (1-5 for low-high)
• Power Supply: Solar Cells & CR2450 Replaceable Battery
• Operating Temperature: -10°C to 65°C
• Storage Temperature: -20°C to 85°C
• Shade Control: Yes
• Grind Mode: Yes (External)
• Minimum TIG Amperage: 3A
• Standards: AS/NZS 1337.1 B (High Impact) / AS/NZS 1338.1 (Auto-Darkening)
