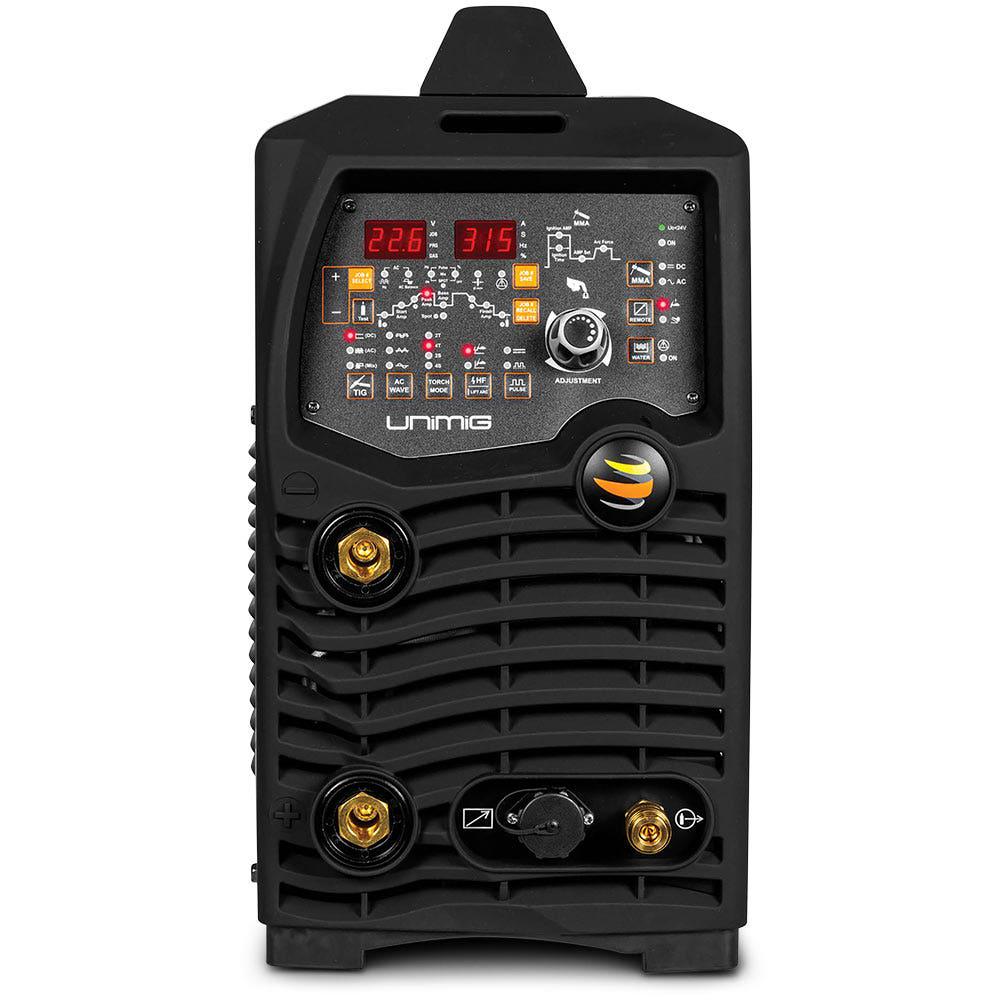

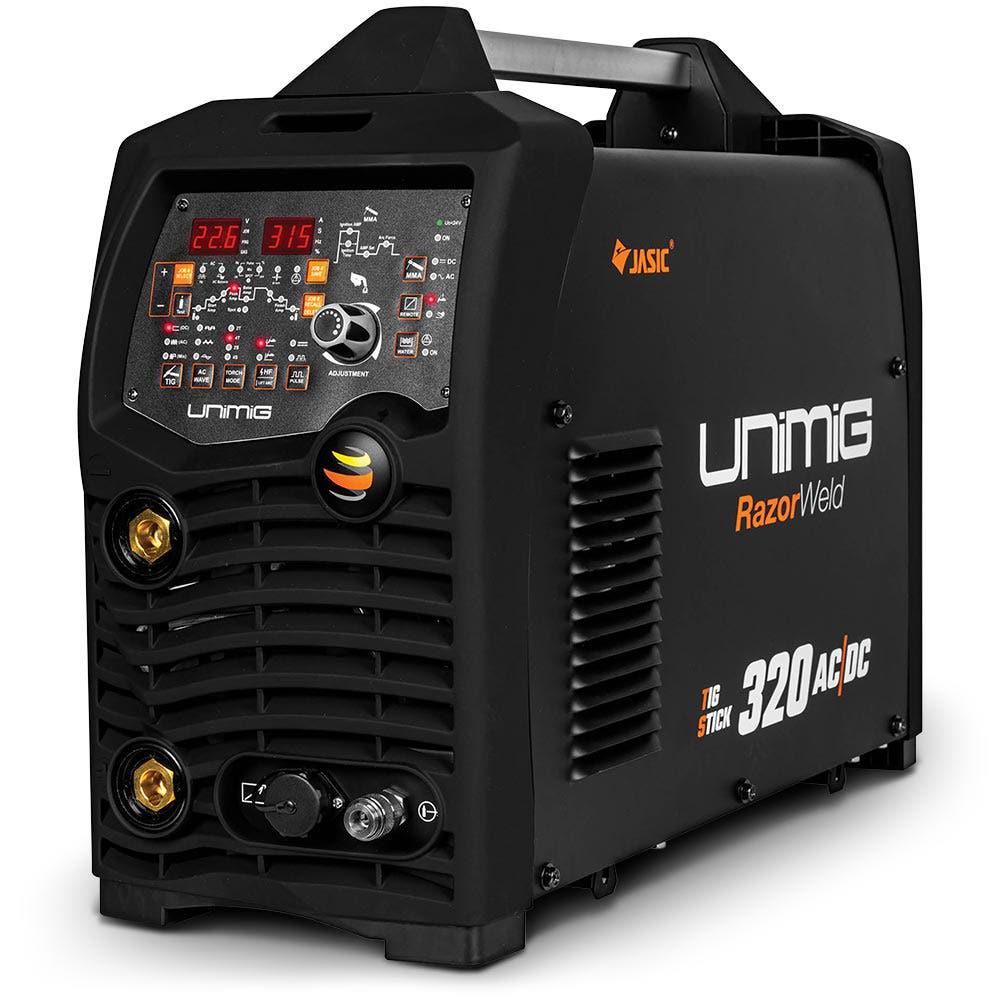

UNIMIG Razorweld 320 320A AC DC 3 Phase TIG STICK Electric Welder KUMJRRW320ACDC

Features

• Professional TIG/MMA welding machine for high-end aluminium and stainless steel
• Designed to meet AS/NZ60974-1 compliance
• AC/DC H/F TIG and Mix ARC TIG capabilities
• STICK welding functionality
• Weld Sequence Control for enhanced operation
• 2T/2S/4T/4S Torch Mode options
• Ready for foot control and water cooler integration
• Primary Input Voltage: 415V Three Phase
• Rated Input Power: 9.0 kVa
• Welds various materials: Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Copper, Aluminium, Zinc Alloys
• TIG Function Type: AC/DC HF TIG & AC/DC Pulse
• TIG Welding Current Range: 10-315A
• Stick Welding Current Range: 10-270A
• Stick Electrode Range: 2.5-4.0mm

Specifications

• Ieff: 10 A
• Imax: 18.0 A
• Rated Output: 10A - 315A/22.6V
• No Load Voltage: 9-73 V
• Protection Class: IP21S
• Insulation Class: F
• Power Factor: 0.7
• Minimum Generator: Not specified
• Dinse Connector: 35/50
• Standard Compliance: AS/NZ60974-1, AS/NZ60974-10
• TIG Duty Cycle @ 40°C: 30% @ 315A
• Stick Duty Cycle @ 40°C: 30% @ 270A
• Arc Force: 0-40

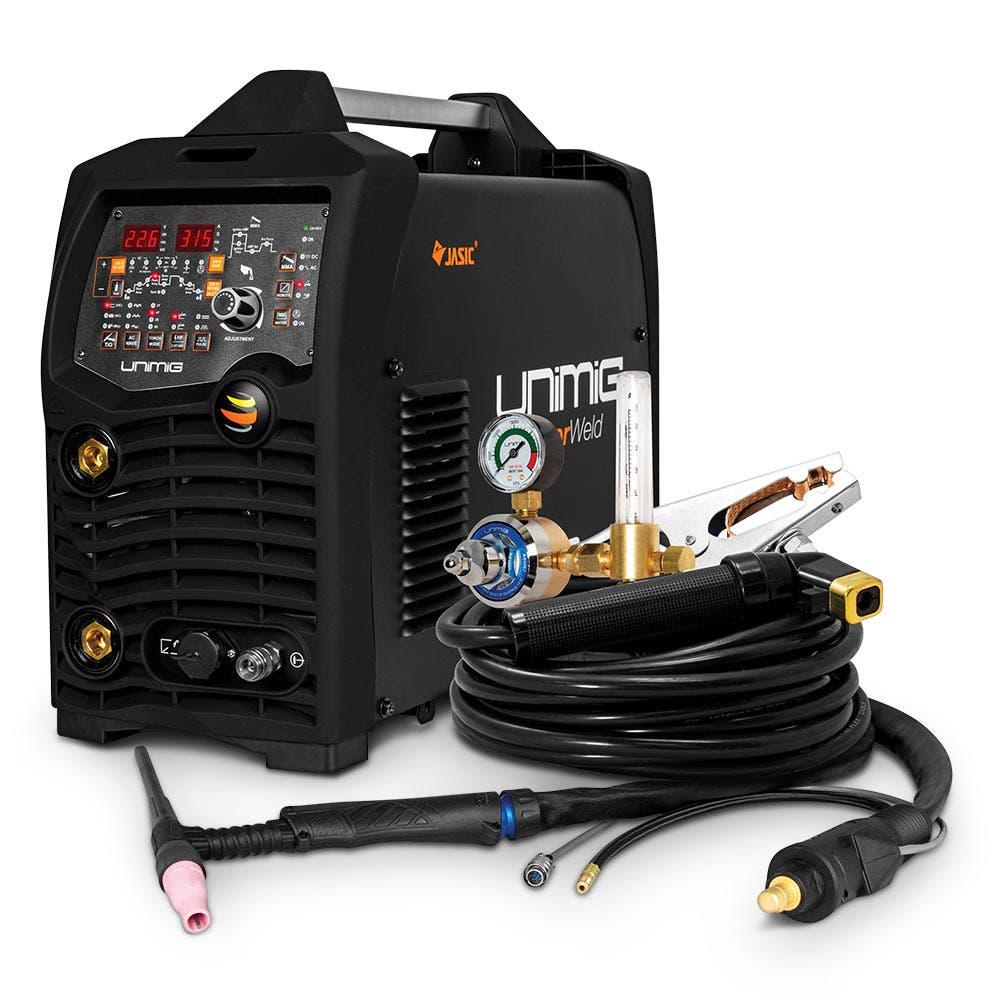

• Included Accessories: 1 x RAZOR 320 AC/DC TIG Welder, 1 x 4m High-Performance T3 TIG Torch, 1 x 4m Twist Lock Electrode Holder, 1 x 500 Amp Earth Clamp & Lead, 1 x Argon Flowmeter Regulator, 1 x 2m Gas Hose with fittings, Operating Manual
• Net Weight: 27.5 kg
• Product Dimensions: 566mm (L) x 224mm (W) x 405mm (H)
