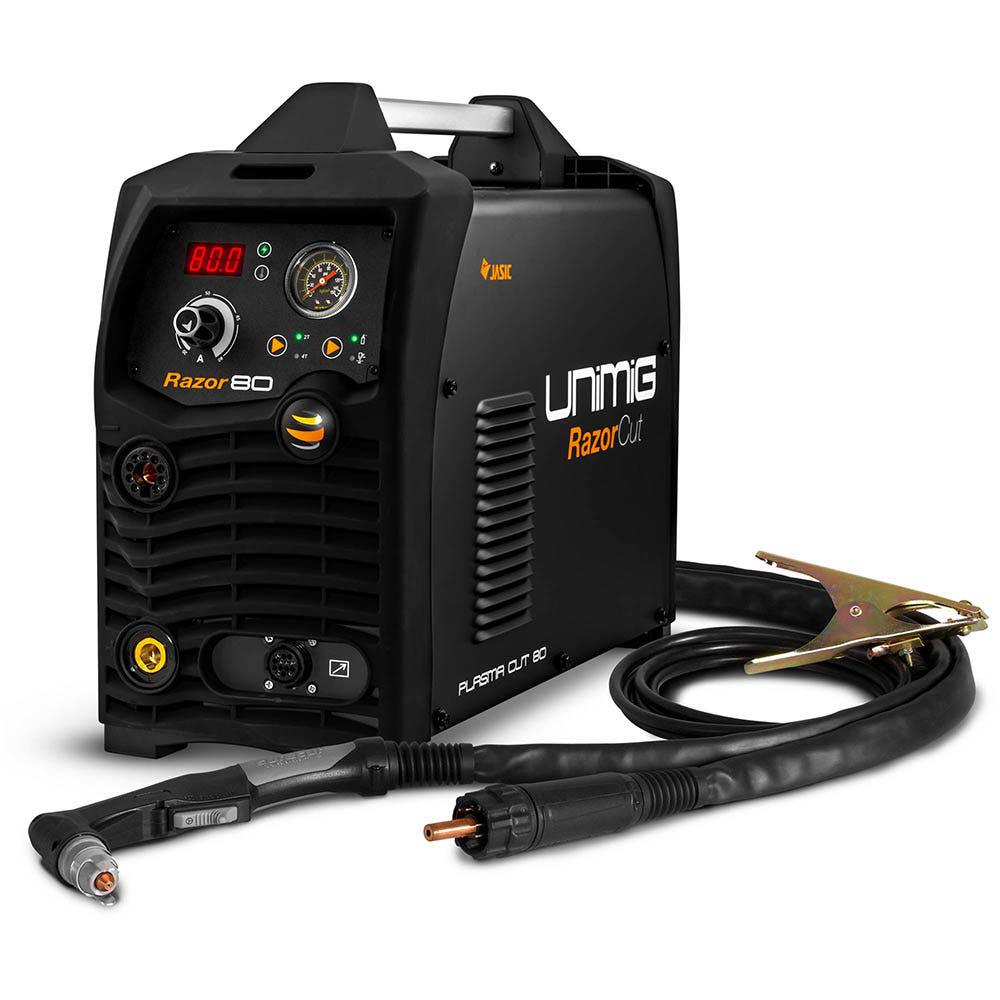

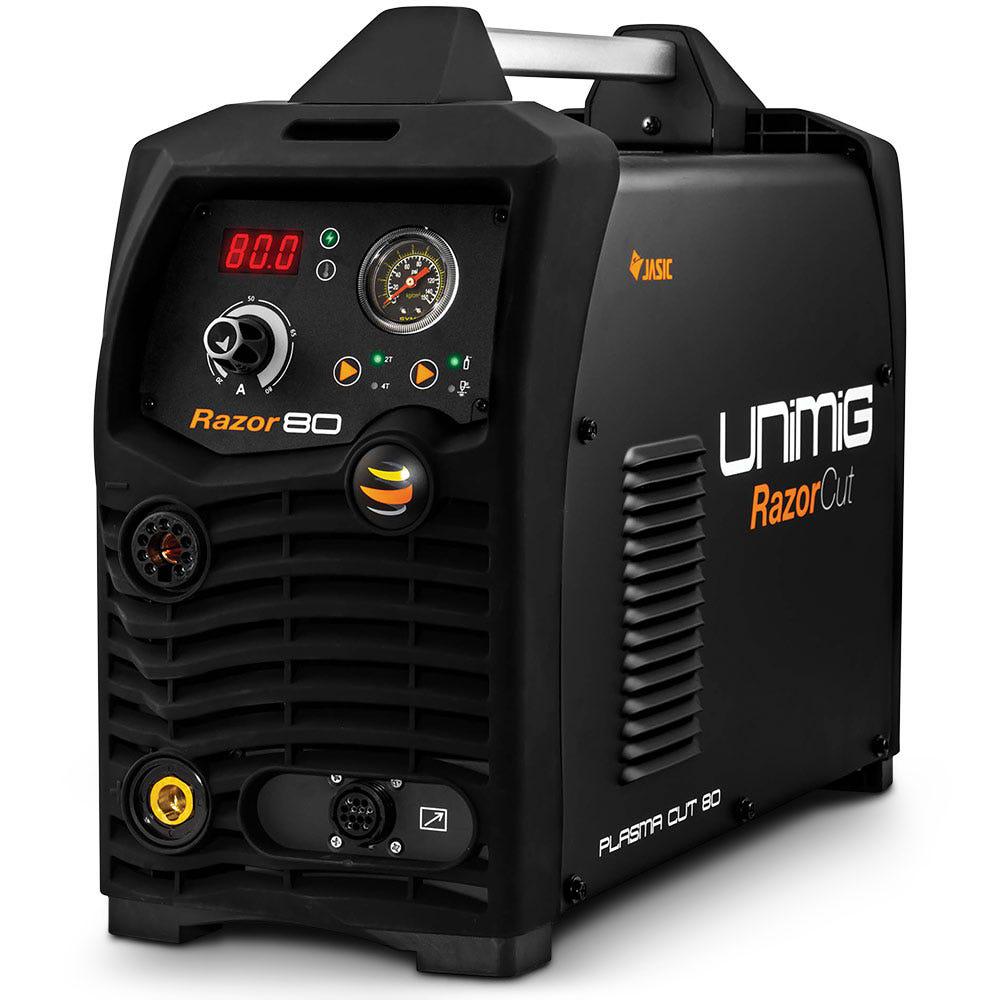

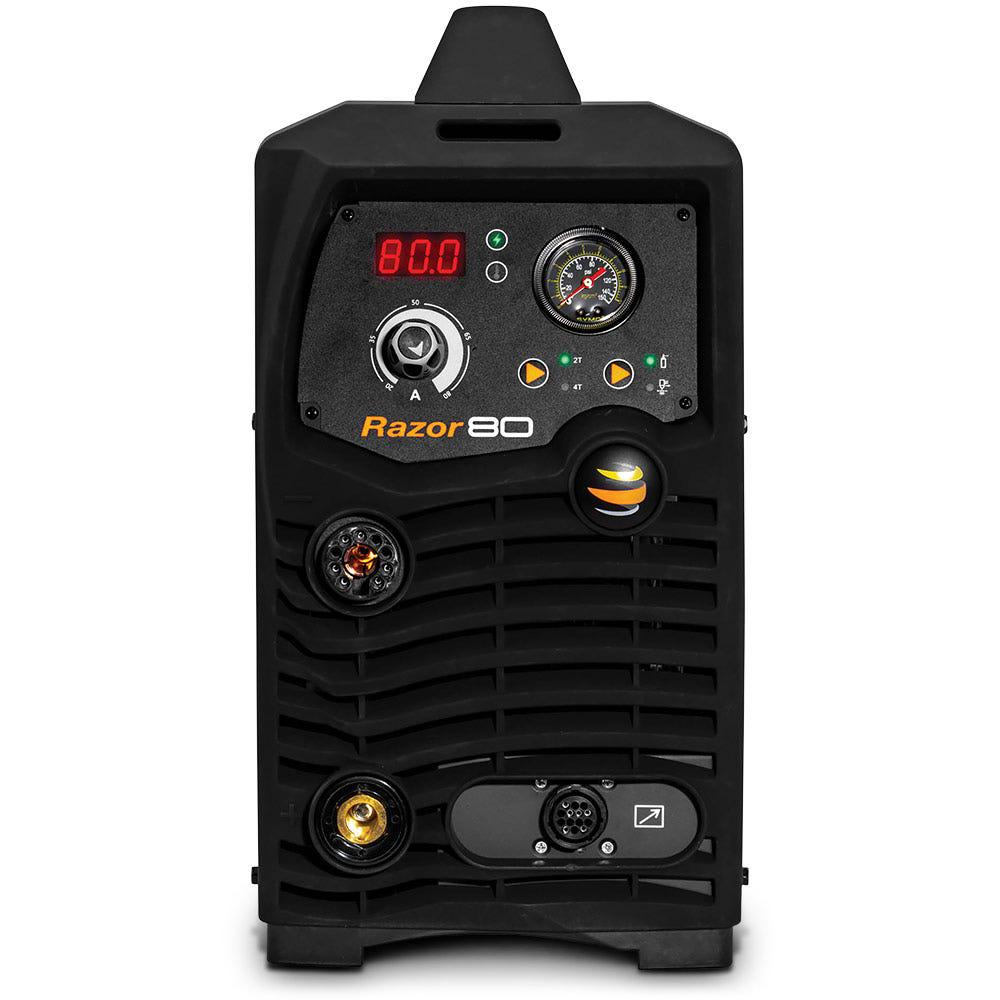

UNIMIG RazorCut 80A Inverter Plasma Cutter KUPJRRW80

Features

• Designed for maximum cutting performance
• 415V Three-Phase input
• 30mm clean cut on mild steel
• 35mm severance on mild steel
• CNC connection capability
• Pilot arc start feature
• Thermal overload protection
• Includes Razor Cut 80 power source
• Includes 6 metre SC80 plasma torch
• Includes 4 metre 300 Amp earth clamp
• Instruction manual included

Specifications

• Part No: KUPJRRW80
• Barcode: 9339793011537
• Brand: UNIMIG
• Warranty: 3 Year
• Net Weight: 18 kg
• Product Dimensions: 560mm (L) x 220mm (W) x 415mm (H)
• Rated Input Power: 15.0 kVa
• Rated Input Current: 20 A
• Rated Output Voltage: 112 V
• No Load Voltage: 340 V
• Ieff: 12.6 A
• Air Flow Draw Off: 189 l/min
• Air Flow Pressure: 5.17 Bar (75 PSI)
• Protection Class: IP21S
• Insulation Class: F
• Minimum Generator: 15 kVa
• Dinse Connector: 35/50
• Standard: AS/NZ60974-1
• Plasma Cut Current Range: 20-80 A
• Plasma Cut Duty Cycle @ 40°C: 40% @ 80 A
• Mild Steel Cut Thickness: 30mm
• Mild Steel Severance Thickness: 35mm
• Aluminium Cut Thickness: 16mm
• Aluminium Severance Thickness: 20mm
• Stainless Steel Cut Thickness: 16mm
• Stainless Steel Severance Thickness: 20mm
