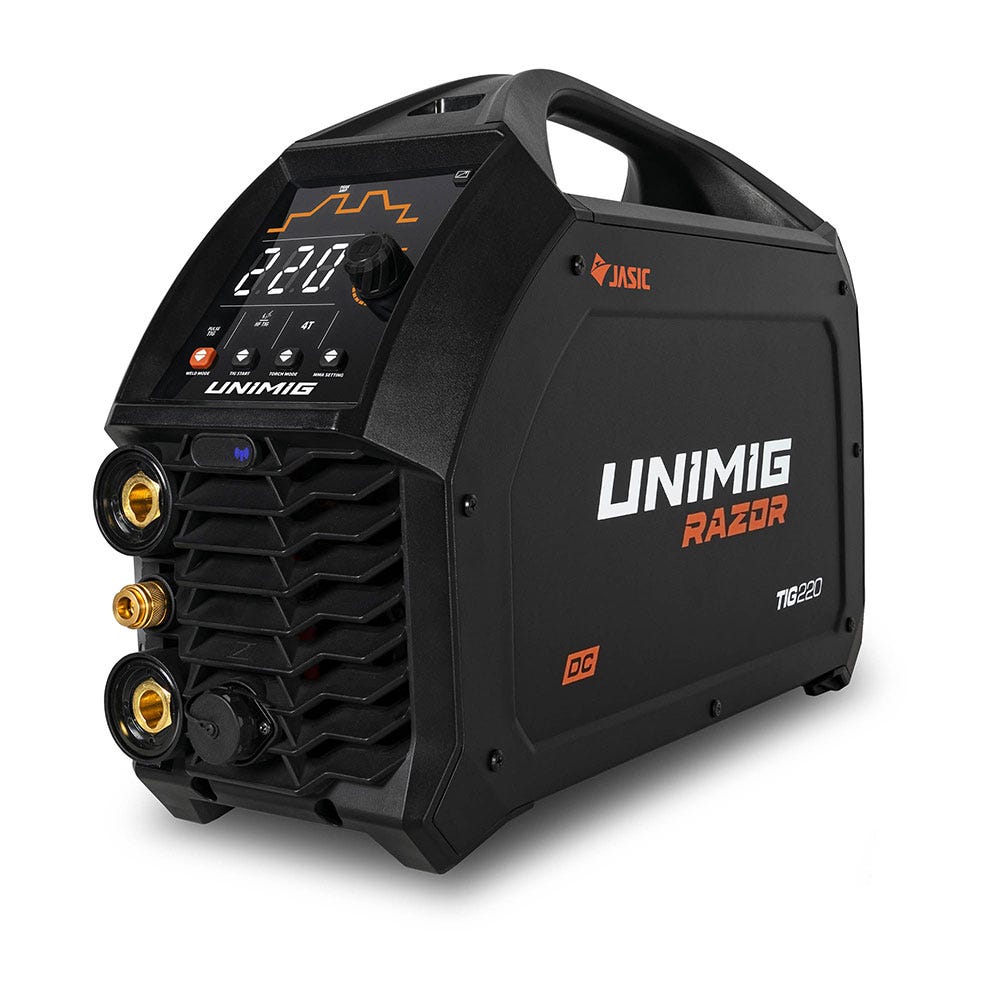

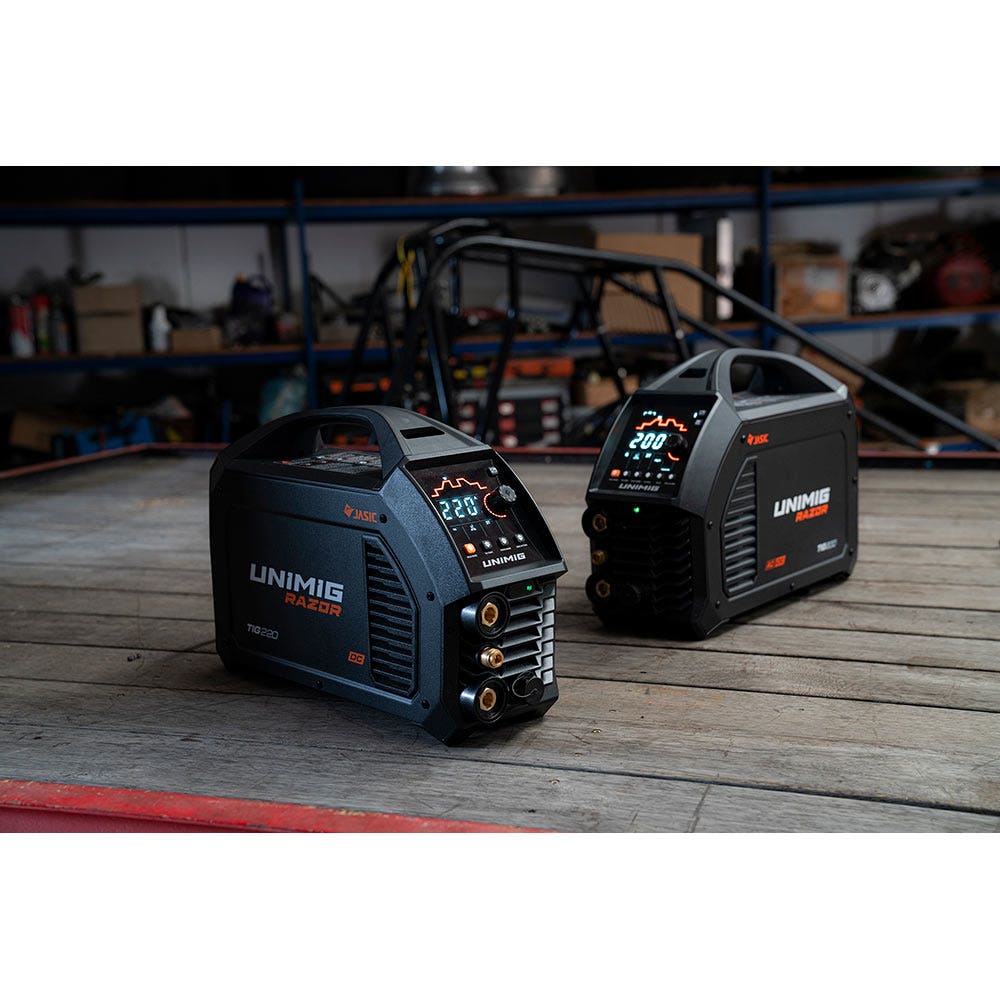

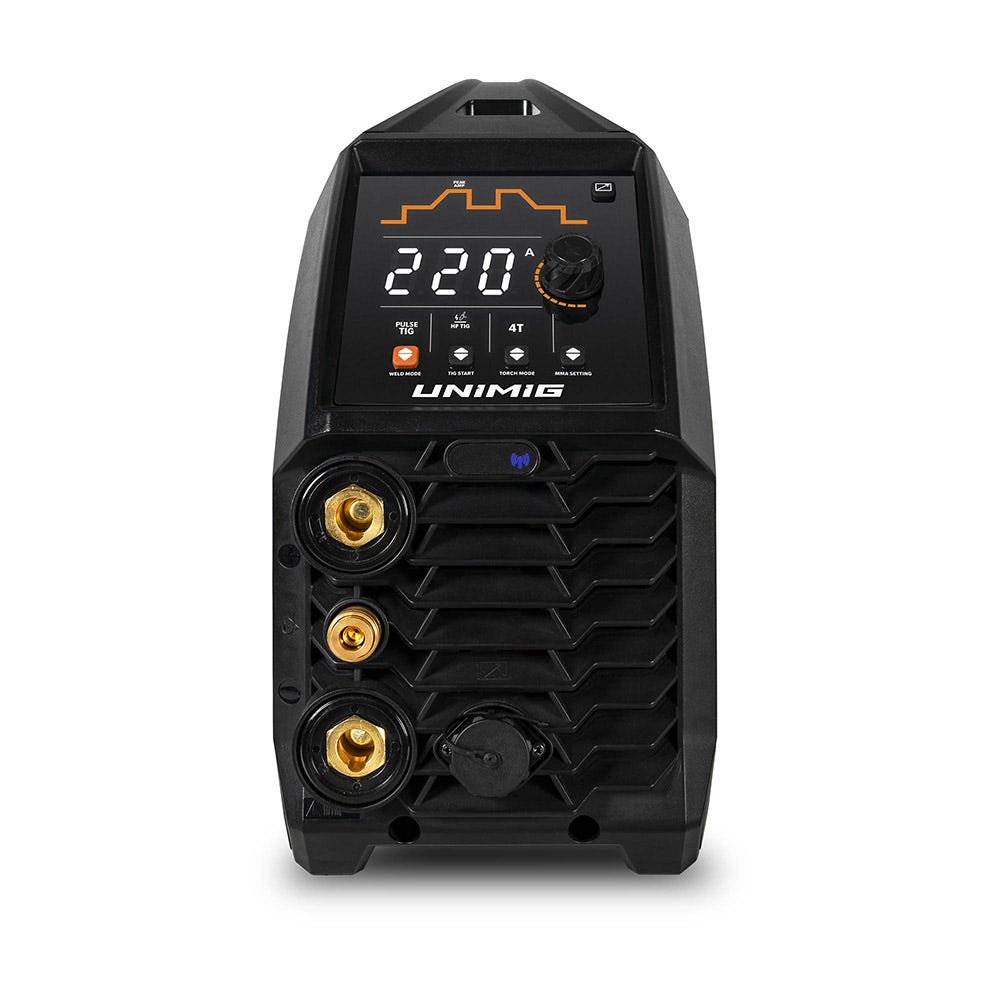

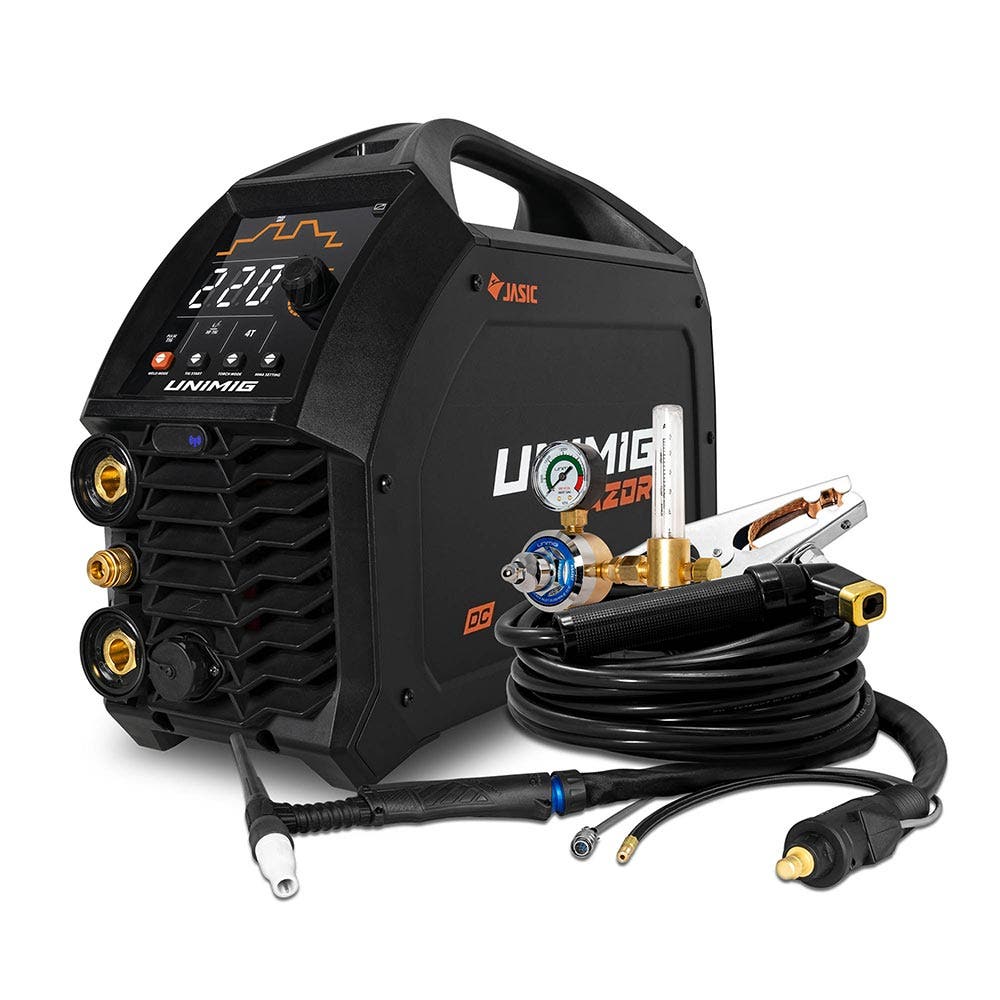

UNIMIG RAZOR TIG 220 DC Welder

The UNIMIG RAZOR TIG 220 DC Welder is a professional-grade welding machine designed to deliver exceptional results on every weld. Combining advanced technology with user-friendly features, this welder is perfect for both DIY enthusiasts and professional welders. With its versatile performance and robust build, you can rely on the RAZOR TIG 220 for all your welding projects.

Contents

• Product Overview
• Key Features
• Specifications
• Warranty Information

Key Features

• DC TIG Welding: Experience the full DC TIG welding cycle, including all pulse functions.
• 10A Plug Compatibility: Operate the machine on a standard domestic outlet, perfect for home use.
• Foot Pedal Connection: Enhance versatility with the ability to connect a foot pedal for seamless amperage adjustments.
• HD Backlit Interface: A bright, easy-to-read interface that performs well in any environment.
• Power Factor Correction (PFC): Ensures maximum efficiency and is generator-friendly.
• High-Frequency TIG: Start your arc without contact, reducing tungsten contamination.
• Pulse TIG Functionality: Minimize heat input while maintaining penetration, ideal for thin materials.
• Smart Fan Technology: Reduces noise, saves energy, and minimizes contaminants.
• Advanced MMA Features: Includes Anti-Stick technology and adjustable Arc Force and Hot Start for improved welding quality.

Specifications

• Part No: U12003K
• Barcode: 9333521032832
• Brand: UNIMIG
• Warranty: 5 Year
• Net Weight: 8.9 kg
• Dimensions (L x W x H): 460 mm x 150 mm x 310 mm
• Primary Input Voltage: 240V Single Phase
• Supply Plug: 10 AMP
• Ieff (A): 9.8
• Rated Output: 5-220A
• No Load Voltage: 68V
• Protection Class: IP23S
• Insulation Class: H
• Minimum Generator: 7.0 kVA
• Dinse Connector: 35/50
• Suitable Materials: Mild Steel, Stainless Steel, Copper, Silicon Bronze, Titanium (TIG); Mild Steel, Stainless Steel, Cast Iron (MMA)

Warranty Information

UNIMIG proudly offers a 5-year warranty on the RAZOR TIG 220 DC, ensuring reliability and performance. With service centres located in Sydney, Melbourne, Brisbane, and Perth, along with additional authorised service centres across Australia, you can have peace of mind knowing that support is readily available. Register your product online via the UNIMIG website to receive an additional 6 months of warranty free of charge (note: warranty applies only to the power source).
