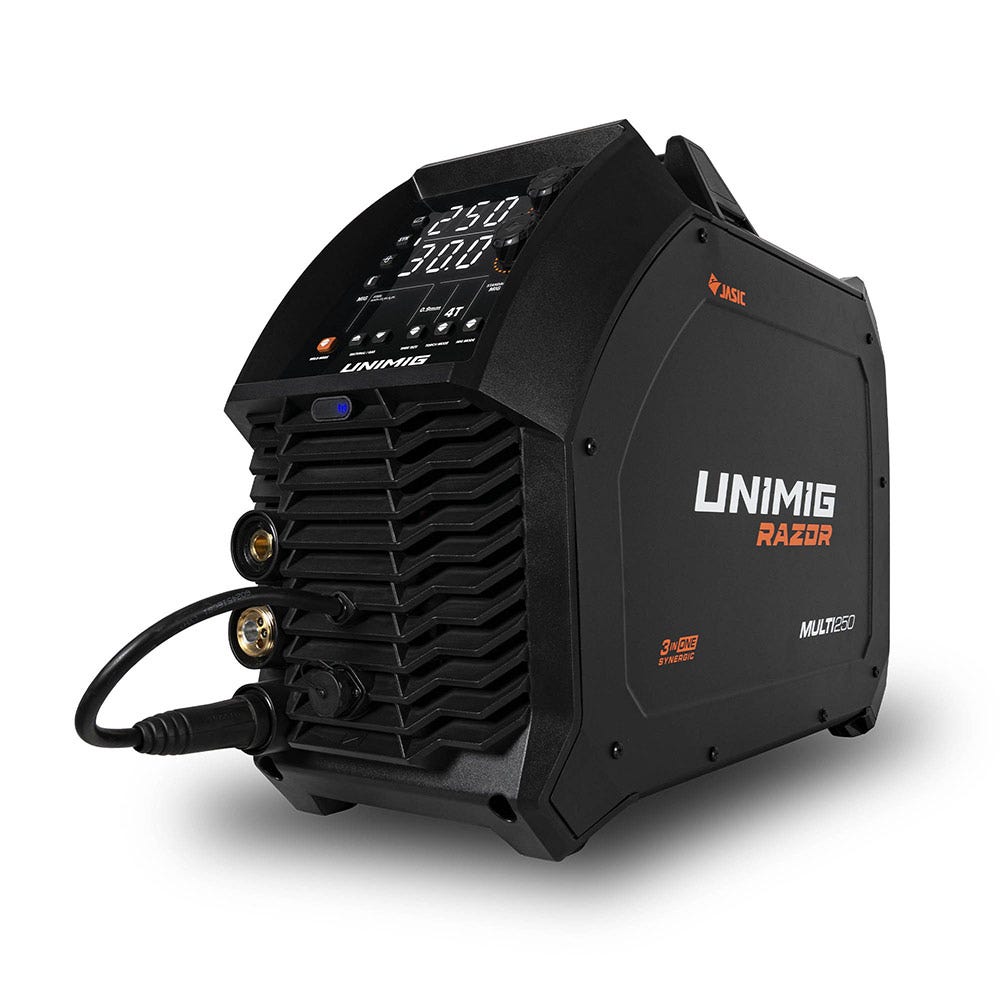

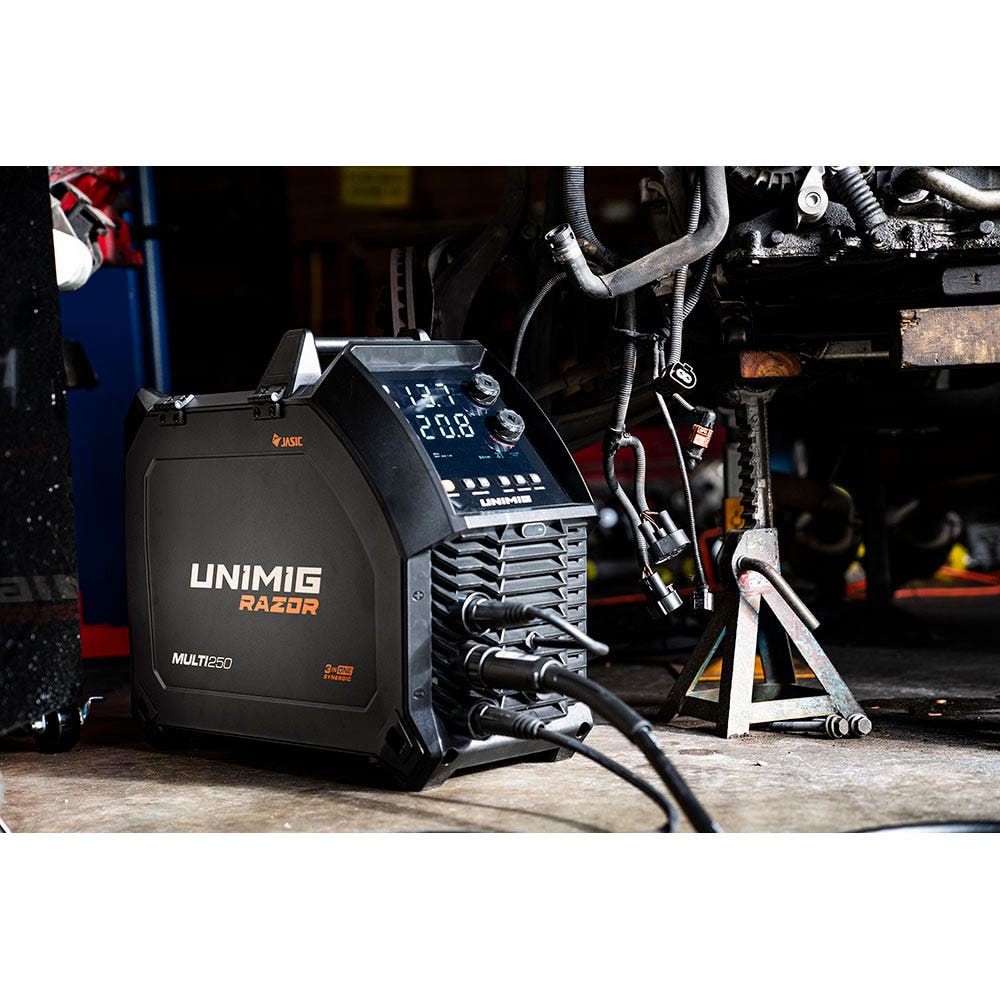

UNIMIG Razor Multi 250 Welder U11009K

Features

• Includes RAZOR MULTI 250 Welder and accessories
• Portable case for easy transport
• Quick setup with synergic MIG programs
• Spool gun ready for aluminium welding
• 4 geared wire drive for optimal feeding
• 5-year warranty for peace of mind
• HD Backlit Interface for easy visibility
• Synergic MIG Control for fast setup
• Multi-Process Welding: MIG, TIG, and STICK
• Digital Control MIG Torch for easy adjustments
• Gas & Gasless MIG capability for versatility
• Geared Wire Drive ensures smooth feeding
• Trigger Controlled DC Lift Arc TIG for easy ignition
• Advance MMA Features: Anti-Stick, Arc Force, Hot Start
• Smart Fan to reduce noise and energy costs

Specifications

• Primary input voltage: 240V Single Phase
• Supply plug: 15 AMP
• Ieff (A): 15.0
• Rated output: 30A/15.5V - 250A/26.5V
• No load voltage (V): 65
• Protection class: IP23S
• Insulation class: H
• Minimum generator (kVA): 11.0
• Dinse connector: 35/50
• Standard: AS/NZ60974-1
• Suitable material for MIG: Mild Steel, Stainless Steel, Aluminium, Silicon Bronze
• Suitable material for MMA: Mild Steel, Stainless Steel, Cast Iron
• Suitable material for TIG: Mild Steel, Stainless Steel, Copper, Silicon Bronze
• MIG Welding current range: 30-250A
• MIG Duty cycle @ 40°C: 20% @ 250A / 60% @ 144A / 100% @ 112A
• MIG Wire size range: 0.6-1.2mm
• MIG Wire spool size: 5kg / 15kg
• MIG Welding thickness range: 1-12mm
• TIG Function type: Trigger Controlled DC Lift Arc
• TIG Welding current range: 5-250A
• TIG Duty cycle @ 40°C: 20% @ 250A / 60% @ 144A / 100% @ 112A
• TIG Welding thickness range: 1-10mm
• STICK Welding current range: 20-220A
• STICK Duty cycle @ 40°C: 20% @ 220A / 60% @ 127A / 100% @ 98A
• STICK Electrode range: 2.5-4.0mm
• STICK Welding thickness range: 2-12mm
• Wire drive: 4 Geared
• VRD: Yes
• Spool gun connection: Yes
• Foot control connection: Yes
• Burnback adjustment: Yes
• Wire inch: Yes
• Inductance control: Yes
• Thermal overload protection: Yes
• Part No: U11009K
• Barcode: 9333521032764
• Brand: UNIMIG
• Warranty: 5 Year
• Net Weight (kg): 25.5
• Product Length (mm): 700
• Product Width (mm): 280
• Product Height (mm): 511
