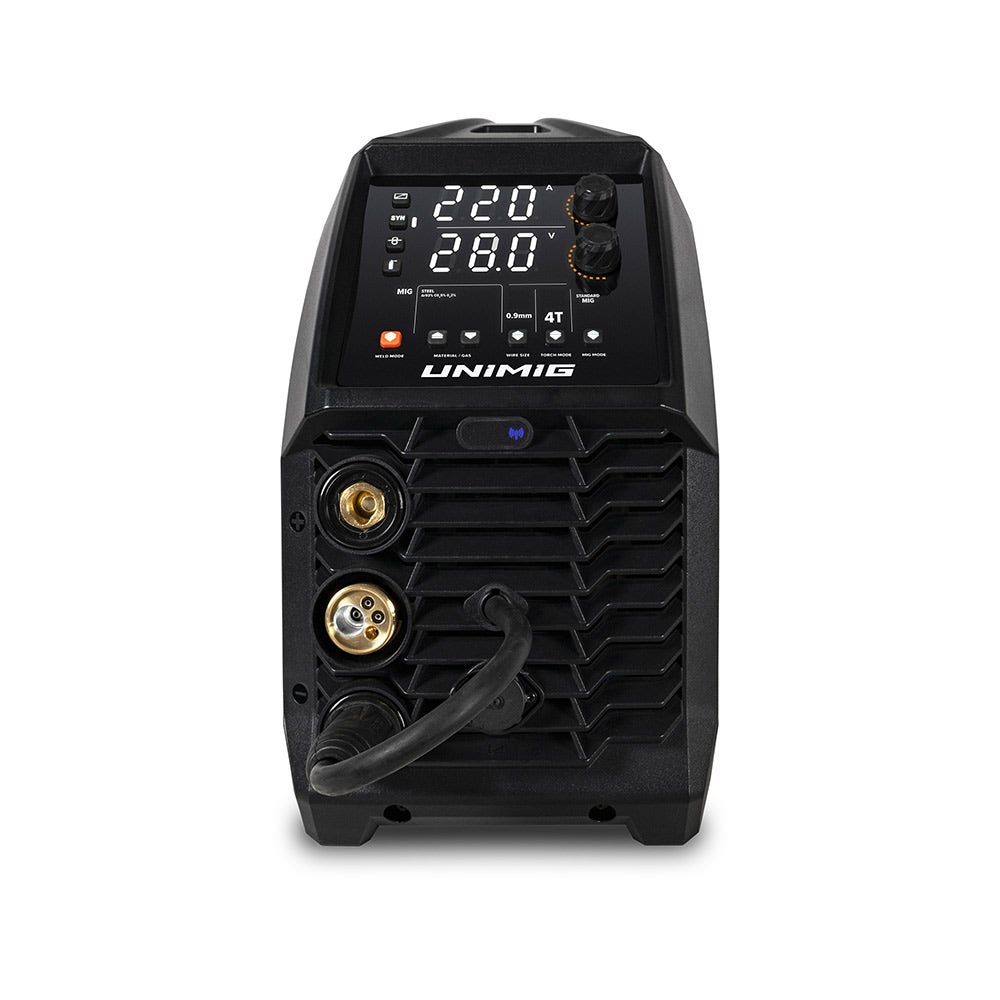

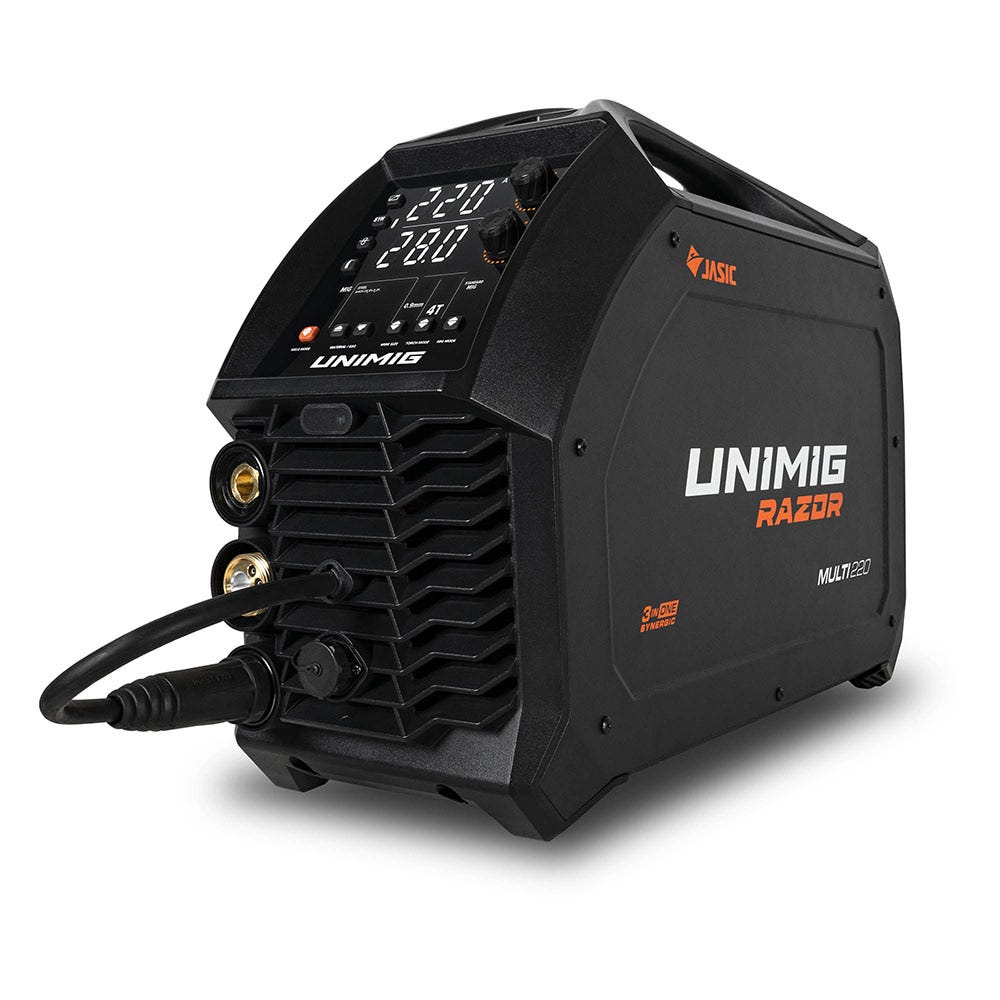

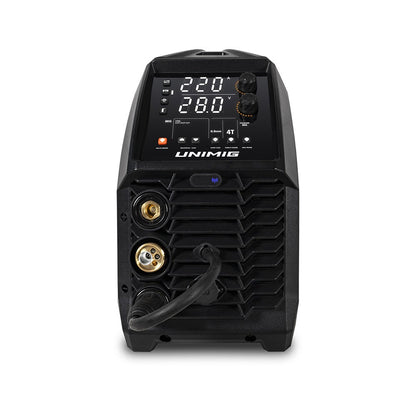

UNIMIG Razor Multi 220 Welder U11008K

Features

• Portable professional machine in a sturdy case
• 3-in-1 multi-process capabilities: MIG, TIG & STICK
• Quick setup with synergic MIG programs
• Geared wire drive for smooth and consistent feeding
• 5-year warranty showcasing product reliability
• HD Backlit Interface for easy readability
• Synergic MIG Control for optimal settings automatically
• Digital Control MIG Torch for on-the-fly adjustments
• Spool Gun Ready for easy aluminum welding
• Gas & Gasless MIG capability for versatile projects
• Trigger Controlled DC Lift Arc for easy ignition
• Advanced MMA features: Anti-Stick, Arc Force, Hot Start
• Smart Fan for reduced noise and energy savings
• Includes: RAZOR MULTI 220 Welder, 4m M24 Digital MIG Torch, 4m Twist Lock Electrode Holder, 4m 300 Amp Earth Clamp & Lead, Twin Gauge Argon Regulator, 1.8m Gas Hose with fittings, Operating Manual, 0.8-0.9mm V Groove Roller, 0.8-0.9mm F Groove Roller, 1.0-1.2mm U Groove Roller

Specifications

• Primary input voltage: 240V Single Phase
• Supply plug: 15 AMP
• Rated input power (kVA): 4.15
• Ieff (A): 14.7
• Rated output: 30A/15.5V - 220A/25V
• No load voltage (V): 60
• Protection class: IP23S
• Insulation class: H
• Power factor: 0.68
• Minimum generator (kVA): 12.0
• Dinse connector: 35/50
• Standard: AS/NZ60974-1
• Suitable material for MIG: Mild Steel, Stainless Steel, Aluminium, Silicon Bronze
• Suitable material for MMA: Mild Steel, Stainless Steel, Cast Iron
• Suitable material for TIG: Mild Steel, Stainless Steel, Copper, Silicon Bronze
• Dimensions (mm): 560×220×400
• Weight (kg): 15.1
• Wire Drive: Geared
• VRD: Yes
• Spool Gun connection: Yes
• Foot Control connection: Yes
• Burnback Adjustment: Yes
• Wire Inch: Yes
• Inductance Control: Yes
• Thermal Overload Protection: Yes
