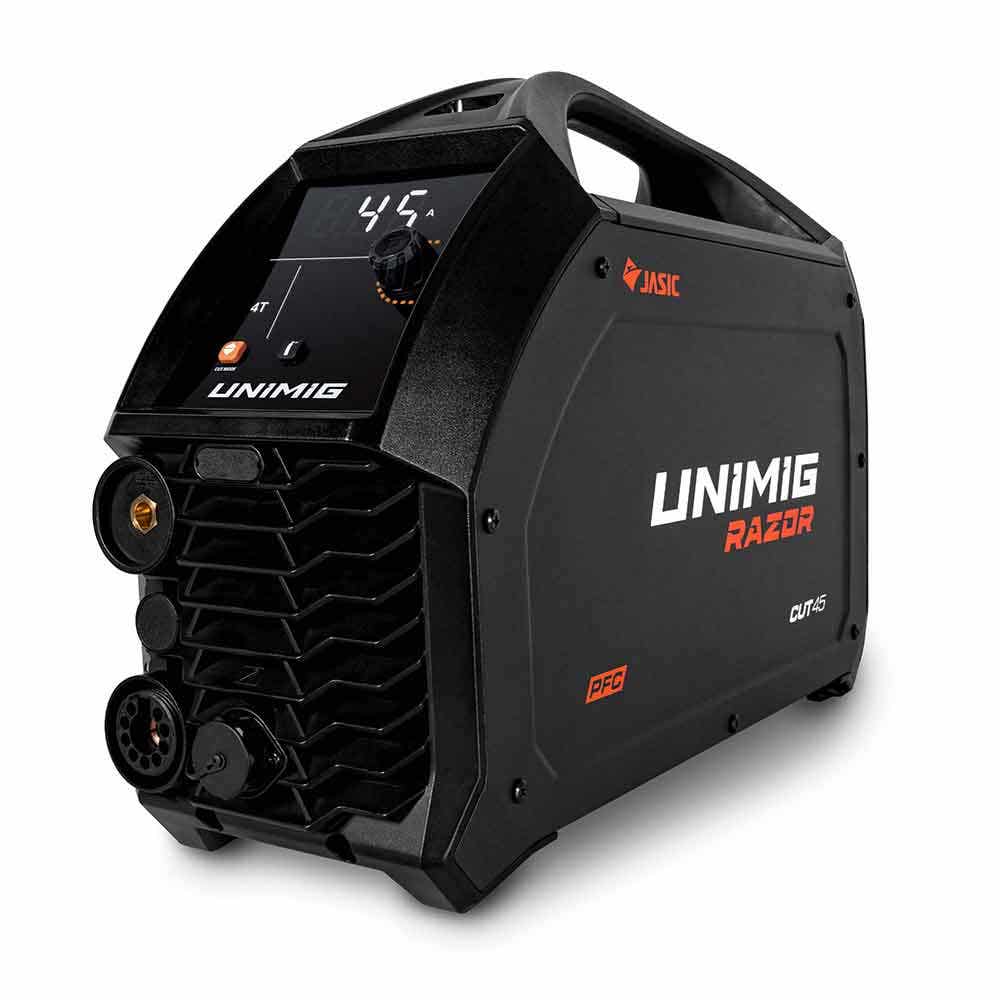

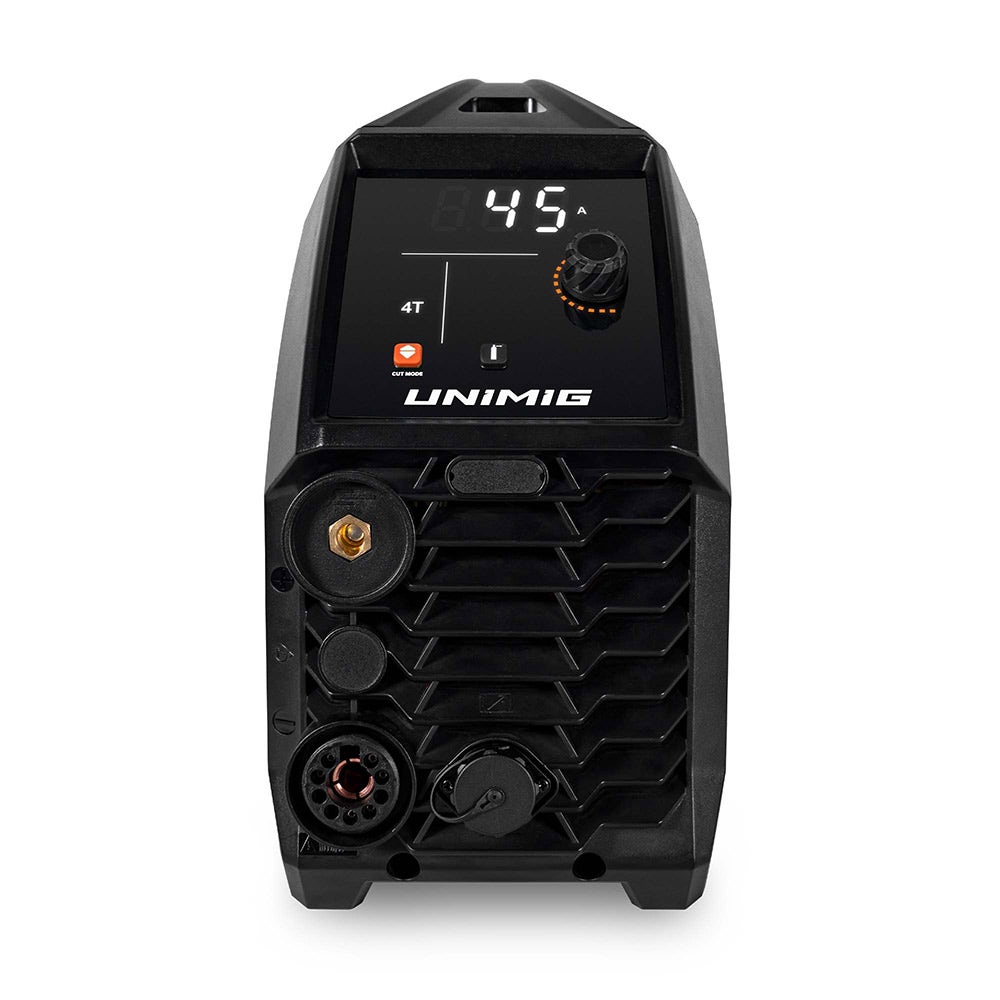

UNIMIG Razor Cut 45 Plasma Cutter U14006K

UNIMIG Razor Cut 45 Plasma Cutter U14006K

$2,543.00 AUD
$3,390.00 AUD $2,543.00 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Limited offer: $10 OFF orders above $250 using code 10OFF

Features

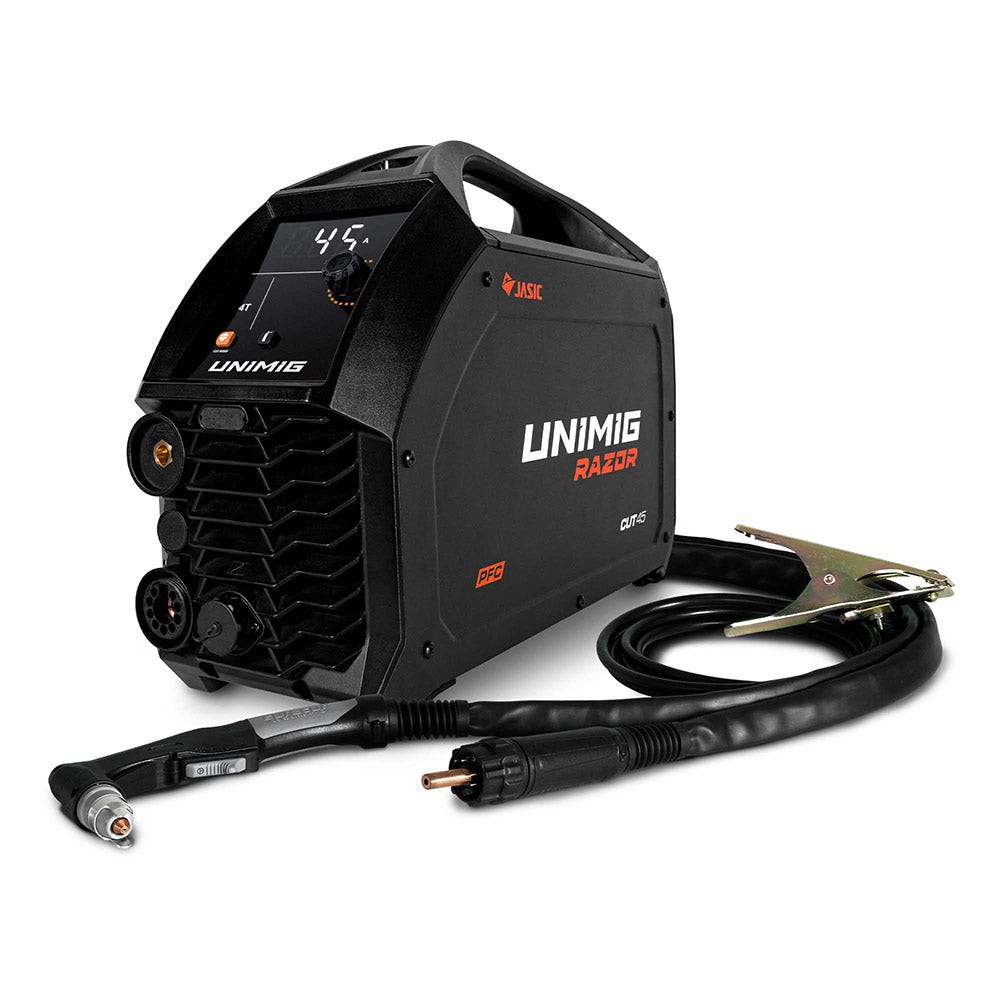

  • RAZOR CUT 45 Plasma Cutter
  • 6m SC80 Plasma Torch
  • 4m 300A Earth Clamp
  • Air Regulator
  • Operating Manual

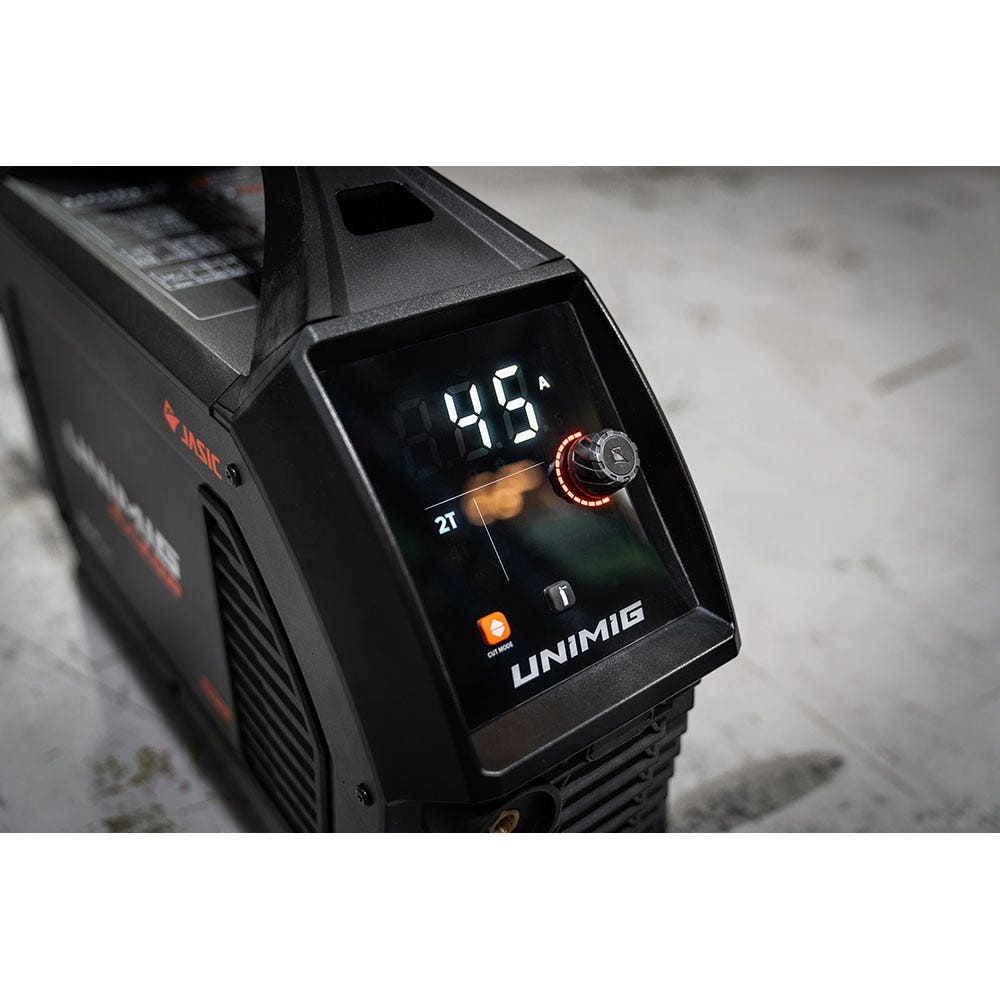

  • HD Backlit Interface for easy visibility
  • Power Factor Correction (PFC) for maximum efficiency
  • Smart Fan for optimal cooling
  • CNC Connectivity
  • Perforated Cut Mode
  • Pilot Arc Start for better control on uneven surfaces
  • 2T/4T Trigger Modes
  • 240V Single Phase input with 15 AMP plug
  • Cutting capacity: 16mm clean cut, 25mm severance

Specifications

  • Ieff (A): 15
  • Protection Class: Ip23S
  • Insulation Class: H
  • Dinse Connector: 10/25
  • Standard: As/Nzs 60974.1
  • Plasma Cut Current Range: 20-45A
  • Plasma Cut Duty Cycle @ 40°C: 25% @ 45A, 60% @ 30A, 100% @ 20A
  • Mild Steel Cut Thickness: 16mm
  • Mild Steel Severance Thickness: 20mm
  • Aluminium Cut Thickness: 8mm
  • Aluminium Severance Thickness: 10mm
  • Stainless Steel Cut Thickness: 8mm
  • Stainless Steel Severance Thickness: 10mm
  • Weight: 10 kg
  • Warranty: 5 years
``
