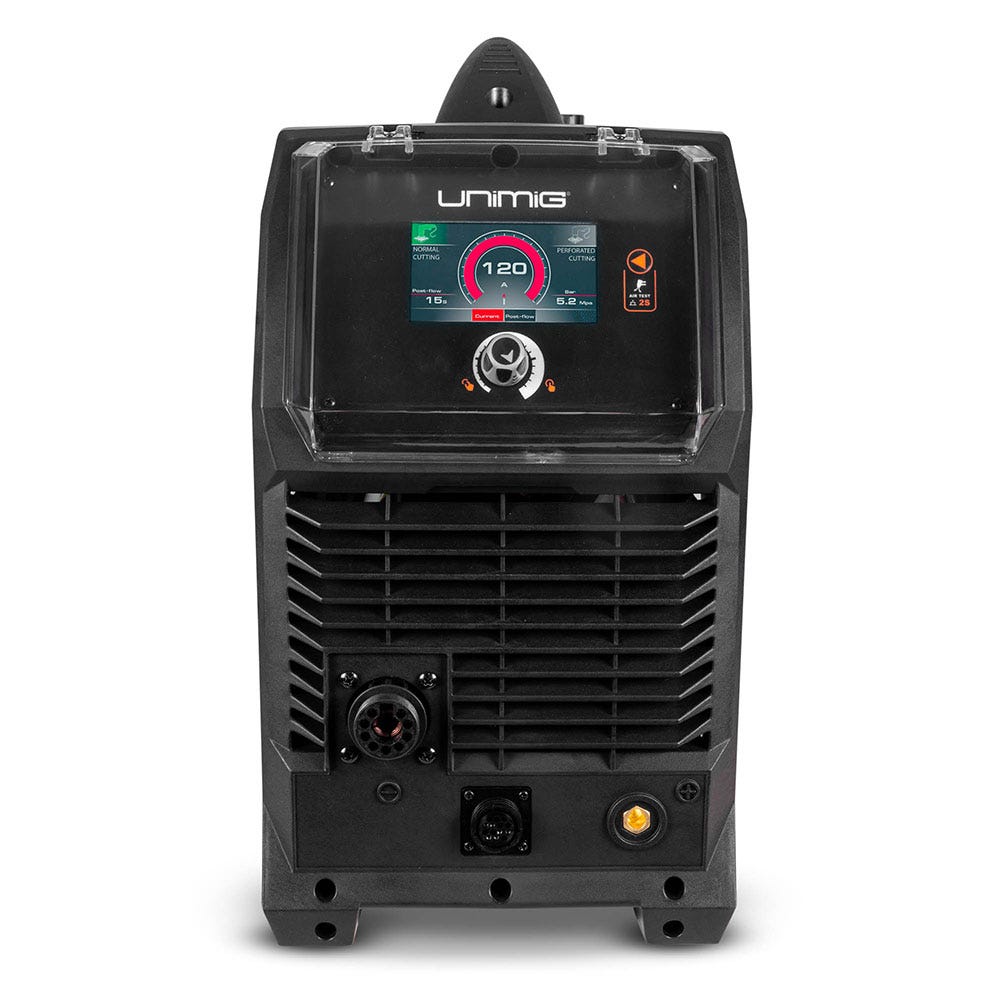

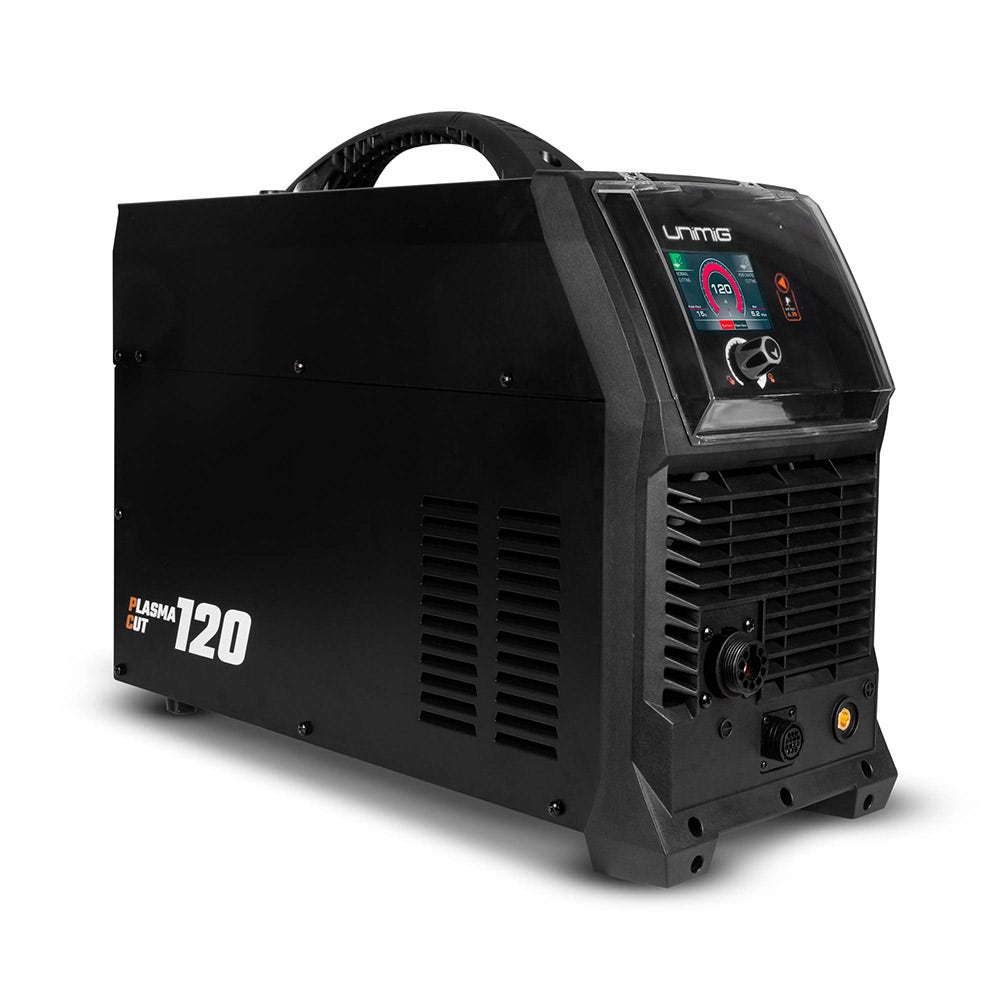

UNIMIG RAZOR CUT 120 Plasma Cutter U14002K

Features

• Designed for maximum cutting performance
• Clean cutting capability of 45mm in mild steel
• Severing capability of 60mm
• Three-phase 415V power
• Pilot arc start for contactless cutting
• 2T/4T torch controls for enhanced comfort
• Thermal overload protection with over temperature warning
• Plasma cut current range: 20-120A
• Duty cycle at 40°C: 60% @ 120A, 100% @ 100A
• Mild steel cut thickness of 45mm
• Aluminium cut thickness of 36mm
• Stainless steel cut thickness of 45mm
• Air flow draw off: 189 L/min
• Air flow pressure: 5.17 bar (75 psi)
• Standard compliance: AS/NZ60974-1
• Dinse connector size: 10/25

Specifications

• Part No: U14002K
• Barcode: 9333521007144
• Brand: UNIMIG
• Warranty: 3 years
• Primary input voltage: 415V three phase
• Supply plug: No plug supplied (32 AMP recommended)
• Ieff (A): 26
• No load voltage (V): 420
• Protection class: IP21
• Insulation class: F
