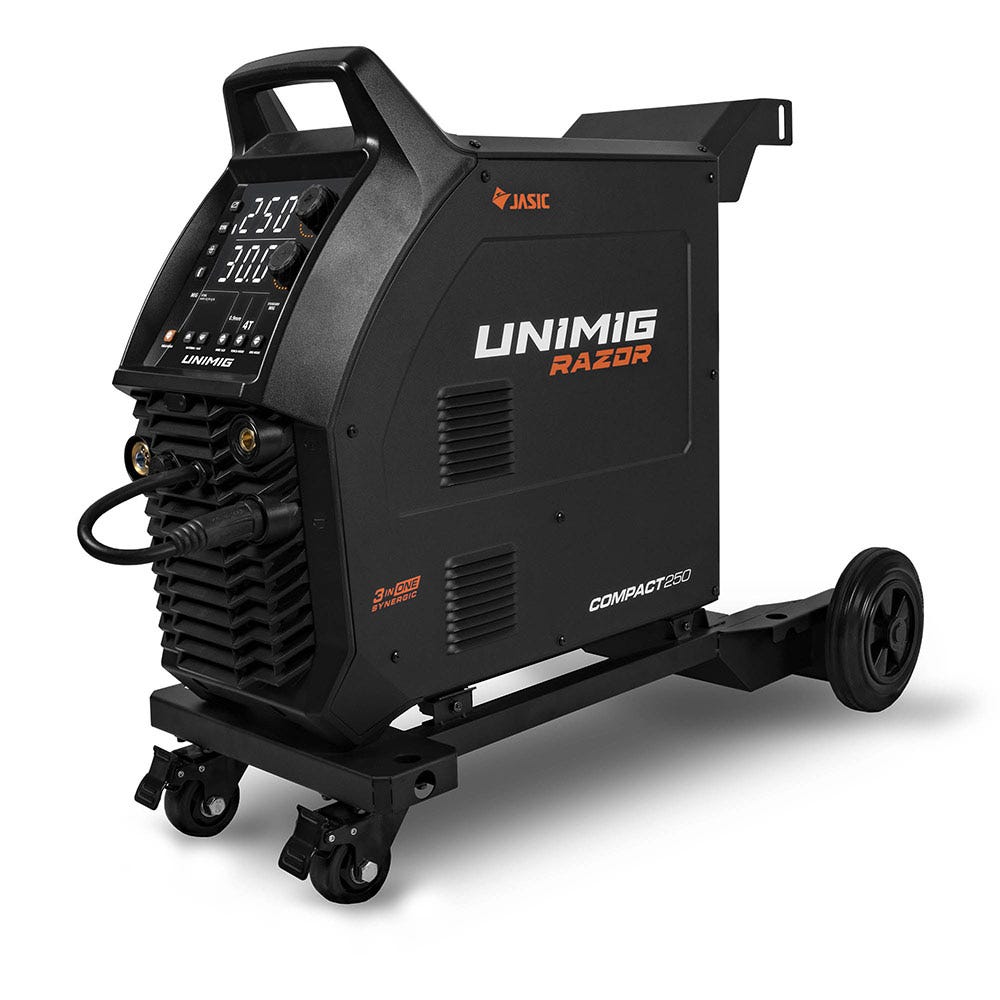

UNIMIG Razor Compact 250 Welder U11010K

Features

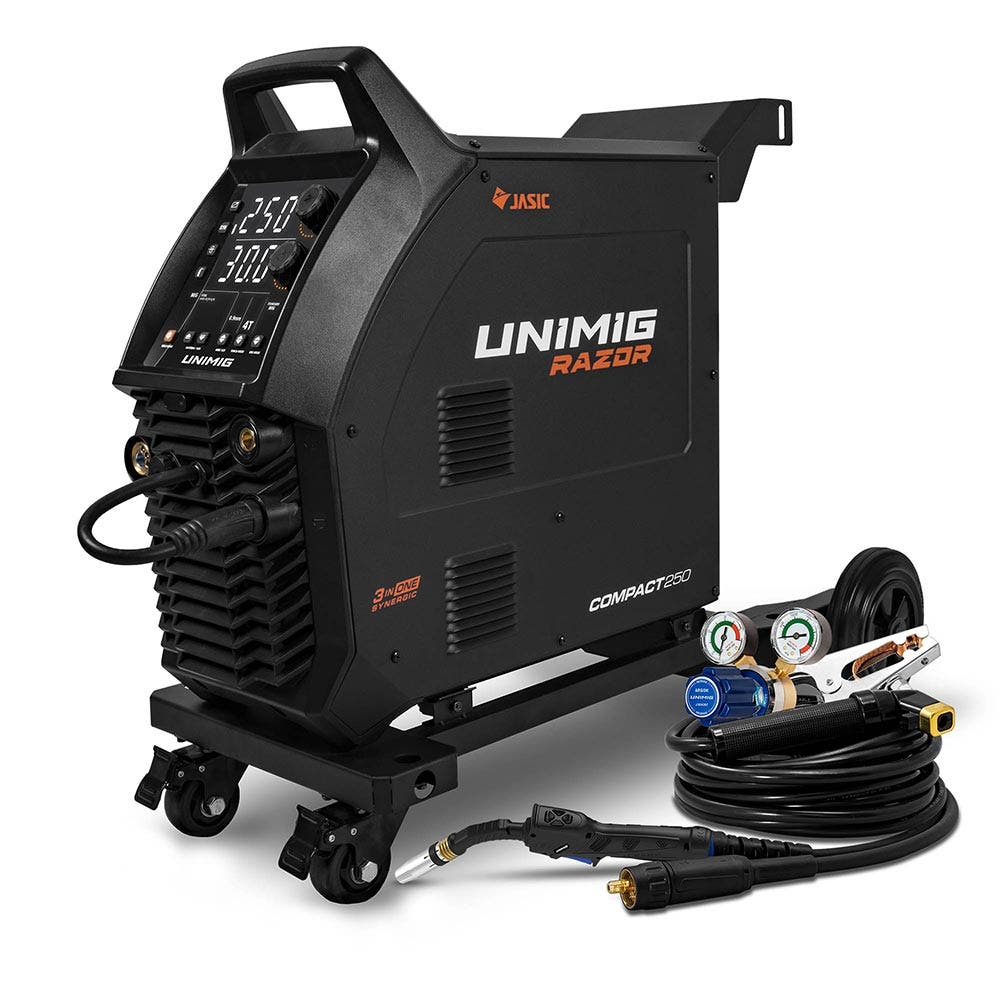

• Includes RAZOR COMPACT 250 Welder and accessories
• Professional MIG, TIG & STICK performance in a compact design
• Quick setup with synergic MIG programs
• Compatible with spool gun and push-pull gun for aluminum welding

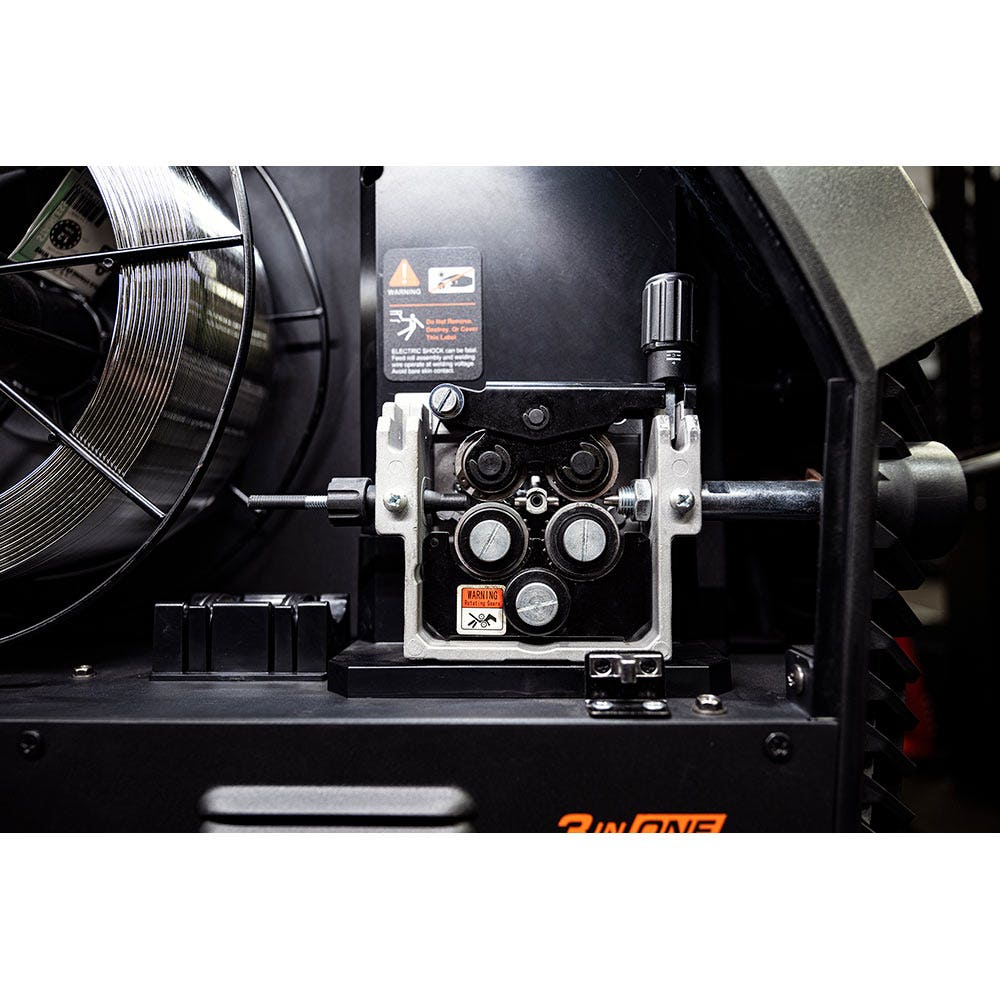

• 4 geared wire drive system for enhanced wire feeding
• 5-year warranty for peace of mind

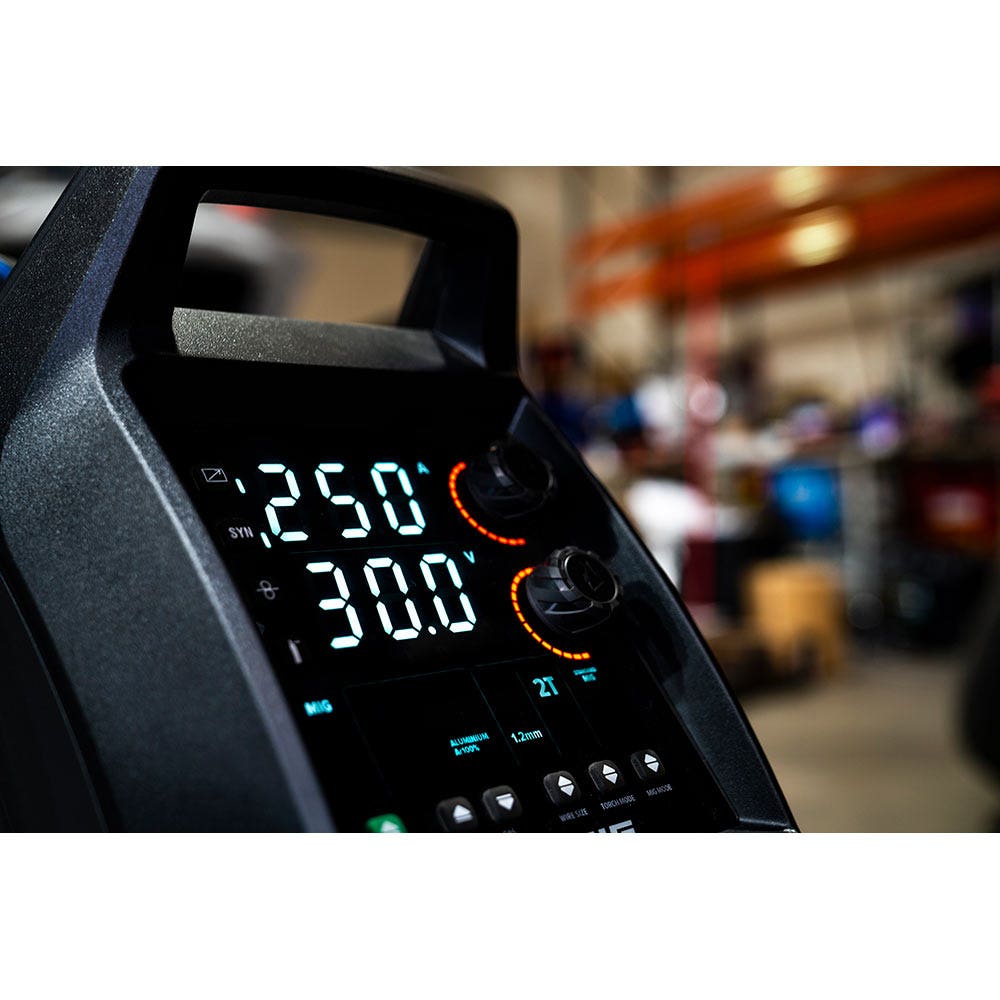

• HD Backlit Interface for easy reading
• Synergic MIG Control for fast setup
• Multi-process capabilities: MIG, TIG, and STICK welding
• Digital Control MIG Torch for on-the-fly adjustments
• Gas & Gasless MIG operation for versatility
• Trigger Controlled DC Lift Arc for easy ignition in TIG welding
• Advanced MMA features: Anti-Stick, Arc Force, and Hot Start
• Smart Fan minimizes noise and reduces energy costs
• Power Factor Correction (PFC) for efficient performance
• Push-Pull Gun Ready for smooth wire feeding

Specifications

• Primary input voltage: 240V Single Phase
• Supply plug: 15 AMP
• Ieff (A): 15.0
• Rated output: 30A/15.5V - 250A/26.5V
• No load voltage (V): 65
• Protection class: IP23S
• Insulation class: H
• Minimum generator (kVA): 11.0
• Dinse connector: 35/50
• Standard: AS/NZ60974-1
• MIG Welding current range: 30-250A
• MIG Duty cycle @ 40°C: 20% @ 250A / 60% @ 144A / 100% @ 112A
• MIG Wire size range: 0.6-1.2mm
• MIG Wire spool size: 5kg / 15kg
• MIG Welding thickness range: 1-12mm
• TIG Function type: Trigger Controlled DC Lift Arc
• TIG Welding current range: 5-250A
• TIG Duty cycle @ 40°C: 20% @ 250A / 60% @ 144A / 100% @ 112A
• TIG Welding thickness range: 1-10mm
• Stick welding current range: 20-220A
• Stick duty cycle @ 40°C: 20% @ 220A / 60% @ 127A / 100% @ 98A
• Stick electrode range: 2.5-4.0mm
• Stick welding thickness range: 2-12mm
• Wire drive: 4 Geared
• VRD: Yes
• Spool gun connection: Yes
• Foot control connection: Yes
• Burnback adjustment: Yes
• Wire inch: Yes
• Inductance control: Yes
• Thermal overload protection: Yes
