UNIMIG Razor ARC 160 PFC Welder U13002K

Features

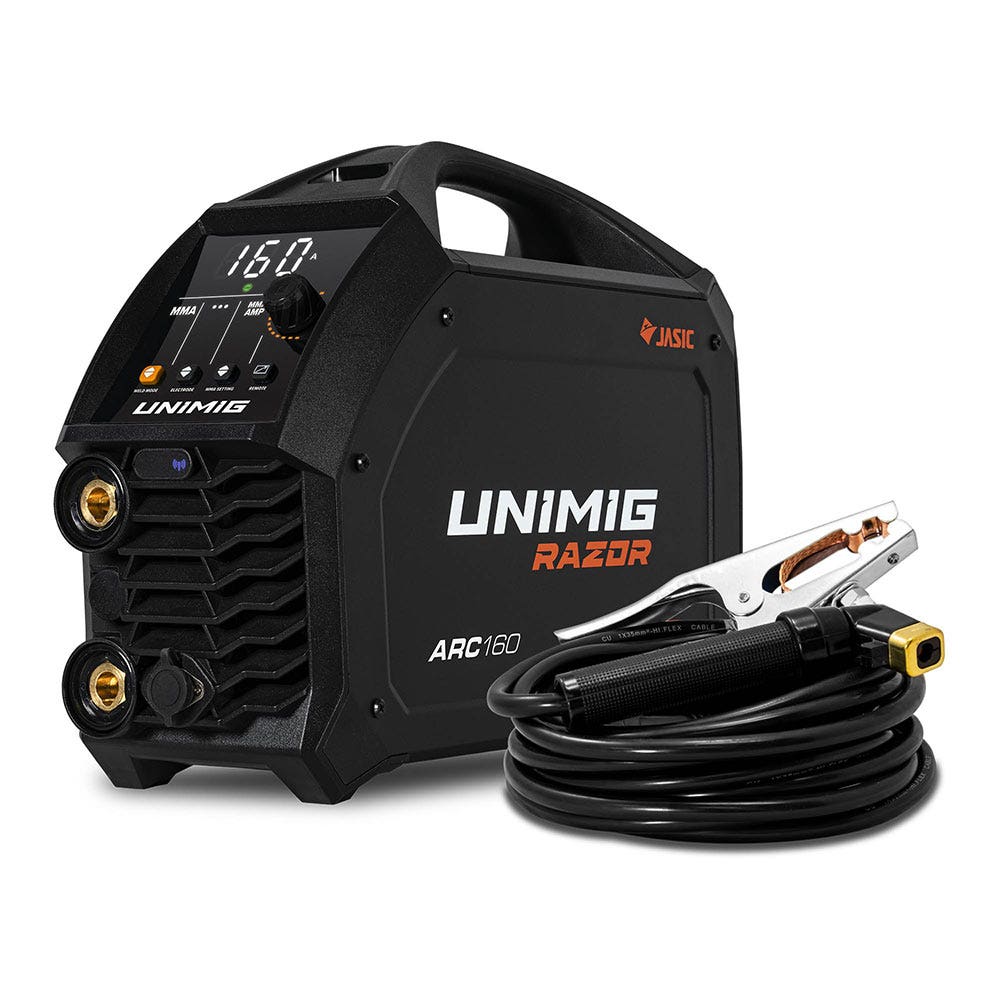

• Includes RAZOR ARC 160 PFC Welder, 4m Twist Lock Electrode Holder, 4m 300 Amp Earth Clamp & Lead, Operating Manual
• Powerful STICK (MMA) machine suitable for worksite or workshop
• Advanced features: hot start, arc force, and anti-stick
• Power Factor Correction (PFC) for maximum electrical efficiency
• Capable of DC Lift Arc TIG for enhanced versatility
• 5-year warranty showcasing confidence in the product
• HD Backlit Interface for visibility in any environment
• 10A Plug compatible with any domestic outlet for easy use
• DC Lift Arc ignition for easy arc starting without tungsten tip damage
• Smart Fan technology reduces noise, saves power, and minimizes contaminants
• Advanced MMA Features: Anti-Stick, adjustable Arc Force, and Hot Start

Specifications

• Primary input voltage: 240V Single Phase
• Supply plug: 10 AMP
• Ieff (A): 10.0
• Rated output: 20A/20.8V - 160A/26.4V
• No load voltage (V): 78
• Protection class: IP23S
• Insulation class: H
• Minimum generator (kVA): 7.0
• Dinse connector: 35/50
• Standard: AS/NZ60974-1
• TIG Function type: DC Lift Arc
• TIG Welding current range: 10-160A
• TIG Duty cycle @ 40°C: 35% @ 160A, 60% @ 123A, 100% @ 95A
• TIG Welding thickness range: 1-6mm
• Stick Welding Current Range: 20-160A
• Stick duty cycle @ 40°C: 20% @ 160A, 60% @ 93A, 100% @ 72A
• Stick electrode range: 2.5-4.0mm
• Stick welding thickness range: 2-10mm
• VRD: Yes
• Part No: U13002K
• Barcode: 9333521032863
• Brand: UNIMIG
• Warranty: 5 Year
• Net Weight (kg): 7.2
• Product Length (mm): 413
• Product Width (mm): 150
• Product Height (mm): 311
