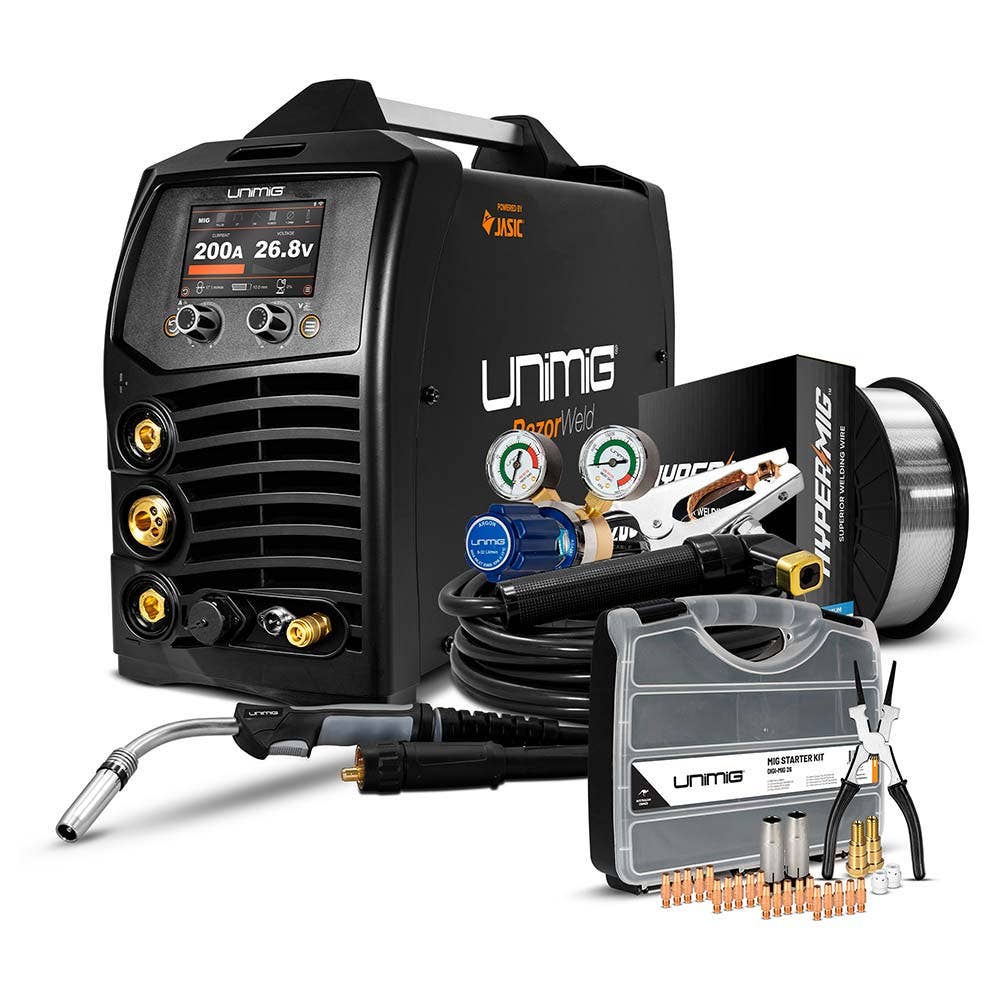

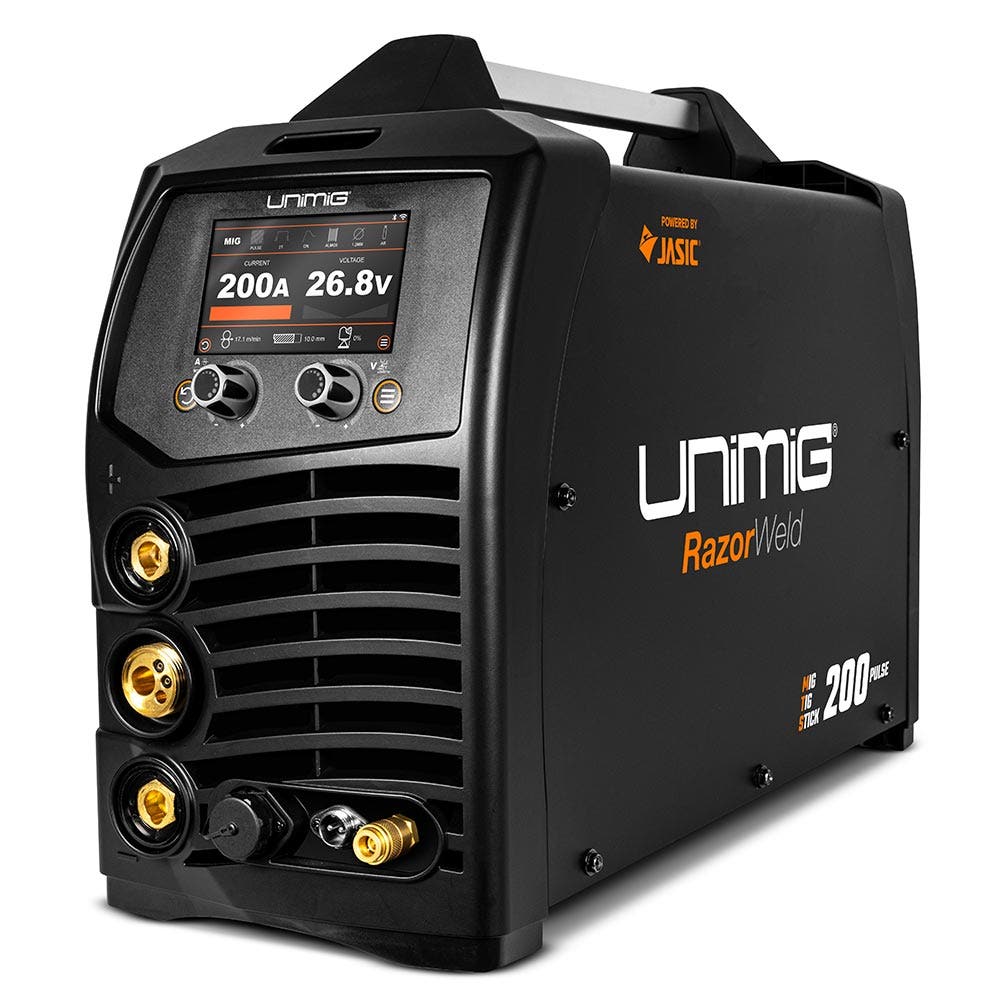

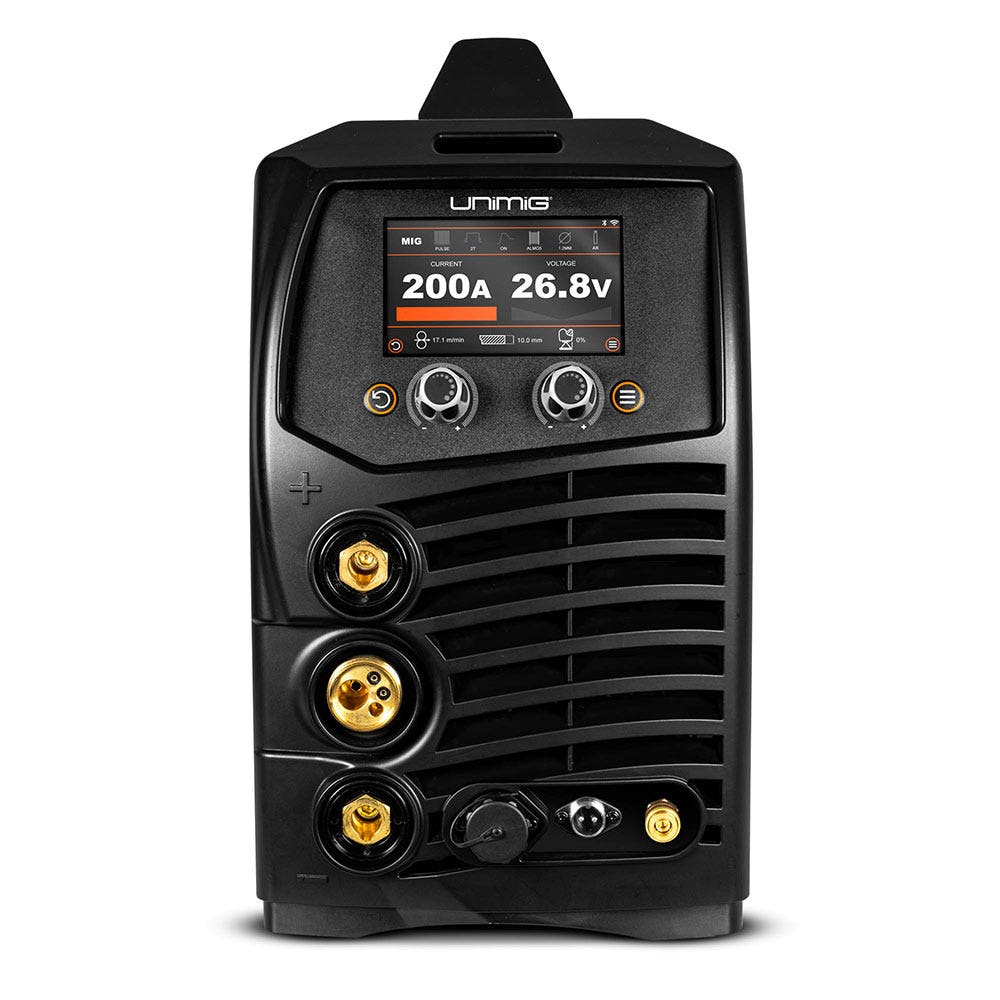

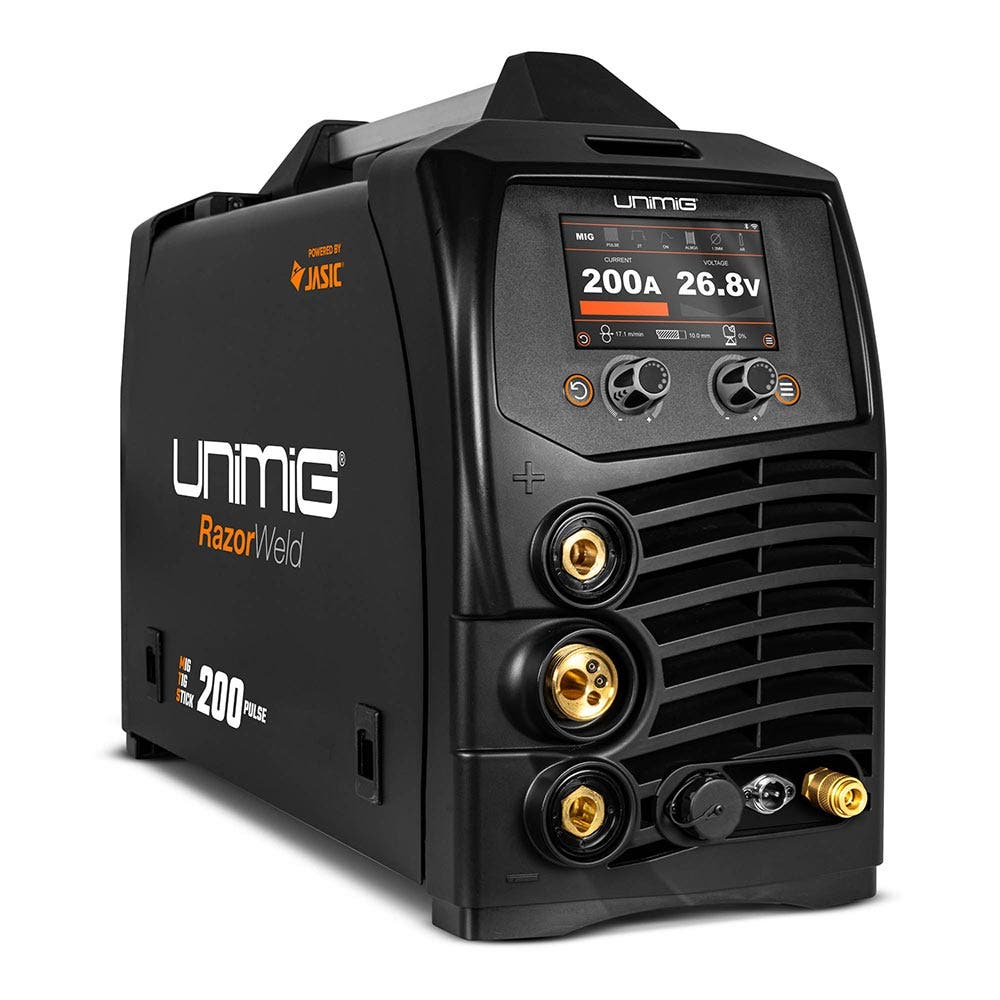

UNIMIG Razor 200 Pulse MIG TIG STICK Electric Welder U11003K

Features

• All-new RAZOR 200 PULSE for versatile pulse MIG applications
• Single & Double Pulse MIG for reduced heat and minimal spatter
• Weld thinner materials, ideal for aluminum
• Faster welding than TIG with similar appearance
• Spatter-free welding for easy cleanup
• 5" LCD Touch Screen Display for easy parameter adjustments
• Over 100+ preset synergic programs for fast setup
• Hot Start and Crater Fill features for improved weld quality
• 4 Geared Wire Drive for consistent wire feeding
• High Frequency DC TIG mode with adjustable parameters
• Stick (MMA) welding capabilities with Anti Stick feature
• GLICK Heat Control for manual heat adjustments during welding
• Job Memory function for saving up to 100 settings
• Digital Control Torch for amped control on the MIG torch
• 2T, 4T, and SPOT modes for operator comfort
• Adjustable Arc Length in synergic and pulse MIG modes
• Inductance Control for preferred arc characteristics
• Generator compatible for off-grid use (11kVA recommended)

Specifications

• Primary Input Voltage: 240V Single Phase
• Supply Plug: 15A
• Rated Output: 40A/16V - 200A/24V
• Protection Class: IP23S
• Insulation Class: H
• Minimum Generator: 11.0 kVA
• Dinse Connector: 35/50
• Standard: AS/NZ60974-1
• Suitable Material: Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium, Copper
• Wire Drive: 4 Geared
• VRD: Yes
• Burnback Adjustment: Yes
• Wire Inch: Yes
• Inductance Control: Yes
• Thermal Overload Protection: Yes
• MIG Welding Current Range: 40-200A
• MIG Duty Cycle at 40°C: 15% at 200A, 60% at 101A, 100% at 78A
• MIG Wire Size Range: 0.6 - 1.2mm
• MIG Wire Spool Size: 1kg - 5kg
• MIG Welding Thickness Range: 1-10mm
• TIG Function Type: High-Frequency
• TIG Welding Current Range: 5-200A
• TIG Duty Cycle at 40°C: 20% @ 200A, 60% @ 116A, 100% @ 90A
• TIG Welding Thickness Range: 1-8mm
• STICK Welding Current Range: 20-180A
• STICK Duty Cycle at 40°C: 15% @ 180A, 60% @ 91A, 100% @ 70A
• STICK Electrode Range: 2.5-4.0mm
• STICK Welding Thickness Range: 2-12mm
• ARC Force: 0-100%
