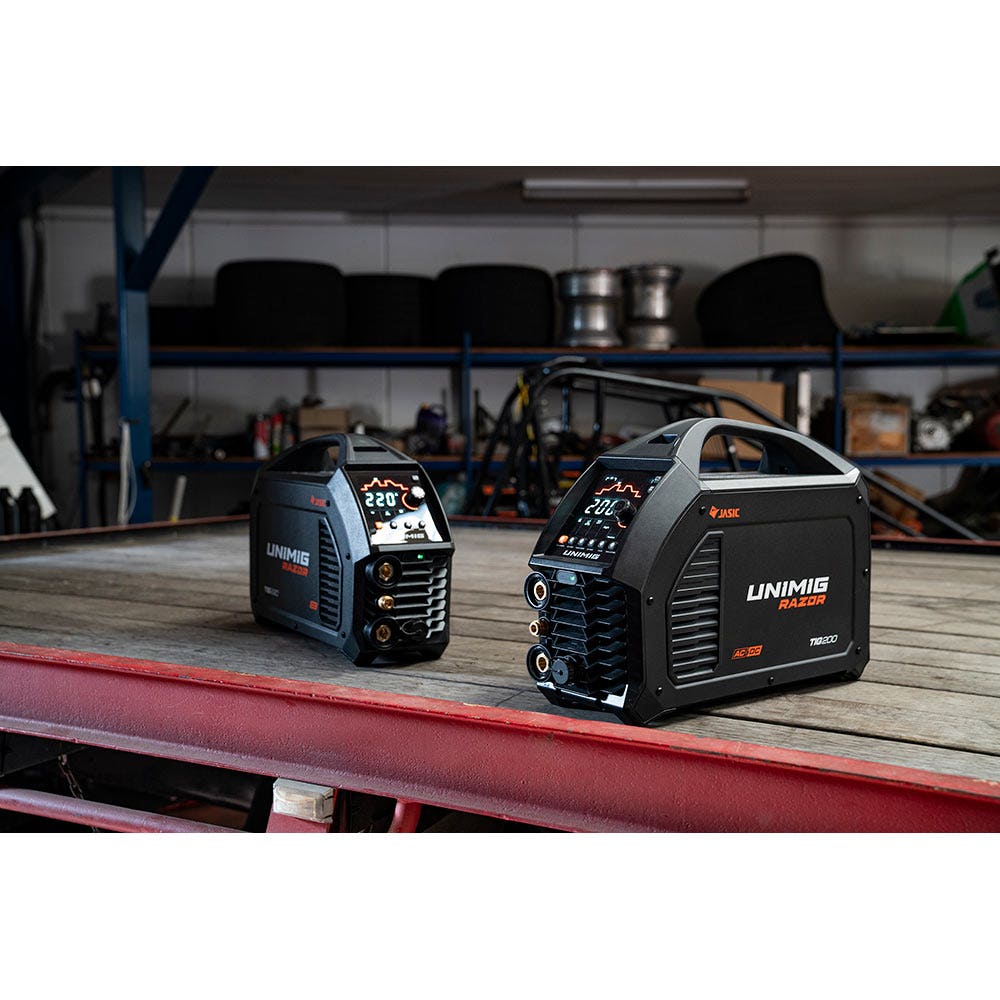

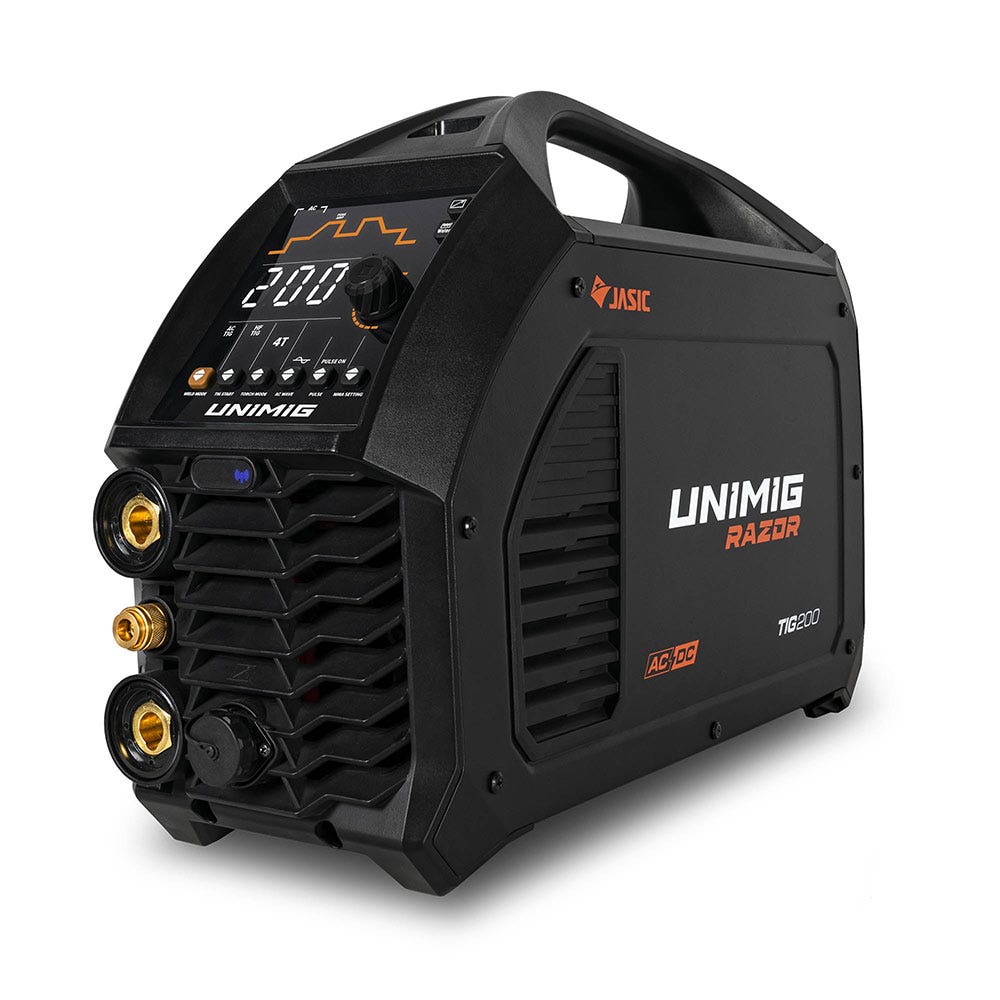

UNIMIG Razor 200 AC DC Welder U12002K

Features

• Professional-grade TIG welder for exceptional results
• Suitable for various materials: Aluminium, Magnesium, Zinc Alloys, Mild Steel, Stainless Steel, Copper, Silicon Bronze, Titanium, Cast Iron

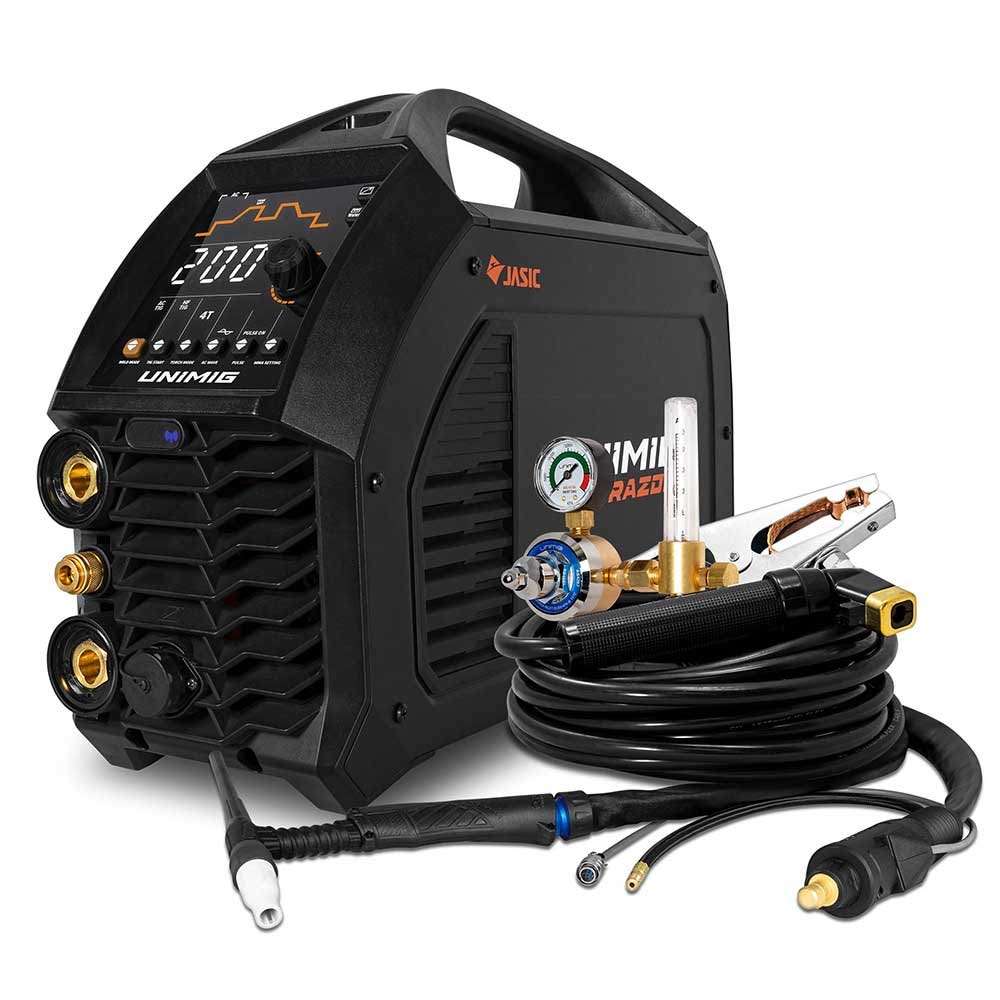

• Includes 8m T2 TIG Torch, 4m Twist Lock Electrode Holder, 4m 300 Amp Earth Clamp & Lead, Argon Flowmeter Regulator, 1.8m Gas Hose with fittings, and Operating Manual
• High-frequency AC/DC TIG for effortless metal welding
• Mixed Arc settings combining AC and DC for versatile welding
• Select between three AC waveforms to tailor your welds
• VRD capability enhances safety
• Foot Control Connection for easy amperage adjustments while welding

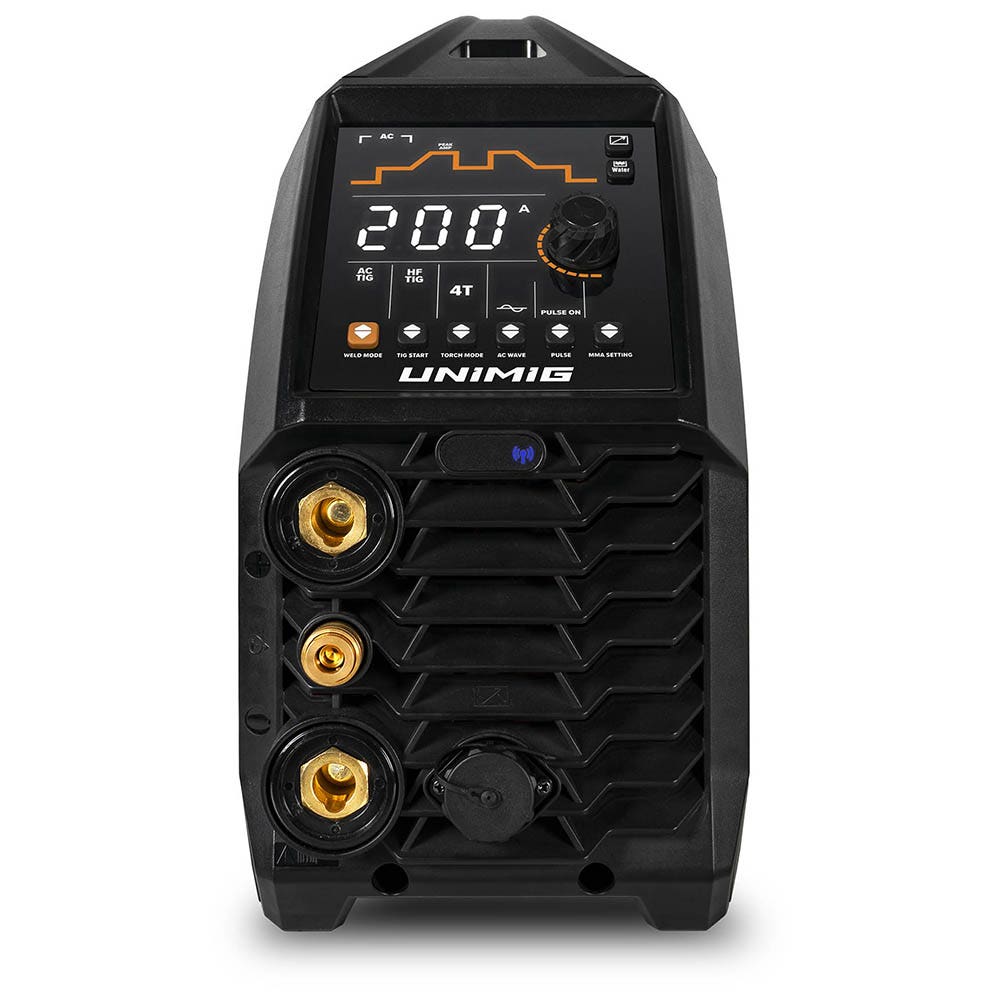

• HD Backlit Interface for readability in various environments
• Power Factor Correction (PFC) for maximum electrical efficiency
• 10A Plug compatible with domestic outlets
• Ability to weld all metal types with AC/DC functionality
• High-Frequency TIG minimizes tungsten contamination
• Multiple AC Waveforms for customized aluminum welding
• Mixed AC/DC for faster speeds and better penetration
• Pulse TIG reduces heat input while maintaining penetration
• Smart Fan reduces noise and energy costs
• Advanced MMA Features with adjustable Arc Force and Hot Start

Specifications

• Primary Input Voltage: 240V Single Phase
• Supply Plug: 10 Amp
• Leff (A): 9.8
• Rated Output: 5-200A
• No Load Voltage: 65V
• Protection Class: IP23S
• Insulation Class: H
• Minimum Generator: 9.0kVa
• Dinse Connector: 35/50
• Standard: AS/NZ60974-1
• TIG Function Type: AC/DC HF TIG & AC/DC Pulse
• TIG Welding Current Range: 5-200A
• TIG Duty Cycle @40°C: 20% @ 200A, 60% @ 115A, 100% @ 90A
• TIG Welding Thickness Range: 1-8mm
• STICK Welding Current Range: 20-160A
• STICK Duty Cycle @40°C: 15% @ 160A, 60% @ 80A, 100% @ 62A
• STICK Electrode Range: 2.5-4.0mm
• STICK Welding Thickness Range: 2-10mm
• Dimensions: 500mm x 170mm x 340mm
• Weight: 11.7kg
