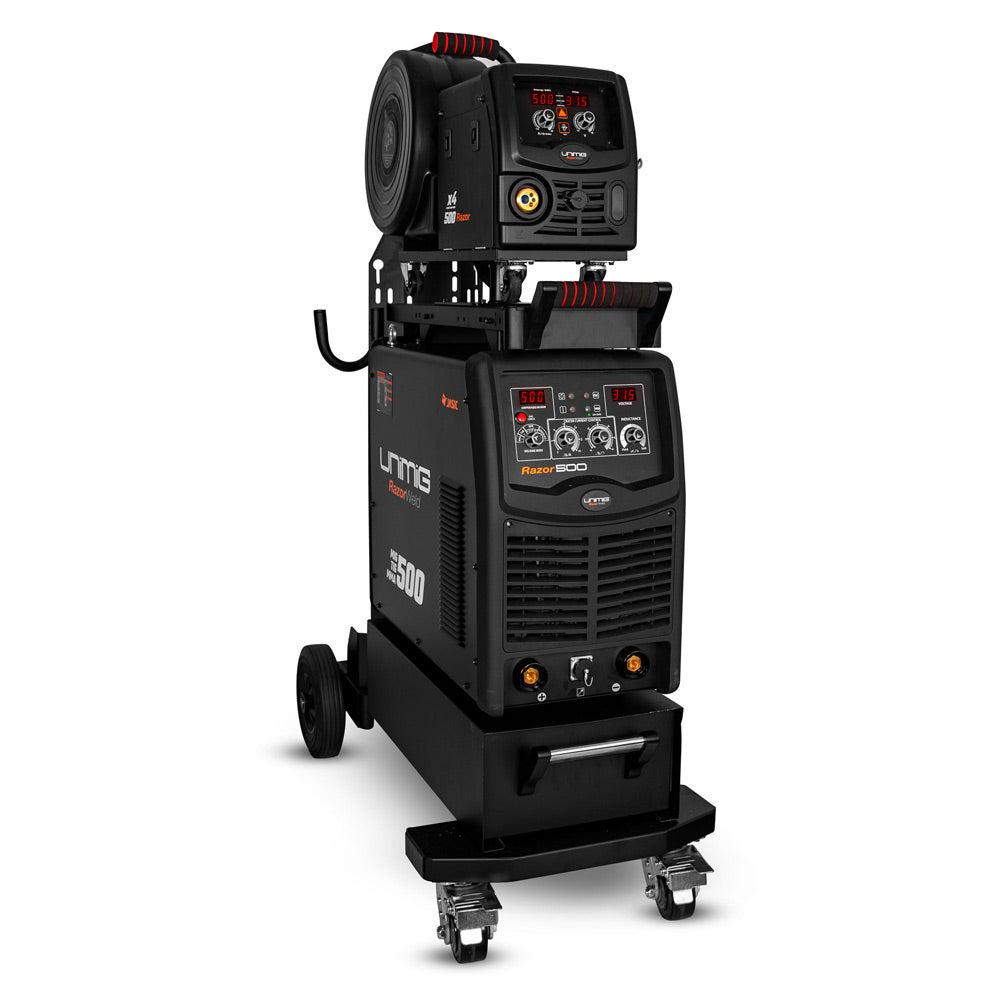

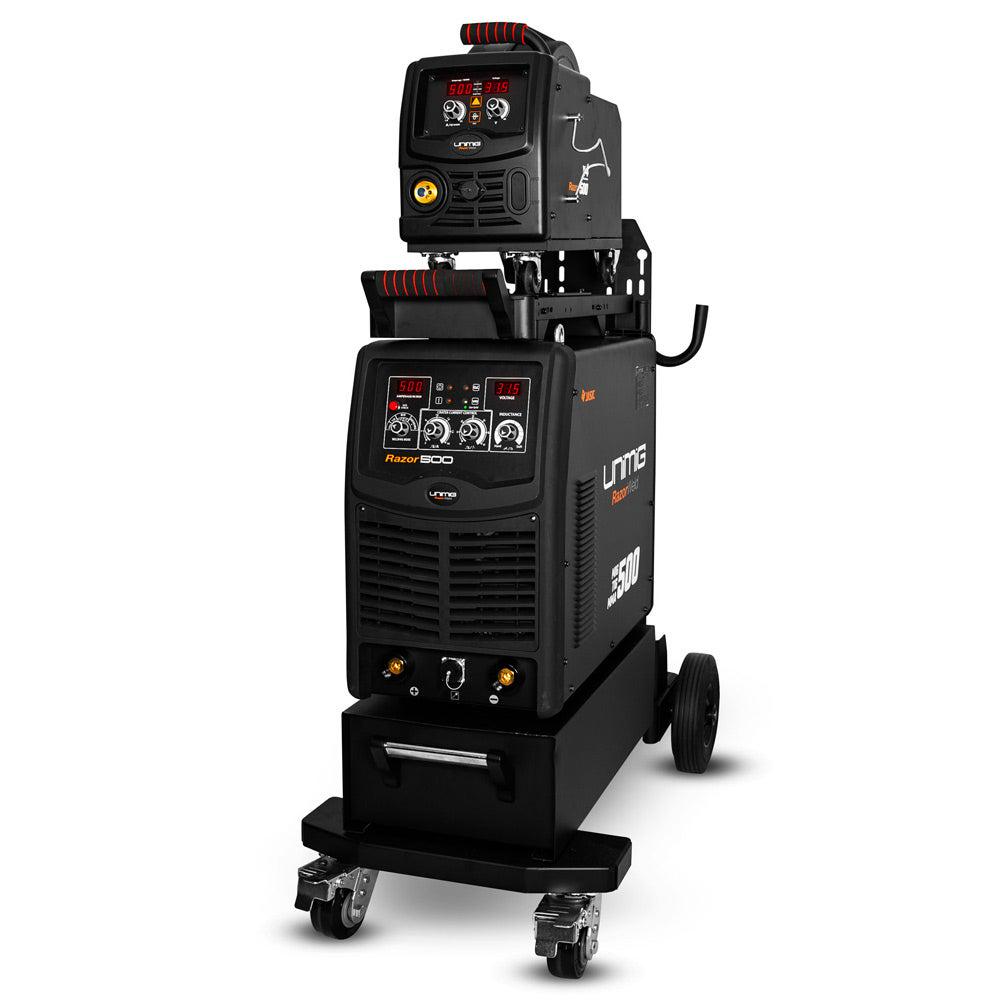

UNIMIG 500A Razor SWF MIG TIG Stick Electric Welder KUMJRRW500SWF

UNIMIG 500A Razor SWF MIG TIG Stick Electric Welder KUMJRRW500SWF

$8,738.00 AUD
$11,650.00 AUD $8,738.00 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Features

  • Multi-process welding: MIG, TIG, and STICK capabilities in one machine
  • Separate Wire Feeder unit for up to 10m maneuverability
  • Four geared wire drive for consistent and smooth wire feed
  • Spool Gun ready for soft core wires like Aluminium MIG wire
  • Push-Pull ready for enhanced wire speed and longer reach
  • Highest quality welds with superior welding technology
  • Built to withstand tough workshop conditions
  • Supports both gas shielded and gasless MIG wire
  • Quick switch between setups with minimal downtime

Specifications

  • Primary Input Voltage: 415V Three-Phase
  • Rated Input Power (kVA): 25.3
  • Ieff (A): 24.3
  • Rated Output: 50A/17V - 500A/39.0V
  • No Load Voltage (V): 85
  • Protection Class: IP23
  • Insulation Class: F
  • Power Factor: 0.93
  • Minimum Generator (kVA): 26.0
  • DINSE Connector: 35/50
  • Standard: AS/NZ60974-1
  • Suitable Material: Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium, Copper
  • MIG Welding Current Range: 50-500A
  • MIG Duty Cycle @ 40°C: 60% @ 500A
  • MIG Wire Size Range: 0.6-1.6mm
  • MIG Wire Spool Size: 5kg / 15kg
  • MIG Welding Thickness Range: 1-30mm
  • Drive Roller Size: 30/10 (x2)
  • TIG Function Type: DC Lift Arc
  • TIG Welding Current Range: 20-500A
  • TIG Duty Cycle @ 40°C: 60% @ 500A
  • TIG Welding Thickness Range: 2-10mm
  • Stick Welding Current Range: 20-500A
  • Stick Duty Cycle @ 40°C: 60% @ 500A
  • Stick Electrode Range: 2.5-6.0mm
  • Stick Welding Thickness Range: 2-20mm
  • Wire Drive: Separate 4 Geared
  • VRD: Yes
  • Spool Gun Connection: Yes
  • Push/Pull Gun Connection: Yes
  • Burnback Adjustment: Synergic
  • Wire Inch: Yes
  • Inductance Control: Yes
  • Crater Current Control: Yes
  • Thermal Overload Protection: Over Temperature Warning
  • Air Arc Gouging: Yes
  • Inclusions: RAZOR 500 SWF MIG/TIG/STICK Welder, Separate Wire Feeder Unit, 10m Interconnecting Cables, 4m SB36 MIG Torch, 10m Twist Lock Electrode Holder, 500 Amp Earth Clamp & Lead, Twin Gauge Argon Regulator, 2m Gas Hose with fittings, Operating Manual
``
