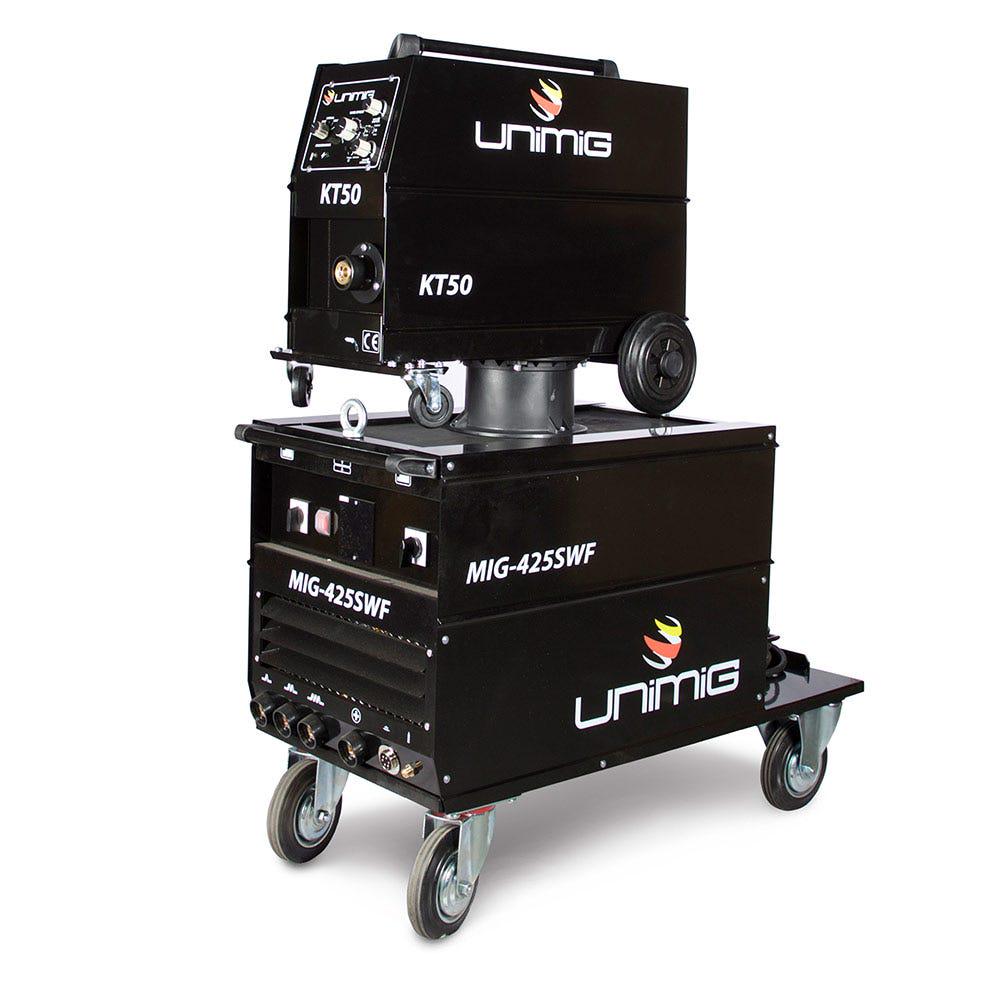

UNIMIG 425A WORKSHOP 425 SWF MIG Electric Welder KUM425SWF

Features

• Powerful design with ultra-smooth arc for medium to heavy fabrication
• 30 position voltage switching for precise welding settings
• Four geared roller drive unit for consistent and smooth wire feeding
• High-quality copper-wound transformer for enhanced cooling and reliability
• KT50 Separate Wire Feeder extends reach by 10 metres for improved manoeuvrability
• Enclosed wire feeder system prevents dust and moisture contamination
• Constructed with premium components for durability and reliability
• Large 250mm cooling fan maximises cooling for high duty cycle operation
• MIG welding current range from 40-400 AMPS
• MIG wire size range of 0.6-1.2mm and spool sizes of 5kg/15kg
• MIG welding thickness range from 2-30mm

Specifications

• Primary Input Voltage: 415V Three Phase
• Supply Plug: No plug supplied (32 AMP Recommended)
• Rated Input Power (kVA): 20.0
• Rated Output: 30 Voltage Steps, 16-32.5V
• Protection Class: IP21
• Insulation Class: I
• Minimum Generator (kVA): 24.0
• Dinse Connector: 35/50
• Standard: AS/NZ60974-1
• Suitable Material: Mild Steel, Aluminium, Stainless Steel
• MIG Duty Cycle @ 40°C: 60% @ 400A
• Drive Roller Size: 40/32 (x2)
• Part No: KUM425SWF
• Barcode: 9339793009121
• Brand: UNIMIG
• Warranty: 3 Year
• Net Weight (kg): 182
• Product Length (mm): 1270
• Product Width (mm): 940
• Product Height (mm): 600
