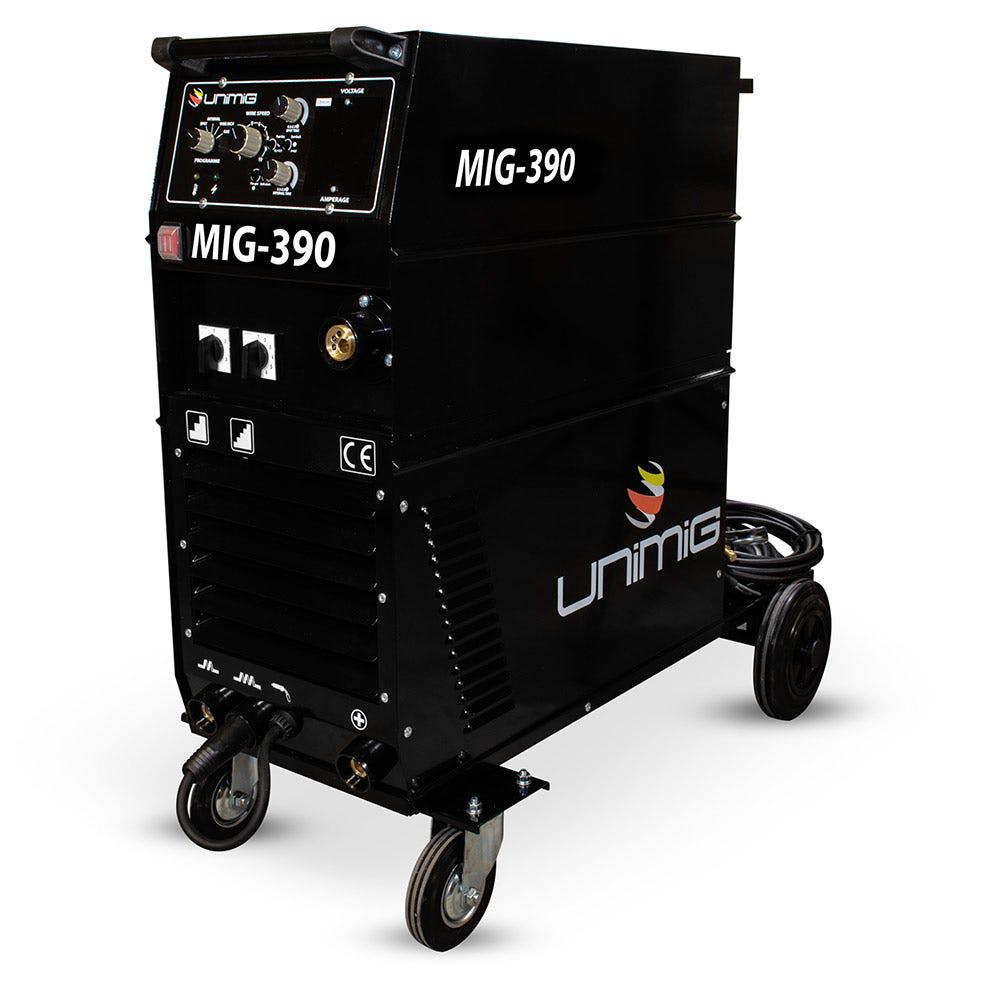

UNIMIG 390A WORKSHOP 390 MIG Electric Welder KUM390

Features

• Combines powerful performance with ultra-smooth arc characteristics
• Ideal for medium to heavy fabrication and rural applications
• 30 position voltage switching for precise welding settings
• Four geared roller drive unit for consistent and smooth wire feeding
• High-quality copper-wound transformer for enhanced cooling and reliability
• Durable design with top-quality components for longevity
• Large 250mm cooling fan with enclosed motor for high duty cycle operation
• MIG welding current range: 30-375A
• MIG duty cycle @ 40°C: 40% @ 375A
• MIG wire size range: 0.6-1.2mm
• MIG wire spool size: 5kg/15kg
• MIG welding thickness range: 1-20mm
• Includes WORKSHOP 390 MIG Welder and accessories

Specifications

• Primary Input Voltage: 415V Three Phase
• Supply Plug: No plug supplied (32 AMP Recommended)
• Rated Input Power (kVA): 16.0
• Rated Output: 30-375A
• Protection Class: IP21
• Insulation Class: I
• Minimum Generator (kVA): 19.0
• Dinse Connector: 35/50
• Standard: AS/NZ60974-1
• Suitable Material: Mild Steel, Aluminium, Stainless Steel
• Drive Roller Size: 40/32 (x2)
• Part No: KUM390
• Barcode: 9339793009091
• Brand: UNIMIG
• Warranty: 3 Year
• Net Weight (kg): 144
• Product Length (mm): 870
• Product Width (mm): 940
• Product Height (mm): 460
