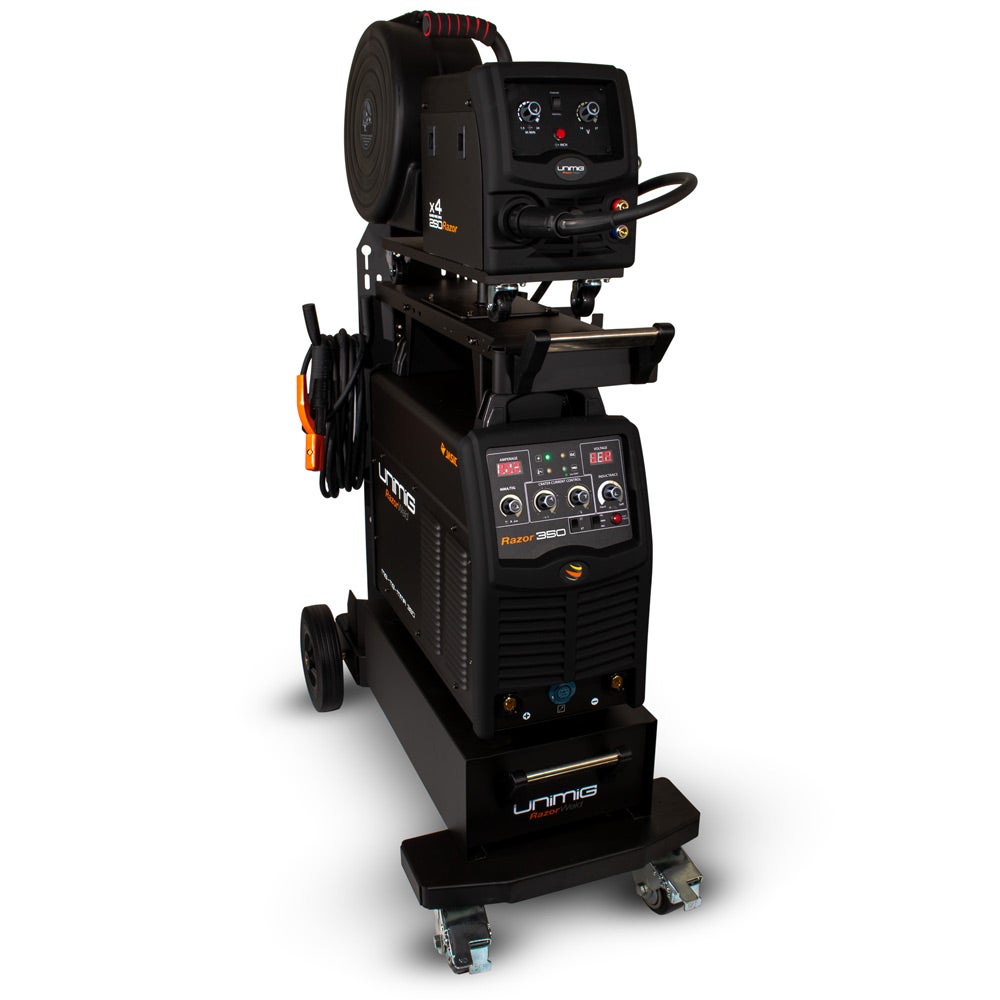

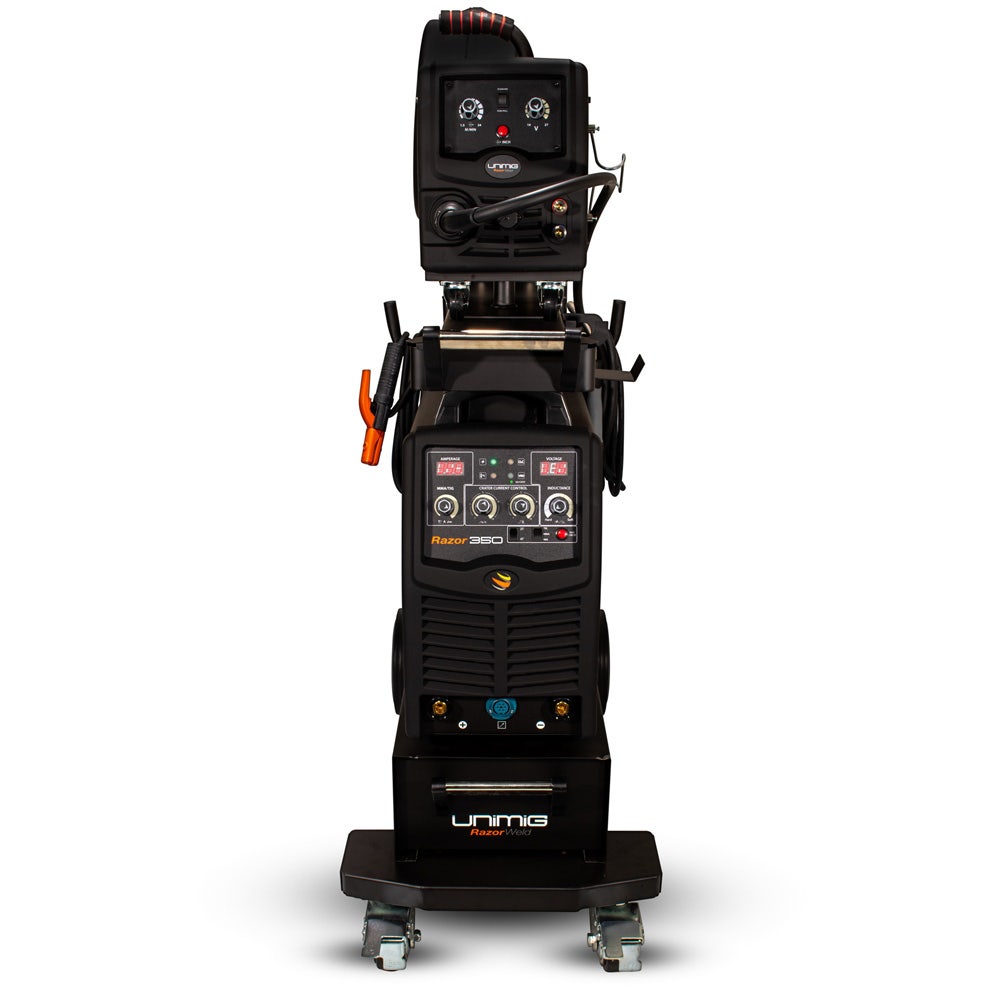

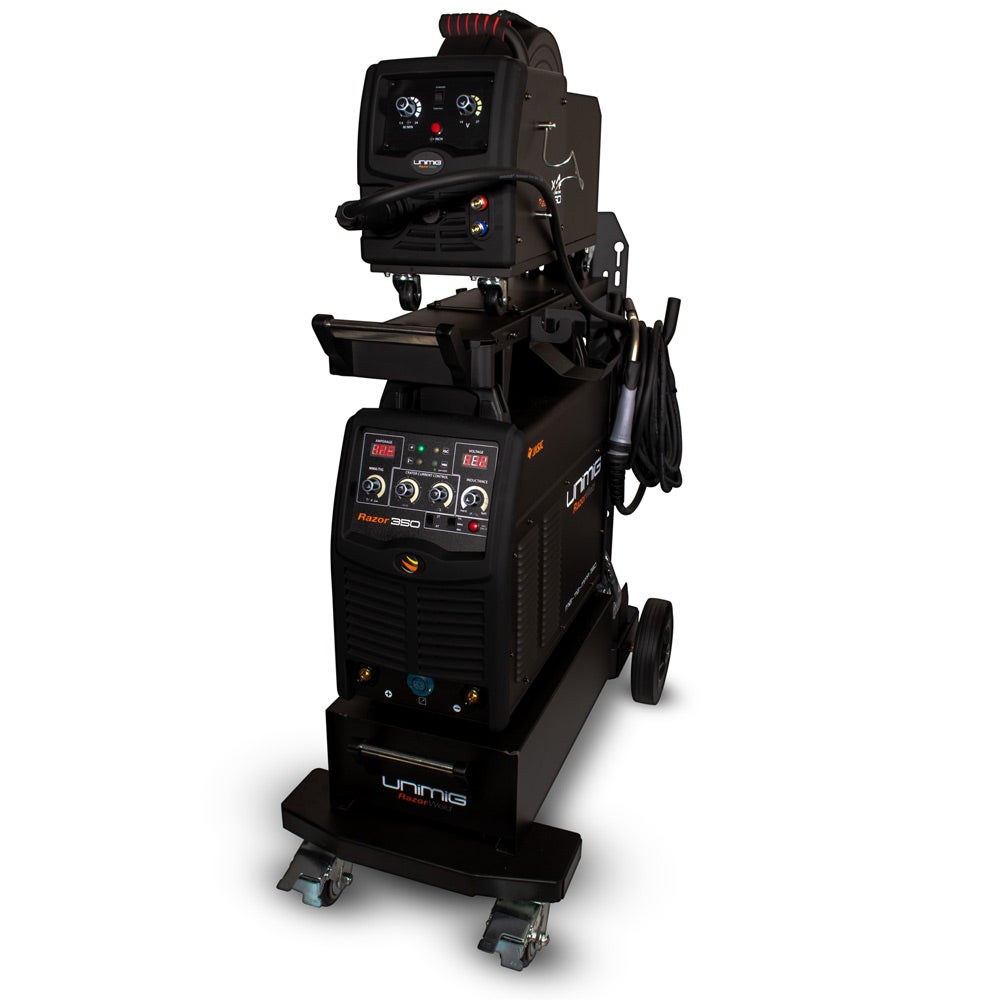

UNIMIG 350a Razorweld SWF MIG TIG Stick Electric Welder KUMJR350SWF

UNIMIG 350a Razorweld SWF MIG TIG Stick Electric Welder KUMJR350SWF

$5,413.50 AUD
$7,218.00 AUD $5,413.50 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Features

  • Powered workshop machine with MIG, TIG, and STICK welding functions
  • Separate Wire Feeder unit provides up to 10m of flexibility
  • Spool Gun and Push-Pull Gun ready for versatile MIG welding
  • Four geared wire drive for consistent and smooth wire feed
  • Multi-process capability eliminates need for machine swaps
  • Highest quality welds with superior technology from UNIMIG
  • SPOOL GUN ready for softer core wires like Aluminium MIG
  • PUSH-PULL ready for optimal wire speed in Aluminium welding
  • Well-constructed to withstand tough workshop conditions

Specifications

  • PRIMARY INPUT VOLTAGE: 415V Three Phase
  • SUPPLY PLUG: No plug supplied (32 AMP Recommended)
  • RATED INPUT POWER (kVA): 12.8
  • Ieff (A): 26.0
  • RATED OUTPUT: 50A/16.5V - 350A/31.5V
  • NO LOAD VOLTAGE (V): 65
  • PROTECTION CLASS: IP21S
  • INSULATION CLASS: F
  • POWER FACTOR: 0.93
  • MINIMUM GENERATOR (kVA): 20.0
  • DINSE CONNECTOR: 35/50
  • STANDARD: AS/NZ60974-1
  • SUITABLE MATERIAL: Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium, Copper
  • MIG WELDING CURRENT RANGE: 50-350A
  • MIG DUTY CYCLE @ 40°C: 40% @ 350A
  • MIG WIRE SIZE RANGE: 0.6-1.2mm
  • MIG WIRE SPOOL SIZE: 5kg / 15kg
  • MIG WELDING THICKNESS RANGE: 1-16mm
  • DRIVE ROLLER SIZE: 30/22 (x2)
  • TIG FUNCTION TYPE: DC Lift Arc
  • TIG WELDING CURRENT RANGE: 20-350A
  • TIG DUTY CYCLE @ 40°C: 40% @ 350A
  • TIG WELDING THICKNESS RANGE: 1-10mm
  • STICK WELDING CURRENT RANGE: 20-350A
  • STICK DUTY CYCLE @ 40°C: 40% @ 350A
  • STICK ELECTRODE RANGE: 2.5-6.0mm
  • STICK WELDING THICKNESS RANGE: 2-16mm
  • WIRE DRIVE: Separate 4 Geared
  • VRD: Yes
  • SPOOL GUN CONNECTION: Yes
  • PUSH / PULL GUN CONNECTION: Yes
  • BURNBACK ADJUSTMENT: Yes
  • WIRE INCH: Yes
  • INDUCTANCE CONTROL: Yes
  • THERMAL OVERLOAD PROTECTION: Over Temperature Warning
  • Inclusions: RAZOR 350 SWF MIG/TIG/STICK Welder, Separate Wire Feeder Unit, 10m Interconnecting Cables, 4m SB36 MIG Torch, 4m Twist Lock Electrode Holder, 500 Amp Earth Clamp & Lead, Twin Gauge Argon Regulator, 2m Gas Hose Complete with fittings, Operating Manual
``
