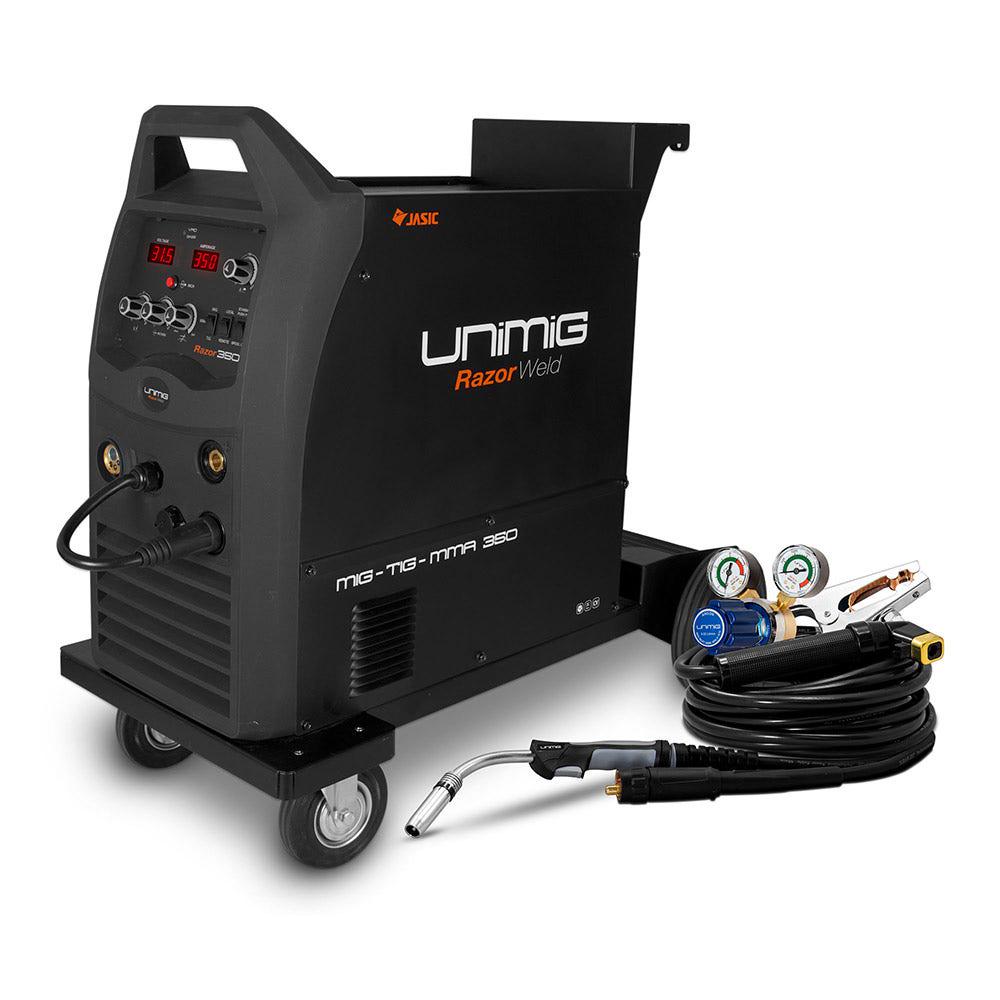

UNIMIG 350A Razor Compact MIG TIG Stick Electric Welder KUMJR350K-SG

Features

• 415V Three-Phase power supply
• Gas-shielded & Gasless MIG / Lift Arc DC TIG / STICK welding functions
• Solid construction for durability
• Ready for Spool Gun and Push-Pull Gun
• Geared Wire Drive for efficient feeding
• MIG welding capabilities with various spool sizes
• High-quality welds from UNIMIG's range
• Welds Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium, Copper
• MIG welding current range: 50-350A
• TIG welding current range: 20-350A
• Stick welding current range: 20-350A
• Drive roller size: 30/22 (x2)

Specifications

• Rated input power (kVA): 15.0
• Ieff (A): 13.3
• Imax (A): 21.0
• Rated output: 50A/16.5V - 350A/31.5V
• No load voltage (V): 64
• Protection class: IP21S
• Insulation: CLASS F
• Power factor: 0.93
• Minimum generator (kVA): 20.0
• DINSE connector: 35/50
• Standard: AS/NZ60974-1
• MIG wire size range: 0.6-1.2mm
• MIG wire spool size: 5kg / 15kg
• MIG welding thickness range: 1-16mm
• TIG welding thickness range: 1-10mm
• Stick electrode range: 2.5-6.0mm
• Stick welding thickness range: 2-16mm
• Net weight (kg): 58
• Product dimensions (L x W x H in mm): 900 x 400 x 670
