UNIMIG 3.2mm 2kg HYPERARC 16TC Low-Hydrogen Electrodes U63009

UNIMIG 3.2mm 2kg HYPERARC 16TC Low-Hydrogen Electrodes U63009

$45.00 AUD
$59.90 AUD $45.00 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Features

  • Twin Coated 7016 Low Hydrogen electrode
  • All positional capabilities (except vertical down)
  • Excellent arc stability
  • High penetration

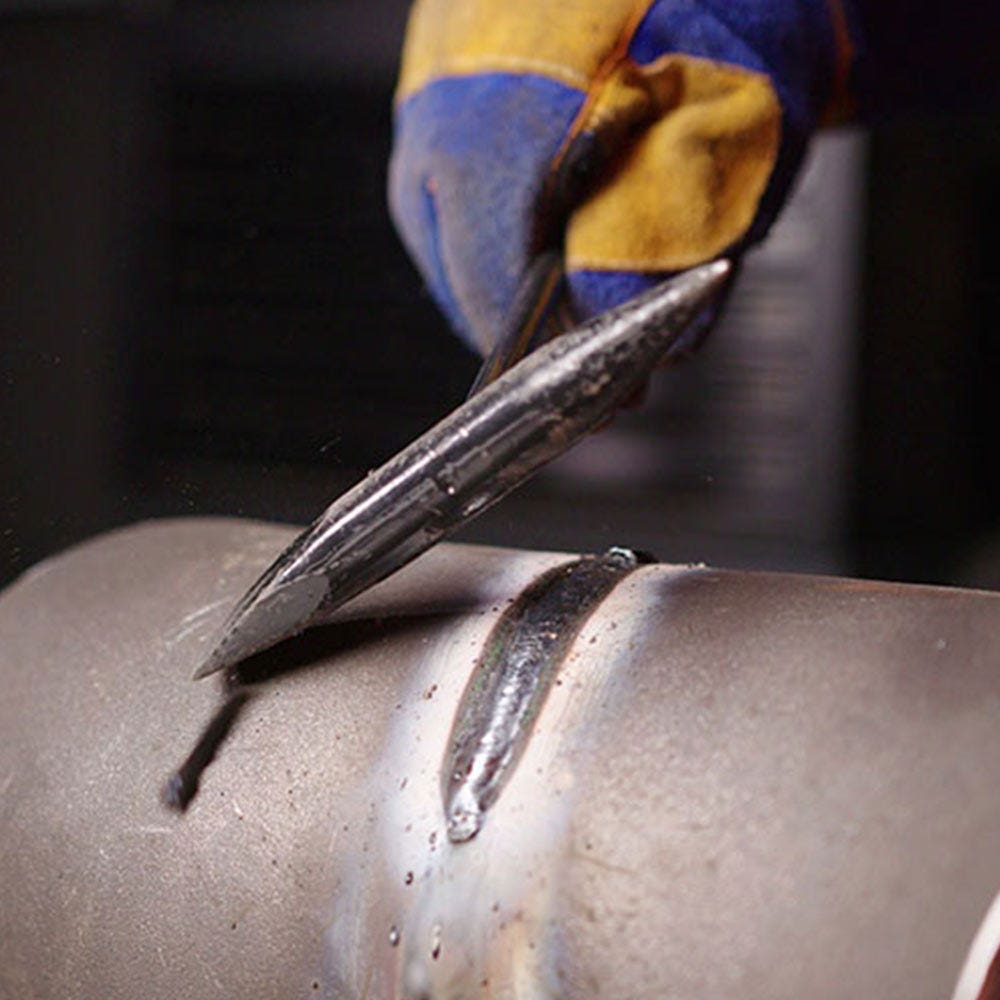

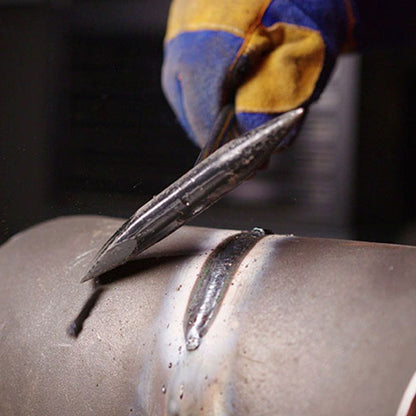

  • Minimal spatter and easy slag release
  • Concentrated arc
  • Applications: Structural Steel Fabrication, Pressure Vessel welding, Pipe welding, Repair work for Agriculture and machinery, Earthmoving equipment repairs, Layering, Buttering

Specifications

  • Yield Stress: 470 MPa
  • Tensile Strength: 583 MPa
  • Elongation: 29%
  • Impact Test: 93J @ -20°C
  • Recommended Current: AC & DC+
  • Current Range: 80-130A
  • Classification: AS/NZS ISO 4855: B E4916 A U H10, AWS A5.1: E7016
  • Size: 3.2mm
  • Length: 350mm
  • Weight: 2kg
  • Part No: U63009
  • Barcode: 9333521006567
  • Brand: UNIMIG
  • Net Weight (kg): 2
``
