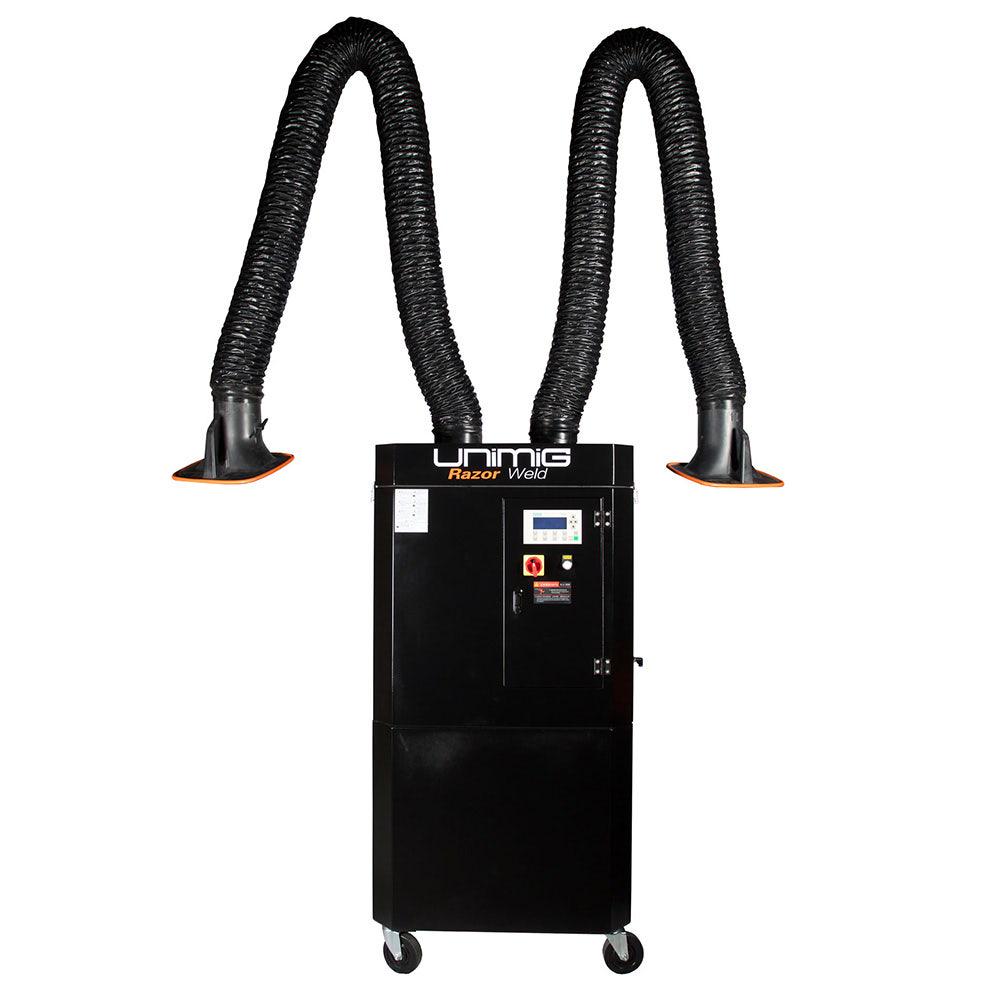

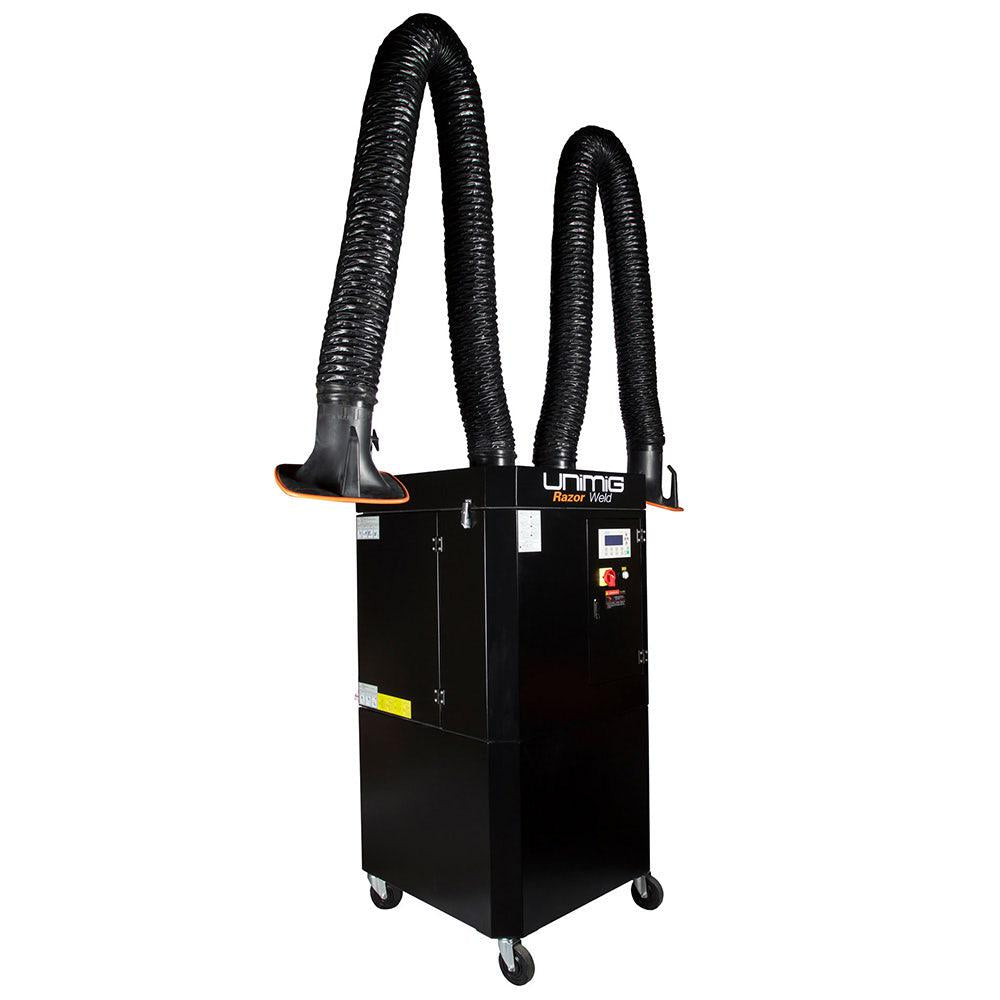

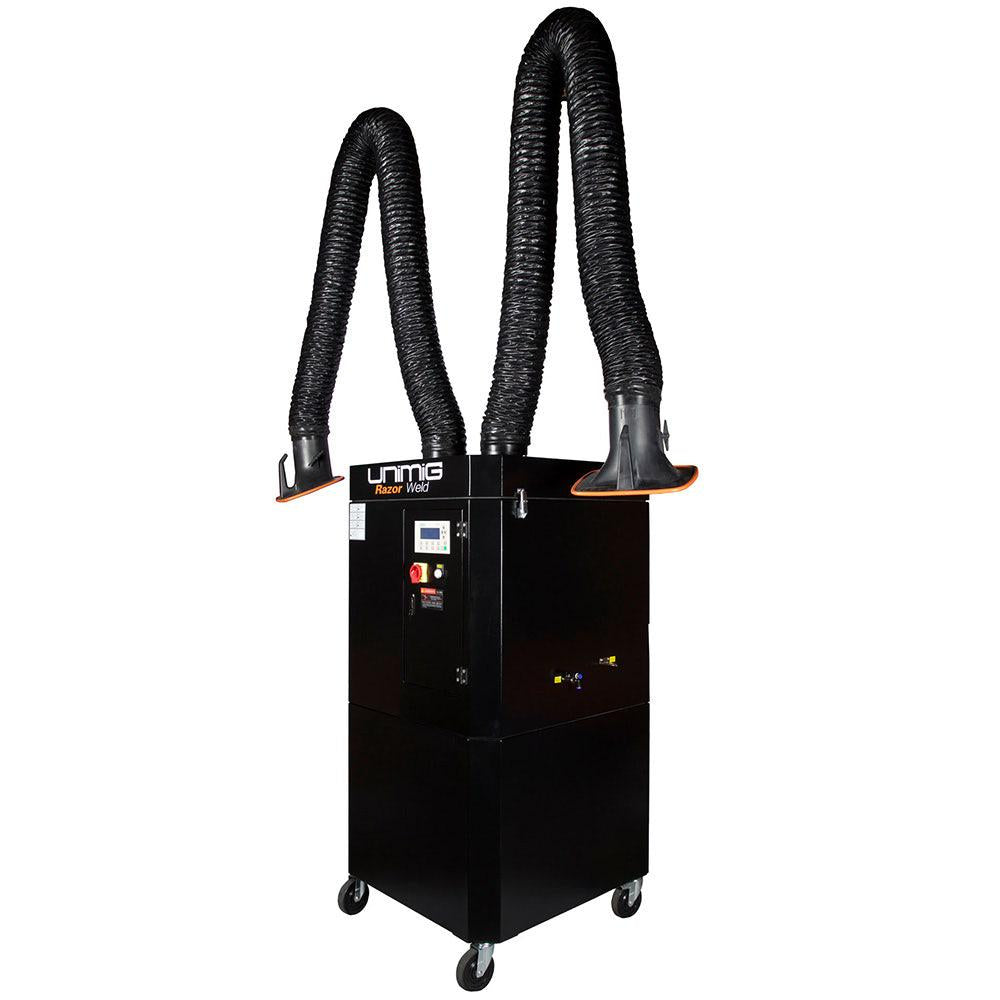

UNIMIG 3.0Kw 415w 50Hz Mobile Single-Arm Fume Extractor KSZ3.0D

Features

• Mobile dual-arm design
• Filters area of up to 20 square metres
• Customisable programs via programmable logic controller (PLC)
• Indicates filter status with a red warning light
• High-quality sheet metal construction
• Self-cleaning with automatic reverse blowing
• 360-degree rotating suction arm
• Removes over 99.8% of nanoparticles (PM1 particulate matter)
• Portable with four heavy-duty lockable caster wheels
• Suitable for welding and grinding fume purification

Specifications

• Air Volume: 4000 ± 100m³/h
• Air Suction Arm: 2600m³/h
• Motor Power: 3kW (2.2kW Optional)
• Working Voltage: 415V/50Hz 3 Phase
• Maximum Pressure: 2800Pa
• Compressed Air: 0.5 - 0.6MPa
• Filtration Efficiency: >99.8%
• Net Weight: 266.1 kg
• Product Dimensions: 800mm (Length) x 800mm (Width) x 1633mm (Height)
