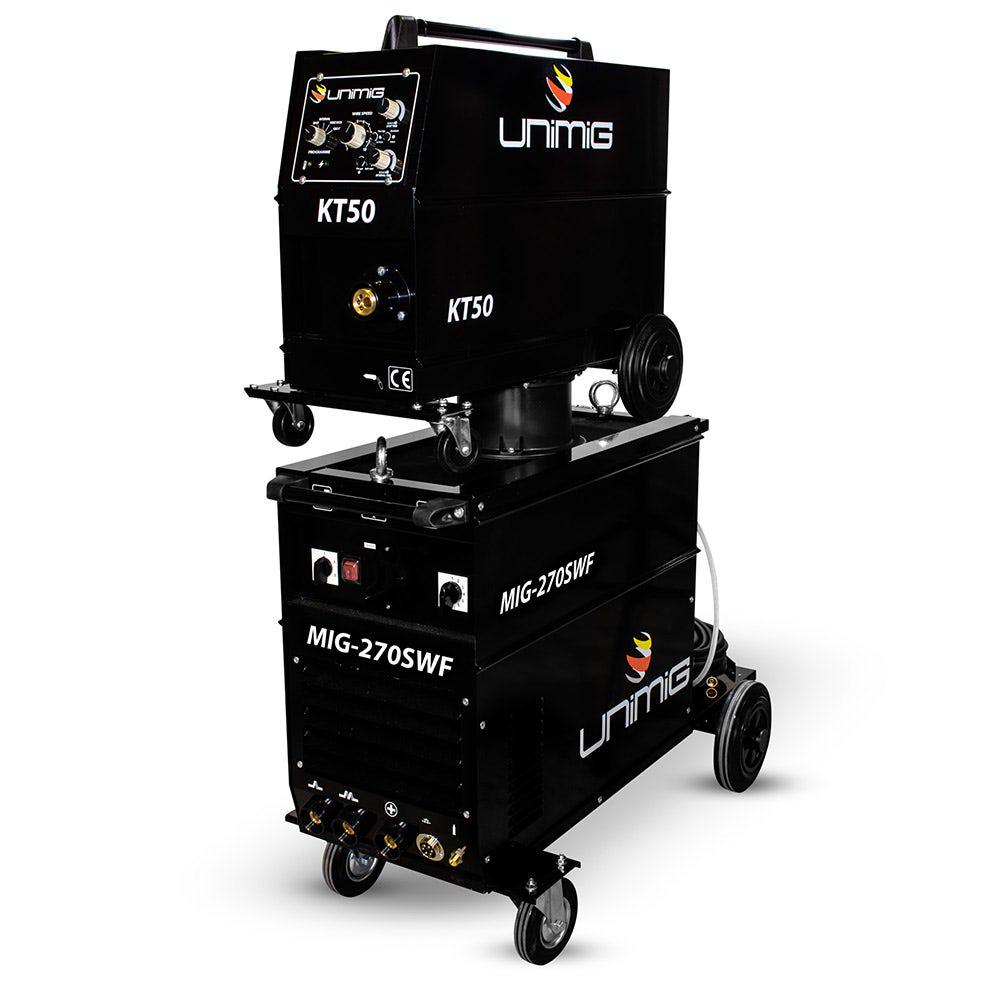

UNIMIG 270A WORKSHOP 270 SWF MIG Electric Welder KUM270SWF

Features

• Powerful WORKSHOP 270 SWF MIG Welder designed for medium to heavy fabrication
• Ultra-smooth arc characteristics for enhanced welding performance
• 21 position switching for precise welding voltage settings
• Four geared roller drive unit ensures consistent wire feeding
• High-quality copper-wound transformer maximizes cooling and reliability
• Includes KT50 Separate Wire Feeder for increased manoeuvrability (up to 10m)
• Smart enclosed design prevents dust and moisture contamination
• Durable construction with quality components for longevity
• Suitable for welding mild steel, aluminium, and stainless steel
• Operating manual included for user guidance

Specifications

• Primary Input Voltage: 240V Single Phase
• Rated Input Power (kVA): 11.0
• Rated Output: 30-250A
• Protection Class: IP21
• Insulation Class: I
• Minimum Generator (kVA): 13.0
• Dinse Connector: 35/50
• Standard: AS/NZ60974-1
• MIG Welding Current Range: 30-250A
• MIG Duty Cycle @ 40°C: 70% @ 250A
• MIG Wire Size Range: 0.6-1.2mm
• MIG Wire Spool Size: 5kg/15kg
• MIG Welding Thickness Range: 1-16mm
• Drive Roller Size: 40/32 (x2)
• Net Weight: 139kg
• Product Dimensions: 980mm (L) x 660mm (W) x 460mm (H)
