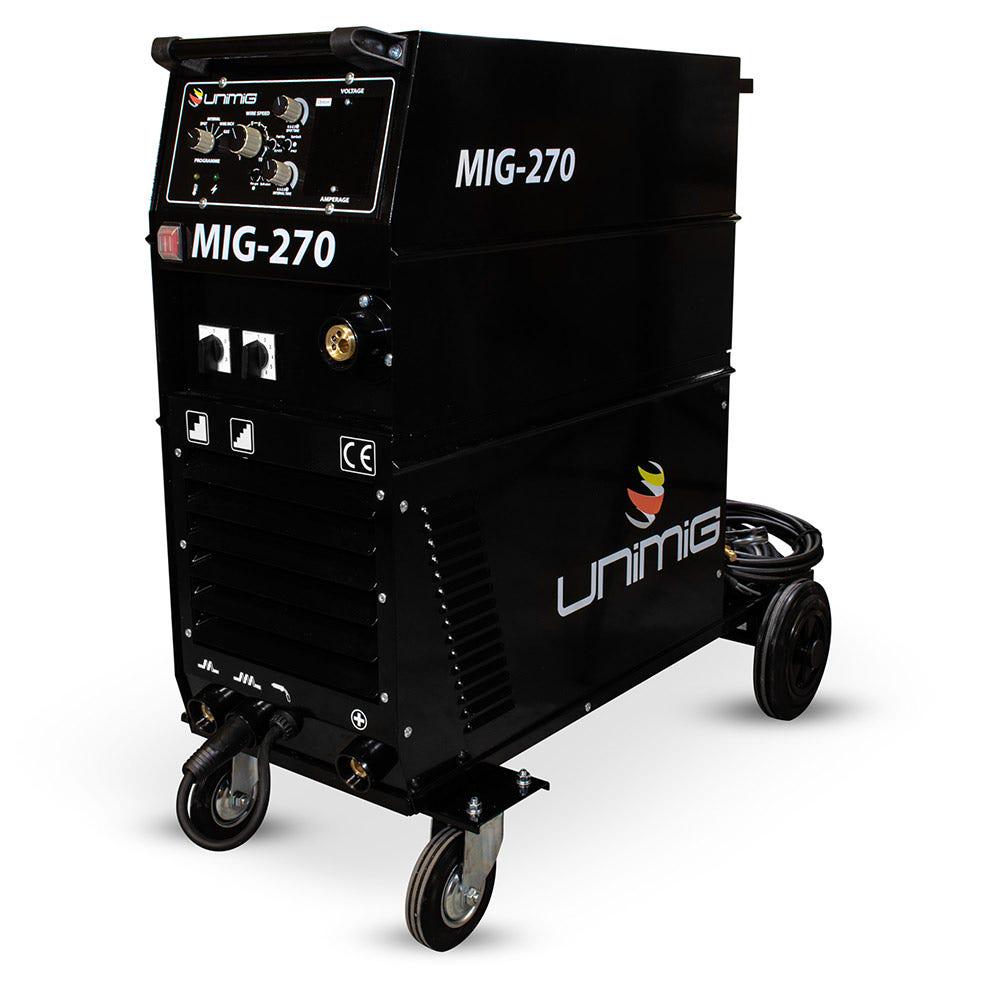

UNIMIG 270A WORKSHOP 270 MIG Electric Welder KUM270

Features

• Combines powerful performance with smooth arc characteristics
• Ideal for medium to heavy fabrication and rural applications
• 21 position switching for precise welding voltage settings
• Four geared roller drive unit for consistent wire feeding
• High-quality copper-wound transformer enhances cooling and reliability
• Durable construction with premium quality components
• Large 250mm cooling fan with enclosed motor for high duty cycle operation
• MIG welding current range of 30-250A
• MIG duty cycle of 70% at 250A at 40°C
• MIG wire size range from 0.6-1.2mm
• MIG welding thickness range of 1-16mm
• Drive roller size of 40/32 (x2)

Specifications

• Part No: KUM270
• Barcode: 9339793006700
• Primary Input Voltage: 240V Single Phase
• Rated Input Power: 11.0 kVA
• Rated Output: 30-250A
• Protection Class: IP21
• Insulation Class: I
• Minimum Generator: 13.0 kVA
• Dinse Connector: 35/50
• Standard: AS/NZ60974-1
• Suitable Material: Mild Steel, Aluminium, Stainless Steel
• MIG Wire Spool Size: 5kg/15kg
• Net Weight: 116 kg
• Product Dimensions: 870mm (L) x 940mm (W) x 460mm (H)
