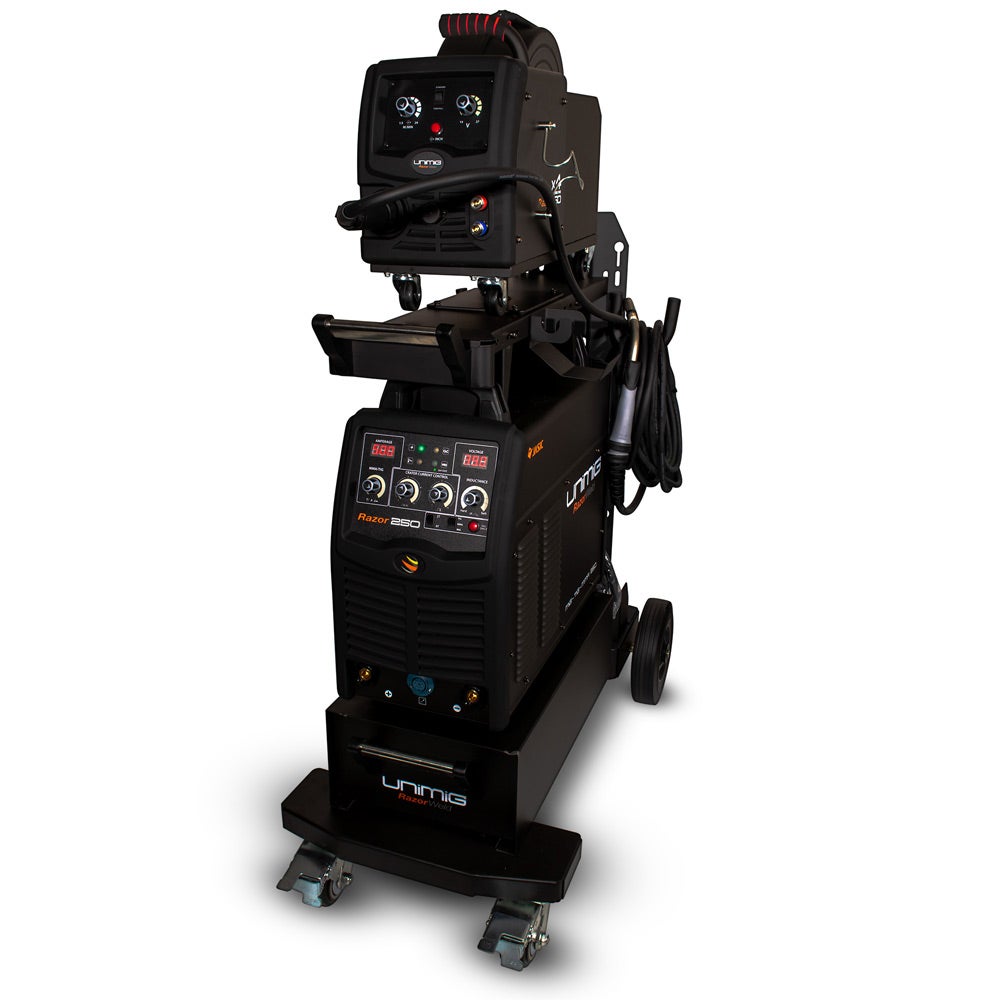

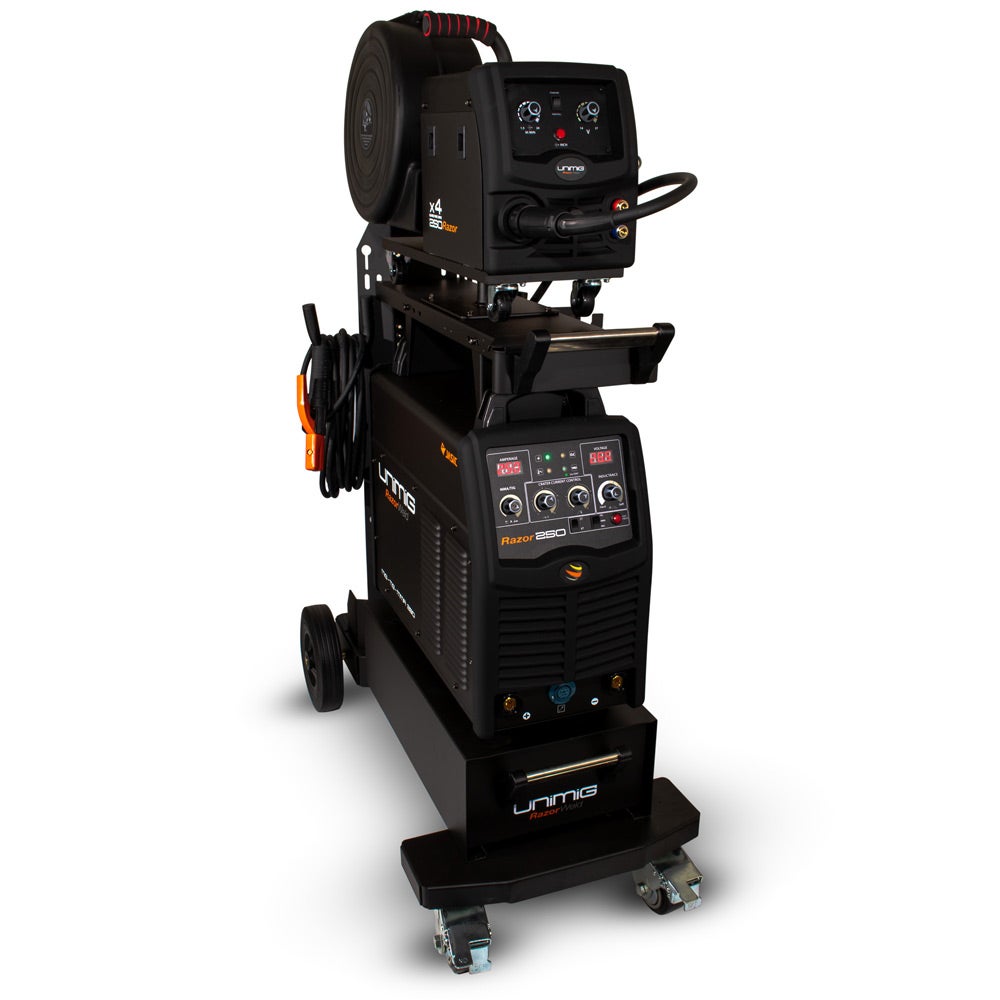

UNIMIG 250A Razorweld SWF MIG TIG Stick Electric Welder KUMJR250SWF

Features

• MIG, TIG, and STICK welding capabilities in one machine
• Separate Wire Feeder allows for 10m of maneuverability
• Four geared roller drive for smooth wire feeding
• Spool Gun ready for aluminum MIG wire without changing setup
• Push-Pull ready for enhanced wire speed during aluminum MIG welding
• Designed for the highest quality welds from UNIMIG
• Supports both gas shielded and gasless MIG welding
• Superior performance and maneuverability
• Robust construction for durability in tough conditions
• Includes 10m interconnecting cables and various welding accessories

Specifications

• PRIMARY INPUT VOLTAGE: 240V Single-Phase
• RATED INPUT POWER (kVA): 12.2
• Ieff (A): 28.0
• RATED OUTPUT: 30A/15.5V - 250A/26.5V
• NO LOAD VOLTAGE (V): 56.5
• PROTECTION CLASS: IP21S
• INSULATION CLASS: F
• POWER FACTOR: 0.72
• MINIMUM GENERATOR (kVA): 13.0
• DINSE CONNECTOR: 35/50
• STANDARD: AS/NZ60974-1
• SUITABLE MATERIAL: Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium, Copper
• MIG WELDING CURRENT RANGE: 30-250A
• MIG DUTY CYCLE @ 40°C: 35% @ 250A
• MIG WIRE SIZE RANGE: 0.6-1.0mm
• MIG WIRE SPOOL SIZE: 5kg / 15kg
• MIG WELDING THICKNESS RANGE: 1-12mm
• DRIVE ROLLER SIZE: 30/22 (x2)
• TIG FUNCTION TYPE: DC Lift Arc
• TIG WELDING CURRENT RANGE: 10-225A
• TIG DUTY CYCLE @ 40°C: 35% @ 225A
• TIG WELDING THICKNESS RANGE: 1-10mm
• STICK WELDING CURRENT RANGE: 10-250A
• STICK DUTY CYCLE @ 40°C: 35% @ 250A
• STICK ELECTRODE RANGE: 2.5-4.0mm
• STICK WELDING THICKNESS RANGE: 2-12mm
• WIRE DRIVE: Separate 4 Geared
• VRD: Yes
• SPOOL GUN CONNECTION: Yes
• PUSH / PULL GUN CONNECTION: Yes
• BURNBACK ADJUSTMENT: Yes
• WIRE INCH: Yes
• INDUCTANCE CONTROL: Yes
• THERMAL OVERLOAD PROTECTION: Over Temperature Warning
