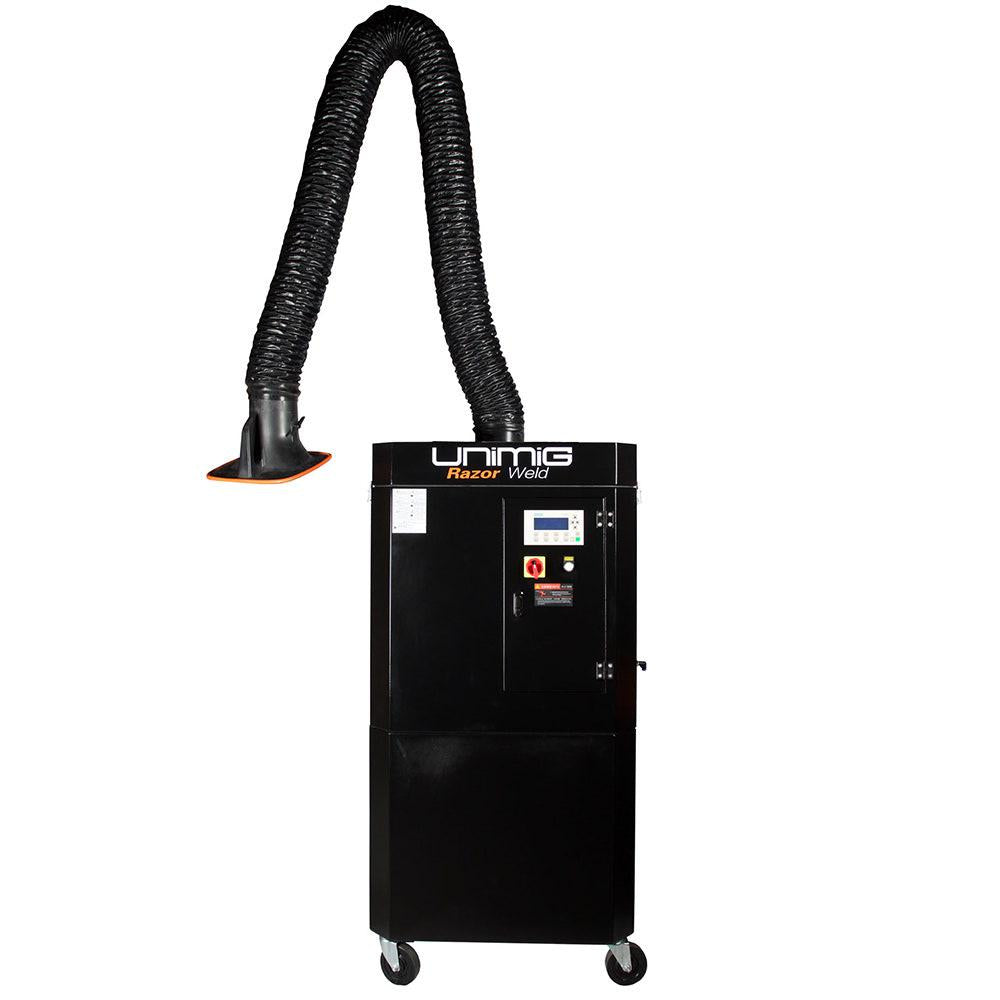

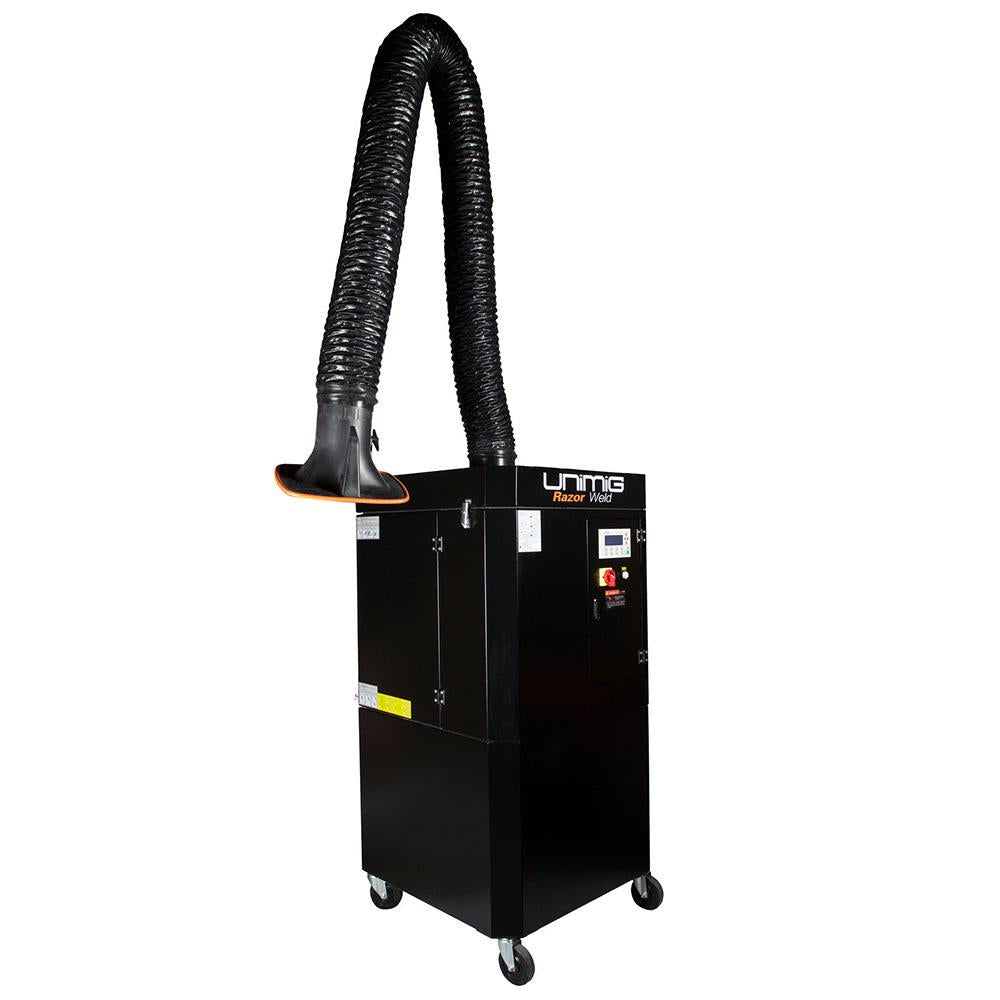

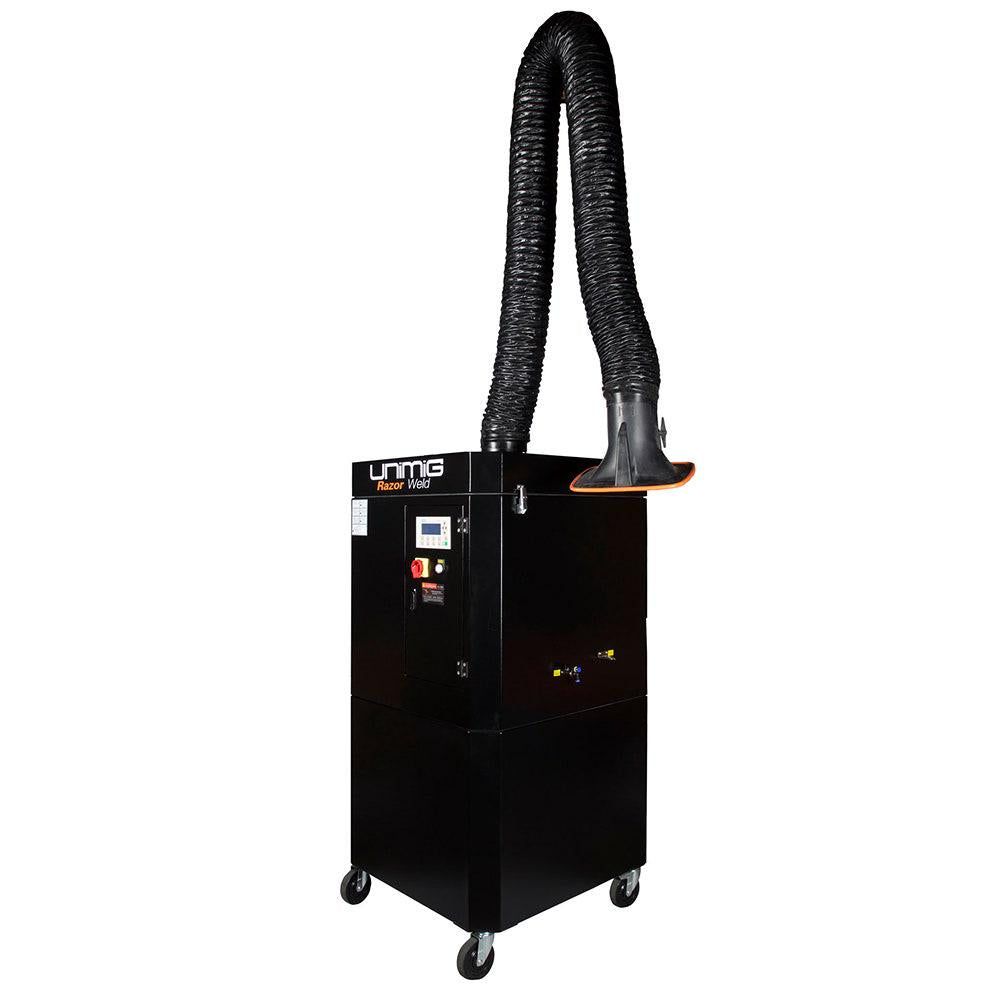

UNIMIG 1.5Kw 50Hz KSZ-1.5S Mobile Single-Arm Fume Extractor KSZ1.5S

Features

• Mobile single-arm design for easy maneuverability
• Programmable Logic Controller (PLC) for customizable operations
• Warning light indicates when filter cleaning is needed
• Removes over 99.8% of nanoparticles (PM1 particulate matter)
• Self-cleaning with automatic reverse blowing function
• Suitable for filtering fumes and dust from welding and grinding
• Suction arm rotates 360 degrees for flexible positioning
• Constructed from high-quality sheet metal
• Filters area up to 10 square metres
• Equipped with four heavy-duty lockable caster wheels

Specifications

• Air Volume: 3000 ± 100 m3/h
• Air Suction Arm: 1500 m3/h
• Motor Power: 1.5 kW
• Working Voltage: 415V/50Hz 3 Phase
• Filtering Area: 10 m²
• Cleaning Method: Automatic Reverse Blowing
• Maximum Pressure: 2800 Pa
• Compressed Air: 0.5 - 0.6 MPa
• Filtration Efficiency: >99.8%
• Net Weight: 210.5 kg
• Product Dimensions: 700 mm (L) x 800 mm (W) x 1600 mm (H)
