TORMEK Drill Bit Sharpning Attachment

The beneficial 4-facet point and the high precision sharpening both cutting edges are sharpened to an exact equal length and symmetrically make the drill work efficiently and the life of the drill bit is considerably prolonged. 4-Facet point The chisel edge comes to a point and will not walk. Bores a round, straight hole with close tolerances. Always equal cutting edges The two cutting edges are sharpened symmetrically and work in perfect unison which prolongs the life of the drill. Sharpens all point angles It can be set at any angle between 90degree and 150degree. Always the right clearance angle The optimal clearance angle can be set according to each drilling requirement to 7degree, 9degree, 11degree or 14degree. Sharpens all drill sizes One and the same drill holder copes with drills from 3 mm to 22 mm. No change of chuck required.

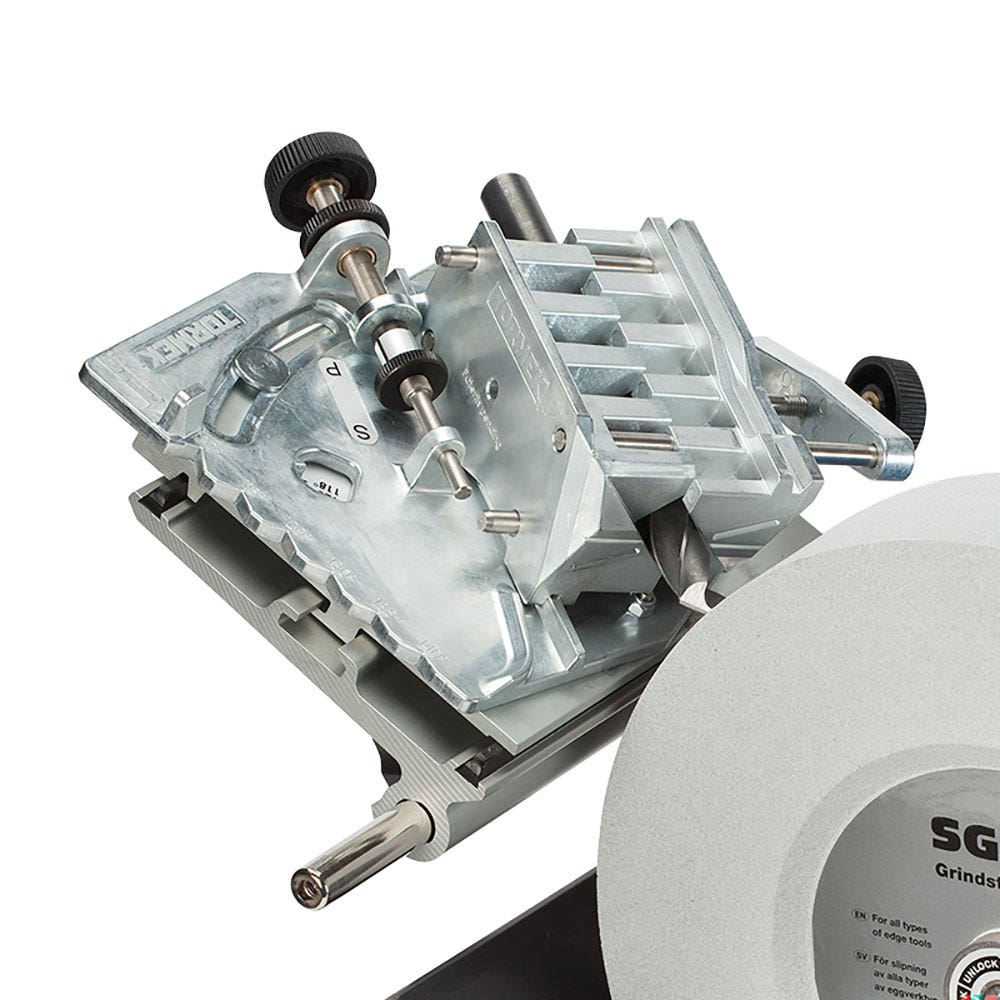

With the Tormek Drill Bits Sharpening Attachment DBS-22 you can now sharpen your drill bits (3-22 mm or 7/64" 7/8") with the highest precision. The optimal point can be set according to each drilling requirement, which depends upon the drill size and material. You can completely restore worn drills as well as broken drills to a perfect shape.

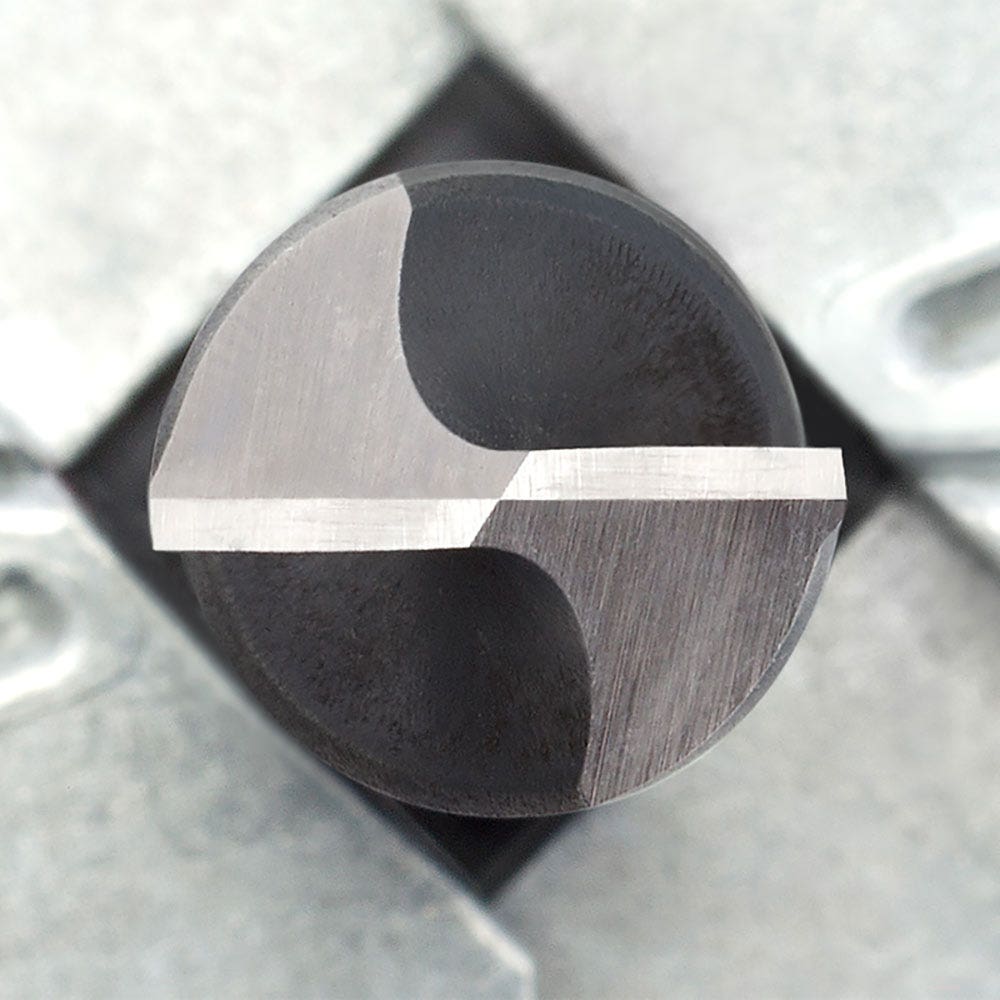

- Sharpen drill bits to a 4-facet point- The chisel edge comes to a point and will not walk. Bores a round, straight hole with close tolerances.

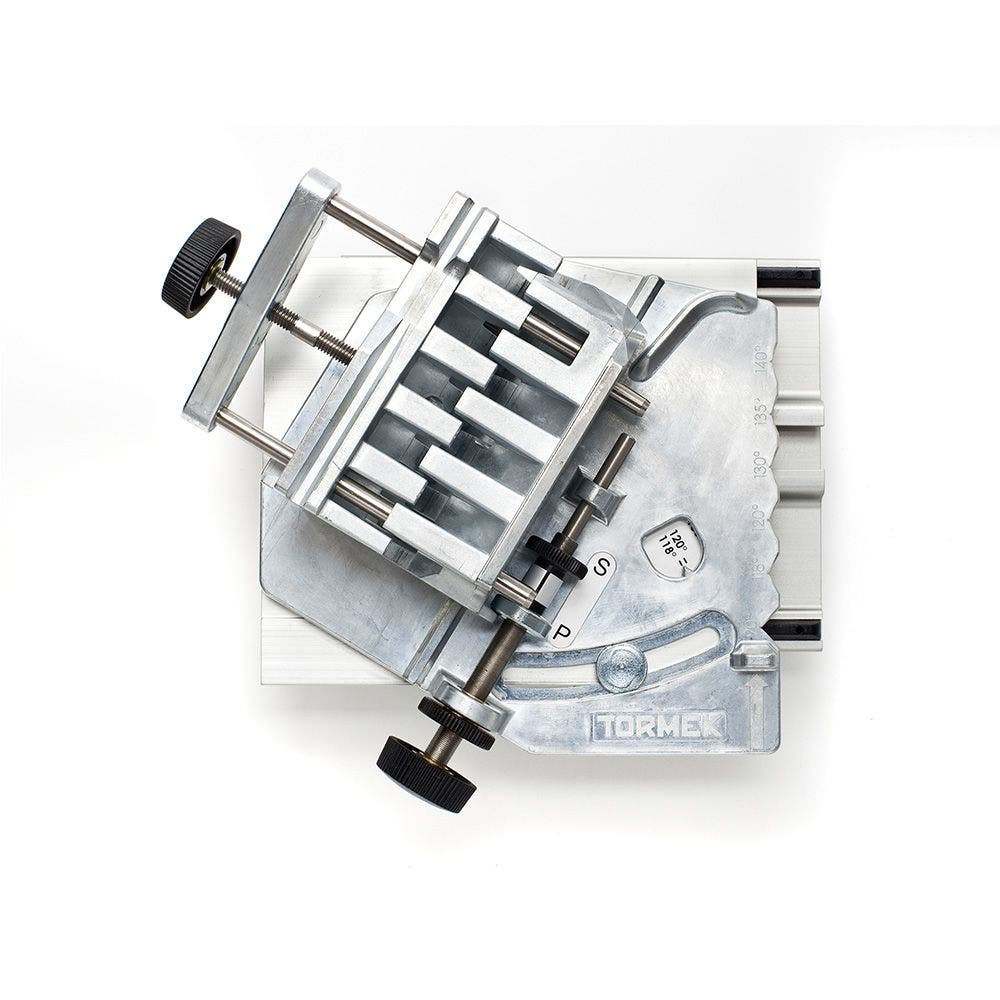

- Can be set at any angle between 90° and 150°.

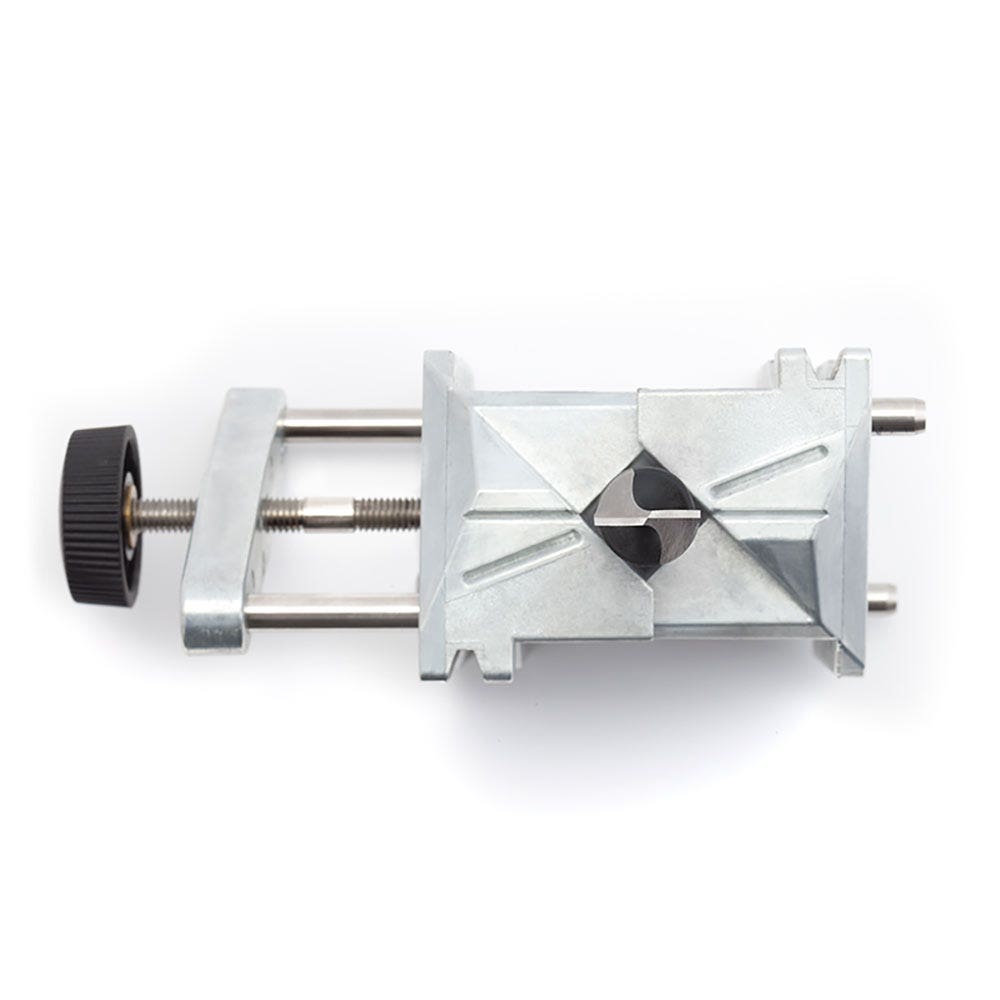

- Sharpen drills size between 3-22mm (7/64 7/8 ) One and the same drill holder copes with sizes between 3mm-22mm, no change of chuck required.
- A precision sharpened 4-facet point generates less heat and the life of the drill is therefore also prolonged.
