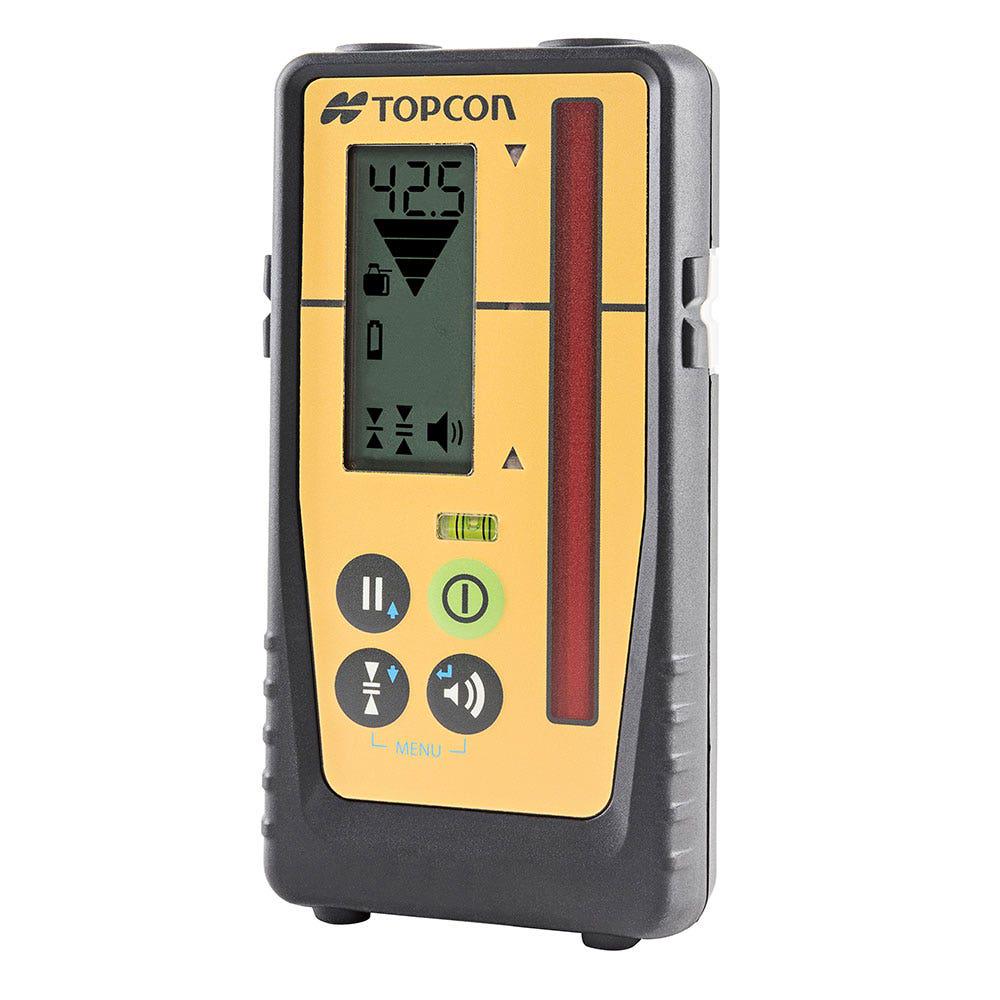

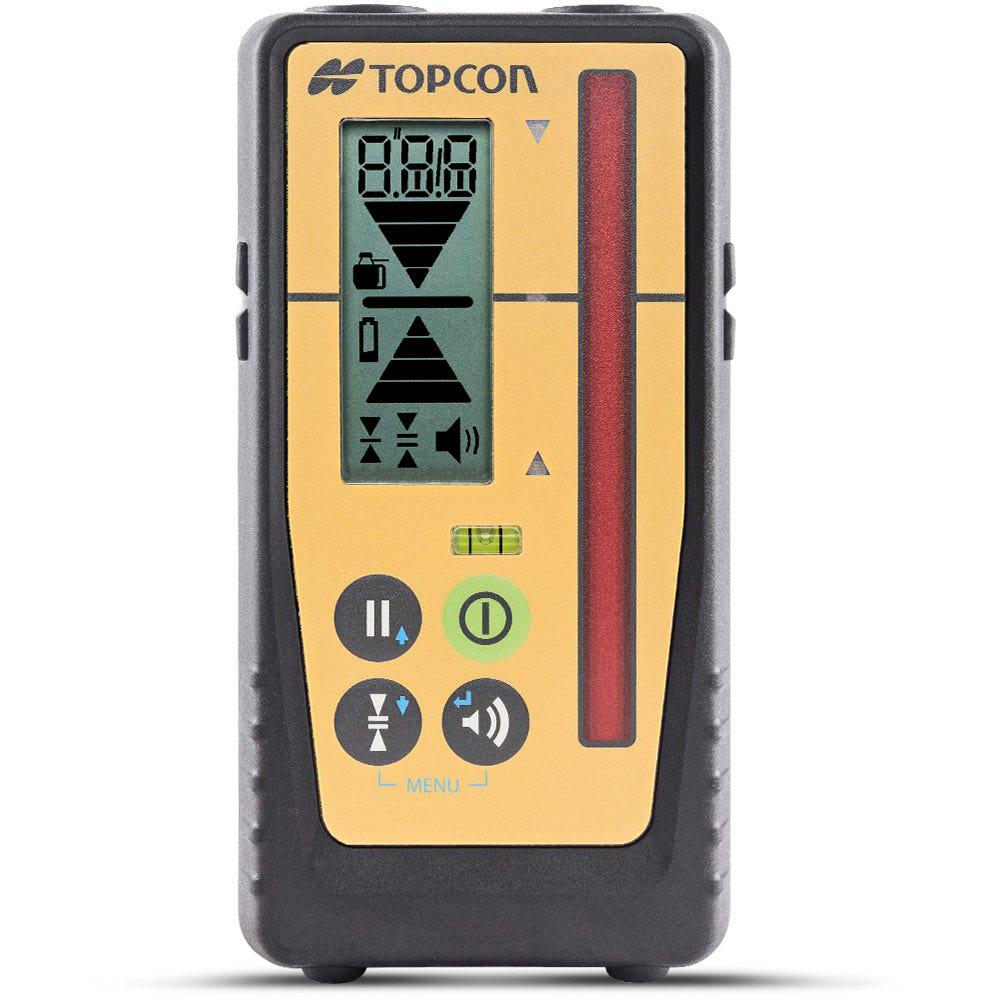

TOPCON Rotating Laser Level Detector Red Beam Millimetre LS-100D 102603001

Features

• Designed for enhanced speed and productivity
• Operator-friendly technology for precision elevation and vertical alignment
• 4 accuracy resolutions: ±0.5mm to ±10mm
• 90mm reception height for wide beam capture
• Strobe-proof protection for accurate results
• Embedded strong magnets for vertical and horizontal operation
• Ideal for steel erections and excavation grade checking
• Bright, large LCD displays (front & back) for visibility in sunlight
• Three colored LEDs with a hold button for display locking
• Compatible with RL-SV2S, RL-H5A, or RL-200 series
• Working range (diameter) up to 800 m
• 45-hour battery life

Specifications

• Vertical detector range: 90mm
• Horizontal detector range: ±45°
• Strobe light suppression: Yes
• On-grade resolution: ±0.5mm, ±1mm, ±2mm, ±5mm, ±10mm
• Operating time: Up to 45 hours
• Auto shut off: Approx. 30 minutes
• Dust/water rating: IP67
• Operating temperature: -20° to 50°
• Magnet mount: Two magnets on top

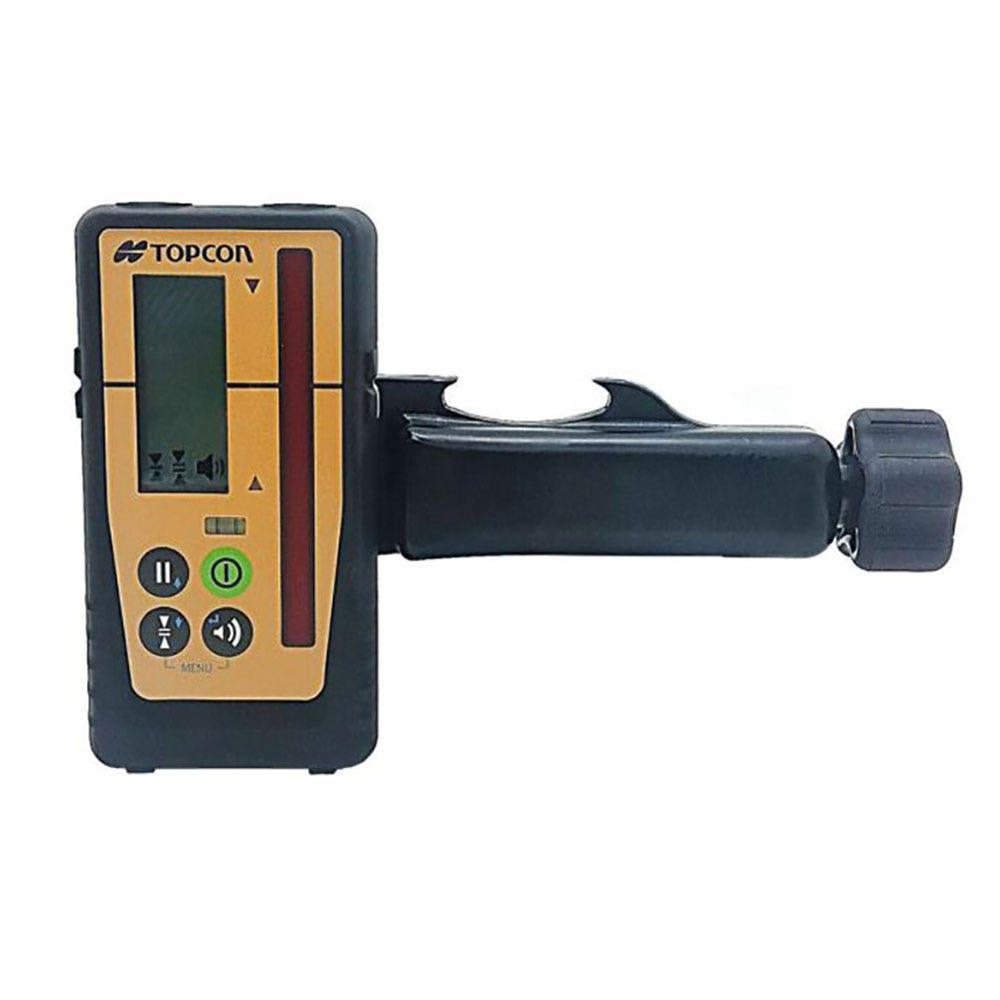

• Includes: 1 x LS-100D Laser Receiver, 1 x Holder 110, 1 x 'AA' Battery
