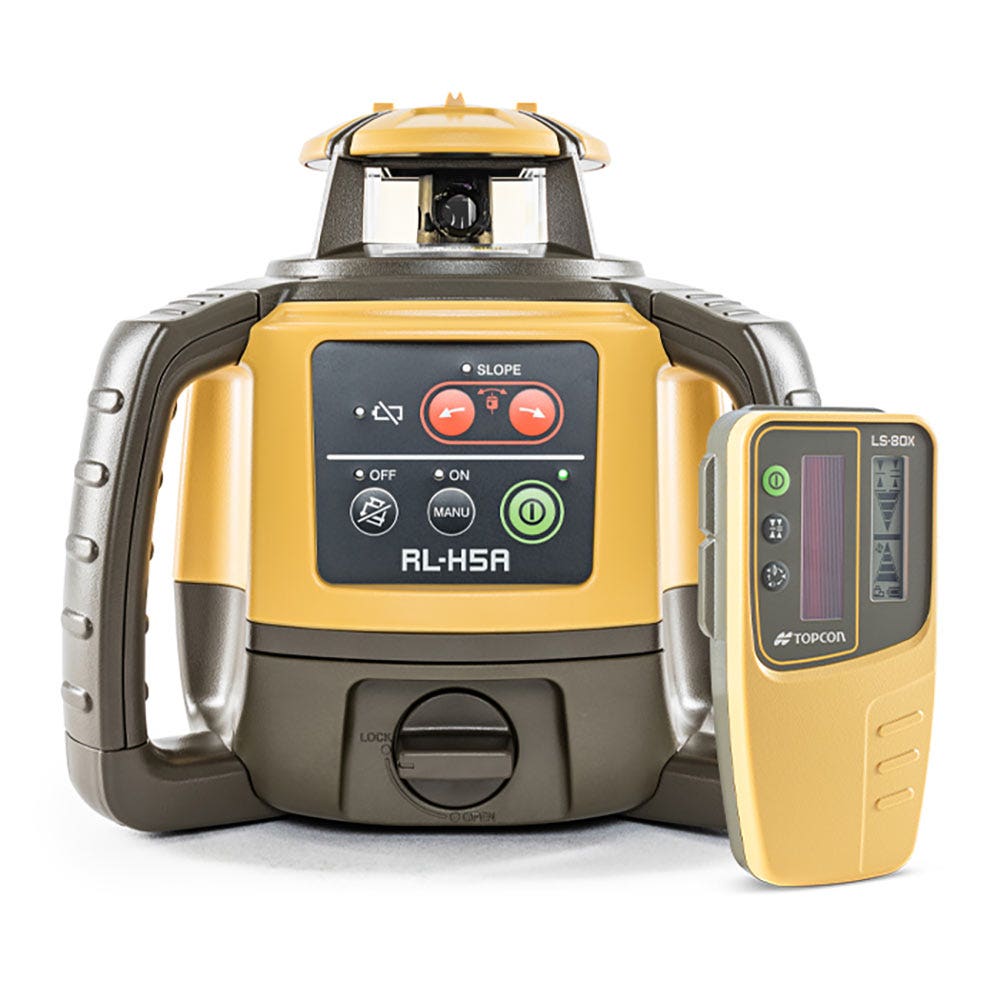

TOPCON RL-H5A Rotating Laser Dry Battery with LS-80X Receiver 1021200-45

Features

• Next generation rotating laser from Topcon
• High accuracy with ±10 arc seconds
• Electronic self-leveling for quick setup
• Automatic re-leveling if disturbed
• Long-range operation up to 800m diameter
• Elevations up to 400m capability
• 100 hours of continuous use with D-cell batteries (included)
• 60 hours with optional rechargeable Ni-MH battery pack
• IP66 rated for dust and water resistance
• 5-year warranty from Topcon
• Manual grade change up to 5%

Specifications

• Accuracy: ±1.5mm @ 30m
• Self-Levelling Range: Horizontal ±5°
• Rotation Speed: 600 rpm
• Operating Time: 100 hours with D-Cell Dry
• Operating Temperature: -20°C to 50°C
• LS-80X Receiver accuracy: ±1mm & 2mm
