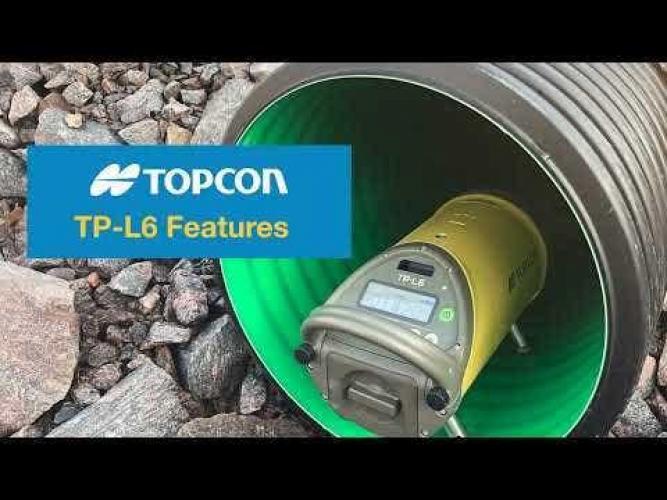

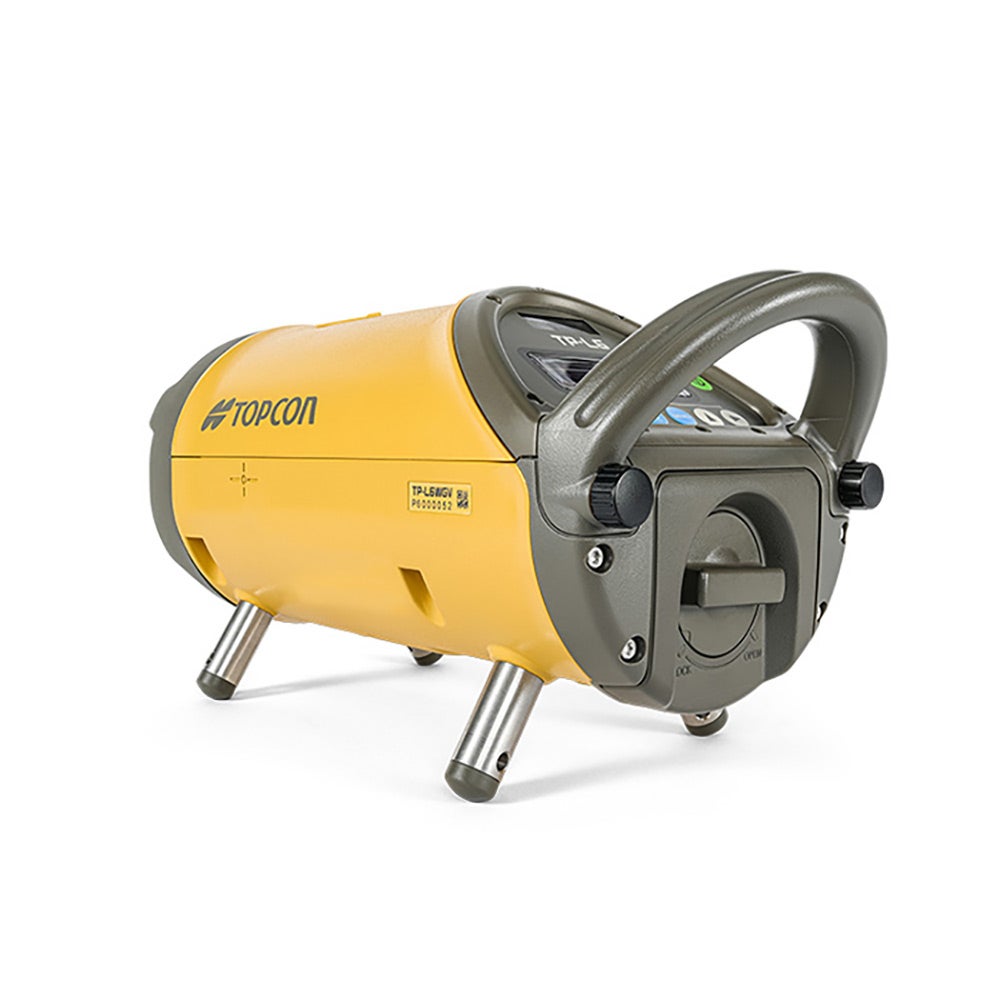

Topcon TP-L6 series pipe lasers offer precision and quality for plumbing and drainage projects
Compact design for use in tight spaces
Available in economical red beam or high visibility green beam
Improved battery life for extended work sessions

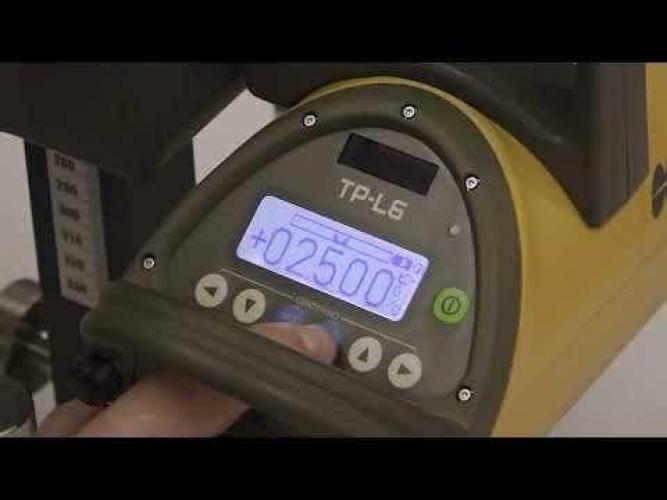

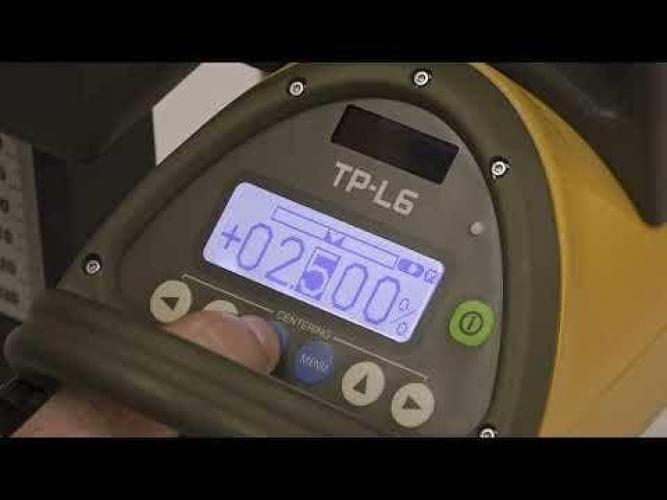

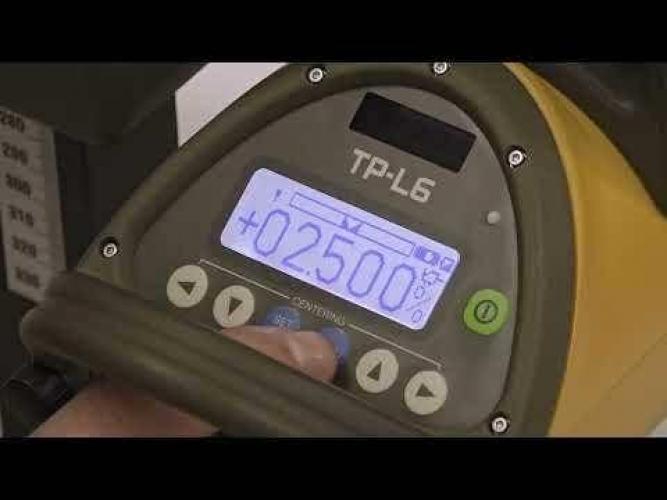

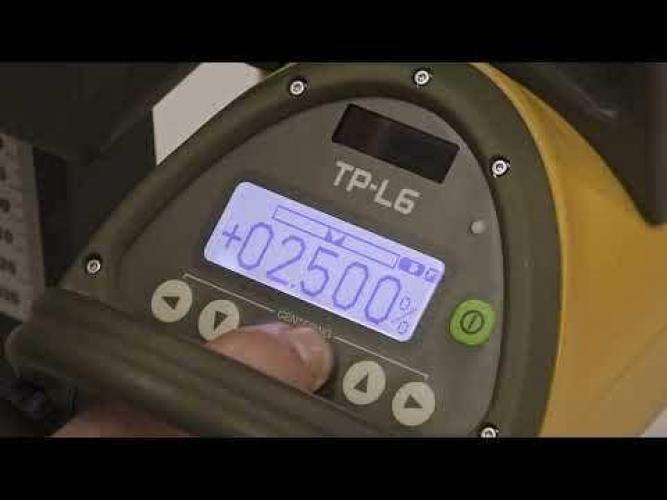

Grade capability from -15% to +40%
Self-leveling for accurate operation
Left/right beamline control

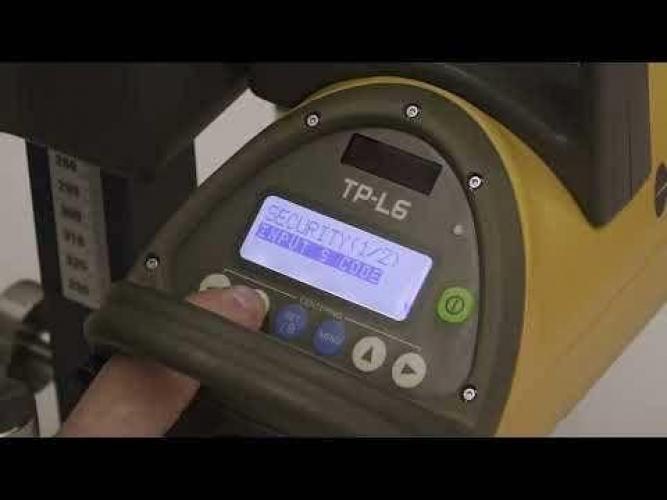

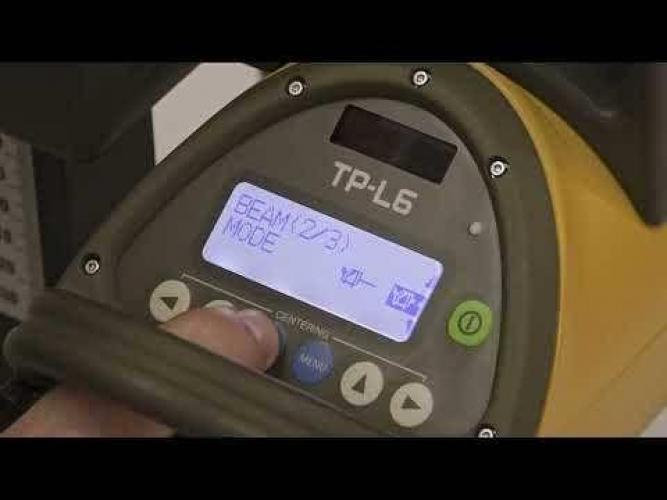

High-contrast, easy-to-read display panel
Increased beam clarity and brightness in red or green
World's best long-range spot quality
RC-500 infrared remote for full control
New Android & Google app for smartphone control
Rugged, waterproof metal housing
Specifications
Wavelength: 635nm (Red Beam)
Laser Power: 4.5mW (CW)
Laser Class: 3R
Laser Diameter: 12mm (Collimated)
Laser Range: -15% to +40%
Horizontal Accuracy: ±10 arc seconds
Auto Level Range: ±10% Slope direction; ±4% Axis direction
Power Source: BDC72 Li-ion Battery (Approx. 60hrs)
Bluetooth Range: Dependent on Bluetooth device
Working Range: Approx. 200m (Forward position)
Operating Time: Approx. 8 Months
Includes: 1 x TP-L6WB Pipe Laser (Red Beam), 1 x 4 leg sets (150mm, 200mm, 250mm, 300mm), 1 x Small & Large Target, 1 x Target Holder, 1 x RC-500 Remote, 2 x BDC72 Li-ion Batteries, 1 x Dual Charger, 1 x Operator Manual, 1 x Australian Calibration Certificate, 1 x Carry Case
