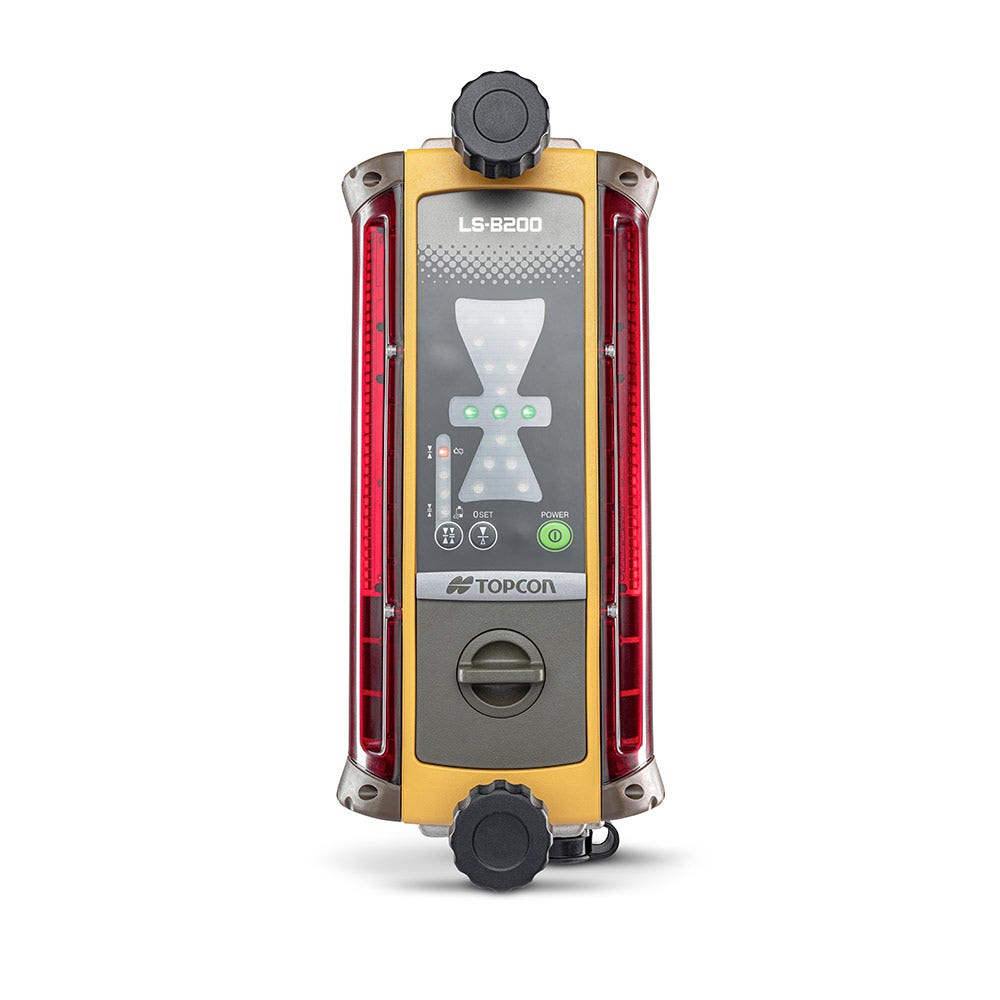

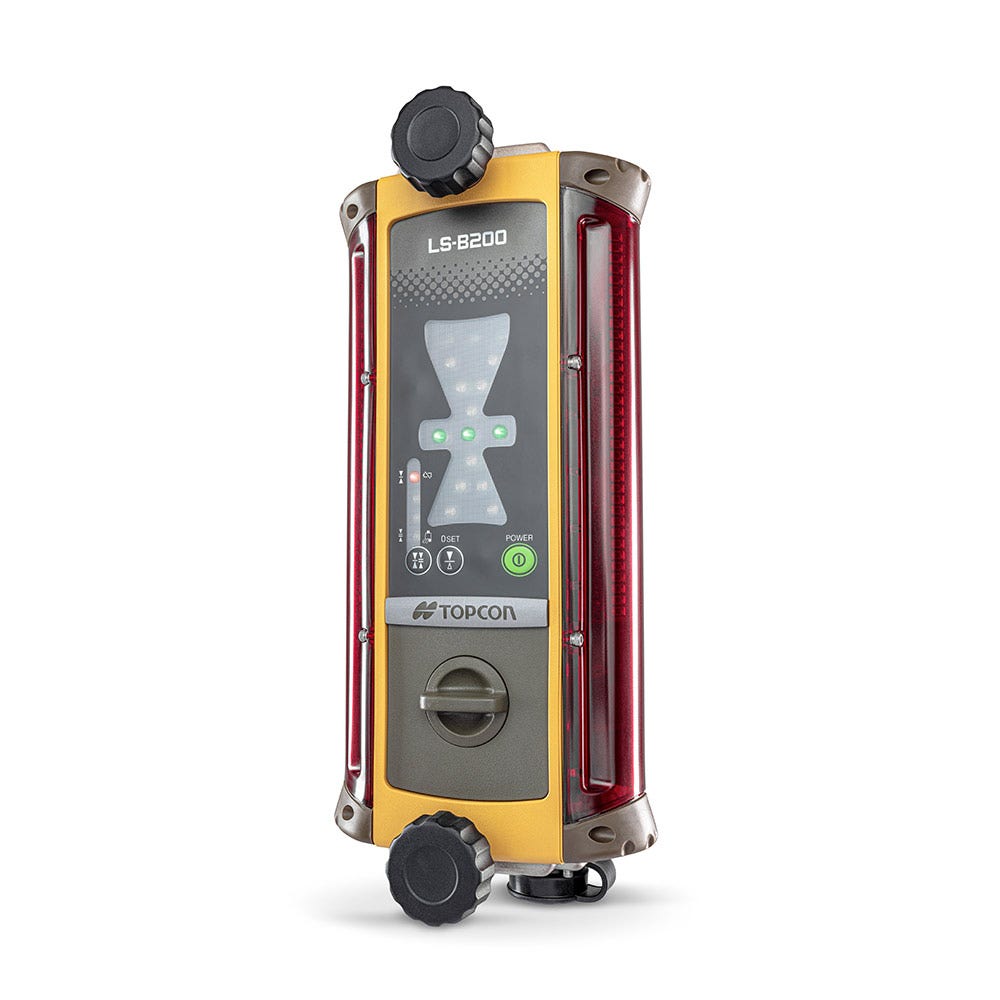

TOPCON LS-B200 Machine Receiver 1053268-03

Features

• Affordable machine-mounted laser sensors for grading and excavating
• Fast setup; easy to mount on earthmoving machines
• 360º laser detection angle for improved accuracy
• Up to 800m detection range (diameter)
• Adjustable "On Grade" accuracy
• Large LED indicators for easy visibility
• Dust and water protection with IP66 rating
• ISO 13766-1 certification for quality assurance
• Power save/auto cut-off function to extend battery life
• Internal battery options: C-size dry cells or battery pack BT-83Q (sold separately)
• Continuous operating time: approx. 100hrs (dry cells) and 50hrs (BT-83Q)
• Operating temperature range: -20°C to +50°C

Specifications

• Detection range: 175mm
• Detection angle: 360° (ON GRADE)
• Detection precision: Mode1 ±3mm, Mode2 ±6mm, Mode3 ±15mm, Mode4 ±30mm
• Detectable laser wavelength: 633~785nm
• External power supply: DC 10V to 30V
• Dimensions (W/D/H): 158x166x357mm
• Weight (without cells): 2kg
