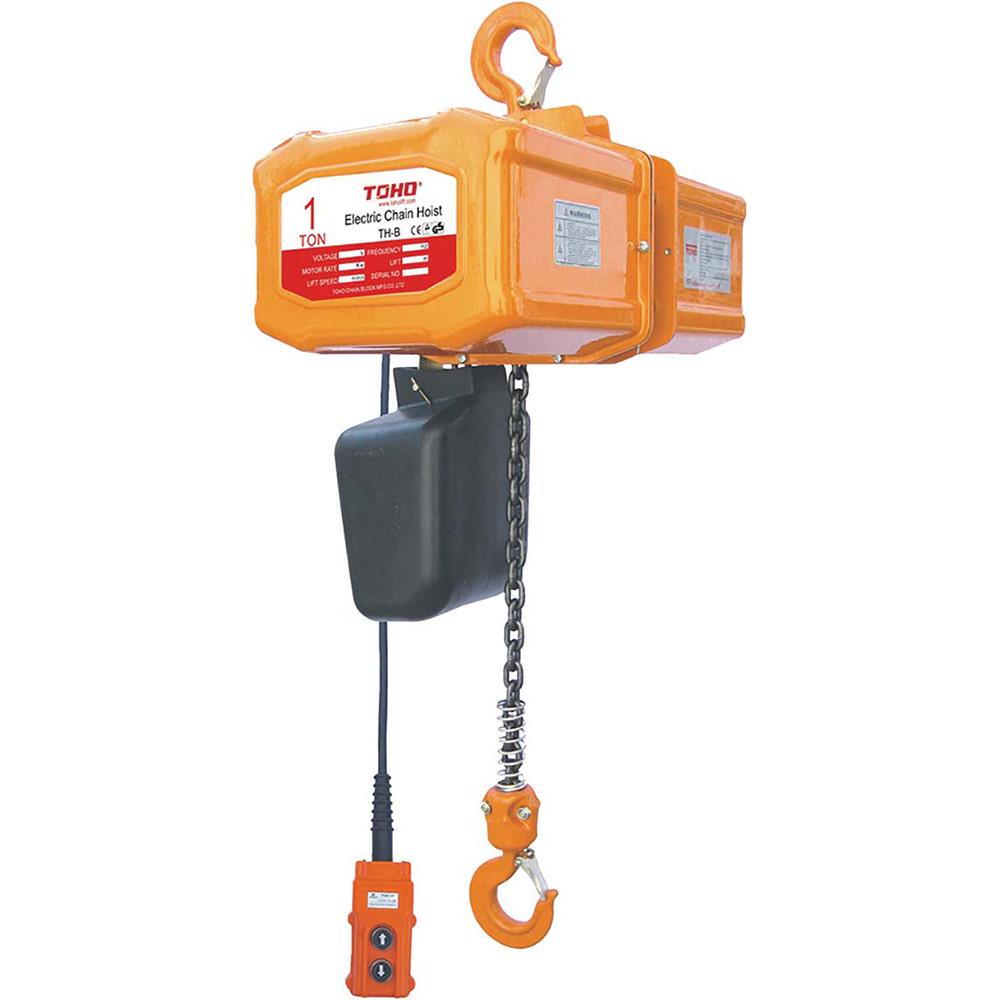

TOHO 1ton 6m 240V Single Phase Electric Chain Hoist TECH0106

Features

• Japanese Technology
• Thermal Overload Prevention
• Lightweight, compact design with high-efficiency motor
• Pressed steel structure for high strength
• High tensile alloy steel top & bottom hooks
• Grade 80 - 7.1mm Alloy Steel load chain
• Limit switches at top and bottom ends to prevent chain runout
• 240V, 50Hz Single Speed Motor, 1200 Watts
• Complies with ASNZS1418.2 standard
• Load Limited
• Hoists can be re-chained to required length (limits apply)

Specifications

• Capacity: 1 ton
• Standard Lift: 6 m
• Running Test Load: 12.5 kN
• Motor Power: 1.2 kW
• No. of Chain: 1
• Diameter of Chain: 7.1 mm
• Lifting Speed: 6 m/min
• Extra Weight per metre of extra lift: 1.1 kg
• Part No: TECH0106
• Barcode: 9343662004698
• Brand: TOHO
• Warranty: 1 Year
• Net Weight: 63 kg
• Product Length: 560 mm
• Product Width: 480 mm
• Product Height: 380 mm
