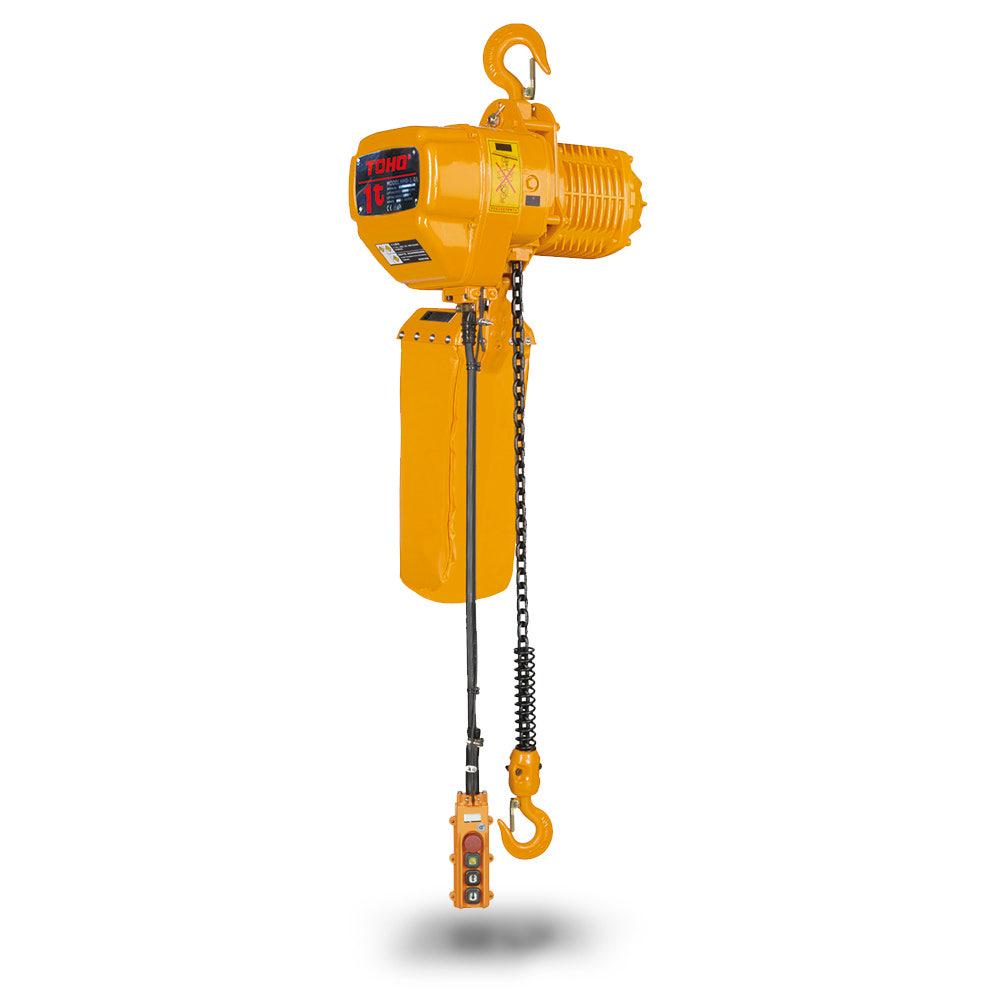

TOHO 1ton 6m 2 Speed 3-Phase Electric Chain Hoist TECH-3PH-2SP-0106

Features

• Japanese Technology
• 1 ton capacity
• 6 m standard lift
• High efficiency motor with dual speed (415V, 50Hz, 1.8kW)
• Pressed steel structure for high strength
• Thermal overload prevention
• Lightweight and compact design
• Emergency stop button
• Grade 80 - 7.1mm alloy steel load chain
• High tensile alloy steel top & bottom hooks
• Limit switches at top and bottom to prevent chain runout
• Hoists can be re-chained to desired length (limits apply)
• Complies with ASNZS1418.2 standard

Specifications

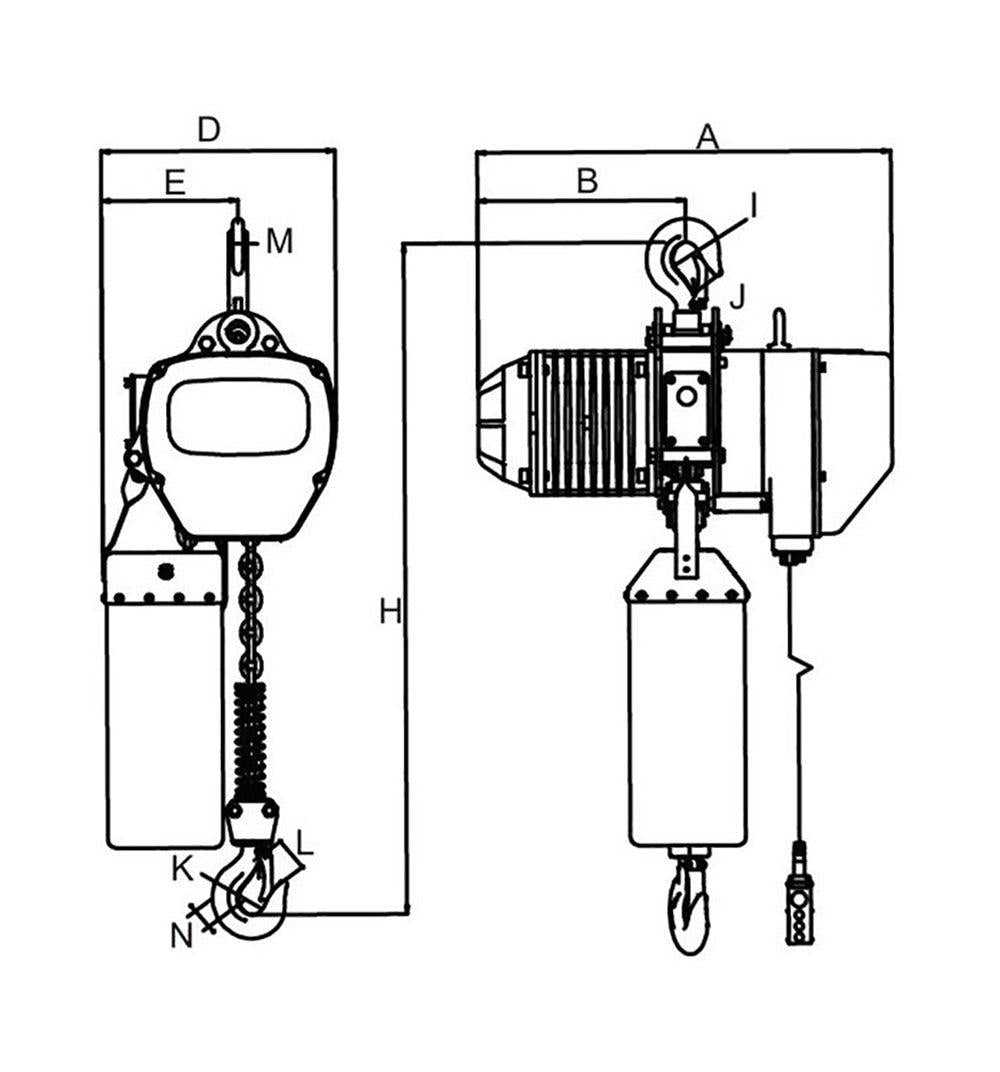

• Dimension (mm): A: 582, B: 280, D: 300, E: 176, I: 40, J: 31, K: 40, L: 31, M: 22, N: 22
• Running test load: 12.5 kN
• Motor power: 1.2 kW
• Number of chains: 1
• Diameter of chain: 7.1 mm
• Lifting speed: 1.2/3.5 m/min
• Extra weight per metre of extra lift: 2.2 kg
• Part No: TECH3PH2SP0106
• Barcode: 9343662004766
• Brand: TOHO
• Warranty: 1 Year
• Net weight: 63 kg
• Product dimensions (mm): Length: 560, Width: 480, Height: 380
