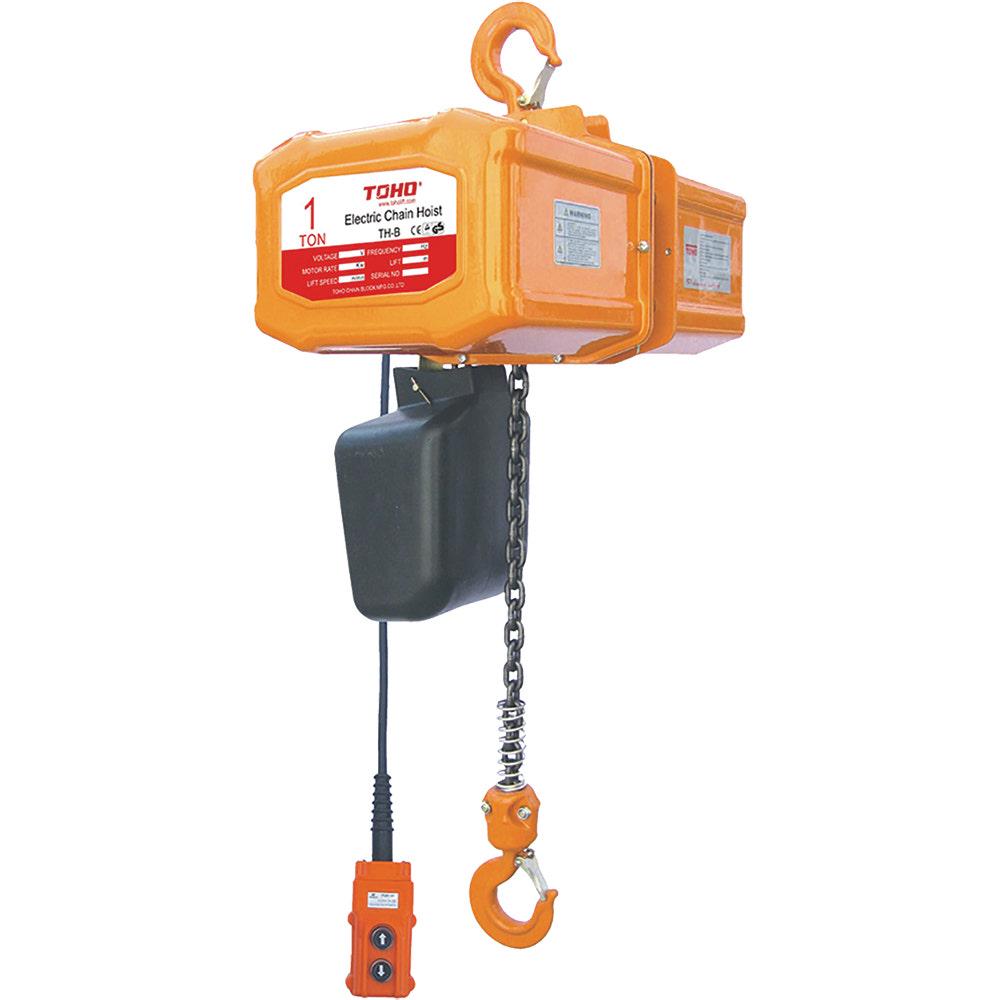

TOHO 1ton 3m 240V Single Phase Electric Chain Hoist TECH0103

Features

• Japanese Technology
• High-efficiency motor with lightweight, compact design
• Pressed steel structure for a high strength body
• Thermal Overload Prevention
• Grade 80 - 7.1mm Alloy Steel load chain
• High tensile alloy steel top & bottom hooks
• Capacity: 1 ton
• Standard Lift: 3 m
• Running Test Load: 12.5 kN
• Motor Power: 1.2 kW
• No. of Chain: 1
• Diameter of Chain: 7.1 mm
• Lifting Speed: 6 m/min
• Extra Weight per metre of extra lift: 1.1 kg
• 240V, 50Hz Single Speed Motor 1200 Watts
• Limit switches at top and bottom ends to prevent chain runout
• Complies with ASNZS1418.2 standard
• Hoists can be re-chained to your required length (limits apply)

Specifications

• Part No: TECH0103
• Barcode: 9343662004681
• Brand: TOHO
• Warranty: 1 Year
• Net Weight (kg): 60
• Product Length (mm): 560
• Product Width (mm): 480
• Product Height (mm): 380
