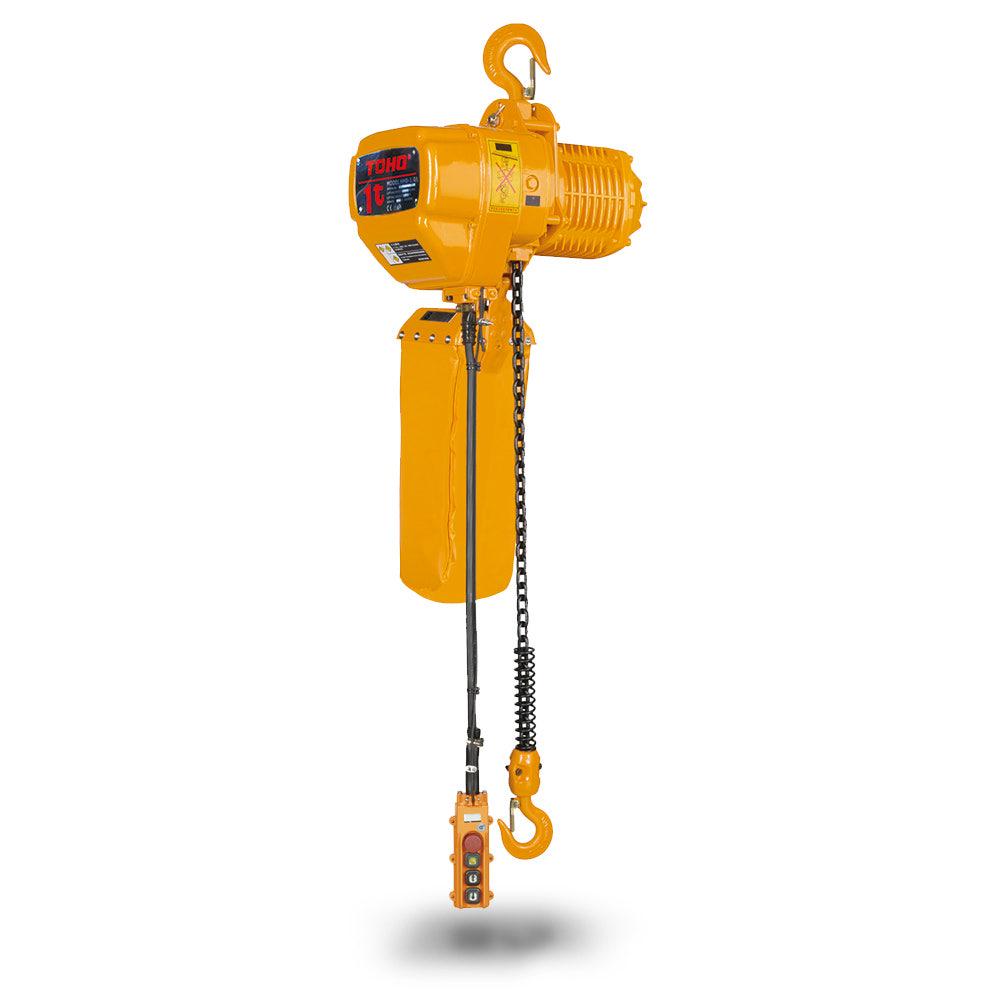

TOHO 1ton 3m 2 Speed 3-Phase Electric Chain Hoist TECH-3PH-2SP-0103

Features

• Japanese technology
• Lightweight, compact design with high-efficiency motor
• Pressed steel structure for high-strength body
• Emergency Stop button
• Thermal overload prevention
• High tensile alloy steel top & bottom hooks
• Load limited functionality
• Grade 80 - 7.1mm alloy steel load chain
• Limit switches at top and bottom to prevent chain runout
• 415V, 50Hz dual speed motor, 1.8Kw (3 Phase)
• Complies with ASNZS1418.2 standard
• Hoists can be re-chained to your required length (limits apply)

Specifications

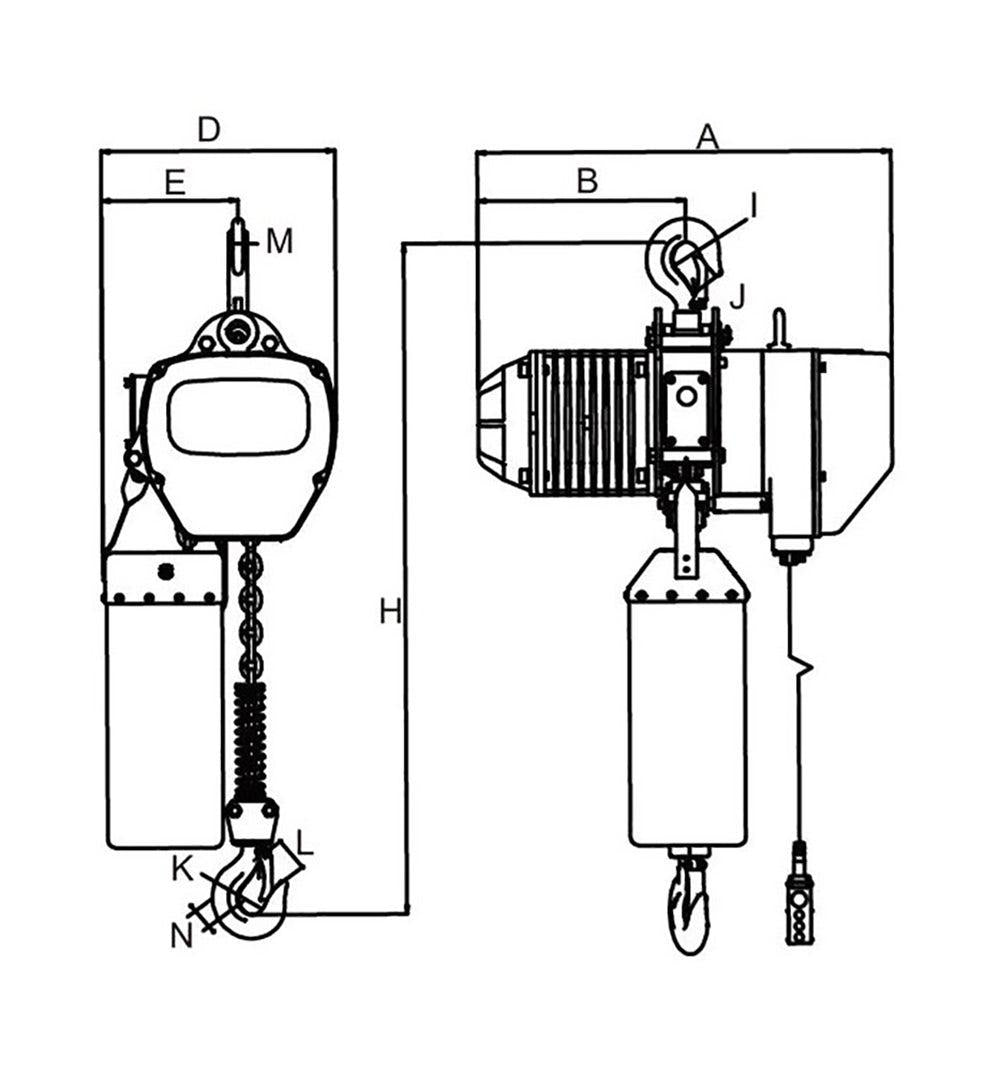

• Dimension (mm): A: 582, B: 280, D: 300, E: 176, I: 40, J: 31, K: 40, L: 31, M: 22, N: 22
• Capacity: 1 ton
• Standard Lift: 3 m
• Running Test Load: 12.5 kN
• Motor Power: 1.2 kW
• No. of Chains: 1
• Diameter of Chain: 7.1 mm
• Lifting Speed: 1.2/3.5 m/min
• Extra Weight per Metre of Lift: 2.2 kg
• Part No: TECH3PH2SP0103
• Barcode: 9343662004759
• Brand: TOHO
• Warranty: 1 Year
• Net Weight: 61 kg
• Product Dimensions (mm): Length: 560, Width: 480, Height: 380
