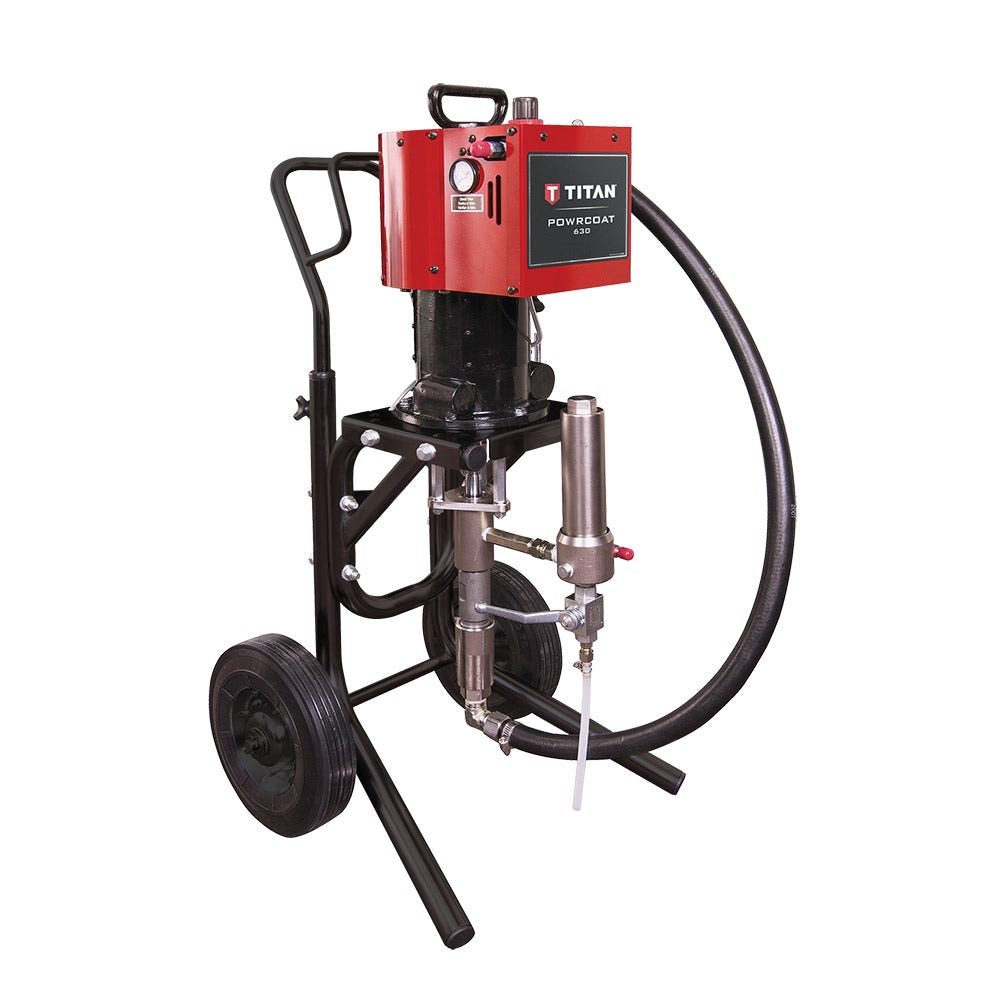

TITAN PowrCoat 630 Spray Pack 0533630SP

Titan Pneumatic PowrCoat airless spray packs, Innovative and proven technology with a hardened chrome fluid section. The three-step hardening process makes this one of the hardest, most durable fluid sections in the market today. The lubricated motors last longer, are more efficient and even quieter. AirCare not only lubricates but also minimizes icing with maintenance simple and inexpensive. All pumps in this range are sold as bare units on a trolley with the inclusion of a wall mount frame, flexible suction hose, high pressure filter (50 mesh), prime spray valve, air regulator with water trap and auto drain, automatic air motor lubricator, earthing wire and clamp. Ideal for light industry, fabrication, cabinetry and applications where a superior fine finish is required.

- High efficiency, anti-icing motor, auto lubricator for air motor.
- Modular filter, regulator, lubricator with open sight hole for easy inspection. High-capacity outlet filter reduces tip blockages.
- Heavy-duty cart with large 16 wheels & Heavy-duty hose wrap and gun holder, Heavy-duty crane hook.
- Comes complete on a trolley (can be converted to wall mount) with Flexible Suction Hose, High Pressure Filter (50 mesh), Prime Spray Valve, Air Regulator with Water Trap & Auto-drain, Automatic Air Motor Lubricator, Earthing wire & clamp.
- Includes 15m 1/4 Airless Hose, RX-Pro Airless Gun, 517 TR1 Tip and Tip Base

Specifications

- Ratio: 30:1
- Max Pressure: 3480 psi
- Max Flow Rate: 5.5 l/min
- Stroke Length: 4 inches
- Min Air requirement: 25scfm
- Fluid output per cycle: 61cc
