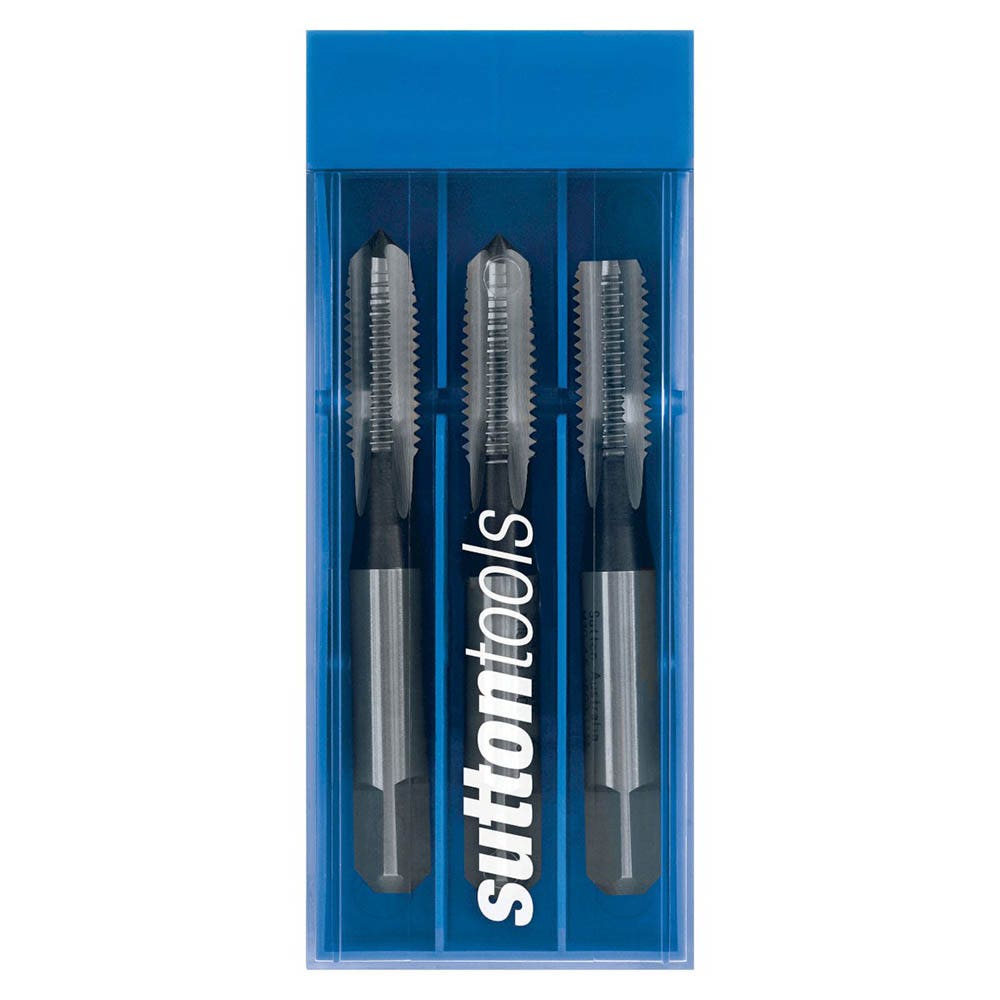

SUTTON MF18 x 1.5 Metric HSS Hand Tap Set - 3 Piece T9021807

Features

• General purpose use
• Suitable for materials up to 1000N/mm²
• Handles both through & blind holes
• Compatible with hand and machine operations
• Max depth of approximately 1 x d1
• Designation: N
• Material: HSS
• Finish: Brt
• Max cut depth: 1xD
• Shank form: A
• Standard: ISO529
• Thread form: MF
• Nut tolerance: 2B
• Lead: Set
• Limit: 2B
• Length l1: 112 mm
• Length l2: 37 mm
• Diameter d2: 14 mm
• sq: 11.2
• Length l4: 14 mm
• Pitch: 1.50

Specifications

• Part No: T9021807
• Barcode: 9311963038452
• Brand: Sutton
