SUTTON M8 x 1.25 Straight Flute Taps - Taper T3840800

SUTTON M8 x 1.25 Straight Flute Taps - Taper T3840800

$57.00 AUD
$75.90 AUD $57.00 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

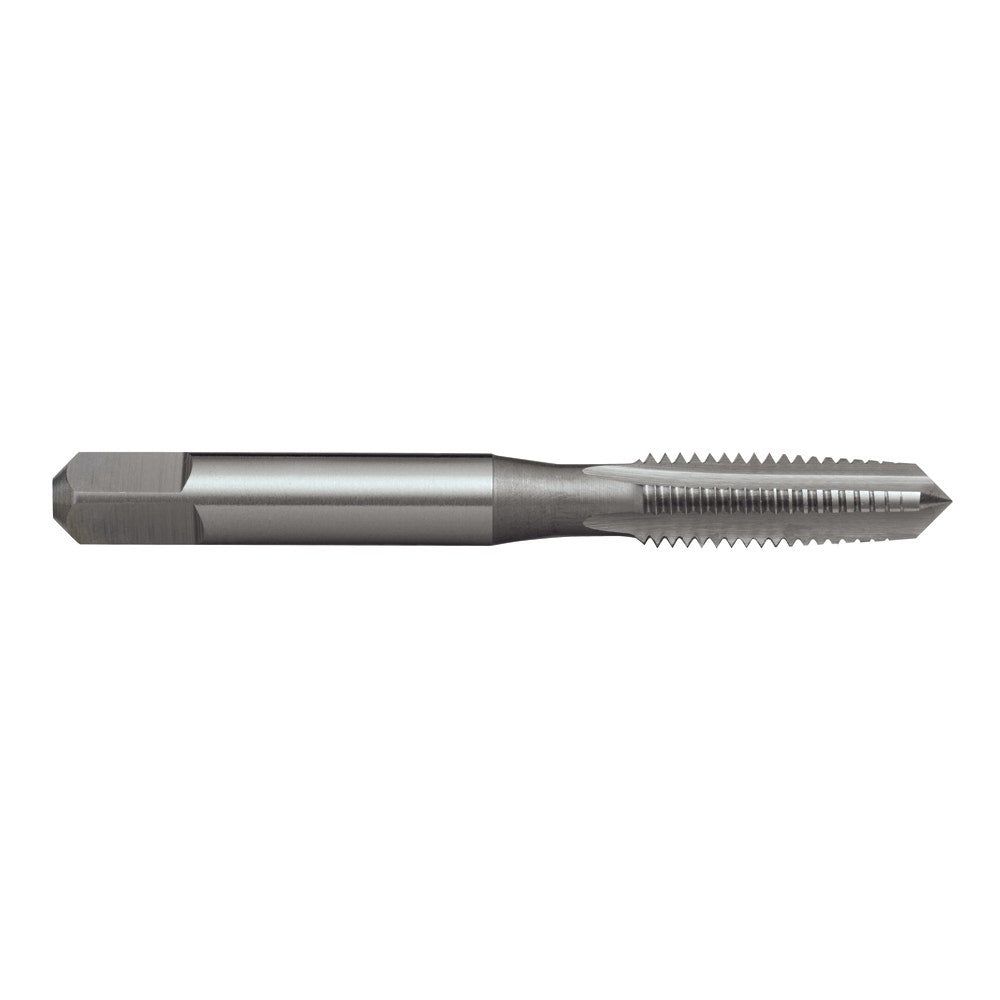

Sutton HSS Straight Flute Taper Thread Tap - M8 x 1.25

Sutton HSS Straight Flute Taper Thread Tap - M8 x 1.25

Introducing the Sutton HSS Straight Flute Taper Thread Tap, a highly efficient tool designed for general-purpose use. Engineered to accommodate materials with a tensile strength of up to 1000N/mm², this versatile tap is suitable for both hand and machine operations, making it an essential addition to your toolkit.

Key Features

  • General-purpose use
  • Compatible with materials up to 1000N/mm²
  • Optimal for both hand and machine operations
  • Depth capacity of approximately 1 x d1

Contents

  • 1 x Sutton HSS Straight Flute Taper Thread Tap

Specifications

  • Designation: N
  • Finish: Bright
  • Shank Form: A
  • Type: Straight Flute
  • Thread Form: M
  • Lead: Taper
  • Material: High-Speed Steel (HSS)
  • Max Cut Depth: 1 x D
  • Standard: ISO 529
  • Nut Tolerance: ISO 2 / 6H
  • Drill Diameter: Ø 6.8 mm
  • Pitch: 1.25
  • Size: M8
  • Part Number: T3840800
  • Brand: Sutton
  • Barcode: 9311963001319
  • Net Weight: 0.02 kg
  • Product Length: 98 mm
  • Product Width: 16 mm
  • Product Height: 16 mm
