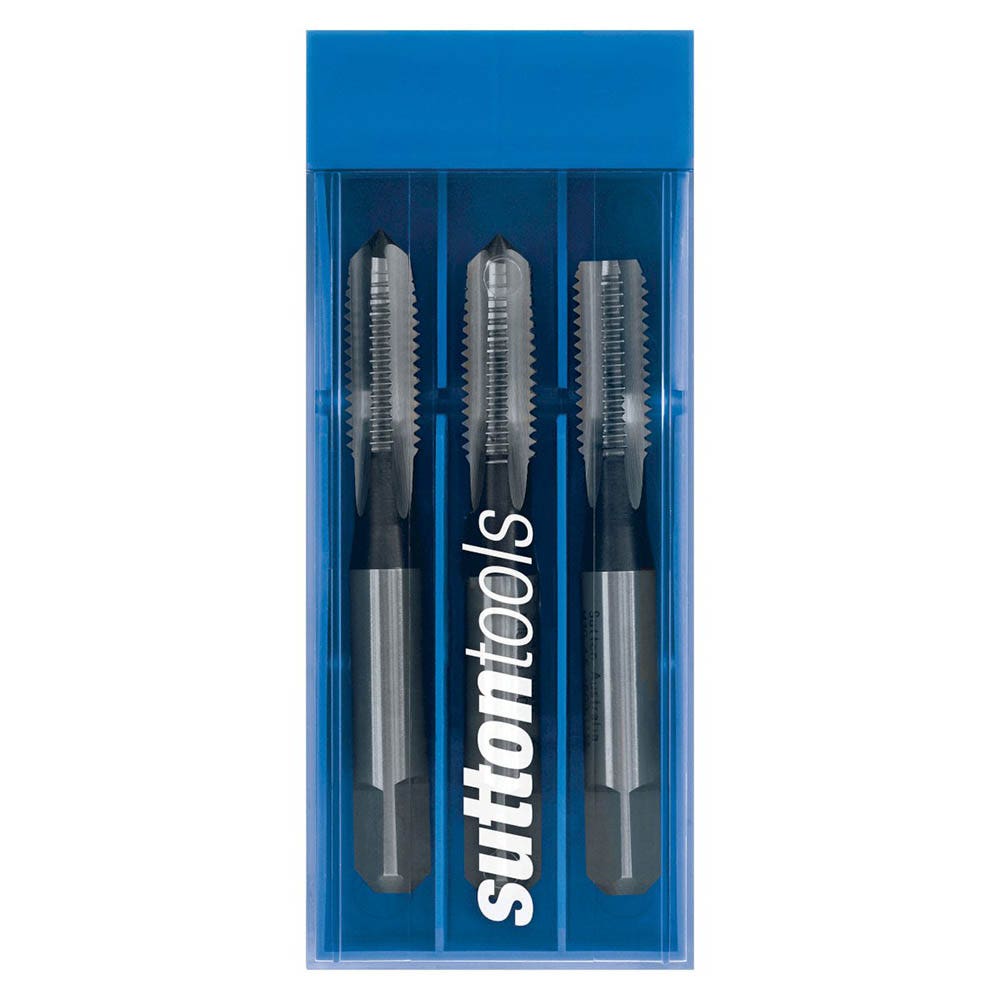

SUTTON M6 x 1 Metric HSS Hand Tap Set - 3 Piece T9010600

Features

• General purpose application
• Compatible with materials up to 1000N/mm2
• Usable for both hand and machine operations
• Max cutting depth of approximately 1 x d1
• Designation: N
• Material: HSS
• Finish: Brt
• Max Cut Depth: 1xD
• Shank Form: A
• Standard: ISO529
• Thread Form: M
• Nut Tolerance: ISO 2 / 6H
• Lead: Set
• Length l1: 66 mm
• Length l2: 19 mm
• Diameter d2: 6.3 mm
• sq: 5
• Length l4: 8 mm
• z: 3
• Pitch: 1.00

Specifications

• Part No: T9010600
• Barcode: 9311963004440
• Brand: Sutton
