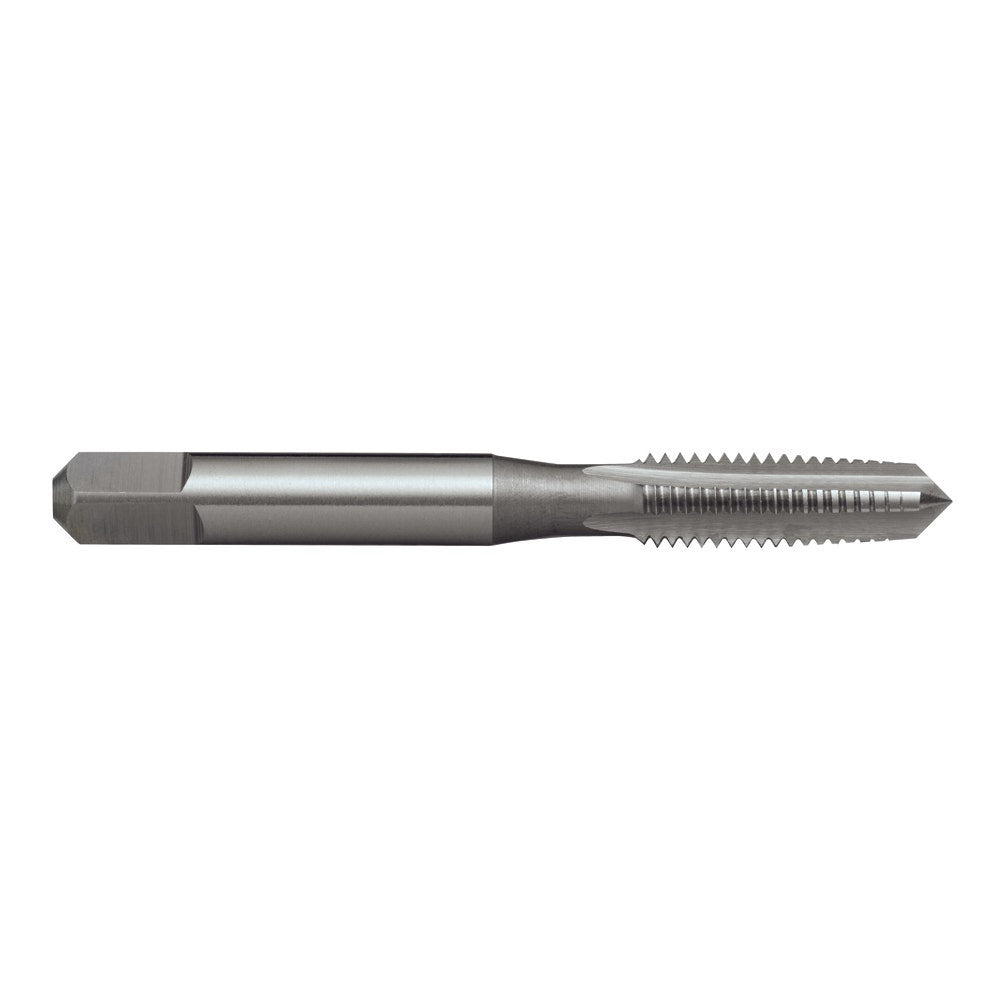

SUTTON M6 x 1.0 Straight Flute Taps - Taper T3840600

Features

• General-purpose usage
• Compatible with materials up to 1000N/mm²
• Suitable for hand and machine use
• Max cut depth: approx. 1 x d1
• Designation: N
• Finish: Brt
• Shank form: A
• Type: Straight Flute
• Thread form: M
• Lead: Taper
• Material: HSS
• Standard: ISO529
• Nut tolerance: ISO 2 / 6H
• Drill Ø: 5
• Pitch: 1

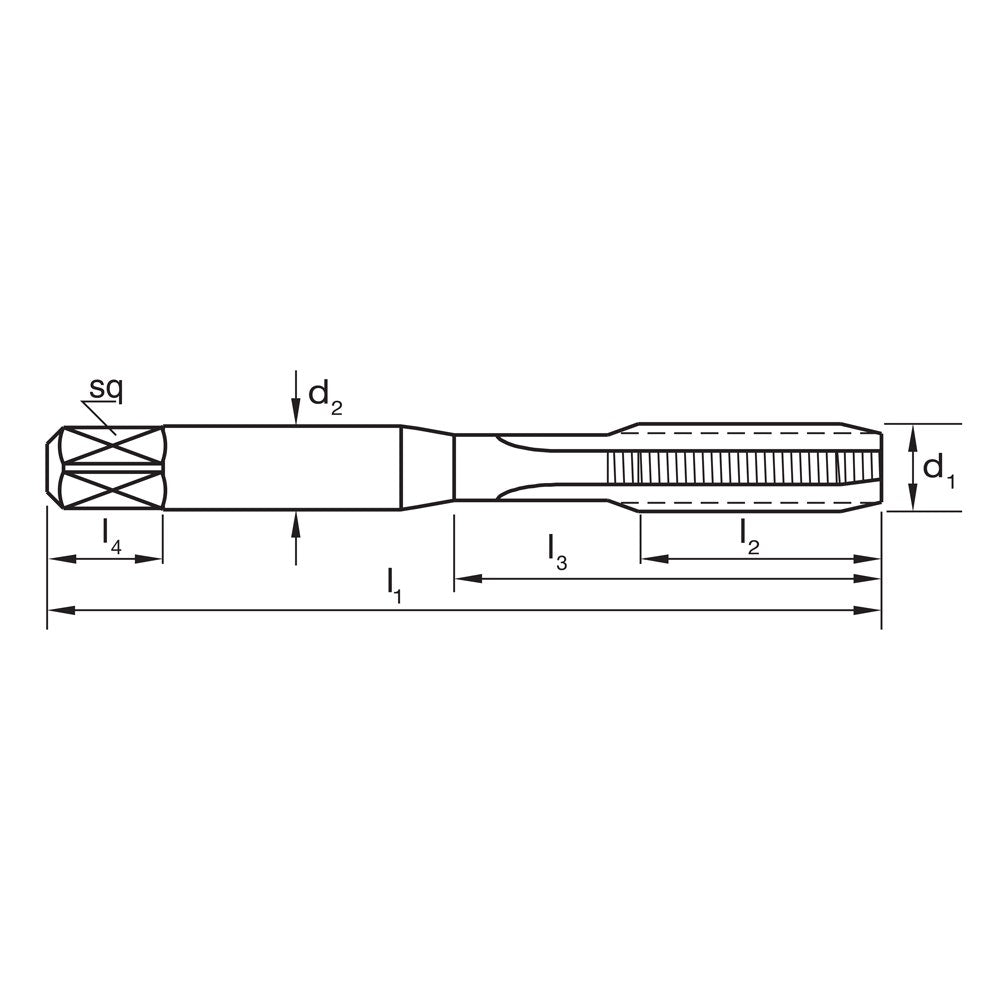

• Size - d1: M6
• Size - l2: 19
• Size - d2: 6.3
• Size - sq: 5
• Size - l4: 8
• Size - z: 3
• Max cut depth: 1xD

Specifications

• Part No: T3840600
• Barcode: 9311963000848
• Brand: Sutton
• Net Weight (kg): 0.015
• Product Length (mm): 78
• Product Width (mm): 10
• Product Height (mm): 10
