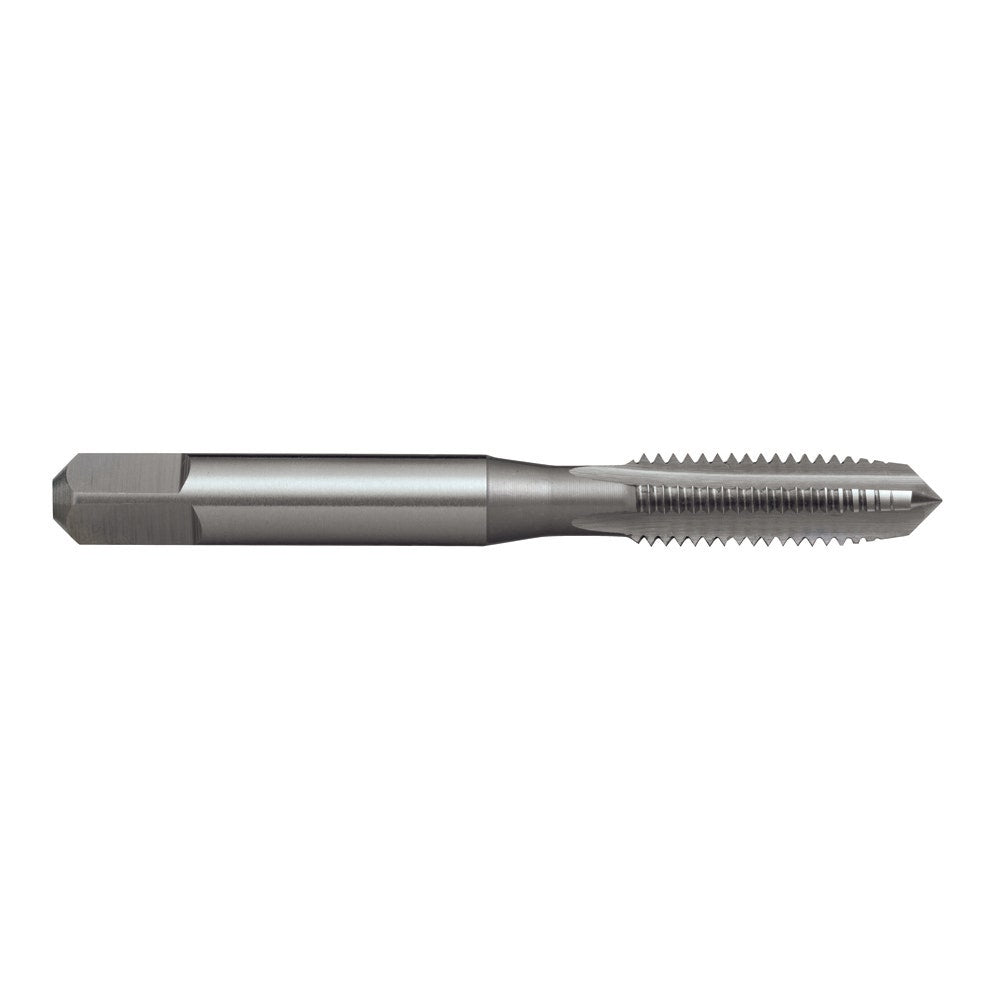

SUTTON M6 x 1.0 Straight Flute Taps - Intermediate T3850600

Features

• General-purpose use
• Compatible with materials up to 1000N/mm²
• Suitable for both manual and machine operations
• Depths of approximately 1 x d1
• Designation: N
• Finish: Brt
• Shank Form: A
• Type: Straight Flute
• Thread Form: M
• Lead: Intermediate
• Material: HSS
• Max Cut Depth: 1xD
• Standard: ISO529
• Nut Tolerance: ISO 2 / 6H
• Drill Ø: 5
• Pitch: 1

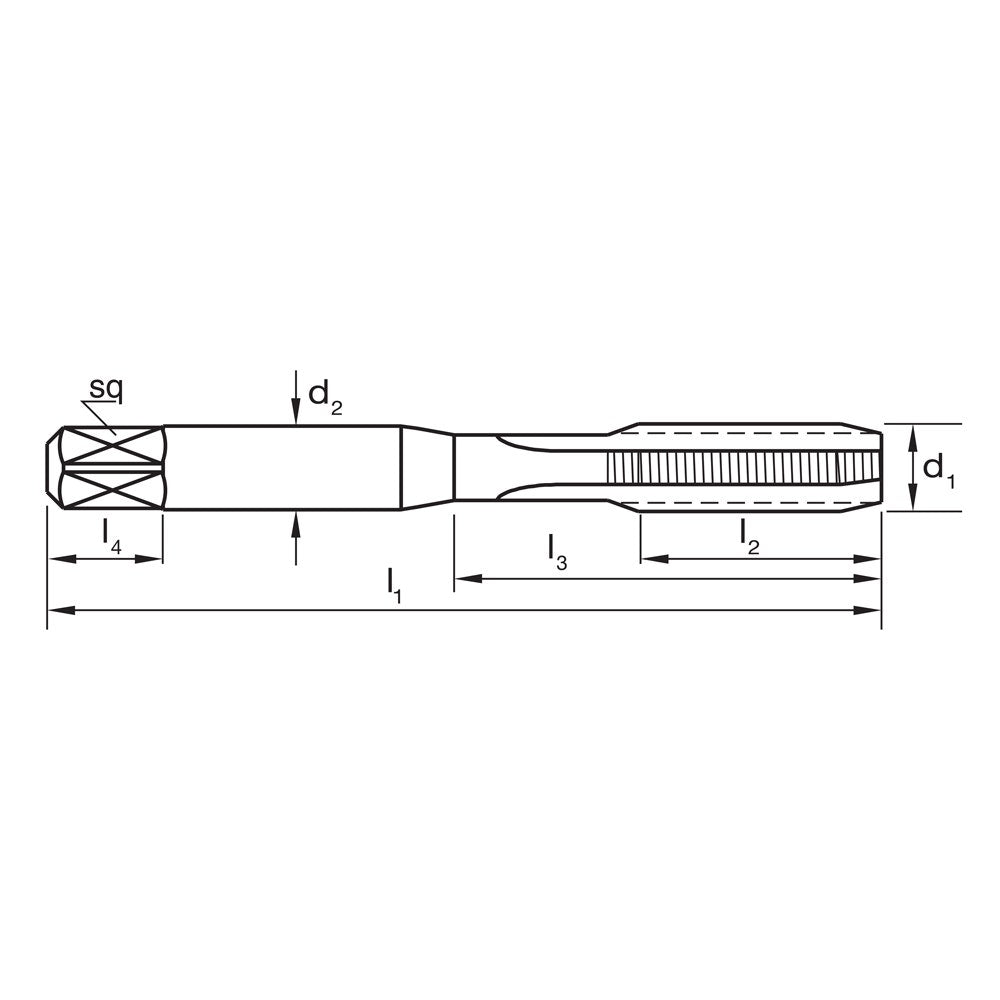

• Size details: d1: M6, 11: 66, l2: 19, d2: 6.3, sq: 5, l4: 8, z: 3

Specifications

• Part No: T3850600
• Barcode: 9311963000794
• Brand: Sutton
• Net Weight (kg): 0.014
• Product Length (mm): 78
• Product Width (mm): 10
• Product Height (mm): 10
